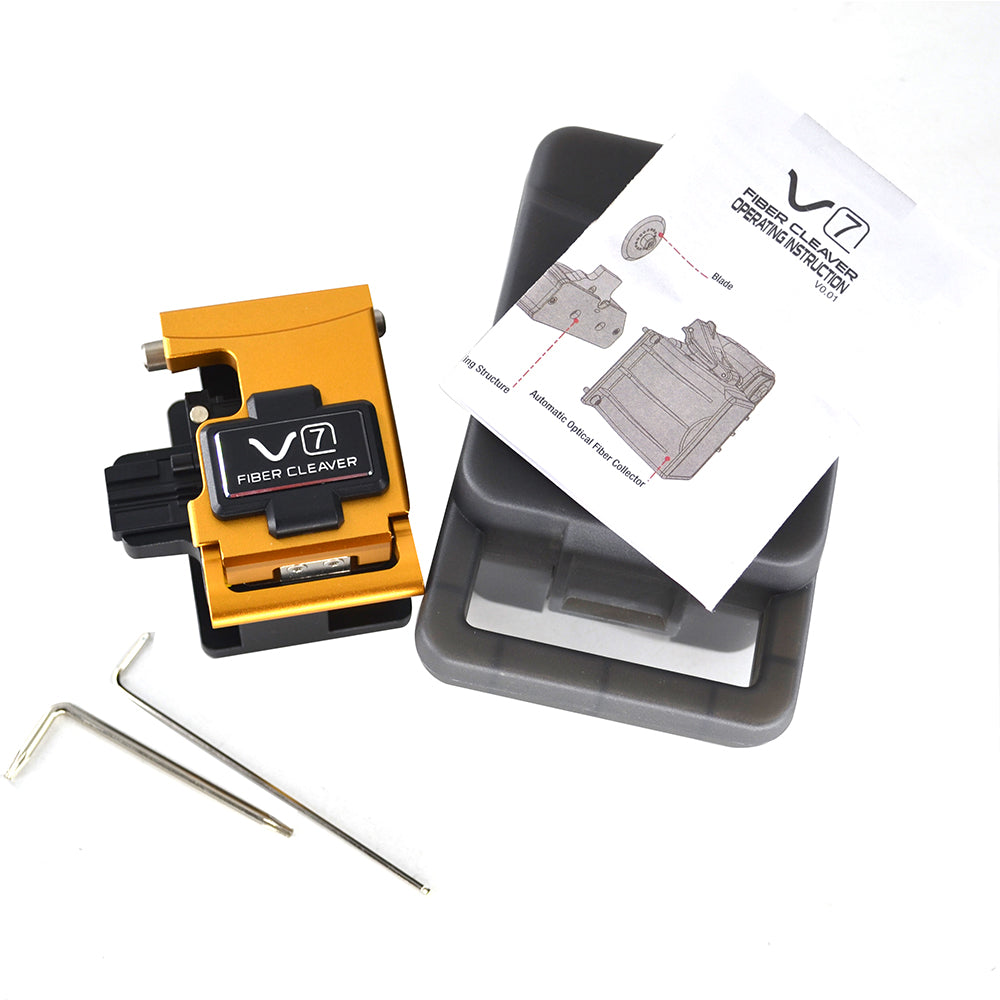

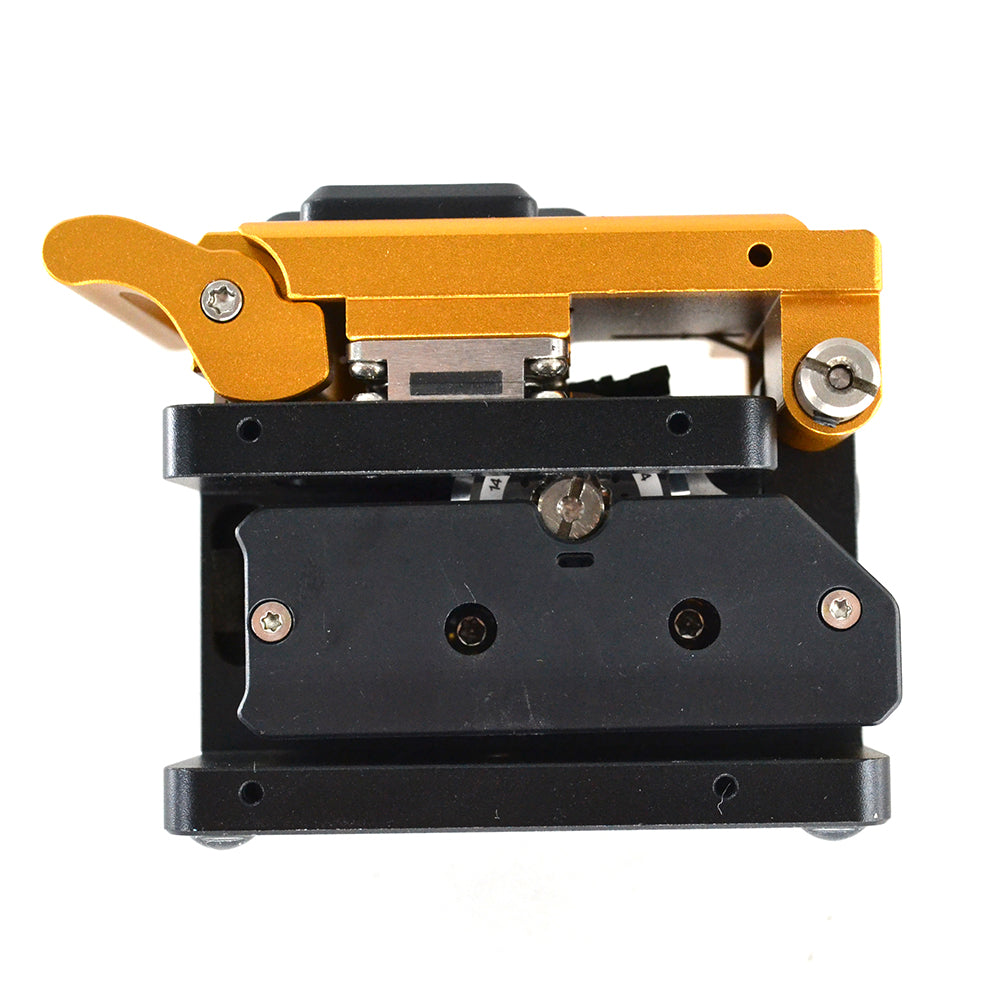

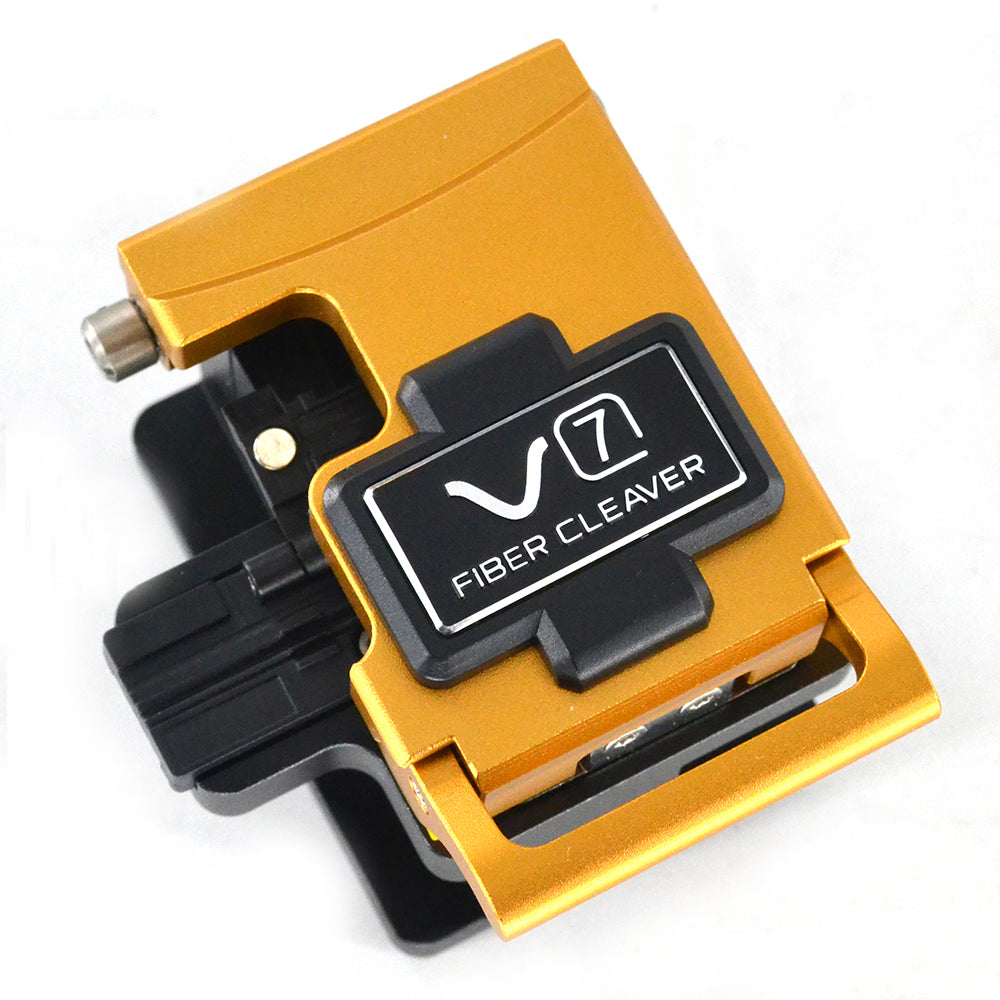

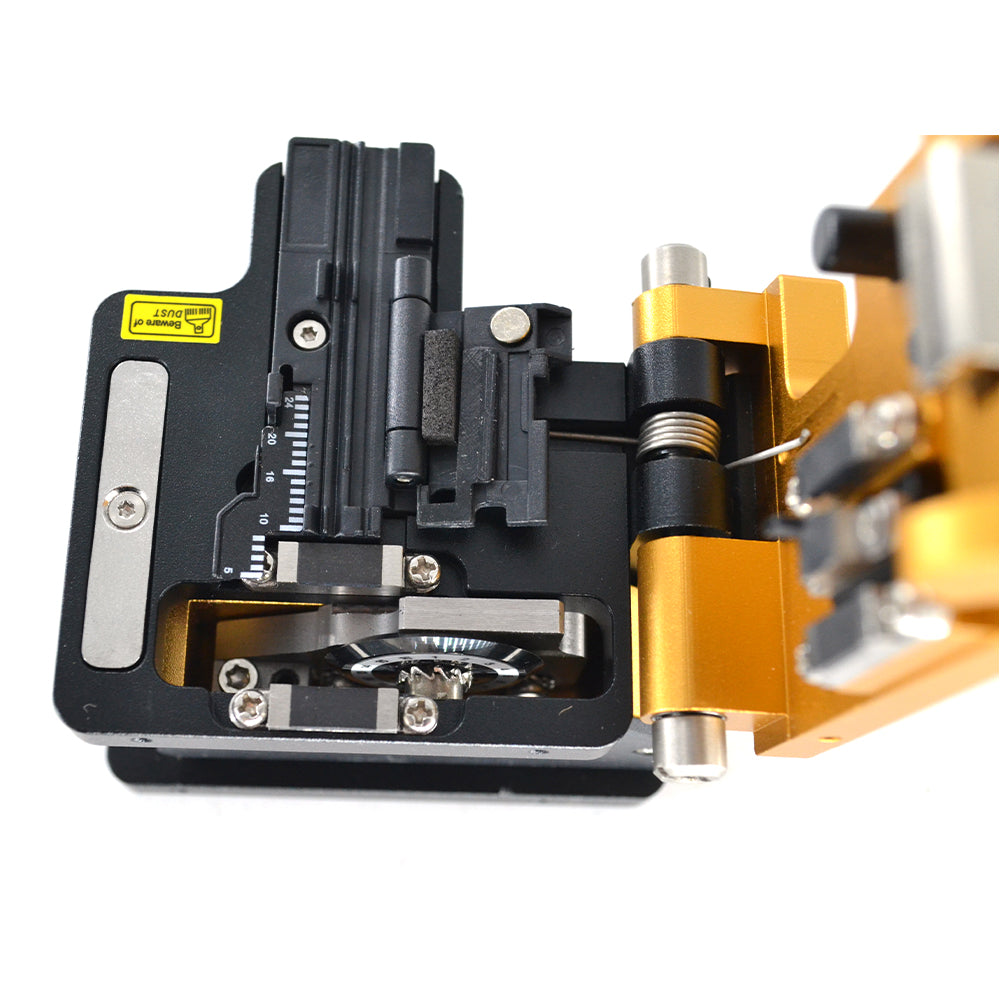

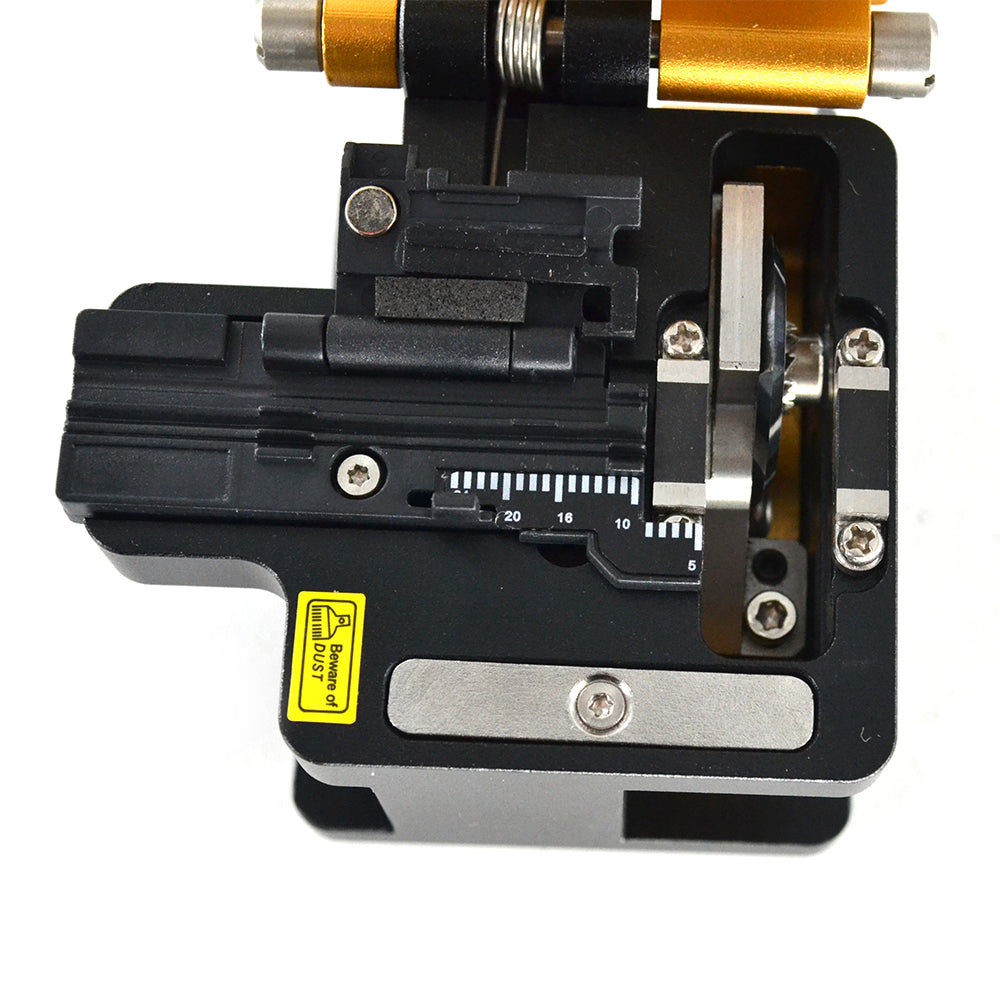

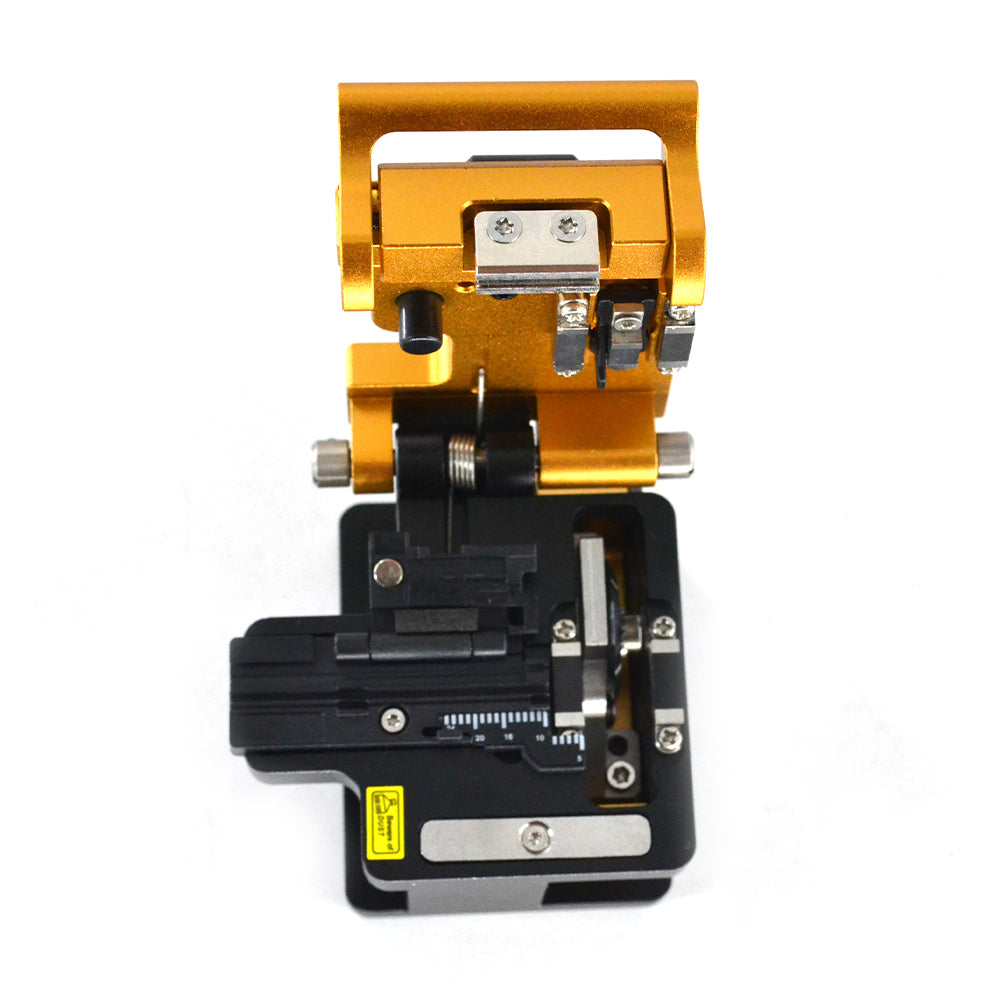

Product Attributes
1. High precision cleaving for ribbon fiber cable as well as 250μm, 900μm,
2. 3.0mm and flat cable with universal holder.
3. Durable blade lifetime over 48,000 fiber cleaves.
Features:
Compatible with all VIEW series fusion splicer
Available for single and ribbon cleaving up to 12 fibers
Easy and simple 2 step operation
Automatic fiber shard collector (optional)
Specifications
Type
Single & ribbon fiber cable cleaver
Cladding Diameter
125μm
Cleaved Length
Single fiber: 8~20mm / Ribbon fiber: 10mm
Applicable Fiber Cable
Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable
Ribbon fiber: 2 to 12 ribbon fiber cable
Typical Cleaved Angle
Less than 0.5 Degrees
Typical Blade Life Span
Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)
Operation Steps
2 Steps
Reclaim Function
Blade pushback
Holder
Single: Universal holder
Ribbon: Replaceable holder
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
