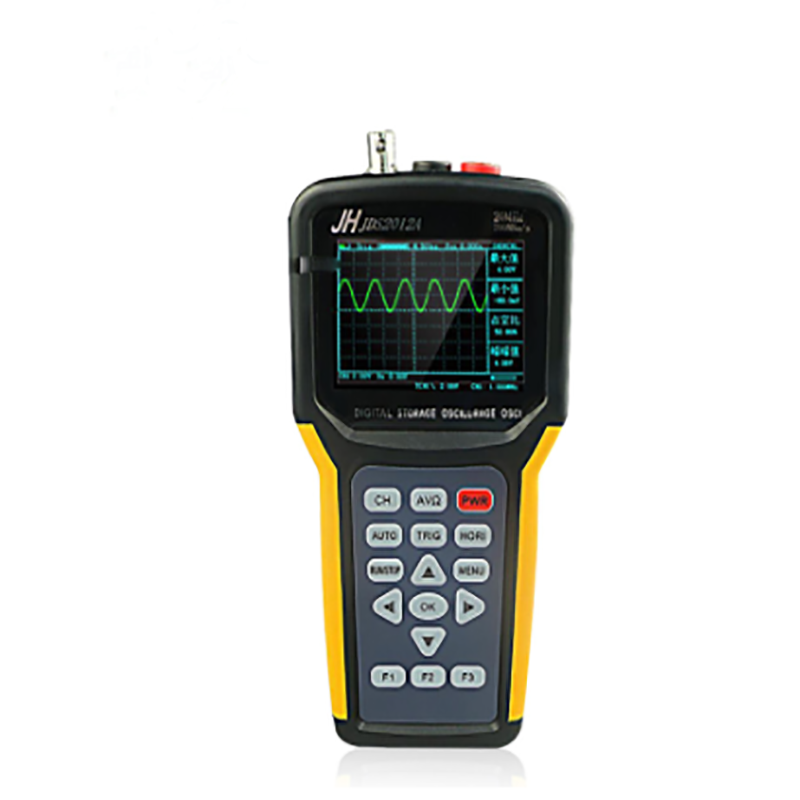

Specifications:
■ ARM processor+FPGA programmable logic+high-performance dual AD9288 chips, high-performance sampling
■ Single channel, maximum simultaneous real-time sampling rate 200MSa/s, bandwidth 20M
■ Vertical resolution, 8 bits; Vertical accuracy,+/- 3%
■ Impedance, 1MQ 25pF; Coupling, DC; Display mode, Y-T, storage depth, 2K
■ Trigger mode, automatic, normal and single time; Trigger type, rising edge, falling edge
■ Input range: 10mV-5V, 100mV-50V (probe 1X10) (1, 2, 5 steps)
■ Time base range: 10ns-5s (1, 2, 5 steps) 100ms-5s (scan)
■ Screen: 3.2 inch, 16 bit true color, tft, 320 * 240
■ Battery: 3000+MA lithium battery (single battery works continuously for about 5 hours)
■ Size: 202 * 100 * 35 (mm)
FUNCTION：

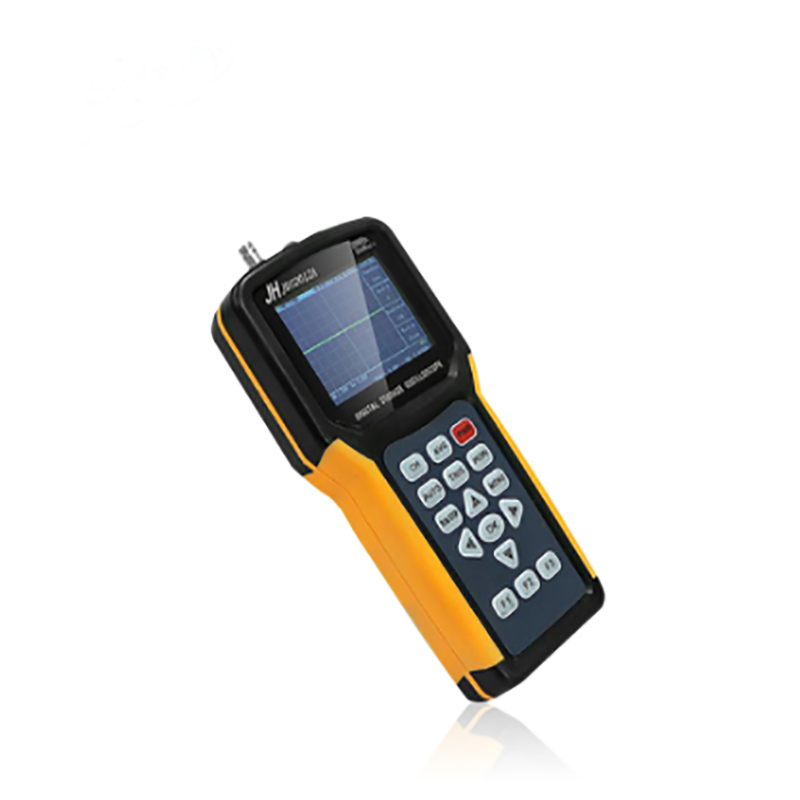

■ New ultra-thin appearance design, small size, light weight, more convenient to carry
■ Color TFTLCD display, 320 * 240 resolution, clearer and more stable waveform display
■ Dual analog channels (oscilloscope is single channel analog)
■ Support USB storage device
■ With edge trigger function, automatic detection support (50Hz - 40MHz)
■ Support time and voltage cursors
■ Multiple waveform mathematical addition function √ Support Chinese and English menu display
■ Multiple display styles: color display, black and white display
■ Support automatic shutdown function and power saving mode: time can be set, backlight brightness can be adjusted
■ Waveform can be saved by screenshot
■ Long standby time: a single battery can work continuously for about 5 hours
■ With digital multimeter function (only JHJDS2012A series)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
