Feature:

     1. This multifunctional digital oscilloscope is powerful in function, practical to use and has long service life.

2. High-performance sampling channel with sampling rate up to 500MSa/S and maximum bandwidth up to 80MHz.

3. This digital oscilloscope uses a color TFT screen to display clear and stable waveforms and is reliable to use.

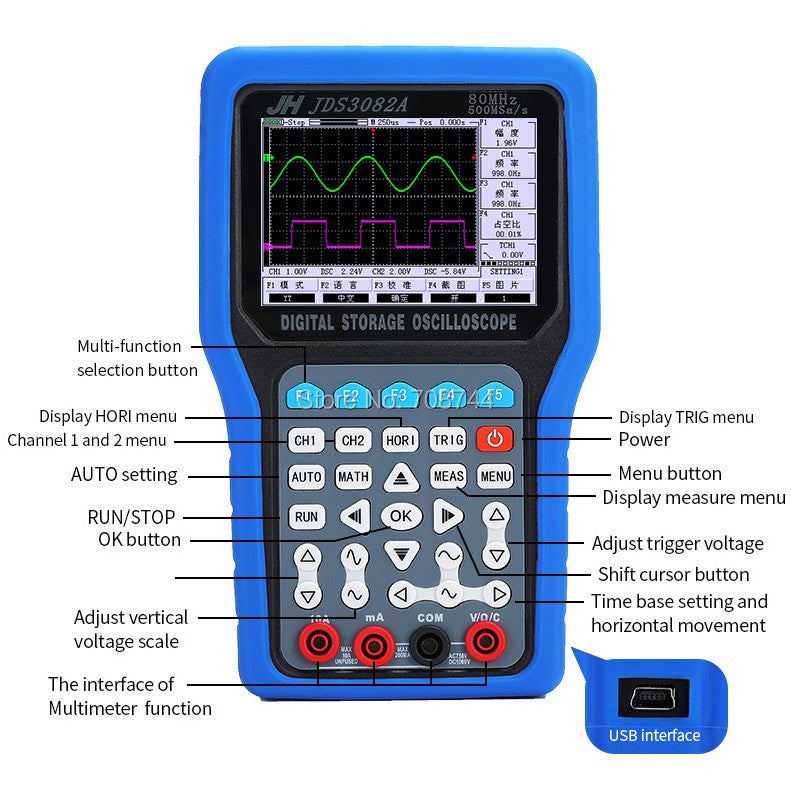

4. 2 analog channel handheld digital oscilloscope, easy to operate, easy to use, portable and easy to carry.

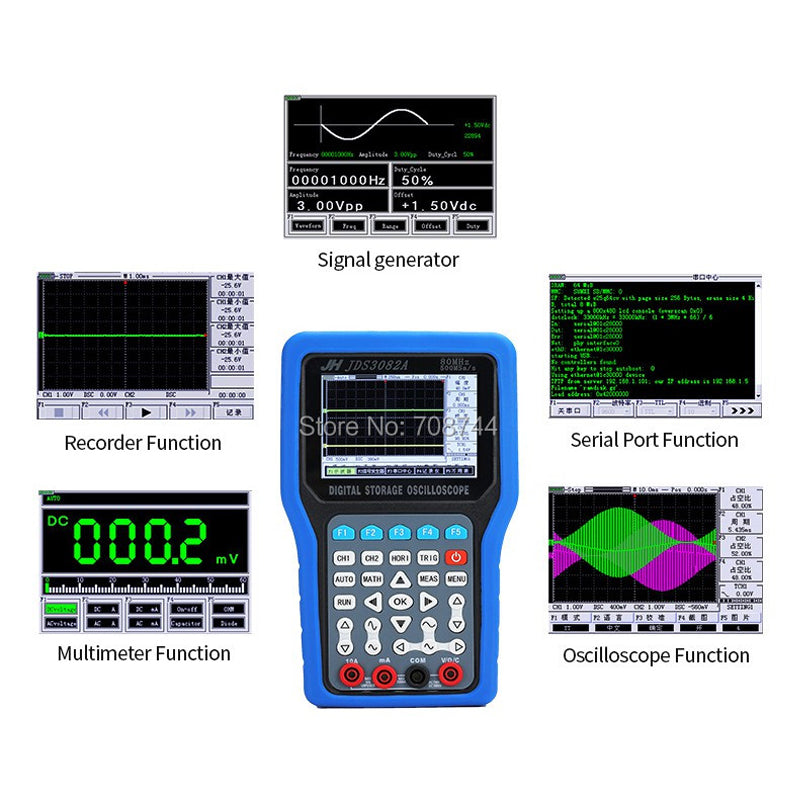

5. This instrument supports recorder function, signal generator function, serial port center function, multimeter function and oscilloscope function.

  Specification:

     Condition: 100% Brand New

Item Type: Digital Oscilloscope

Material: ABS + Metal

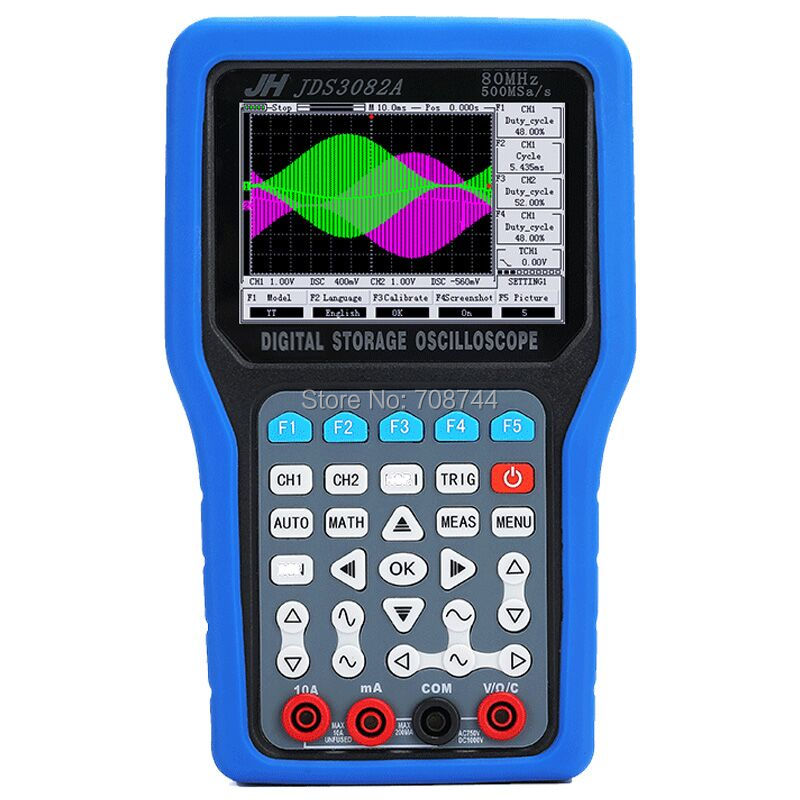

Model: JDS3082A

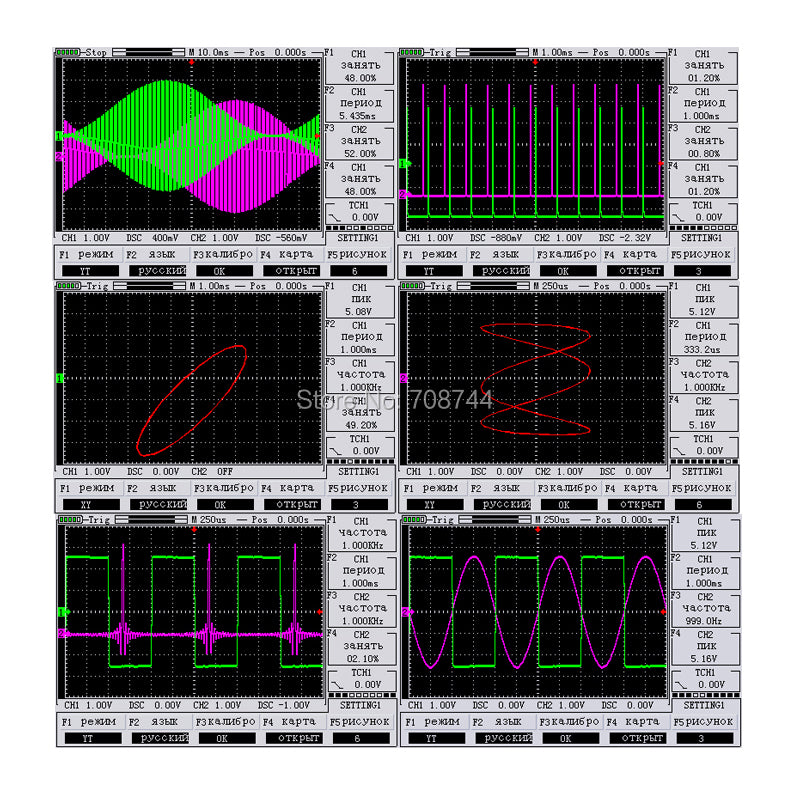

                  Oscilloscope Function

                Maximum Sampling Rate

      500MSa/S

                Analog Channel

      2

                Digital Channel

      No

                Bandwidth

      80MHz

                Vertical Resolution

      8 Digits

                Vertical Gear

      10mV-5V (Probe 1X)

                100mV-50V (Probe 10X)

                1V-500V (Probe 100X)

                (1, 2.5, 5 Steps)

                Input Resistance

      1MΩ2%, 20±5pF

                Input Coupling

      AC\DC

                Display Mode

      Y-T, X-Y

                Input Voltage

      40V (Probe 1X)

                400V (Probe 10X)

                4000V (Probe 100X)

                Time Base

      10ns-50ms (1, 2.5, 5 Steps)

                100ms-5s (Scan)

                Storage Depth

      16k per Channel

                Trigger Mode

      Automatic, Normal, Single

                Trigger Type

      Rise, Fall

                Automatic Detection

      Support (50Hz-60MHz)

                Computation

      CH1+CH2, CH1-CH2, CH2-CH1

                Measuring

      -to-, Duty Cycle, Frequency, Period, Maximum, Minimum, Average, Root Mean Square

                Cursor

      Time, Voltage

                Multimeter Function

                Full Scale Reading

      6000 Count

                DC Voltage

      60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V

                AC Voltage

      60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V

                DC Current

      60.00mA/600.0mA, 6.000A/10.00A

                AC Current

      60.00mA/600.0mA, 6.000A/10.00A

                Resistance

      600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ

                Capacitance

      40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF (Use this function to maintain 30s at both ends of the capacitance)

                Diode

      0V~2.0V

                On-off Detection

      Detect in 600.0Ω Level, Make a Sound When Below 30Ω

                Signal Generator

                Frequency

      Sine (1Hz-20MHz), Square (1Hz-5MHz), Triangular / Ramp (1Hz-1MHz)

                Duty Cycle

      0%-100%

                Amplitude

      100mV-4V

                Offset

      +\- (0V-2V)

                Serial Port Center

                Baud Rate

      115200-1200

                Data Bit

      8, 9

                Check Digit

      No Parity, Odd Parity, Even Parity

                Stop Bit

      1, 0.5, 2, 1.5

                Decimal

      10, 16

                Recorder

                Time Base

      100ms-5s

                Record Length

      Record a set of waveforms per second, up to ten minutes

                Other

                Screen

      4.5 Inch, 16-bit True Color, TFT 400x272

                Battery

      2 x Battery (18650)(Battery Not Included package), can work continuously for 8-10 hours

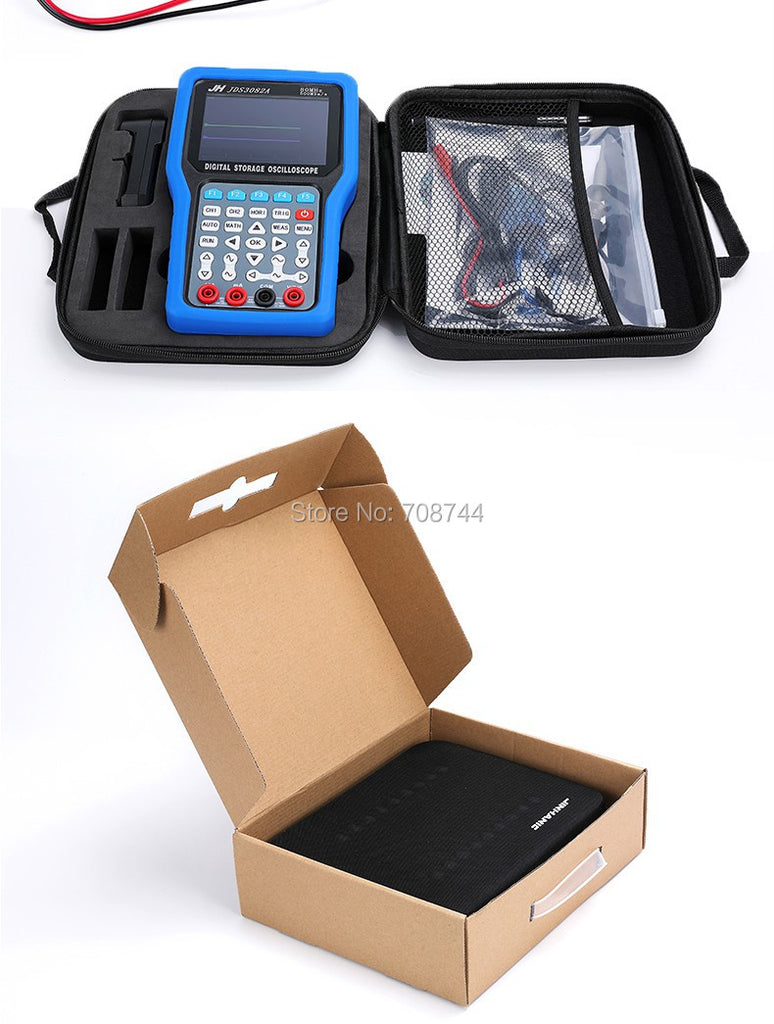

  Package List:

     1 x Oscilloscope

     2 x Probe

     1 x Signal Source Line

     1 x Pair of Test Lead

     1 x Mini USB Data Cable

     1 x English User Manual

     1 x Disk

     1 x Battery Charger

     1 x Probe Calibration Kit (1 x Probe Adjustment Tool, 2 x IC , 8 x Mark Ring)

     1 x Lens Film
