Specifications:
Oscilloscope parameters:

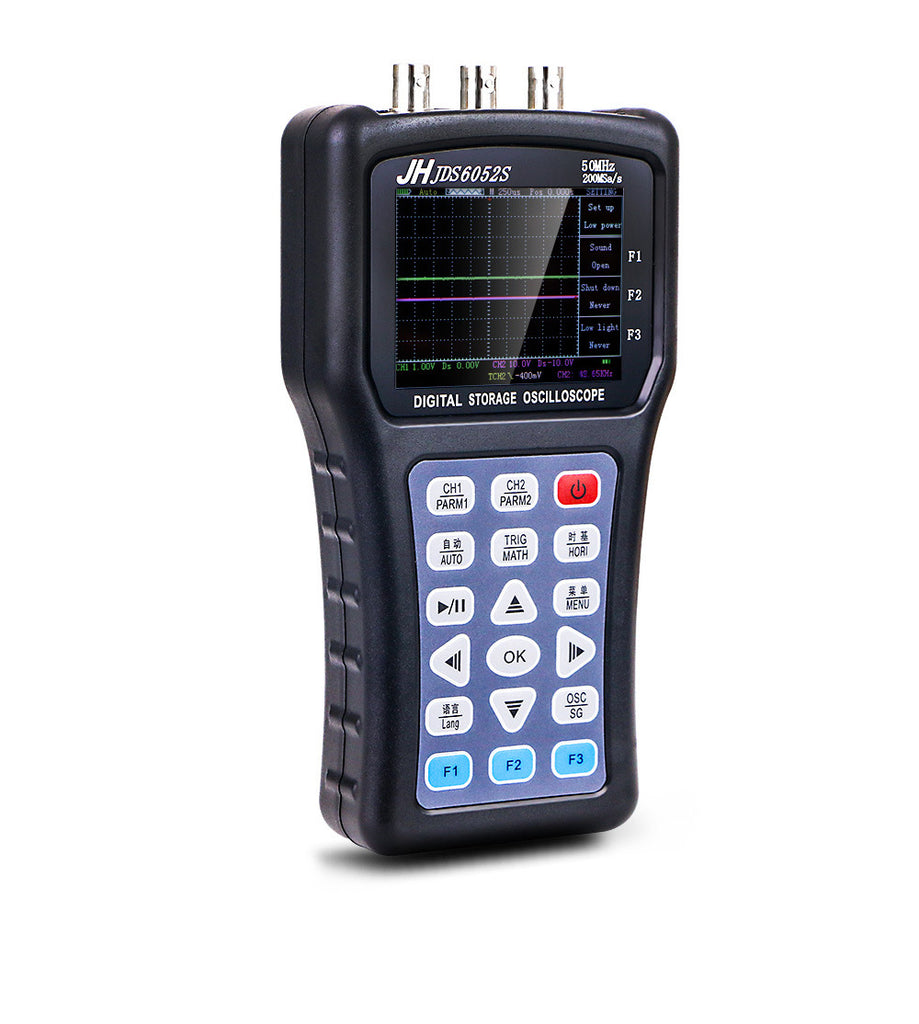

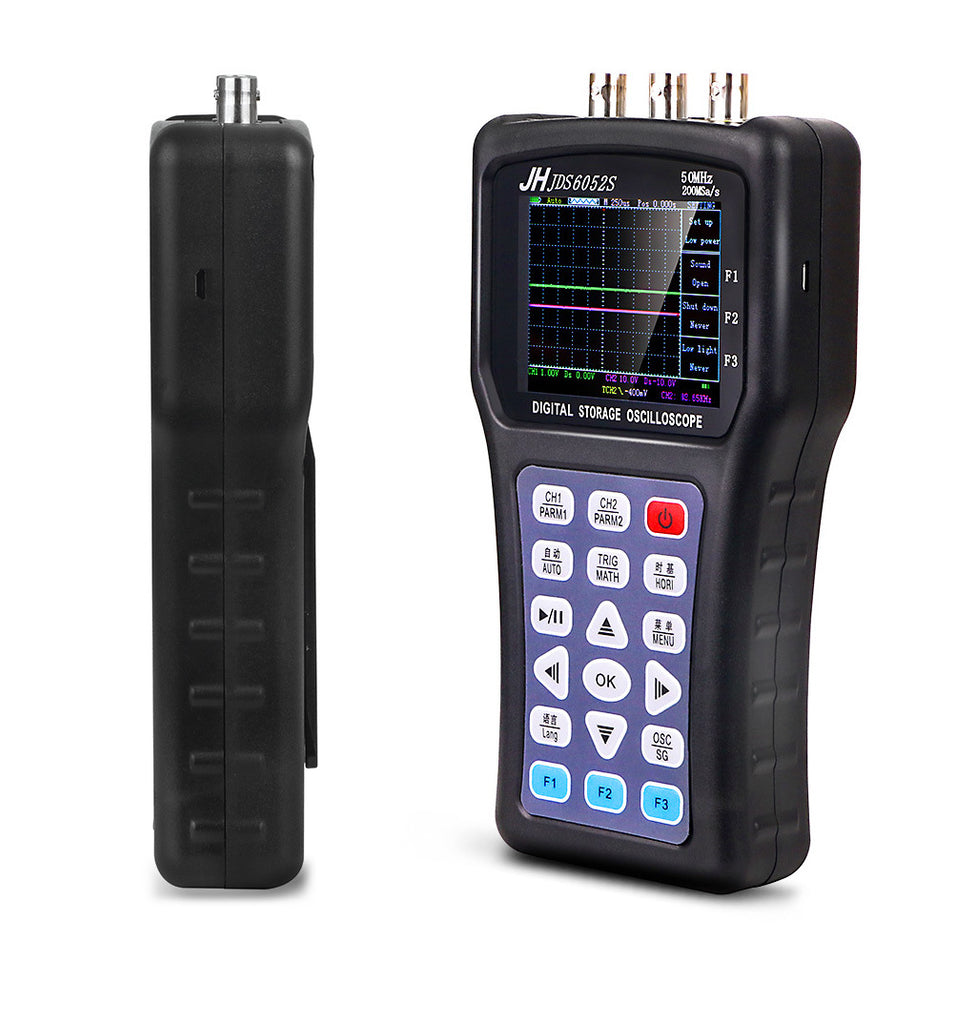

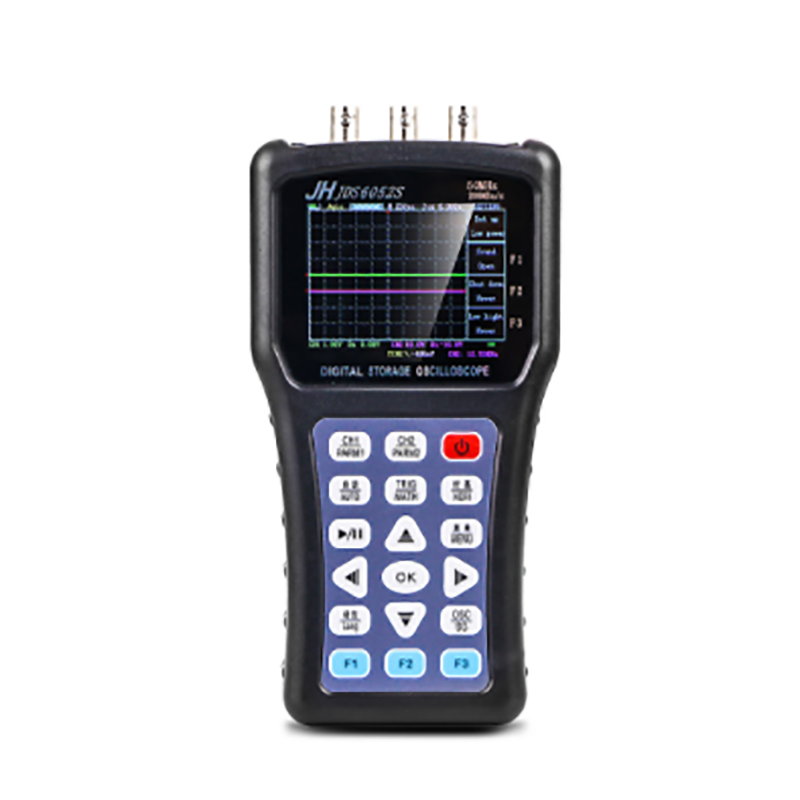

Model: JDS6052S

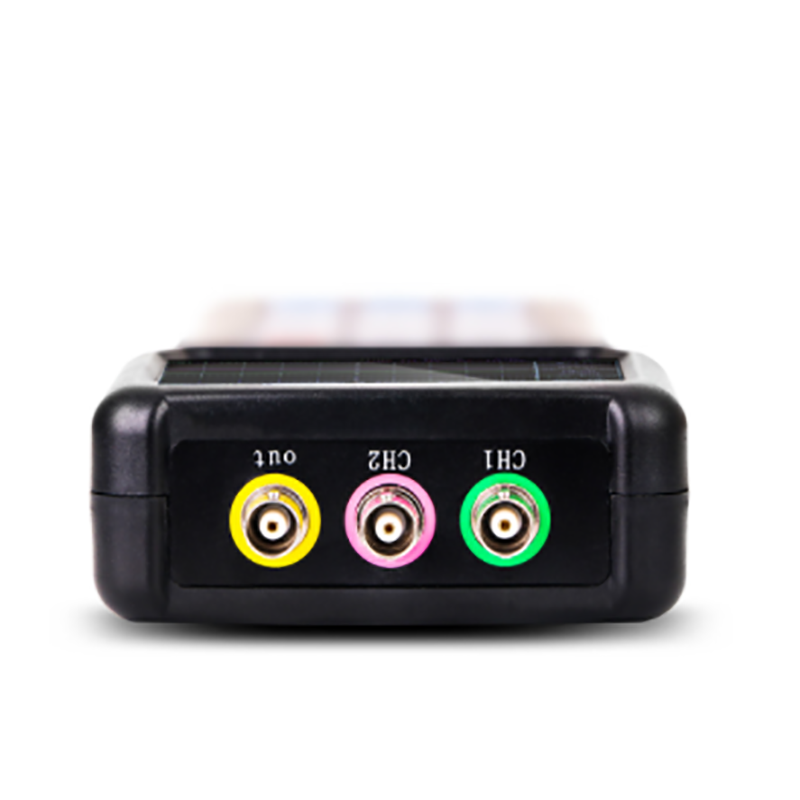

Number of channels: 2
Real time sampling rate:
CH1 200MSa/s for single channel CH1, CH2 10OMSa/s for dual channel
Bandwidth: 50M for single channel and 25M for dual channel
Vertical resolution: 8 bits
Vertical gear: 10mv - 5V (probe × 1) 100mV - 50V (probe x10) 1,2,5 steps
Impedance: 1MΩ 25pF
Coupling: DC, AC
Display mode: - T/x-Y
Input voltage: 40V (probe × 1 ) ; 400V (probe x10); Use high pressure probe
Time base range: 12.5ns - 5s 100ms - 5s is scan mode
Storage depth: 3K per channel
Trigger depth: automatic, normal and single
Trigger type: rising edge, falling edge
Automatic detection: 50Hz - 20MHz
Cursor measurement: time, voltage (manual mode)
Recordable comparison waveform: 2
Screenshot function: 6 bmp format
Digital calculation: CH1+CH2, CH1-CH2, CH2-CH1
Self calibration: support
Function signal generator
Number of channels: 1
Frequency:
Sinus wave (1Hz-5MHz) Square wave (1Hz-1MHz)
Forward sawtooth (1Hz-1MHz) Reverse sawtooth (1Hz-1MHz)
Amplitude: 100mV - 8V
Offset:+- (0V-4V)
Duty cycle: 0% - 100%
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
