Specification

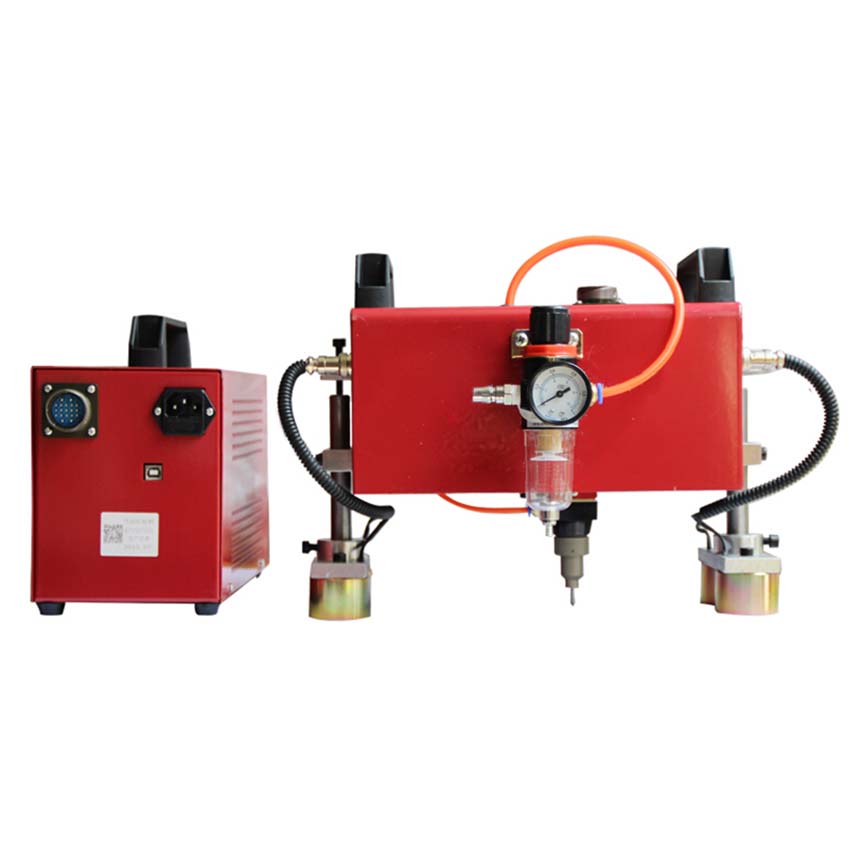

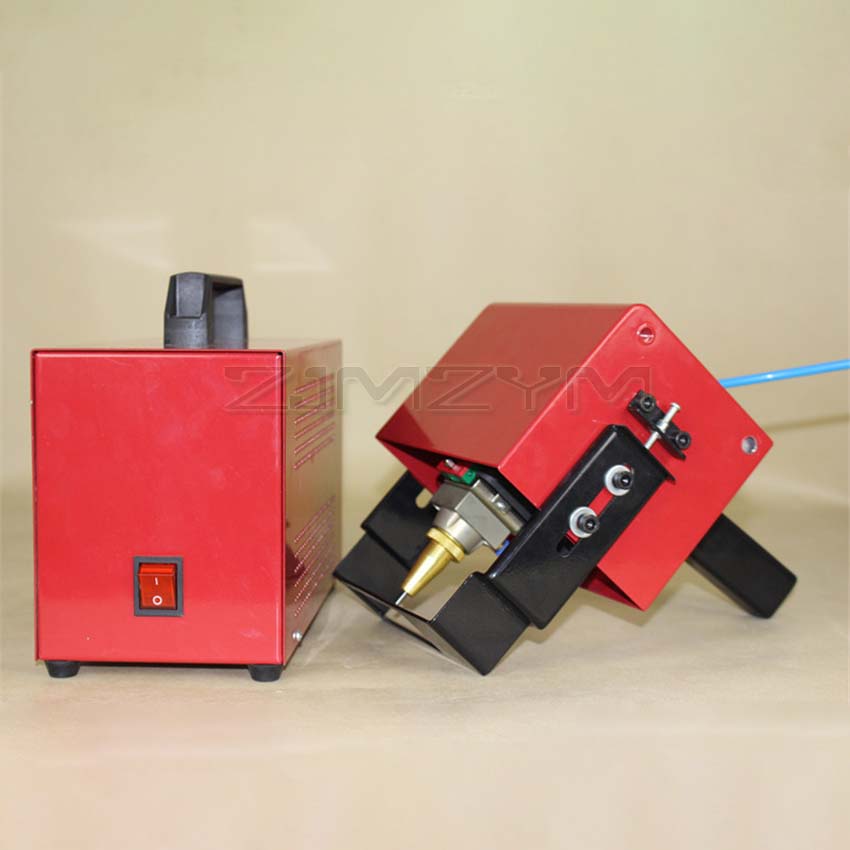

                                          Name: Portable pneumatic marking machine

         Model: KT-QD05

         Marking banner: 150*50/ 120*40 / 80*20 / 50*20

         Marking speed: (3MM high) English, numbers 1-4 per second (adjustable)

         Marking depth: 0.1-2MM, depending on the hardness of the test material

         Repeatability: 0.04mm

         Printing speed: 3-5 No. 2 characters per second or 60mm straight line (speed adjustable)

         Marked content: English, numbers, punctuation, Chinese, graphics

         Hardness requirement: HRC≤60

         Voltage: 220V±10% 50HZ

         Air source: 0.2-0.6MPa, dry and pure

         Ambient temperature: 0-400C

         Overall power: ≤400W

         Lifting range: 300mm

         Printing accuracy: 0.02mm, can print 1*1mm characters

         Printing range: 150*50, 120*40, 80*20, 50*20

         Features:

         1. It can automatically print the marking work of production serial number, VIN code,

         production date, production batch, special graphic symbols, etc.

         2. It can be connected to the Internet, and the printed content can be automatically

         stored and traceable; the input content will not be damaged due to power outages or

         shutdowns, and can be saved and retained at the same time.

         3. Standard printing interface technology, system fault diagnosis, and communication

         with the host computer, X reset, Y reset and printing status indication.

         4. It has the dual diagnosis function of manual test and software automatic test.

         5. 64 subdivision drives, linear guides, high-precision stepping motors, reliability, printing

         accuracy, and high repeat accuracy.

         Applications:

         The portable marking machine is suitable for fieldwork, large-scale work and modification

         of marks in other places. The equipment is light in weight, small in size, and easy to carry.

         It can be widely used in refitting factories, automobile sales companies, mining machinery,

         petroleum machinery, ships, engine manufacturing and other industries. It is also suitable

         for repairing and printing of modified models

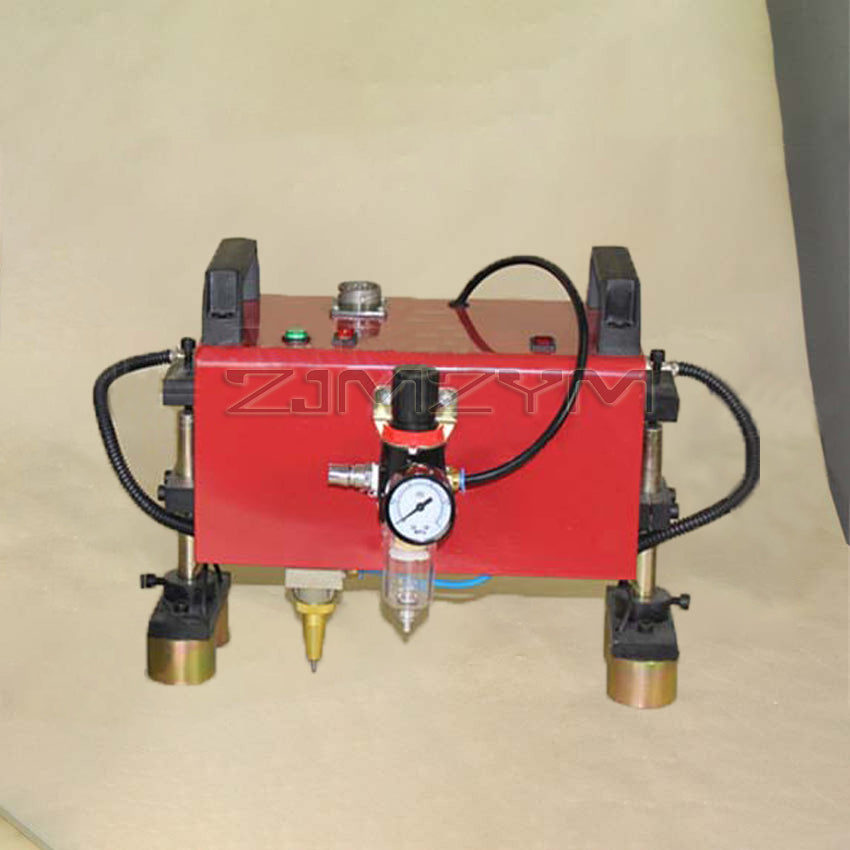

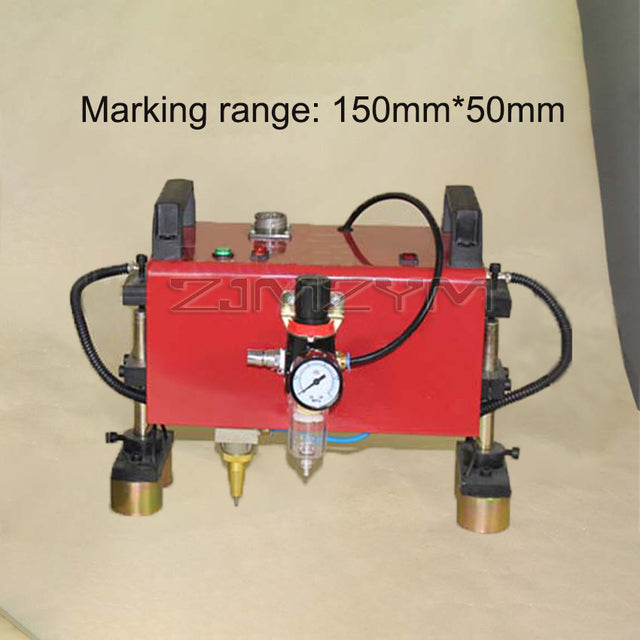

          150*50MM for truck frame

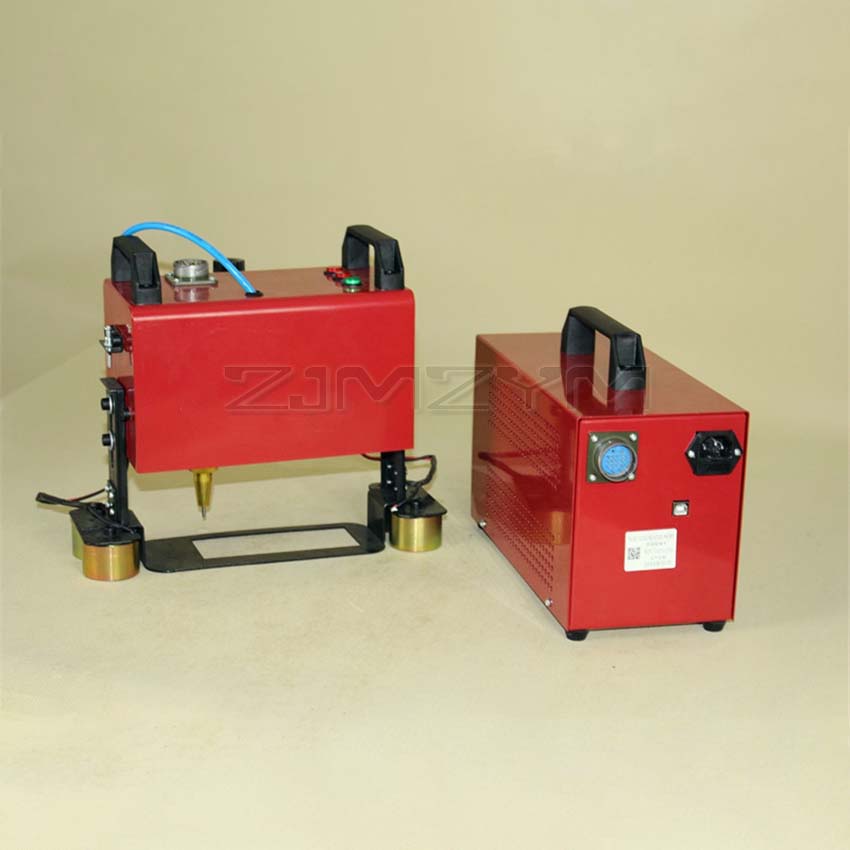

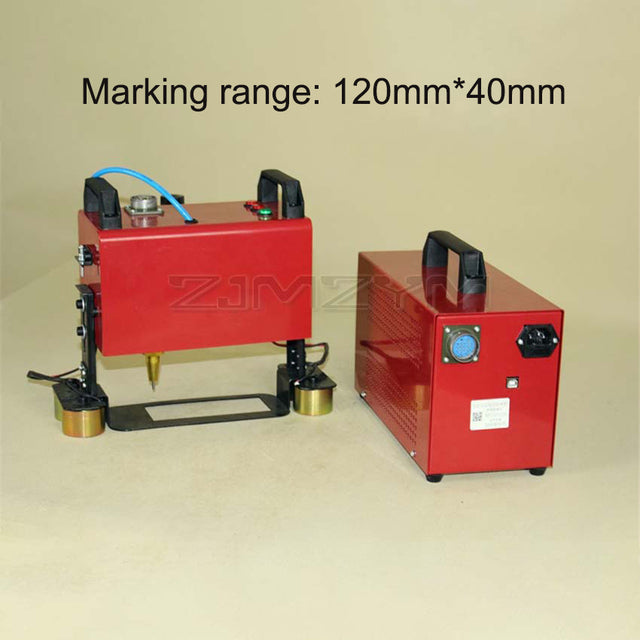

         120*20mm for car frame

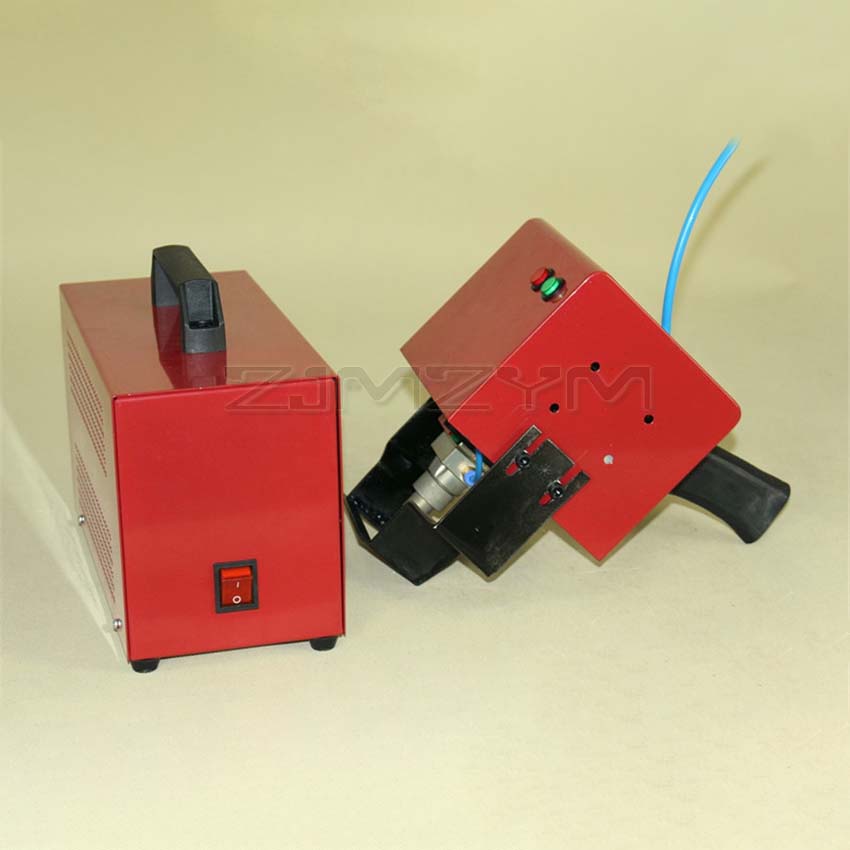

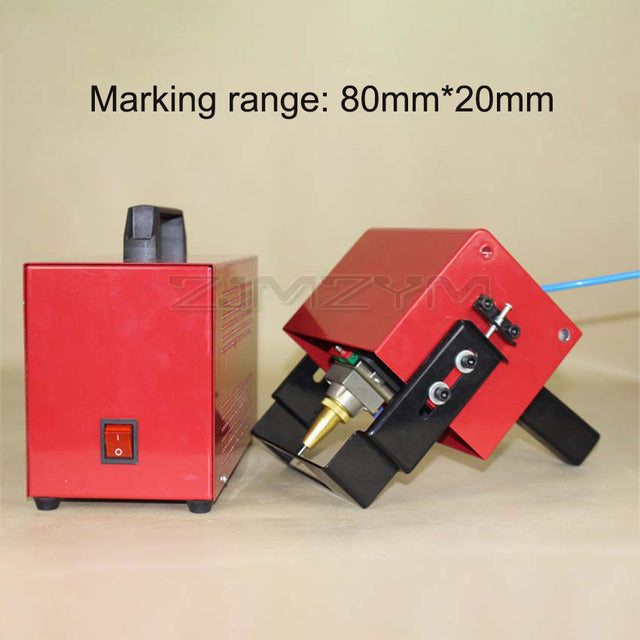

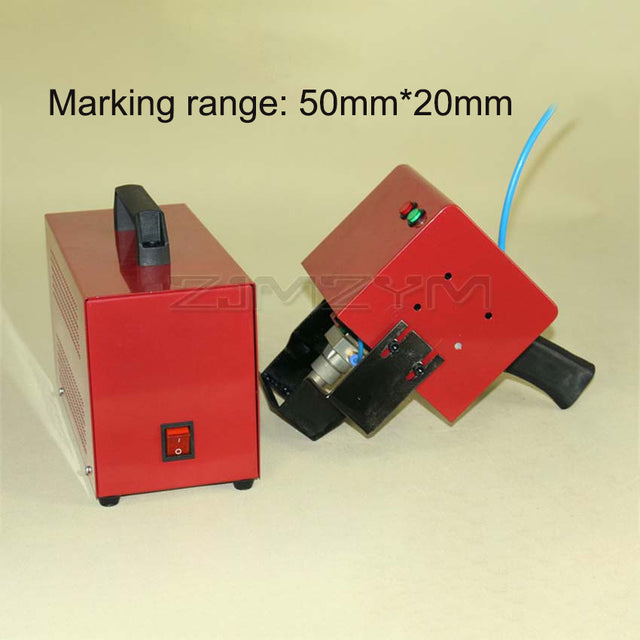

         80*20mm/50*20mm for engine

                   Please note:

                   150*50 and 120*40 with magnets
