USER MANUAL

  MINI LOOPER

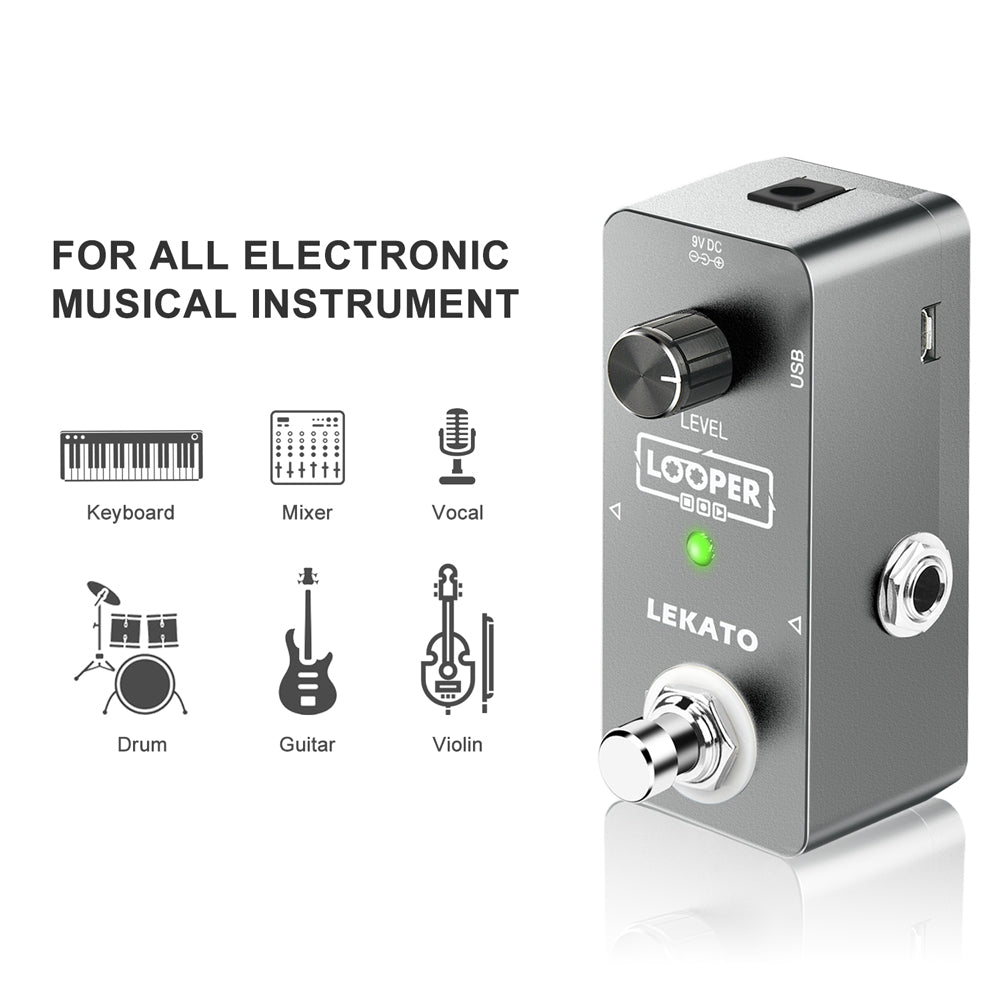

The Mini Loop is designed for guitar or bass for recording. It is a powerful equipment with compact and convenient design, Up to 5 minutes and 24bit lossless, uncompressed, professional tone quality recording !

  Attentions

  Power Supply

Please make sure your pedal is connected to an DC adapter with 9V (410%) voltage. Unplug the DC adapter when not using the product or during the thunder storm.

  Connections

  Please always turn off the power of the relevant equipment when connecting or disconnecting with the pedal. It will help to prevent the damage cause to this product and other relevant equipment.

  Interference

  Radio and television which is placed nearby the pedal may cause reception interference. Please use the product in a suitable distance from radios and television.

  Location

  To avoid deformation, discoloration,or other damage to the product. Please do not expose the unit to the following conditions:

  Direct sunlight

  1.Heat sources

2.Magnetic fields

3.Extreme temperature or humidity

4.Excessive dusty or dirty location

5.High humidity or moisture

6.Strong vibrations or shocks

  Main Characteristic

  48K, 24bit lossless, uncompressed, professional tone quality.

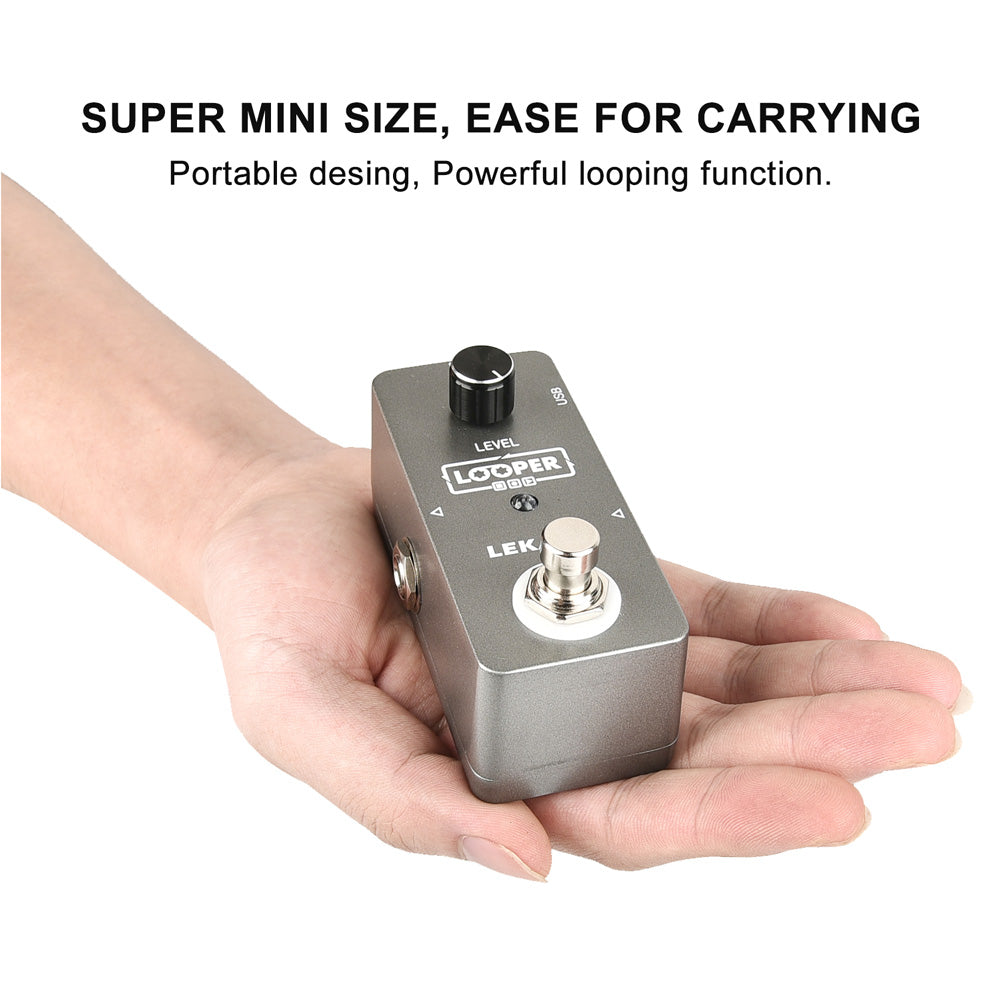

Metal shell with compact and very small design

Unlimited overdub loop, support 5 minutes recording.

One footswitch to control all functions:record, play,stop overdub,undo, redo,delete. Supporting import and export with lossless wav file at borh Windows/Mac OS.

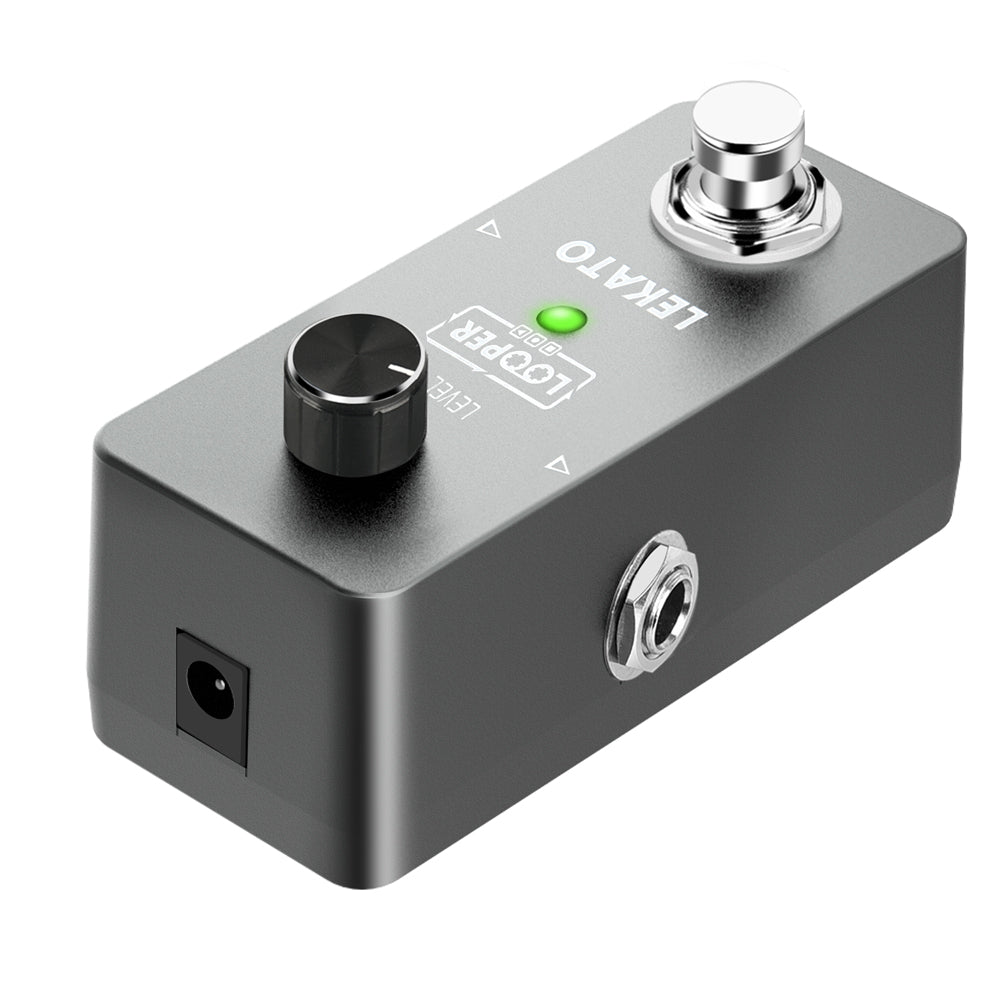

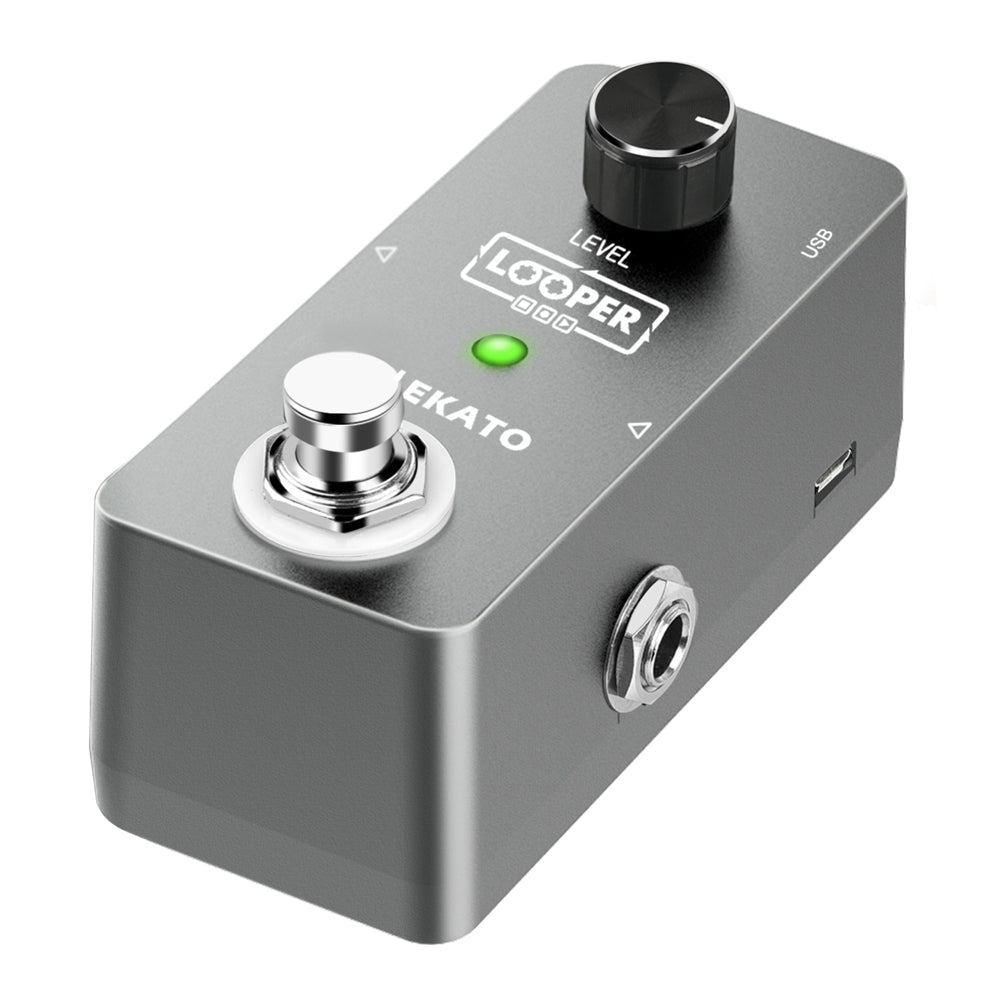

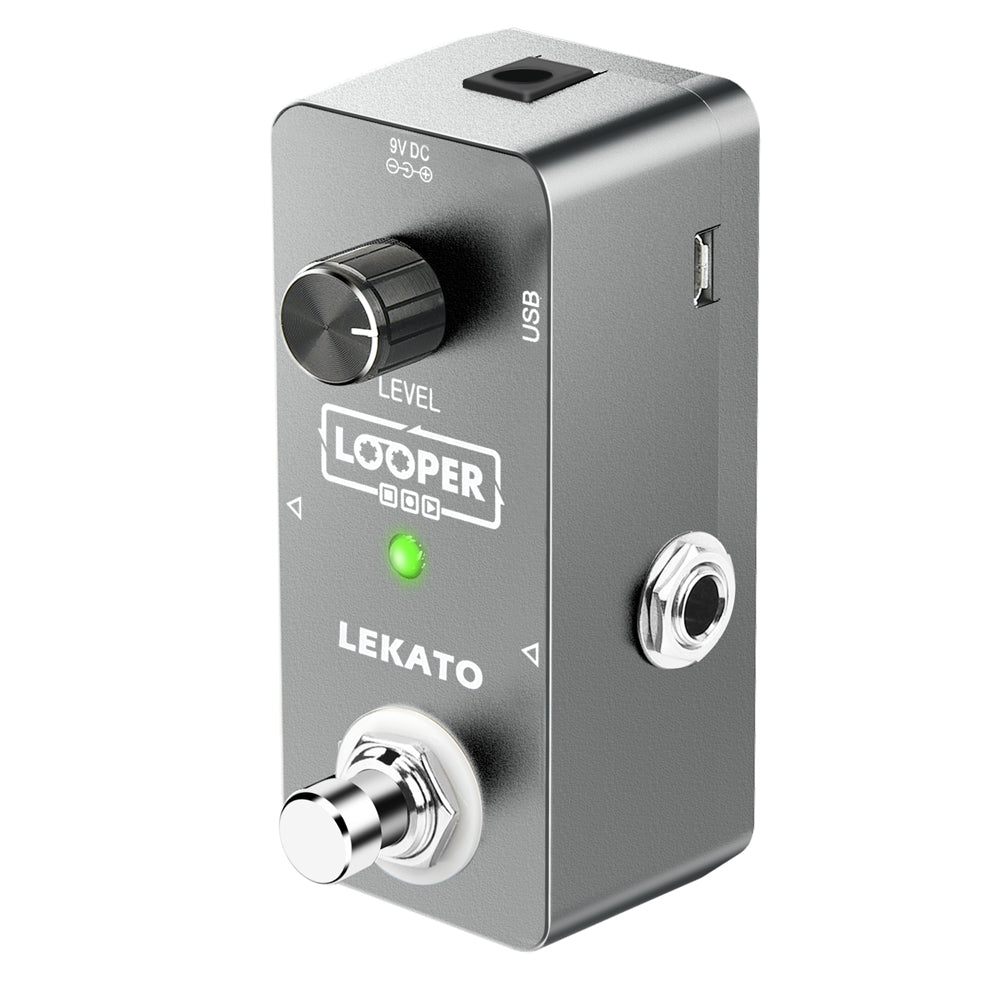

  Control Panel Instruction

  DC In Power Jack

  -Use a 9-volt DC regular adapter for power supply.

  USB Interface

  Connect to PC for software update, loop import or export.

  Loop Level Knob

  Rotate the level knob to control the volume of your loop.

  OUTPUT Jack

  1/4” mono audio jack, for output the signal.

  STATUS LED

  LED light displays different status of Mini Looper.

  INPUT Jack

  1/4” mono audio jack, for connecting guitar/ bass.

  Function Footswitch

  The footswitch is for you to control all the loop relevant functions.

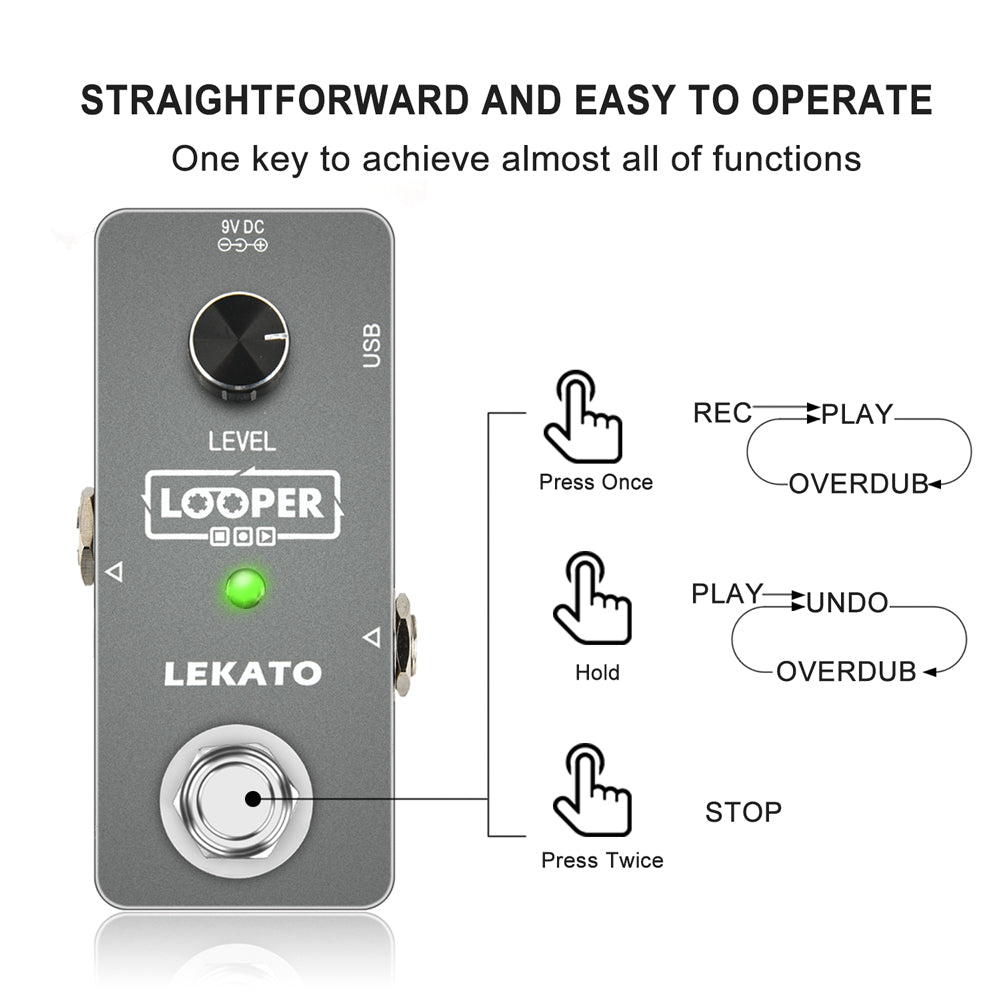

  Operation

  Power on ：Connect a power supply

Record ：Tap footswitch once

Switch to playback ：Tap footswitch again

Undo/Redo last recording ： Press and hold footswitch

Stop ：Double-tap footswitch

Stop and delete the loop ：Double-tap and hold footswitch

Resume playback ：Tap footswitch again

Delete the loop ：Press and hold footswitch (when looper is disengaged)

  Technical Specifications

  Maximum loop length ：5 minutes

Maximum no.of overdubs ：Unlimited

Latency ：None(analog dry-through)

Dimensions ：90mm(D) x 40mm(W) x 49.5mm(H)

Input connector type ：Standard 1/4”jack-mono/TS

Output connector type ：Standard 1/4”jack-mono/TS

Power input ：Standard 9V DC

USB connector type ：Micro-B USB

  Controls ：Loop level knob (Loop playback volume) Switch (Loop playback control)

  Buyer Notice

  Power Specifications: Central Negative DC 9V Effect Pedal power supply

Please use the power adapter whose polarity is positive pole outside and negative pole inside. Otherwise, the product may not work properly.

(NOTE: The Power Adapter Is Not Included)
