Linshang LS110H Split Transmission Meter With IR Rejection 1400nm For
Automobile Metal Film Installed Glass Front Windshiled
I. LS110H Split Transmission Meter Introduction

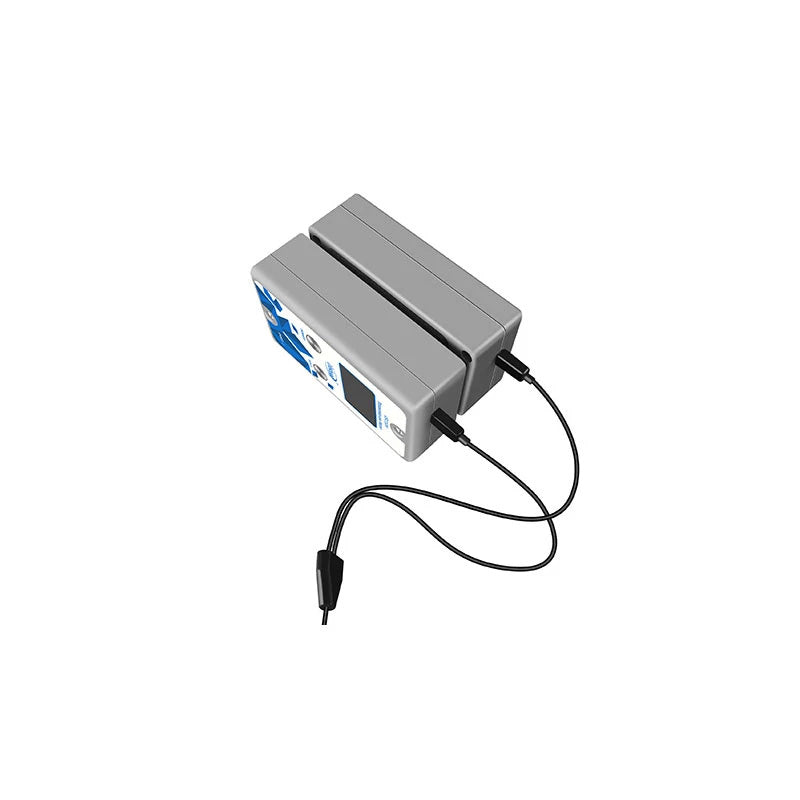

Linshang LS110H split transmission meter uses a split design. The instrument consists of a main part (PART I) and an auxiliary part (PART II). It is suitable for testing various solar films, automobile glass and installed door and window glass. The window tint checker can measure visible light transmittance, infrared and ultraviolet rejection rate at the same time. The split transmission meter is easy to operate and easy to read.

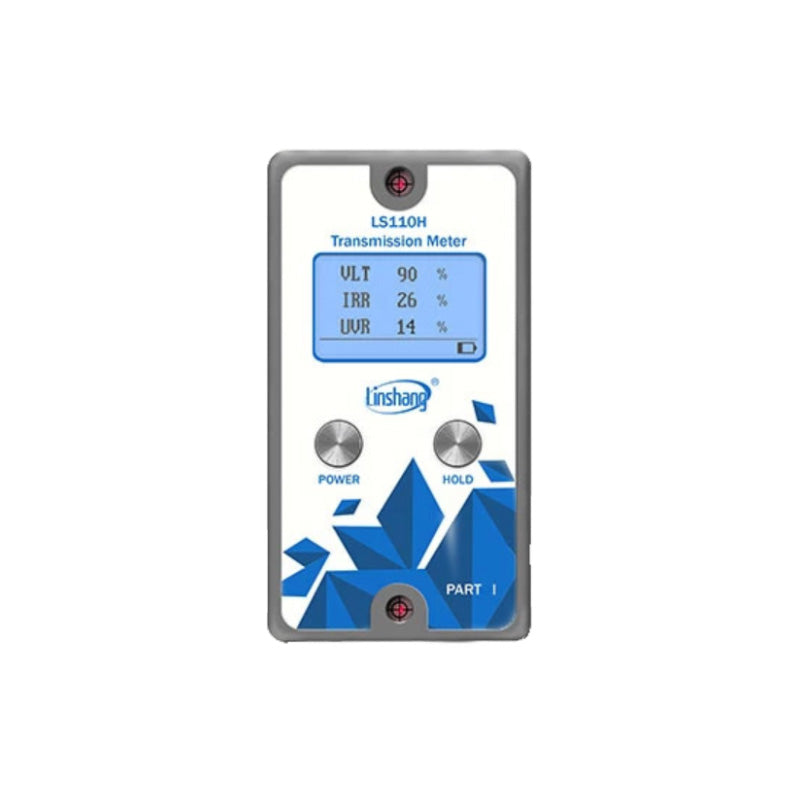

LS110H split solar film tester display
II. LS110H Split Transmission Meter Application
LS110H window tint detector test different materials
III.LS110H Split Transmission Meter Parameters
UV peak wavelength
365nm
Visible light peak wavelength
380-760nm
IR peak wavelength
1400nm
Resolution
When the measured value is the resolution is 0.1%;
for other ranges, the resolution is 1%
Measurement accuracy
better than ± 2% (colorless and uniform transparent materials)
Test sample size
bigger than 40mm × 40mm
Weight
630 g
Dimension
130mm x 70mm x 84mm(L*W*H)
Power supply
Built-in lithium rechargeable battery
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
