Features:
32-Bit Chipset & WIFI Connection - RAY5 is built with an ESP32 chipset and includes a WIFI connection for the engraver to router. This 32-bit chipset is running at 240MHz. That means it is faster and more powerful than comparably equipped machines with 8-bit chipsets. As an added bonus, the RAY5 supports WIFI connections through the web page or App to control engraving or cutting.
3.5" Colorful Touch Screen - Embedded the screen in the LONGER RAY5 laser engraver, it has a friendly user interface and friendly experience. It cut multiple pieces of plywood or images to be engraved without tying up your computer to run it. And support save the gcode file into TF card and engraving without computer connected.
Powerful Compatibility - RAY5 is compatible with free engraving software LaserGRBL and paid LightBurn software. It supports import with BMP, JPG, PNG, DXF, AI, SVG file format and so on.
Ultrafine Laser Point & Powerful Laser Module - Comes with the latest FAC laser technology for compressed laser point, 0.08 x 0.08mm point size, super concentrated energy can make carving or cutting more solid. The output power of the laser module reaches 5-5.5W.

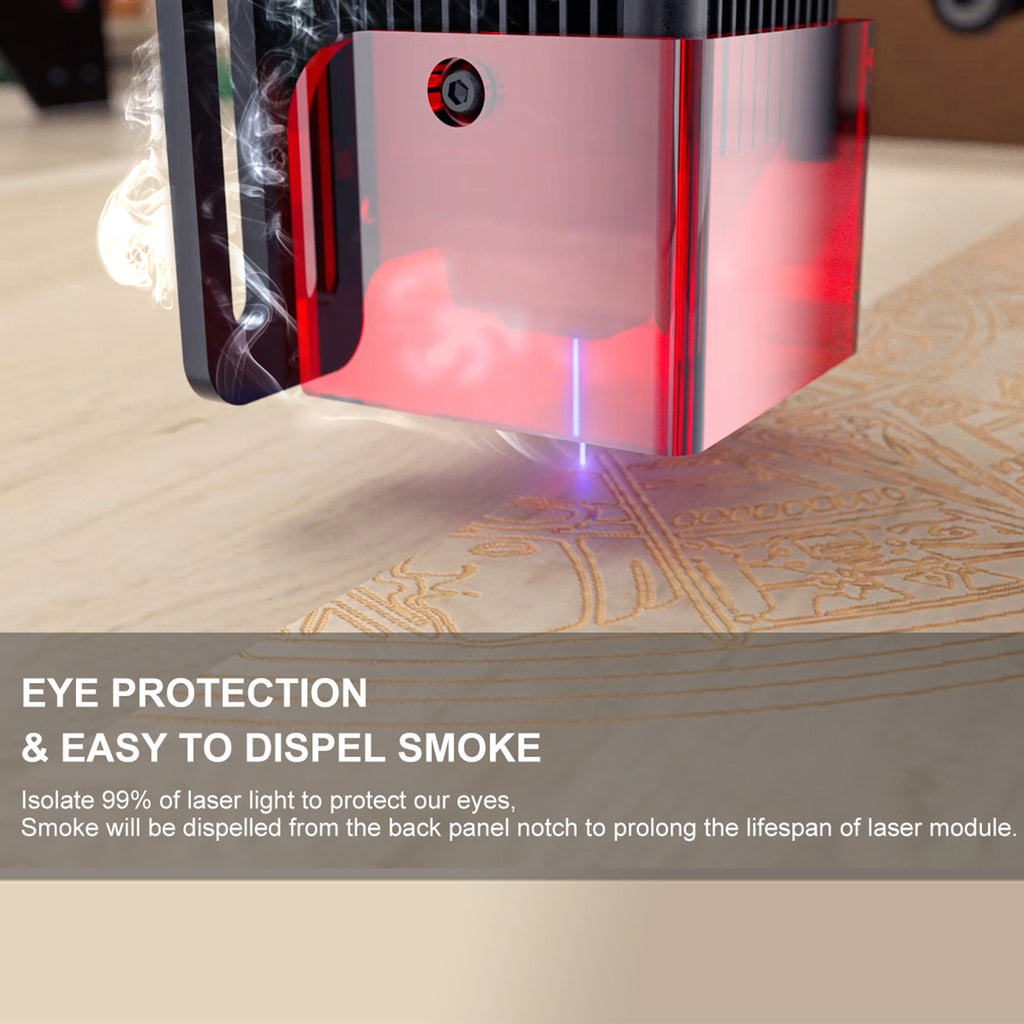

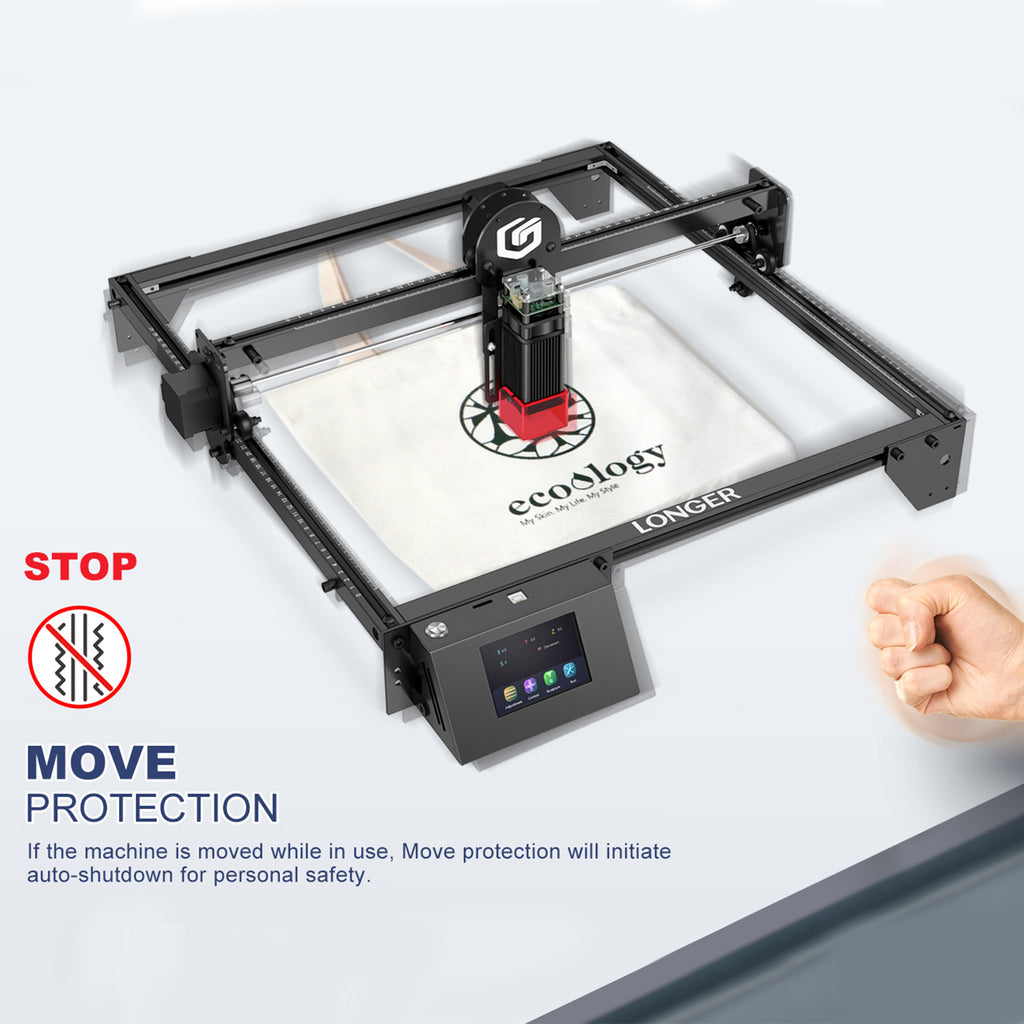

Move Protection & Thermal Protection & Eye Protecting - If the machine is moved while in use will initiate auto-shutdown for personal safety. Thermal protection initiates an auto-shutdown if it detects a flame or the engraving area overheats. An acrylic cover on the laser module, which can protect your eyes.
Upgradable Laser Module - RAY5 laser engraver is upgradable. The power supply and main board support an upgrade to a more powerful 8W/10W laser module.
Specification:

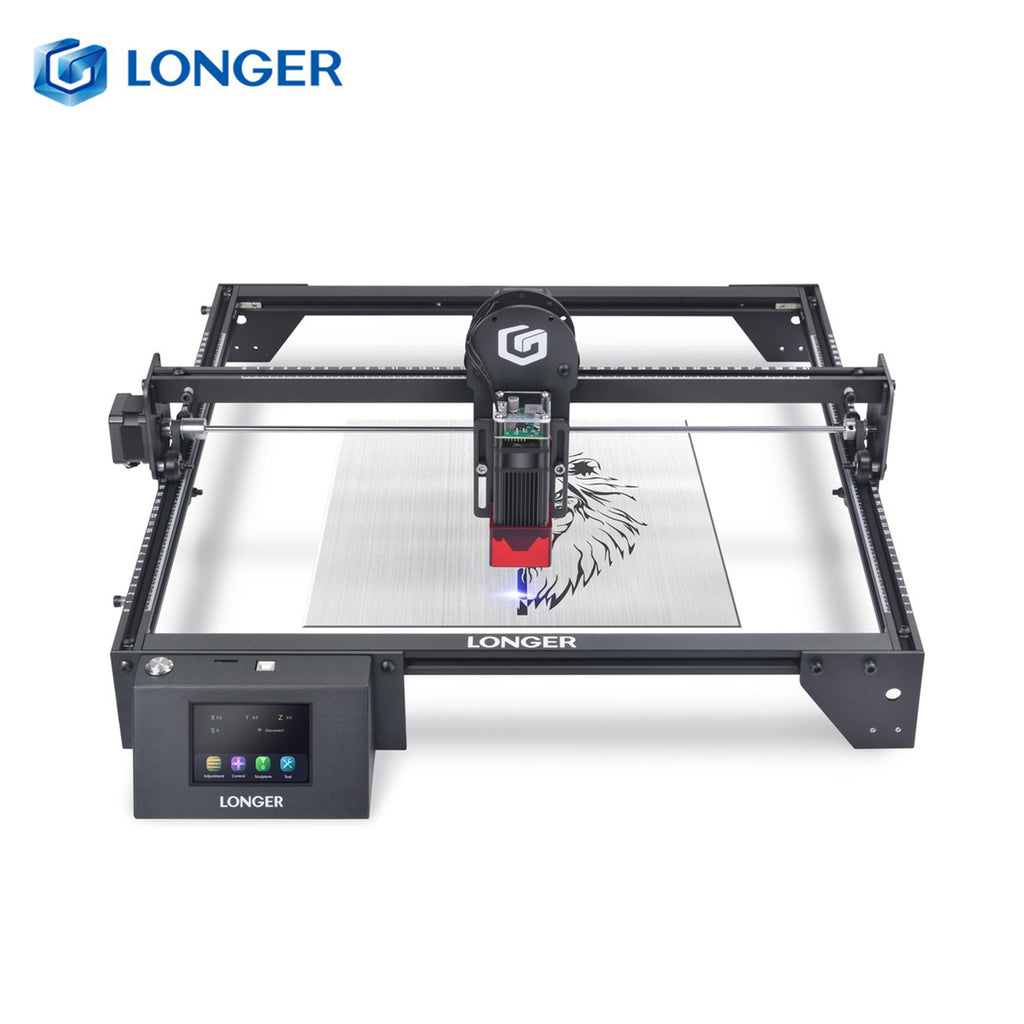

Model: RAY 5
Laser Technology: Diode Fiber Laser
Working Area: 400x400mm(15.75x15.75in)
Laser Wavelength: 450nm
Focus Type: Fixed Focus -30mm Focal Range
Spot Size at Optimal Focus: 0.08x0.08mm
Optical Output Power: 5W
Z Axis-Height Range: Up to 65mm
Engraving/Cutting Speed: 40-10000mm/min
Engraver Output: DC 12V 5A
Engraver Input: AC 110-240V
Software: LaserGRBL, compatible with LightBurn
Connection: USB/TF Card / Wifi
Laser Engraver Size: 61 x 67 x 20cm (24 x 26 x 0.79inch)
Package Size: 59 x 31 x 15cm/23.3 x 12.2 x 5.9in
Package Weight: 4.75Kg/10.47lbs
Packing List:
1 x LONGER RAY5 Machine Kits
