Overview:

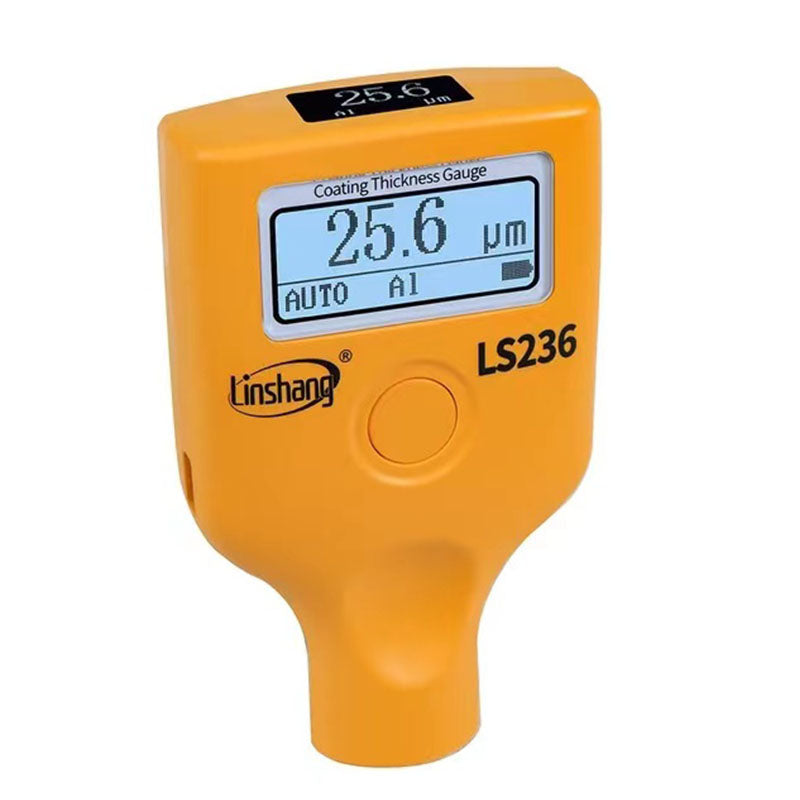

LS236 Car Paint Meter

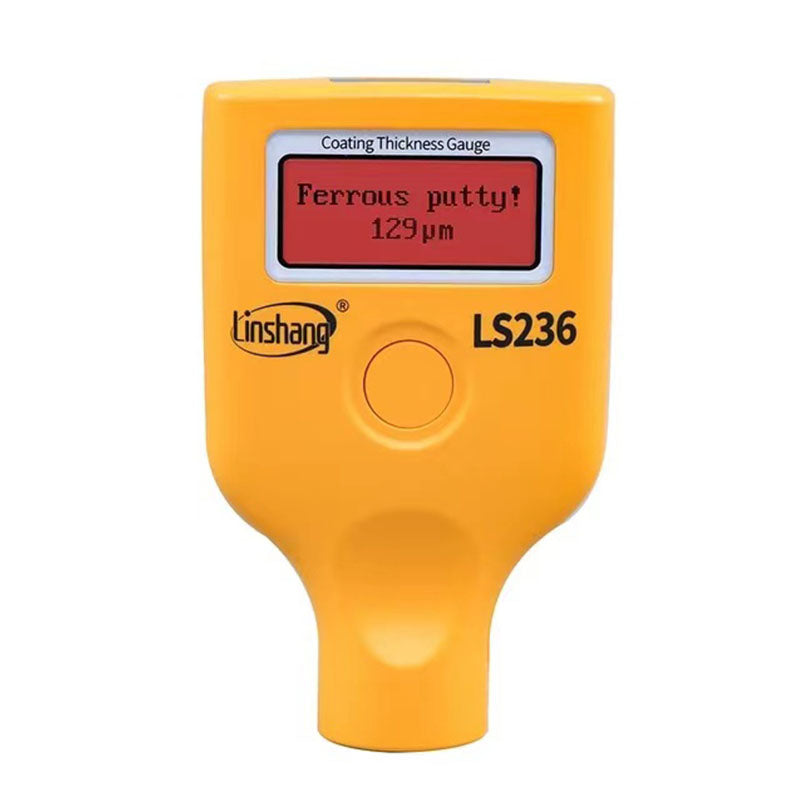

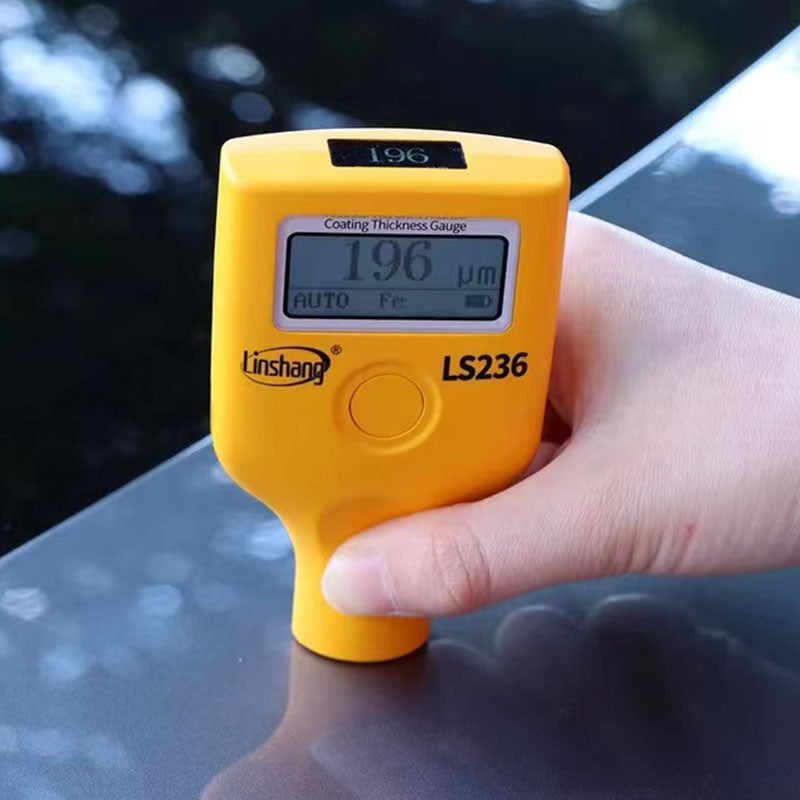

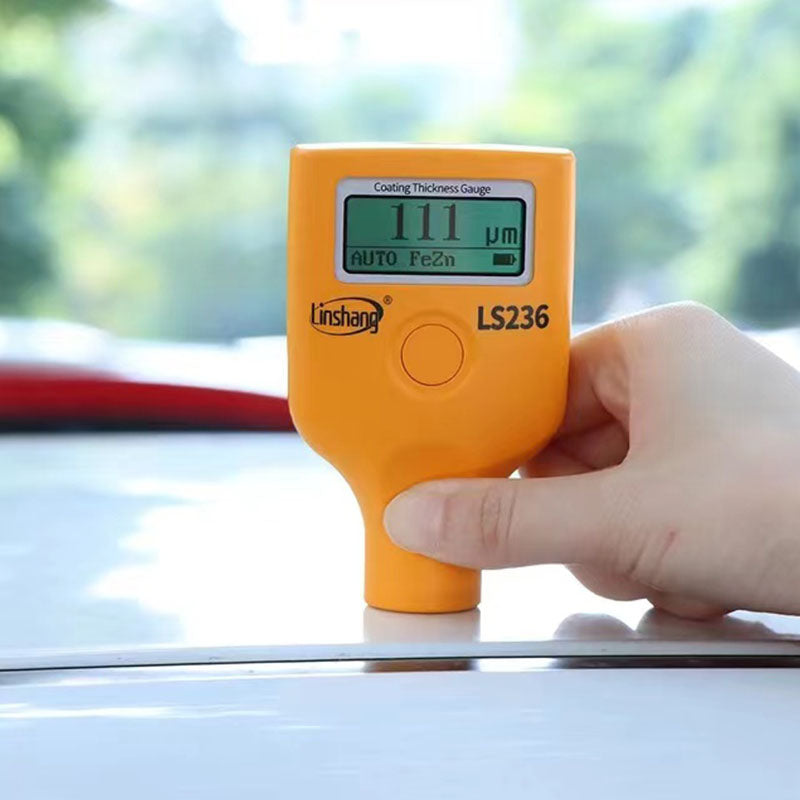

LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle. paint mil gaugepaint mil thickness testingpaint mill gauge
coating thickness gauge costcoating thickness gauge calibration certificate
Specifications:
Parameter
LS236 Coating Thickncss Gauge
Probe tip
Ruby
Measuring principle
Fe:Hall Effect/ NFe:Eddy current
Probe type
Built-in integrated probe
Measuring range
0.0-2000μm
Resclution
0.1μm(0μm- 99.99μm)
1μm(100μm- 999μm)
0.01mm (1.00mm - 2.00mm)
Accuracy
≤±(3% reading+2μm)
Unit
μm/mil
Measuring interval
0.5s
Minimum measuring area
25mm
Minimum curvature
Comvex:5mm/Concave:25mm
Minimum substrate thickness
Fe:02mm / NFe:0.05mm
Language
Chinese、Englsh，Pyccana、Turkge
Display
Front :128×48 dot matrix LCD, top:128×64 dot matrix OLED
Power supply
2 pcs of 1.5V AAA alkaline battery
Operation temperature range
-40C-50C
Storage termperature range
50C-60C
Gauge size
100*60"24 mm
Weight(with battery)
80g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
