Lutron GS-5800 Ultrasonic Leak Detector GS5800 Ultrasonic Leak Detector

   Applications

   The refrigerator air conditioning system leaks instruments that can detect leaks in refrigerators, vacuum or pressure type leaks and air conditioning installations. When the refrigerant leaks, the leak will produce ultrasonic waves, and the detector can pinpoint the leak position.

  Leakage of heating system

  Steam transmission system leak

  Compressed air leak

  Leakage of tires and pipes

  Engine seal

  Arc arcs create ultrasonic waves that are rich in bandwidth and can therefore be detected.

  Withstand voltage test

  Drying system

   Use detector + ultrasonic generator

   Door and window seal check

  The roof leaks

  Channel screening

  Door seal

  Cab windbreak

   Characteristic

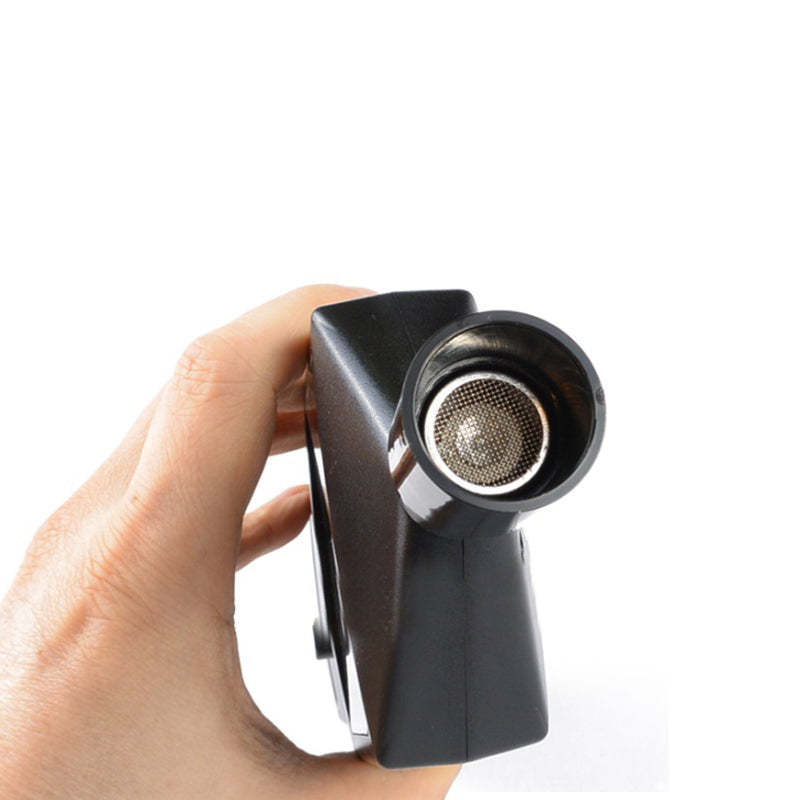

   An ultrasonic leak detector used to locate the source of an ultrasonic sound produced by leakage of gas or air. The leakage level can be displayed by the arc shape LED on the panel, and can be indicated by an internal sound beep or an external earphone (optional).

   Specifications

                     Leak sensitive instructions

               LED strip indicator panel, tone.

(LED indicates only the arc measurement. The tone is to divide the received ultrasonic frequency by 32)

                     frequency response

               20KHz - 100KHz

                     Minimum leakage

               See page 8 (Figure 4)

                     Power Supply

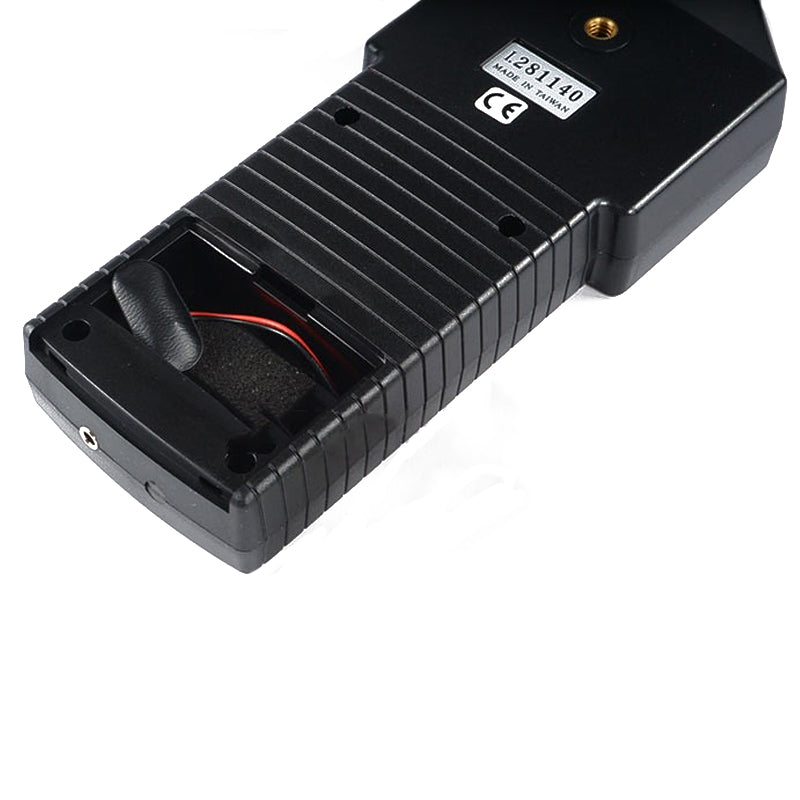

               DC9V alkaline or high energy(Not included package)

                     Power consumption

               DC17mA

                     Operating temperature

               0 degrees to 50 degrees centigrade

                     Operating humidity

               Maximum 80%

                     weight

               About 260g (including batteries)

                     size

               HWD 255 x 70 x 28mm

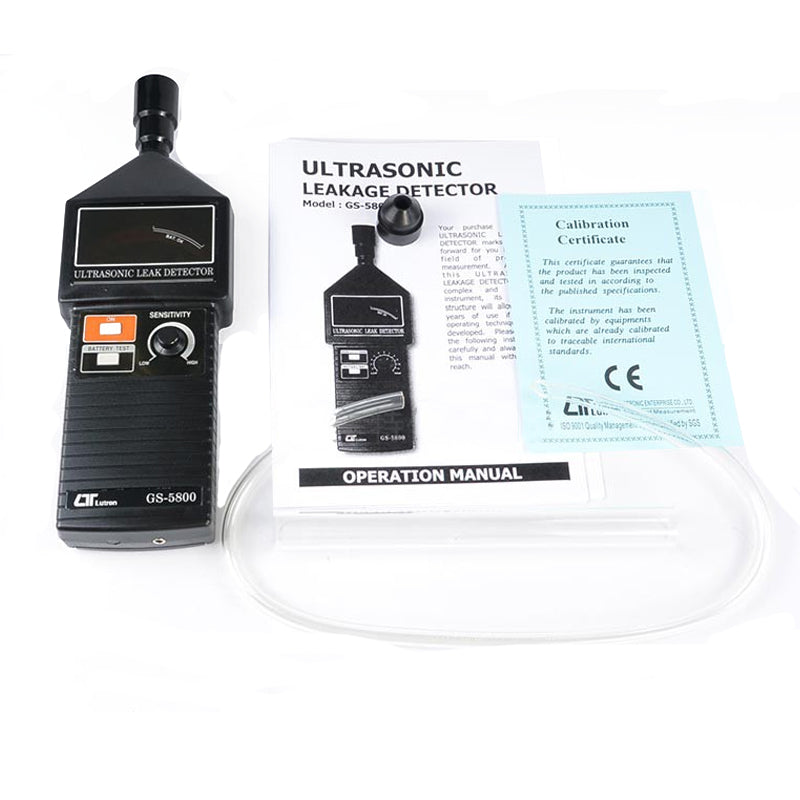

                     Random attachments

               User manual 1PC

Plastic tube, rubber plug, 1PC

1/2 inch PVC tube 1PC

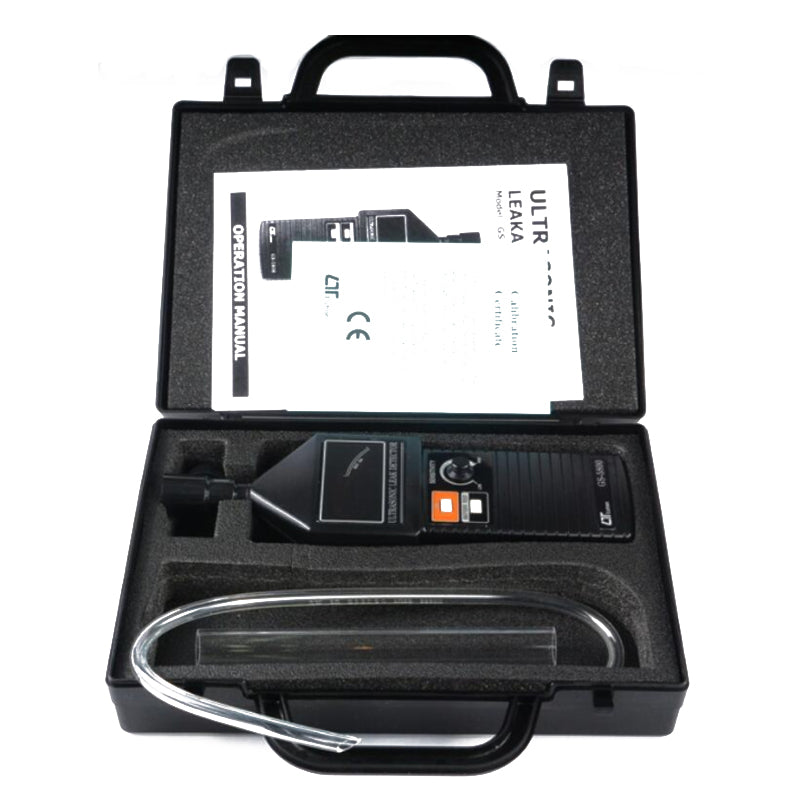

Hard carry case 1PC

                     Optional Accessories

               Headset

           Ultrasonic generator type: GS400

   Various accessories

   1) plastic tube, rubber bottle shaped plug

The attachment is used to expand the sensor socket to obtain sounds that require close connections or dangerous, inaccessible sources, and to eliminate background noise.

2) 1/2 inch PVC tube

The connecting tube is used to eliminate the noise between the sound source and the detecting head and to keep the operator away from the dangerous part.
