Make Fast Delivery Handheld Imaging Camera HT-18 Portable Thermal Imager HT18
220*160 High Resolution
Shining Points:
--3.2'' full color screen, allows for detailed showing of infrared generated images;
--220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
---20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
--5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
--automatic setting: 5 mintues/20 minutes/ not power off automatically;
--built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;

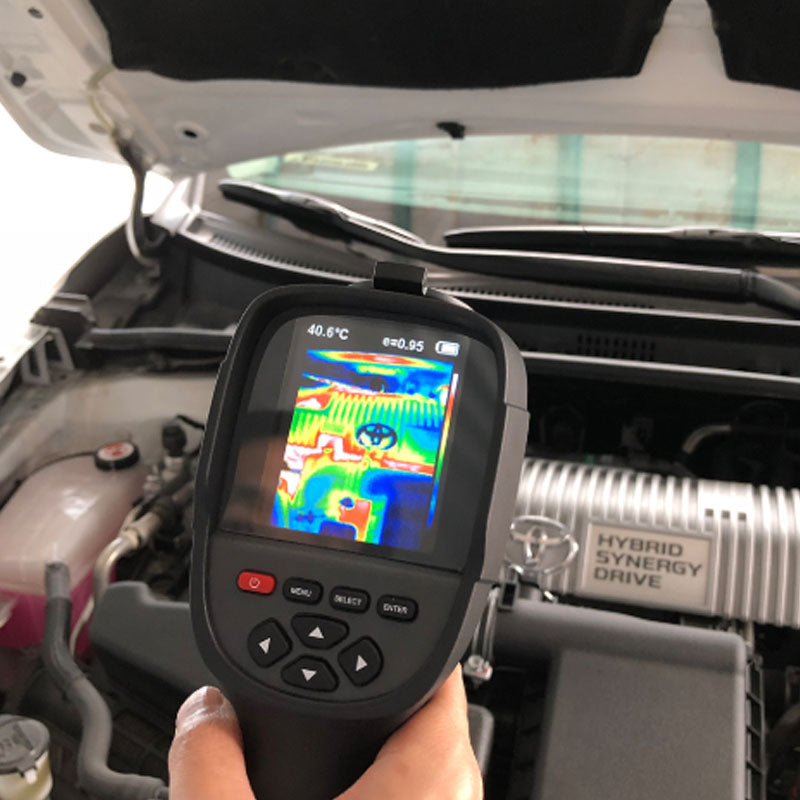

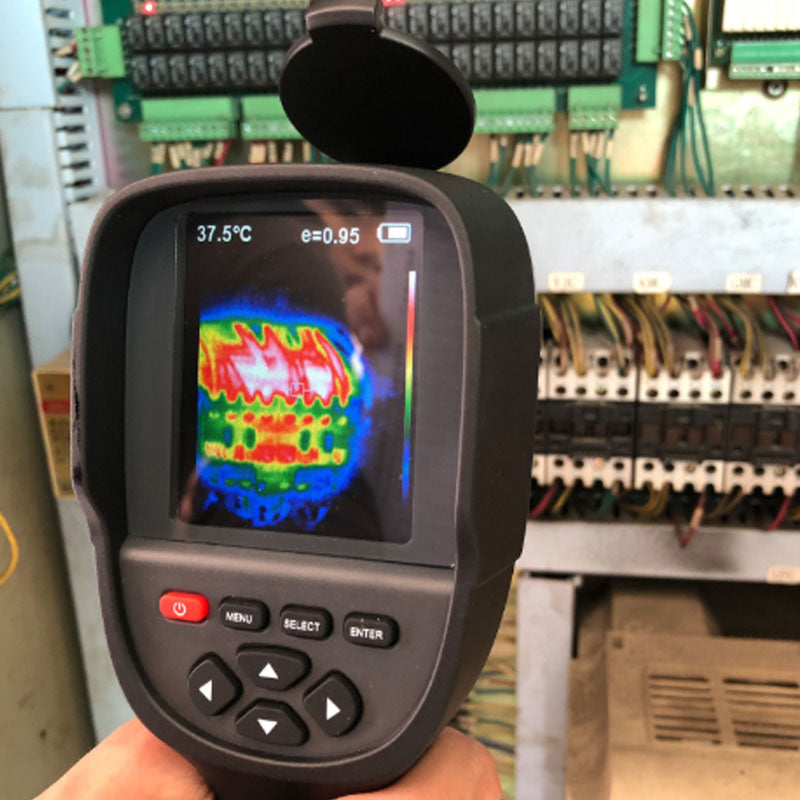

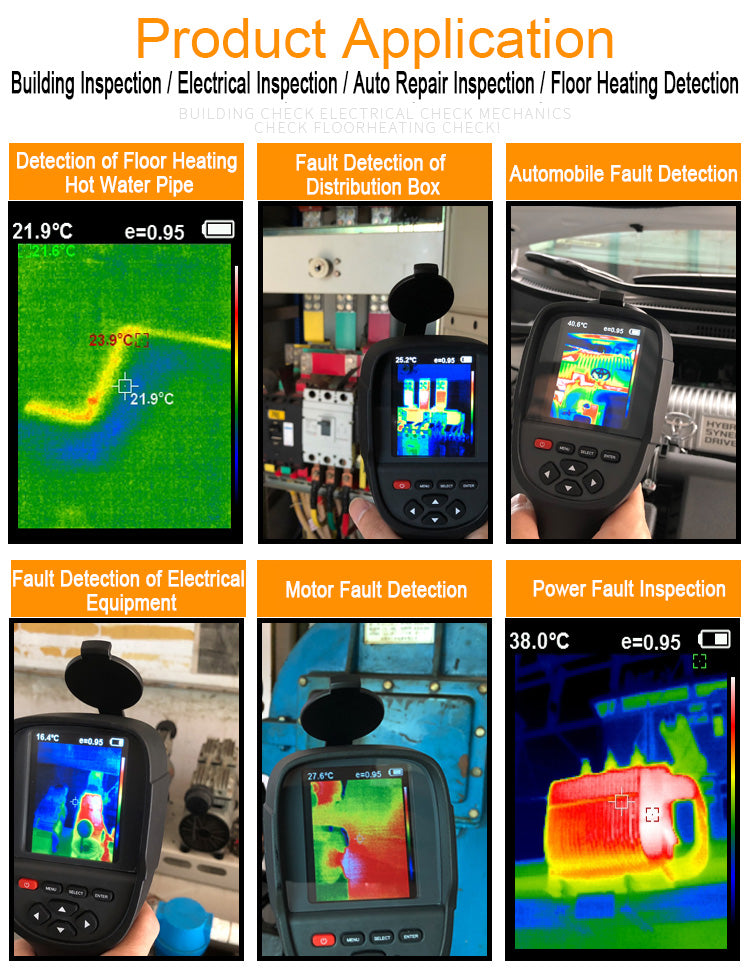

--wide application fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
--seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
--mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
--ergonomic handle, which can be used and held comfortably;
Specification:
Display screen: 3.2'' full-color screen
Infrared image resolution: 220×160
Visible image resolution: 0.3 million pixel
Thermal sensitivity: 0.07°
Temperature measurement range: -20~300°(-4°~572°)
Measurement precision: ±2.5° or ±2.5%
Wavelength coverage: 8-14um
Field angle/shortest focus length: 27°×35°/0.5m
Emissivity: Adjustable from 0.1 to 10.0
Focus mode: Fixed
Image capture frequency: 8Hz
View option: full infrared and full vision Visible image with 25% step length
Storage medium: built-in 4G
Image format: JPG
Power supply: built-in chargeable 18650 batteries
USB: Micro USB2.0
Automatic power-off time: 5 mintues/20 minutes/ not power off automatically
Size: 90×105×223mm
Weight: 289g
Work temperature: 0° to 50°
Storage temperature: -40° to 80°
Humidity: <85RH

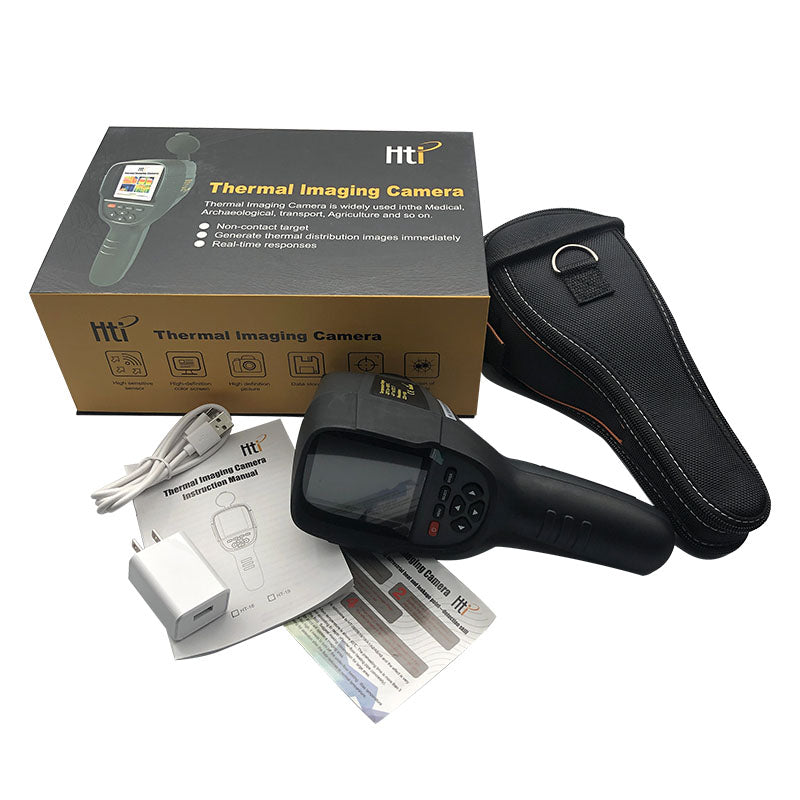

Package Includes:
1 x infrared temperature detector
1 x cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
1 x cardboard package box
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
