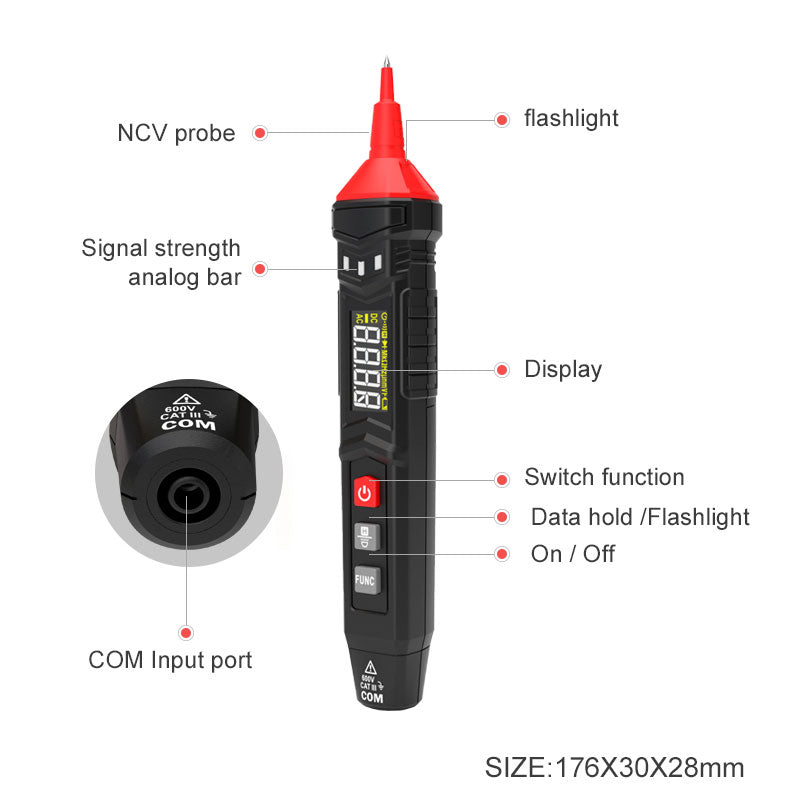

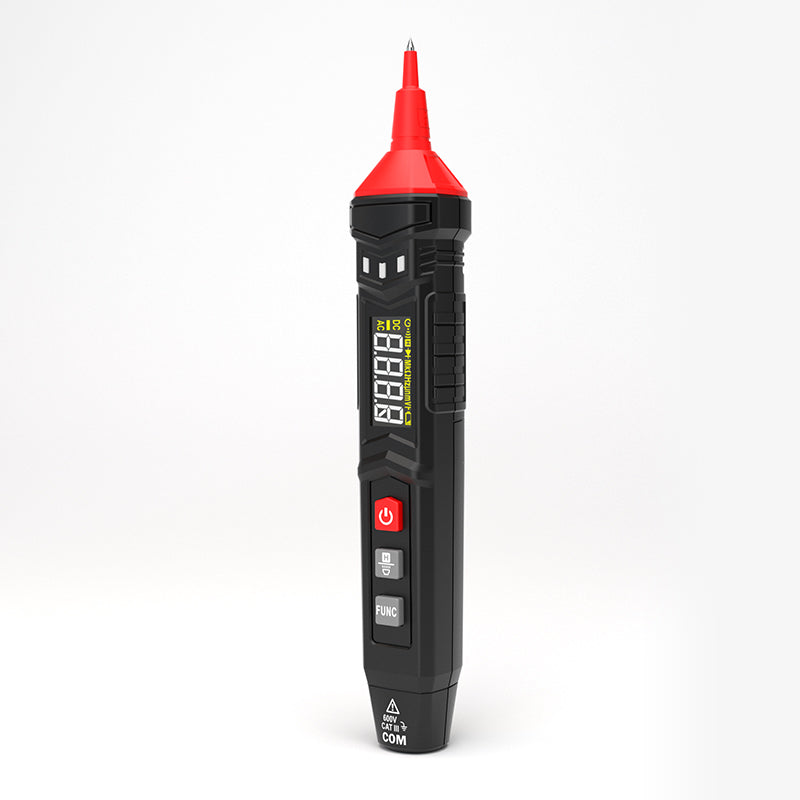

Mini Pen Multimeter 4000 Counts AC DC Voltage Voltmeter Resistance Capacitance Frequency Continue Tester Phase Sequence Meter
Descriptions:
1. Mini pen multimeter, suitable for mobile phone repair, home repair, smart home repair, personal DIY repair, etc.

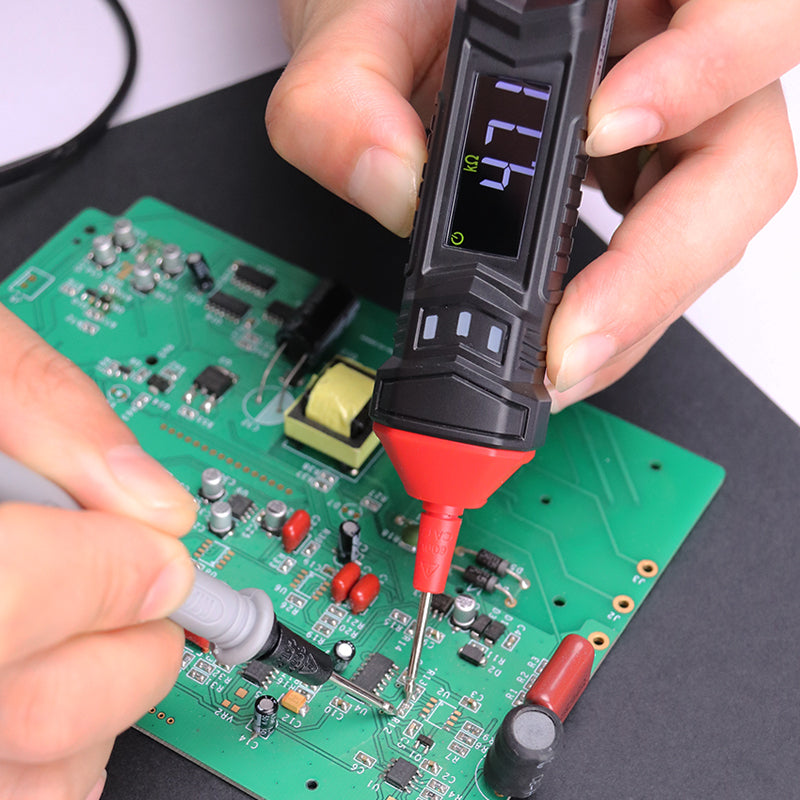

2. Equipped with special tip test pen, and negative fish clip line, suitable for precision motherboard repair, such as mobile phone motherboard repair, etc.
3. One machine with multiple functions, it is a multimeter, it is also a non-contact tester, and it is also a phase sequence meter
4.The VA reverse display screen can also display the displayed value in high-definition, data retention, color display is clearly visible in the dark environment, easy to find the line in the dark environment, to prevent electric shock.
Product Details:
1, Environment condition of use: CAT. III 600V；Pollution level2, Altitude < 2000m
2, Working temperature&humidity:0~40°C(<80% RH，<10°C non condensing)
3, Storage temperature &humidity: -10~60°C(<70% RH, remove the battery)
4, Temperature coefficient：0.1 accuracy/°C（<18°C or >28°C）
5, MAX. Voltage between terminals and earth ground: 600V
6, Sampling rate: approx. 3 times /second.
7, Display: 4000 counts
8, Over range indication: “OL”.
9, Low battery indication: yes
10,Input polarity indication: yes
11,Continuity measurement: yes
12,Diode measurement: yes
13,Live wire detecting: yes
15,Auto power off: yes
14,Phase sequence detection: yes
16,DC voltage: 4V, 40V, 400V, 600V, ±(0.5% +3)
17,AC voltage :4V, 40V, 400V, 600V, ±(0.8%+3)
18,Resistance:4000Ω,40KΩ,400KΩ,4MΩ,±(1.0%+5);40MΩ,±(1.5%+10)
19,Capacitance: 40nF,400nF,4uF ,40uF, 400uF, ±(4.0%+5); 4mF ±(5.0%+5)
20,Frequency: 40Hz, 400Hz,4KHz, 40kHz, 400kHz, 4MHZ,±(1.0%+3)
21,Power supply: 2 x 1.5V AAA batteries(not include)
22,Product Weight：Approx. 65g(without battery)
23,Product Size：195x29x29mm
24,Package Size：210x50x35mm
25,Package Weight：130g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
