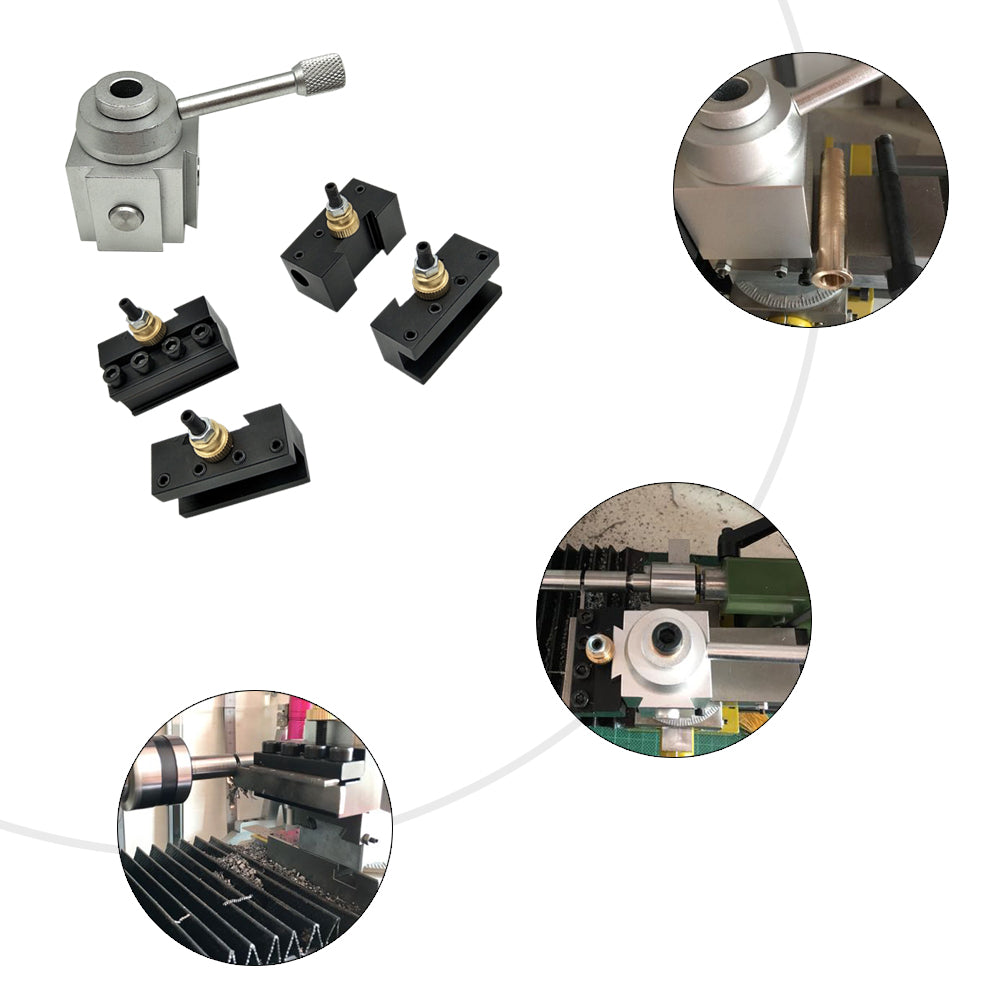

Mini lathe quick change tool holder, this professional lathe post and holder kit used for cutter holder is a major attachment of ordinary lathe. It's composed of a tool post and several toolholder, according to the needs of machining parts. You can choose corresponding knife holder to process lathe outside garden, lathe end face for cutting off, knurling, drilling, boring, reaming processing, etc.
Features:
Use of multiple lathe toolholders form an artificial tool magazine, you can repeat to replace the toolholder.
Each tool holder can be rotated multiple angle of 360°, operations with extension units, can be processed various angles workpiece.
Toolholder for the adjusting screw nut and tool, adjust installation height, easy to operate, shortening the time of loading knife.
Replace the tool holder with high positioning accuracy, the surface quality of machined parts and precision improved.
Each changing tool only takes a few seconds, fine quality workmanship for high stability processing, made of aluminum alloy.
Achieve installing tool holder at the outside of lathe machine, the tool clip is mounted on the tool holder through the dovetail groove with rapid change of tool post, high positioning accuracy and strong rigidity.
Perfect product to replace the traditional four-way tool post and realize fast turning.

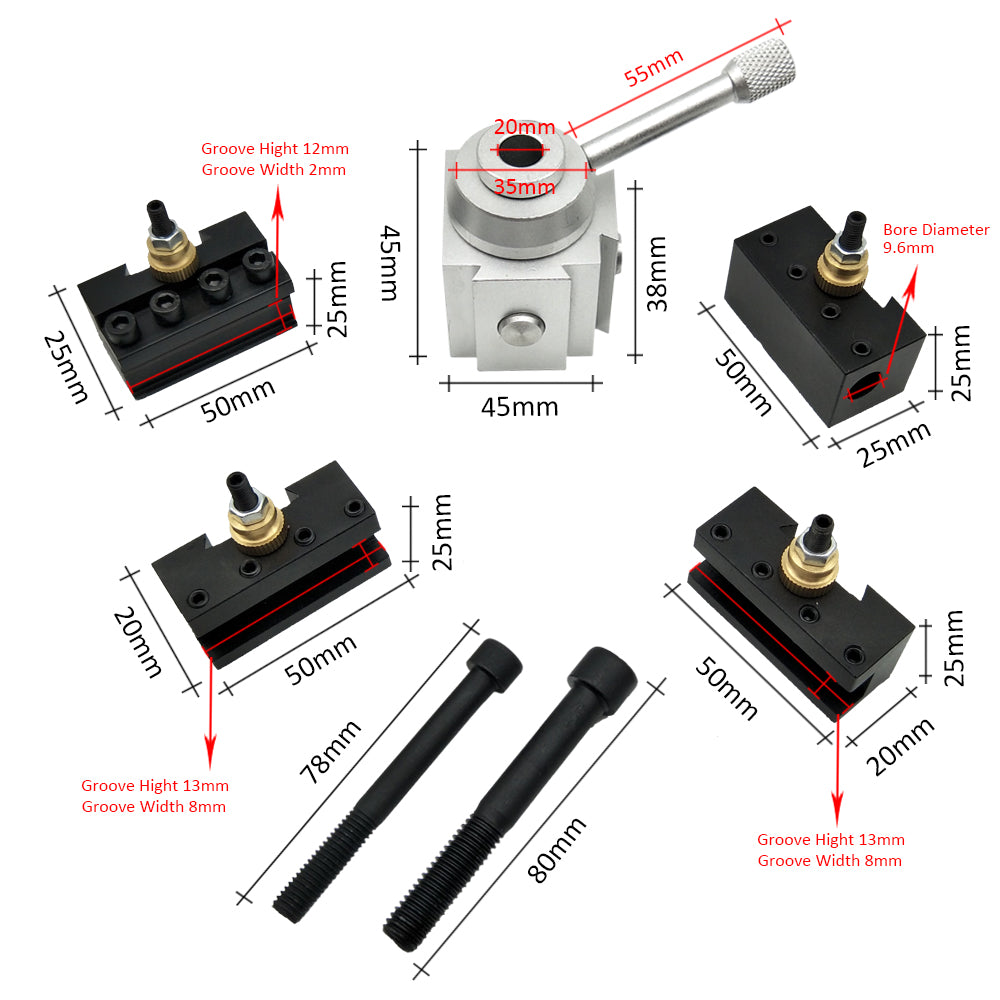

Specifications:
Material: Fine Quality Aluminum Alloy
Color: Silver + Black
Tool post: 44 * 44 * 37mm
Boring holder: 50 * 25 * 25mm
Capacity cut-off blade holder: 50 * 25 * 25mm
Turning and facing holders: 49 * 25 * 24mm
Mounting bolts: M8 and M10
Accuracy: 0.01mm
Application: Boring Tool, Lathe Machine
Item Weight: 700g / 1.54lb
Package Size: 17.5 * 14 * 6cm / 6.89 * 5.51 * 2.36in
Package Weight: 900g / 1.98lb

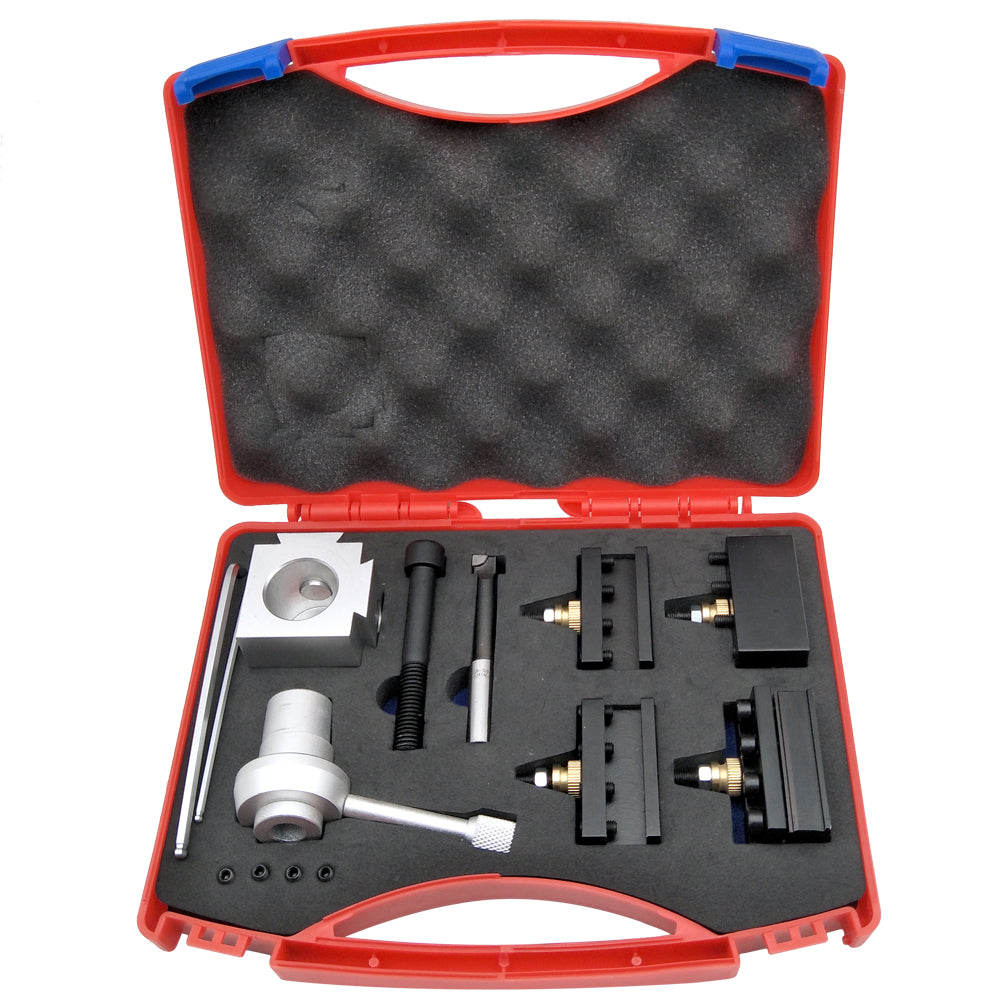

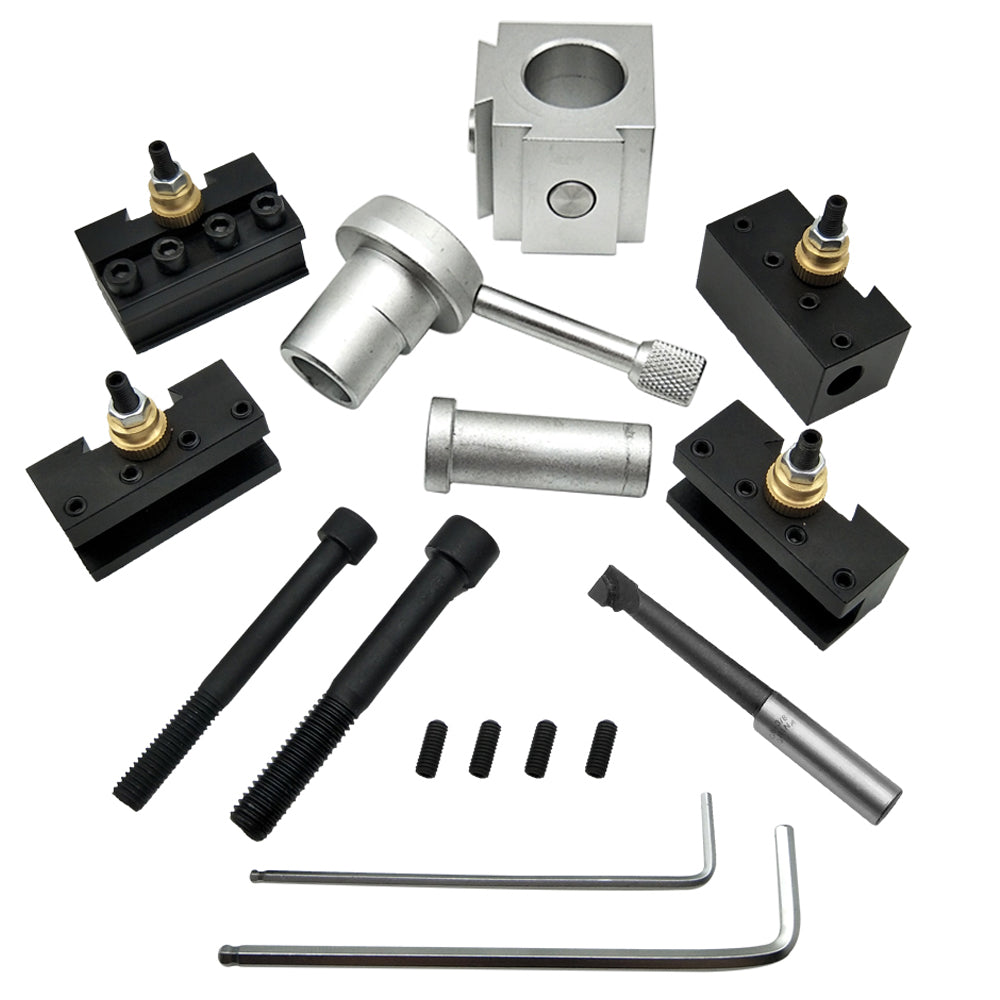

Package List:
1 * Tool Post
1 * 3/8" Boring holder
1 * 3/8" Boring bar
1 * 1/2" Capacity cut-off blade holder
2 * 1/4-1/2" Turning & facing holders
2 * Mounting bolts (M8 & M10)
4 * 5*12 Countersunk Hexs
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
