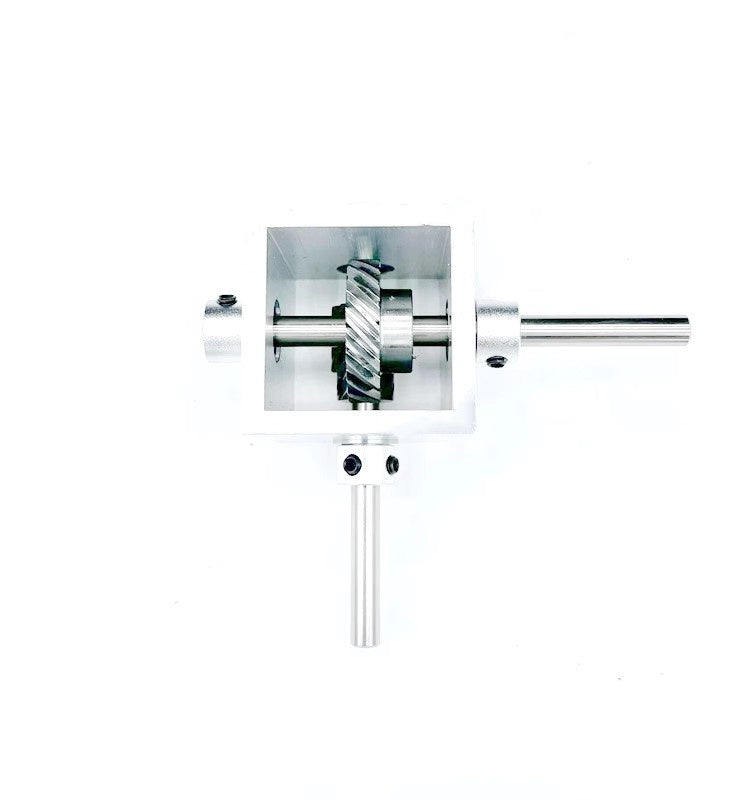

Miniature 1:2 Turbo Worm Gear Drive Right Angle Reversing Box Gearbox 90 Degree Angle Reducer 6MM Shaft
This product has no fixed mounting holes, buyers need to punch their own holes to fix the top and bottom are not covered.
This product is a simple model can not be used for high-speed operation.
Reduction ratio 1 to 2 means that the input shaft rotates 2 times and the output rotates 1 time to reduce the speed.
Helical gear parameters
Module: 0.9M Material: 42CRMO
45 degree helical tooth Rotary direction: right-handed
10 teeth / 20 teeth
Outer diameter 14.5mm / 27.2mm
Length 20mm / 12mm
Tooth length 14mm / 6mm
Step outside diameter 12mm / 16mm
Step length 6mm / 6mm
Bore 6mm Bore accuracy: H7

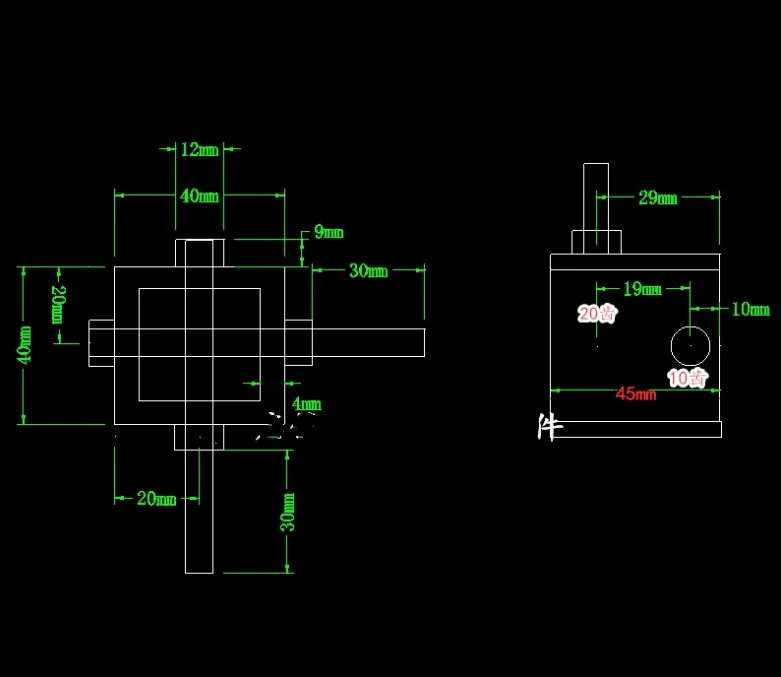

Mounting center distance 19mm
Gearbox overall weight 0.17kg or so
