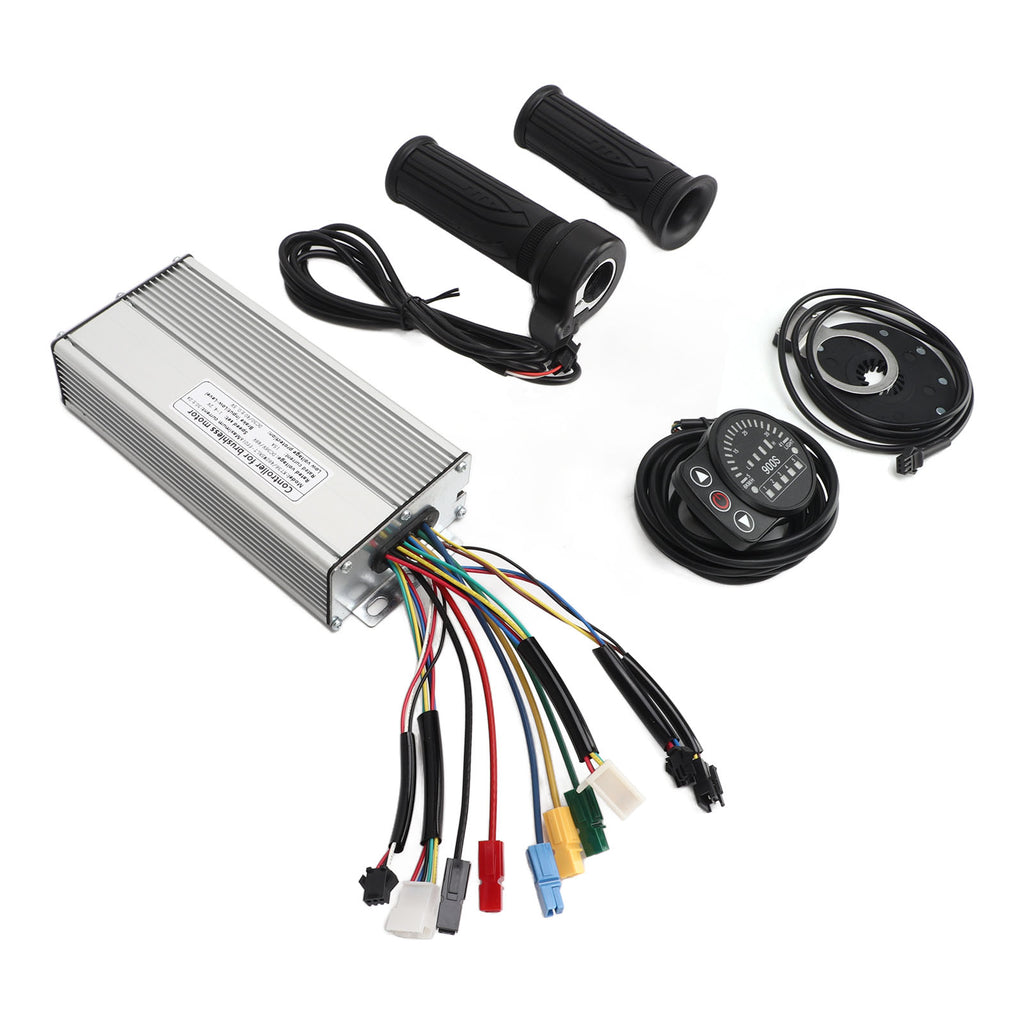

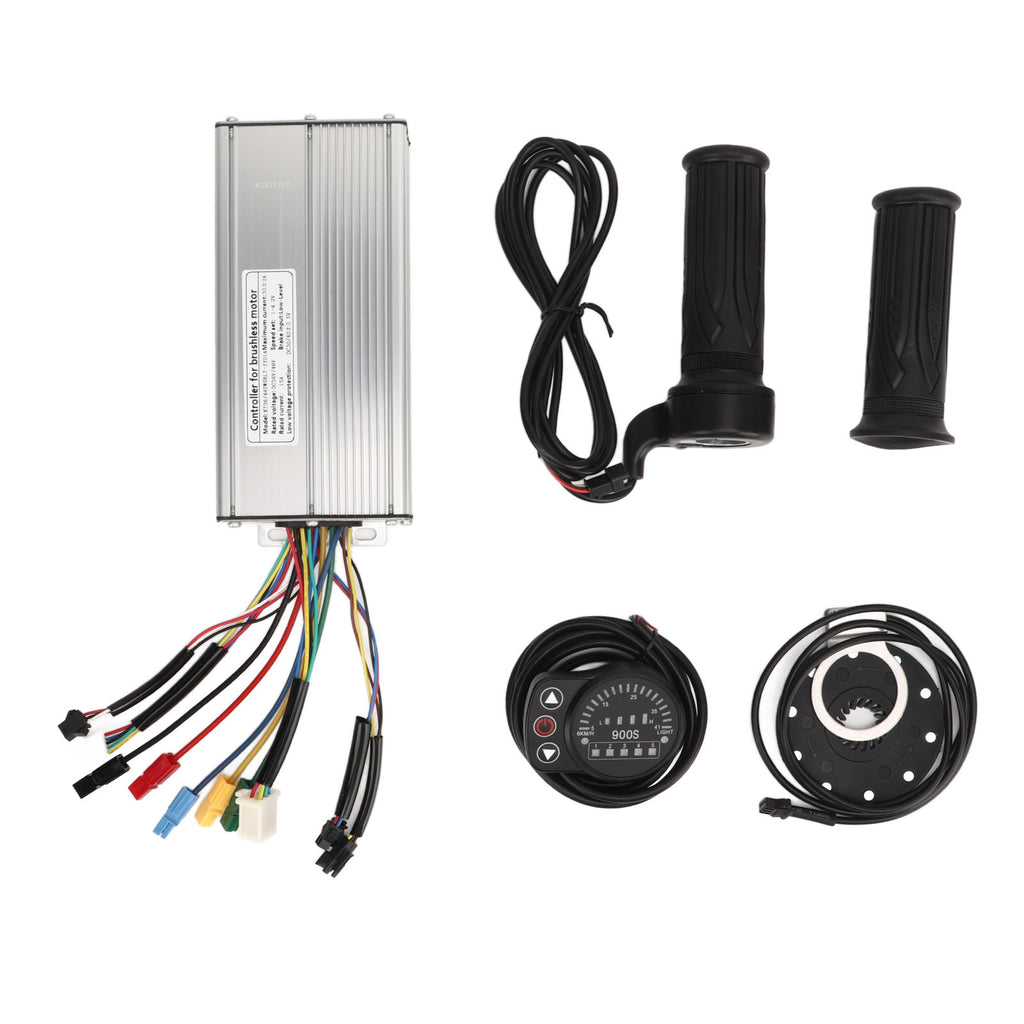

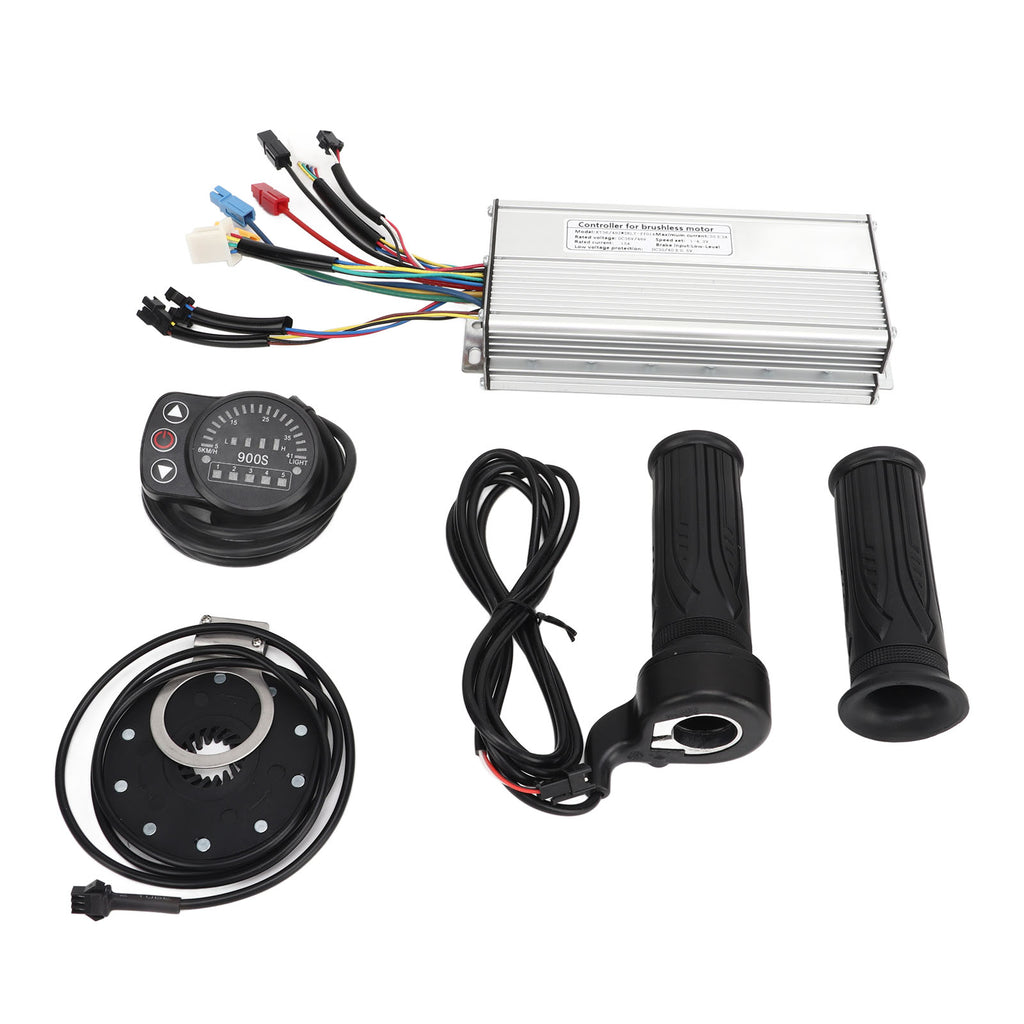

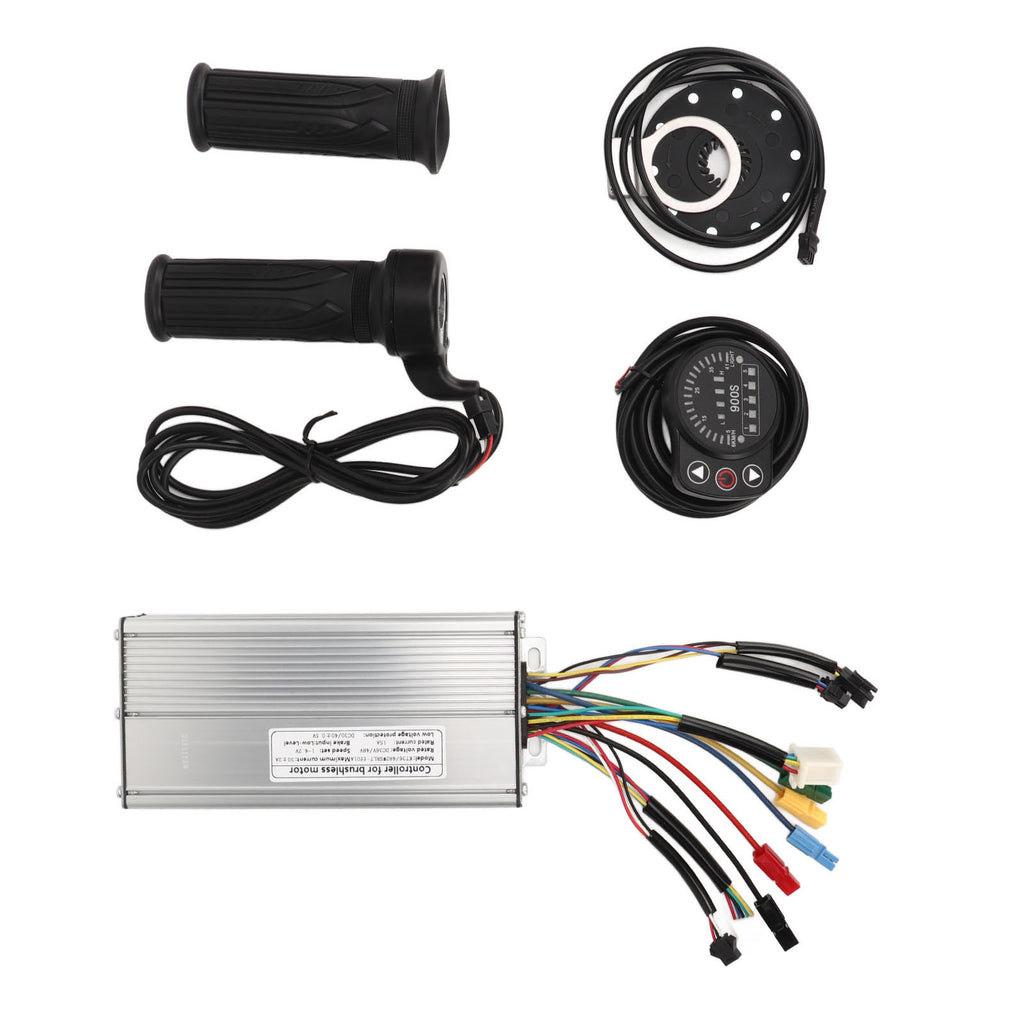

1. Complete Accessories: Including for KT 30A square wave dual mode controller, for KT LED900S display panel, 10B power sensor, 20X full turn handle, can be used alone or in combination

2. Widely Used: It is suitable for 36V 48V 1000W motor, which can be used for the modification and replacement of damaged parts of electric power , electric , electric scooter, etc. You can modify and use it according to your own situation

3. Aluminum Alloy Case: Square wave dual mode controller supports brushless motors with Hall and brushless motors without Hall. Aluminum alloy shell design, excellent heat dissipation performance, can the internal circuit, so as to avoid thermal overload

4. Multifunctional: For KT LED900S display panel adopts ordinary interface, the shell is made of PC material, to provide you with a variety of vehicle control and vehicle status display functions, 6KM H boost function, strip speed indicator, power indicator, power ratio gear, LED function indicator, easy to read the data when riding, to help you grasp the riding dynamics at any time, button quick operation, easy to use

5. Easy Installation: Display Panel and 20X full throttle for 22.2mm handlebar are easy to install and use with simple operation

    Specification:

Item Type: Brushless Controller Kit

Material: Aluminum Alloy, PC, Plastic, Magnet, Rubber

Weight: Approx. 1083g / 38.2oz

Controller Parameters:

Controller Material: Aluminum Alloy

Maximum Current: 30±2A

Rated Current: 15A

Voltage: DC 36V 48V

Speed Setting: 1V to 4.2V

Brake Input: Low Level

Low Voltage Protection: DC30 40±0.5V

Applicable Motor: 1000W

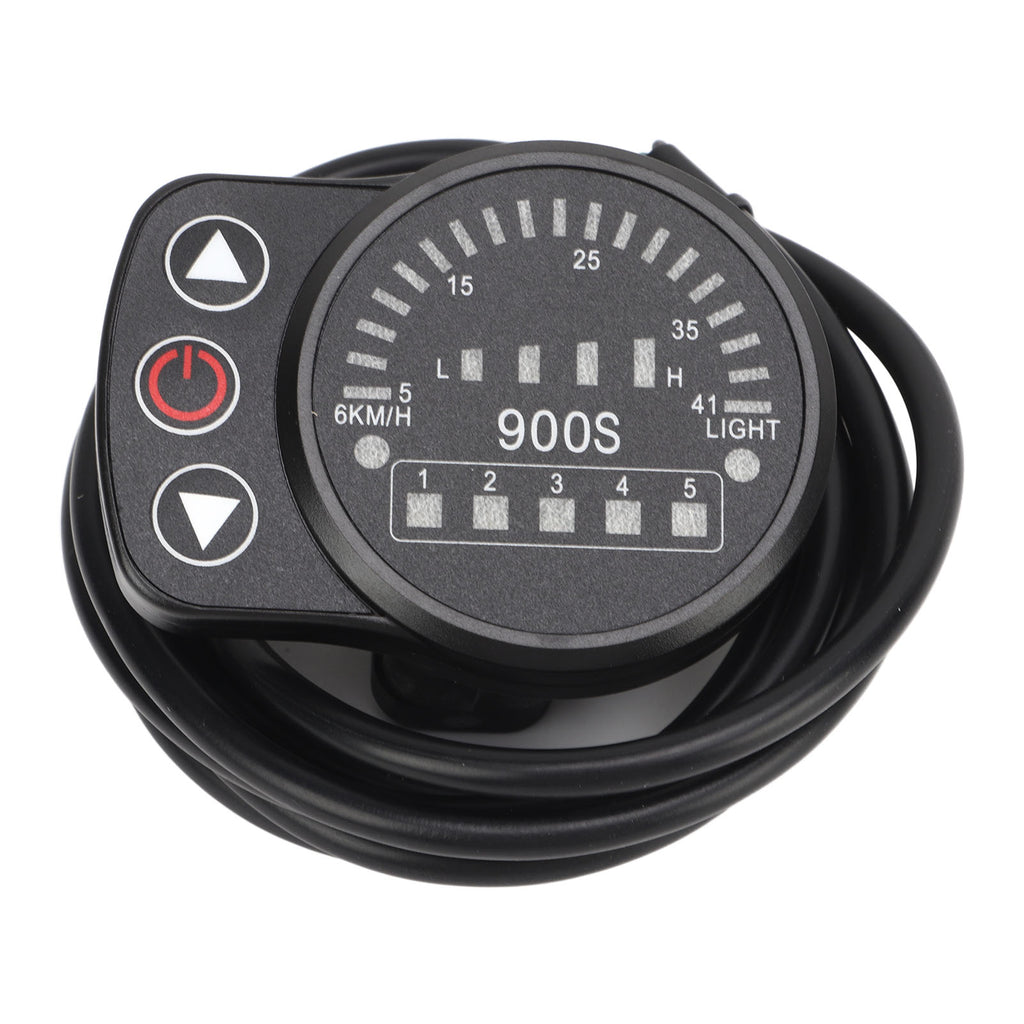

Display Panel Parameters:

Display Panel Material: PC

Model: for KT LED 900S

Suitable for Handlebar Installation: 22.2mm / 0.9in Diameter Handlebar

Voltage: 36V 48V

Interface: 5PIN

Instrument Display Function Description: 6KM/H Boost Function, Strip Speed Indicator, Power Indicator, Power Ratio Gear, LED Function Indicator

Assisted Magnetic Point Parameters:

Material: Plastic, Magnet

Voltage: DC 36V 48V

Line Length: 100cm / 39.4in

Connector: 3 Pin SM Connector

Installation Position: Left Side

20x Full Turn Handle Parameters:

Material: Rubber

Voltage: DC 24V 36V 48V 60V 72V

Line Length: 180cm / 70.9in

Connector: 3 Pin Sm Connector

    How to Use:

         1. Connection of the controller: please connect the corresponding device according to the interface on the controller wiring diagram. If you are not clear, please consult customer service

         2. Installation of display panel: fix the main body of display panel on the handlebars and adjust the angle of view. In the case of vehicle power failure, connect the instrument connector to the corresponding connector of the controller. Turn on the power, the electric vehicle and the display panel enter the normal operation state, and the display panel installation is complete

    Package List:

    1 x Brushless Controller

    1 x Controller Wiring Diagram

    1 x Turner

    1 x Handlebar Grip

    1 x Display Panel

    1 x Display Panel Manual

    1 x Force Sensor Magnet

    1 x Power Sensor Connection Cable

    Note:

         1. The kit uses for KT controller and for KT display panel, do not arbitrarily replace the controller and display panel in the kit, please match the for KT controller or display panel for separate use

         2. Size due to manual measurement, please allow the error
