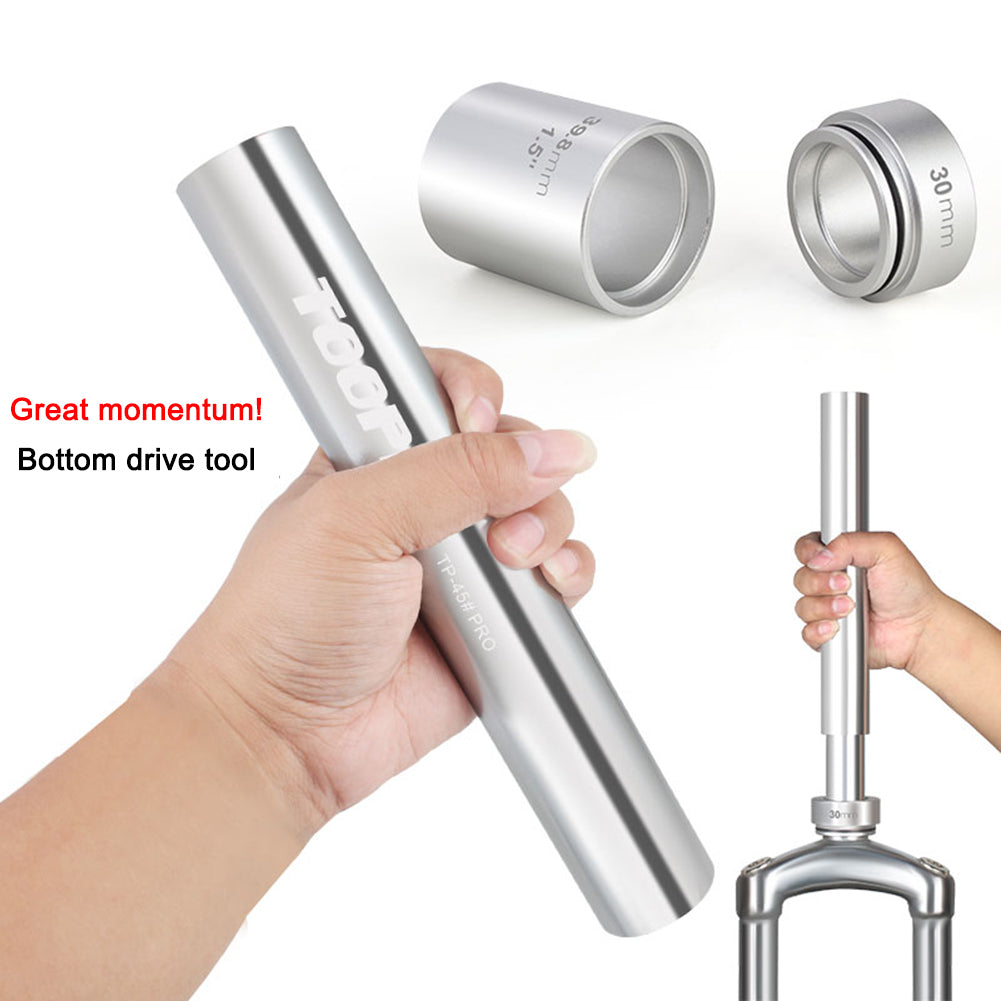

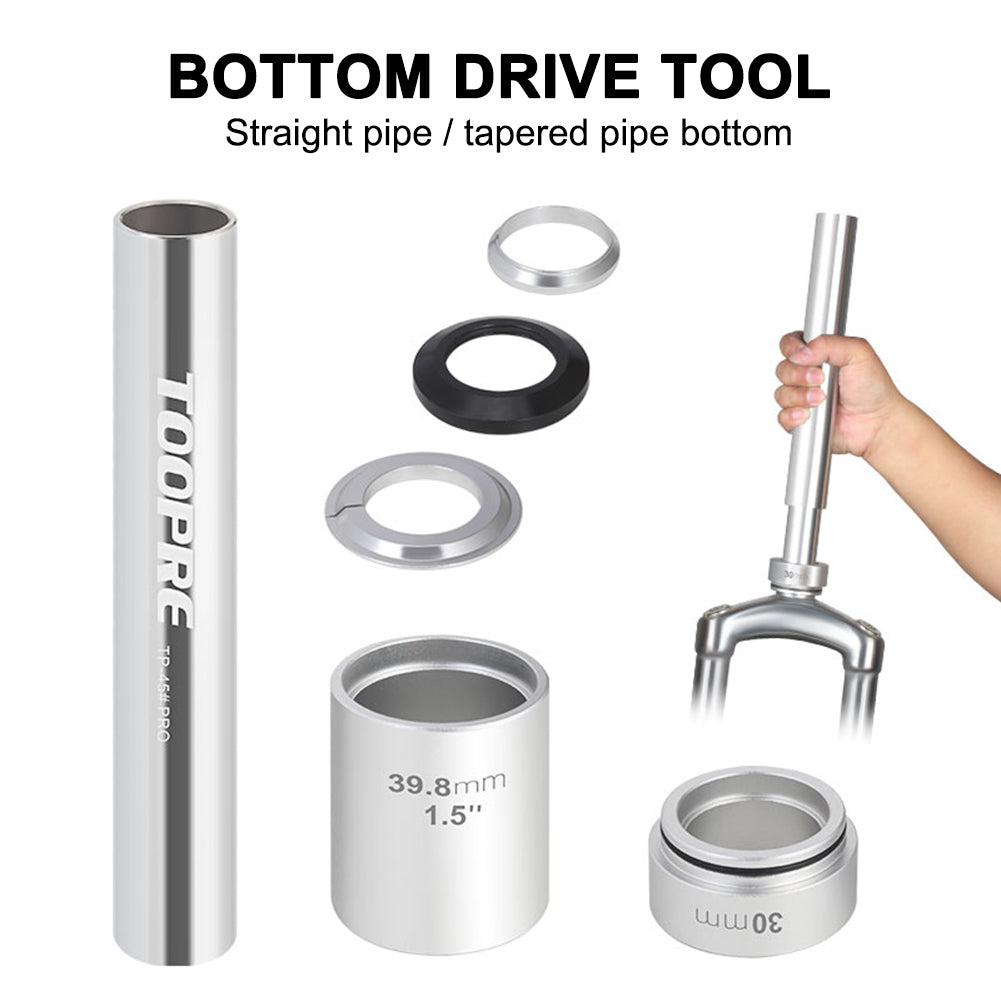

MTB Bike Front Fork Headset Installation Tools Mountain Bicycle Front Crown Bottom Gear Setting Tool Bike Accessories
Feature:
1. Electroplating treatment, anodizing, CNC turning, sandblasting surface anti-skid.
2. Using new aluminum alloy material, play a lightweight role, quick release, split structure, to protect the bottom gear
3. Compatible with 30mm straight tube bottom gear and 1.5 inch tapered tube bottom gear. The size is accurate.
4. Accurate size, heat treatment of the sleeve, hardness, long life.
5. Turning chamfer to match the angle of the bottom bracket, installation and punching without damaging the bottom bracket.
6. 45# tool steel, heated and hardened, aluminum alloy sleeve, fine brushed surface, CNC one-piece turning, accurate size, good compatibility.
Specification:
Name: Bottom Gear Installation Tool
Color: Silver White
Material: Aluminum Alloy + 45# Steel
Weight: About 687g
Contains: 45# Steel Sleeve, 1.5 Inch Insert, 30mm Insert

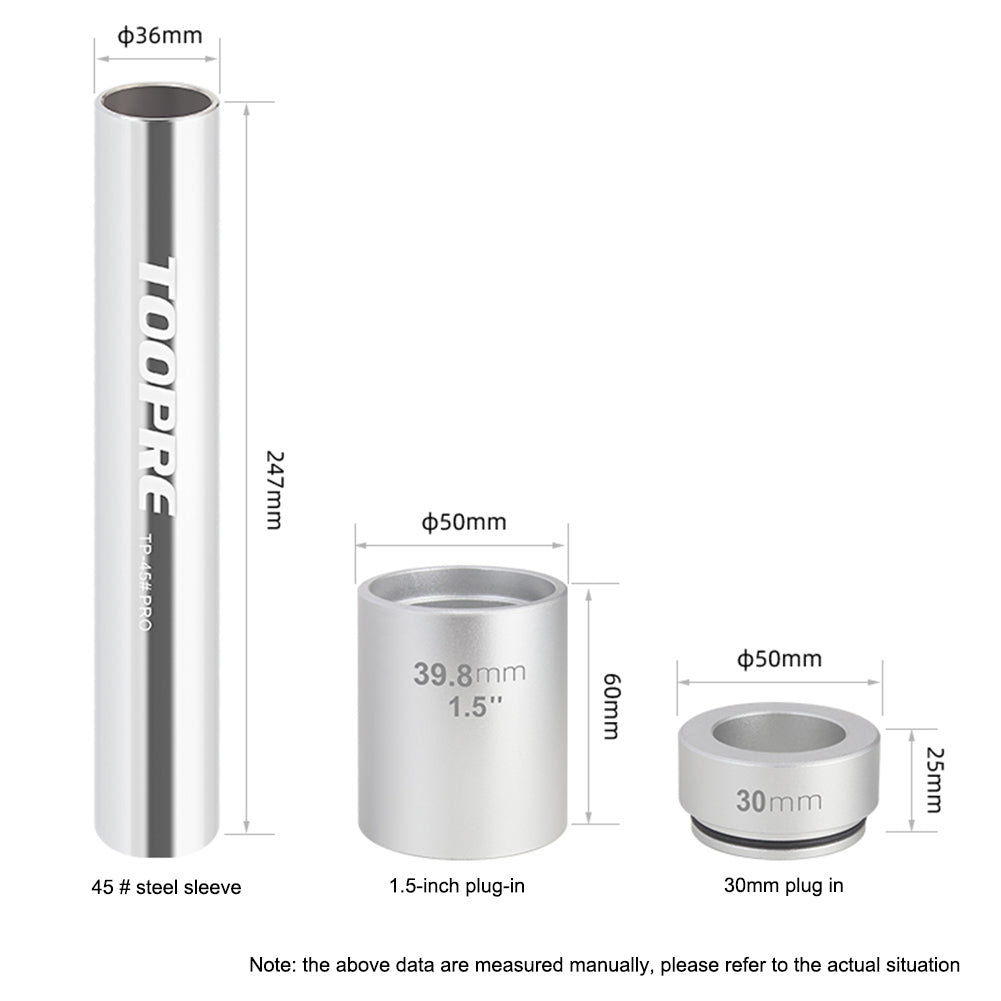

Size: About 247 * 36 * 36mm, 50 * 50 * 60mm, 50 * 50 * 25mm
Applicable: Normal 28.6mm OD Fork; 21.25 Inch Non-Standard Tapered Tube Fork; 1.5 Inch Standard Tapered Tube Fork.
Tips:
Non-standard 31.8-33mm straight fork and non-standard 31.8-39.8mm tapered fork, not available!
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-2cm measuring deviation due to manual measurement.

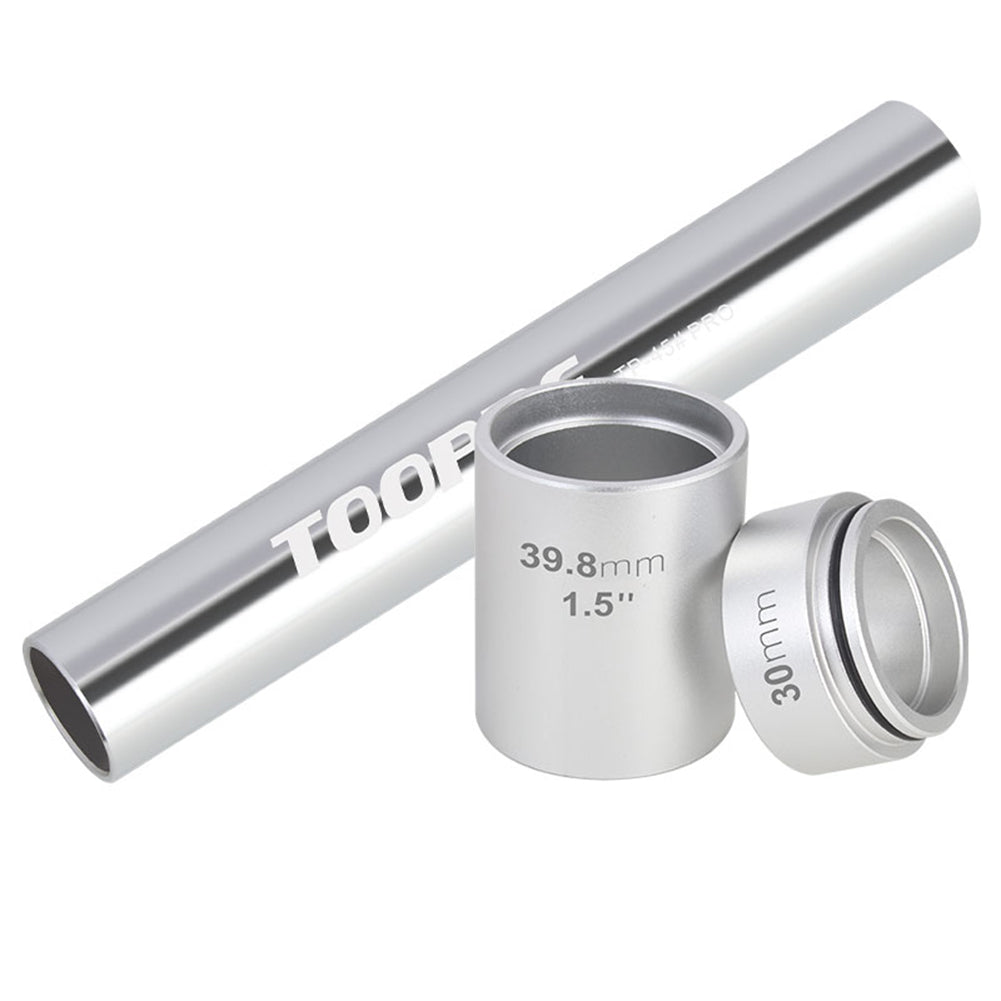

Packages:
1 X 45 Steel Sleeve
1 X 1.5in Insert
1 X 30mm Insert
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
