Applications and Features：
Widely used in ship, automobile, chemical manufacture, metallurgy, machine, household appliance and many other fields.

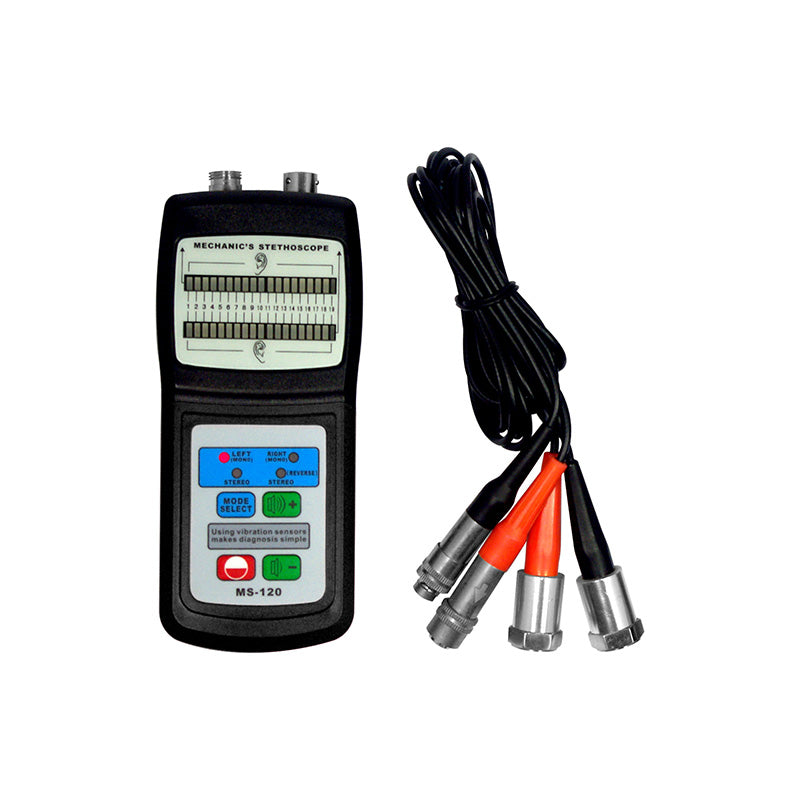

*It can pick up and amplify the weak audio signals via a sensitive piezoelectric sensor, and distinguish the normal/abnormal signal and its location.
*Desined to help locate the source of excess bearing and machine noise easily at low cost.
*Used to quickly locate the source of engine noise such as piston slap, worn gears and bearings, blown gaskets. Also useful tracking down dashboard rattles and squeaks.
Specifications:
Frequency Range
10Hz~10K Hz
Input Impedance
>20M
Ambient Noise Permitted
100dB
Power Supply
4x1.5V AAA Size(UM-4)Battery
Dimensions
156mmx67mmx28 mm
Weight
270g(Not Including Batteries)
Standard Accessories
Main Unit
Powerful Rare Earth Magnet
Sensor
Probe(Cone)
Carrying Case
Manual Book
Optional Accessories
Headset
Vibration Standard:
ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank
Rev(rpm)
H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132
132<H<225
225<H<400
Normal
600~3600
1.8
2.8
4.5
Good(R)
600~1800
0.71
1.12
1.8
1800~3600
1.12
1.8
2.8
Excellent(S)
600~1800
0.45
0.71
1.12
1800~3600
0.71
1.12
1.8
