Applicatios:
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.
Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications:

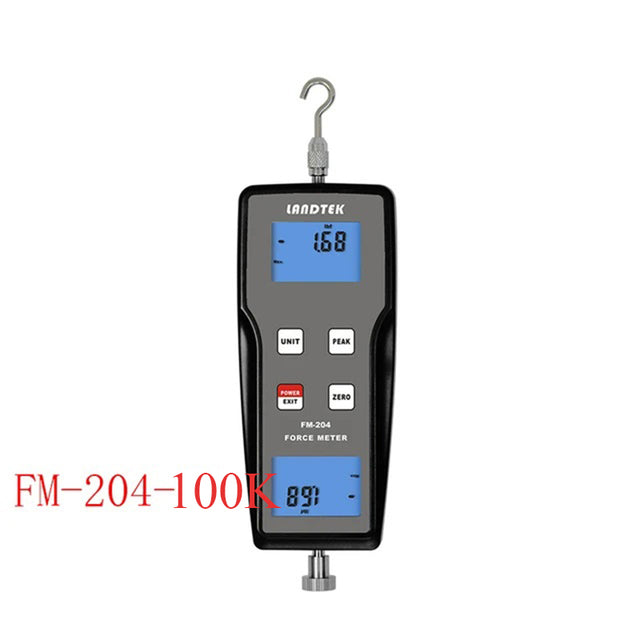

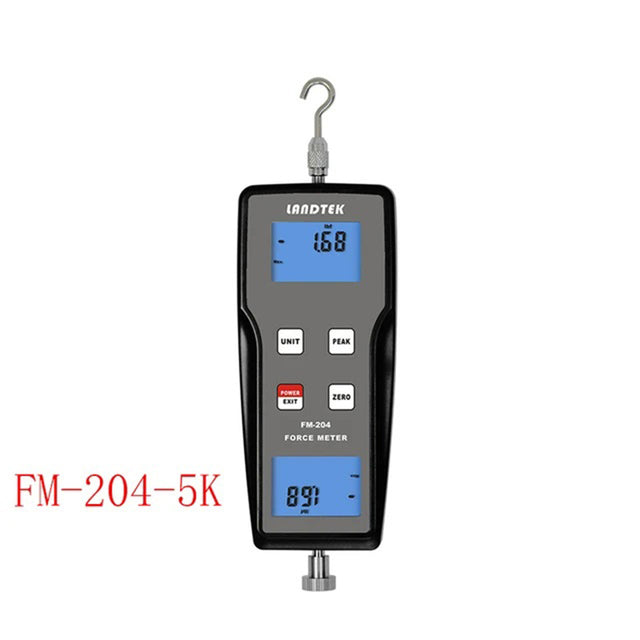

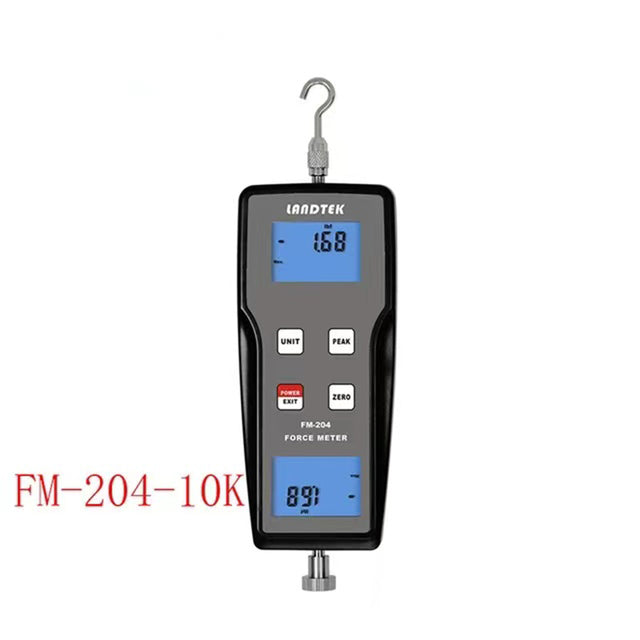

Model
FM-204-
1K
FM-204-
2K
FM-204-
5K
FM-204-
10K
FM-204-
20K
FM-204-
50K
FM-204-
100K
Force Range
±1kgf
±2kgf
±5kgf
±10kgf
±20kgf
±50kgf
±100kgf
±1000gf
±2000gf
±5000gf
±9.8N
±19.6N
±49N
±98N
±196N
±490N
±980N
±2.2Lbf
±4.4Lbf
±11Lbf
±22Lbf
±44Lbf
±110Lbf
±220Lbf
Resolution
0.001kgf
0.001kgf
0.001kgf
0.001kgf
0.01kgf
0.01kgf
0.01kgf
1gf
1gf
1gf
0.001N
0.01N
0.01N
0.01N
0.1N
0.1N
0.1N
0.001Lbf
0.001Lbf
0.01Lbf
0.01Lbf
0.01Lbf
0.1Lbf
0.1Lbf
Accuracy
±0.5%FS±1Digit
Unit
kgf,gf,N,Lbf
Measurement State
Peak Value Measurement,Real Time Measurement
Display
2 Reversed 4Digit LCD
Power Off
10 Minutes Auto Power Off, Manual Power Off
Backlight
Blue Backlight
Safe Load
150%FS(Buzzer Alarm Over 110%FS)
Power Supply
2X1.5 AA(UM-3)Battery or 6VDC Power Supply
Operating
Temperature:0~40ºC
Conditions
Humidity:<80%
Surrounding
No Vibration Source or Corrosive Medium Around
Weight
390g
Size
211x80x36mm
Accessories:
Standard Accessories
Digital Force Gauge
Pulling Hook
Flat Tip
Cone Tip
V-shaped Groove Tip
V-shaped Wedge Tip
Lengthening Connection Rod
Screw Rod
Cap Nut
Manual

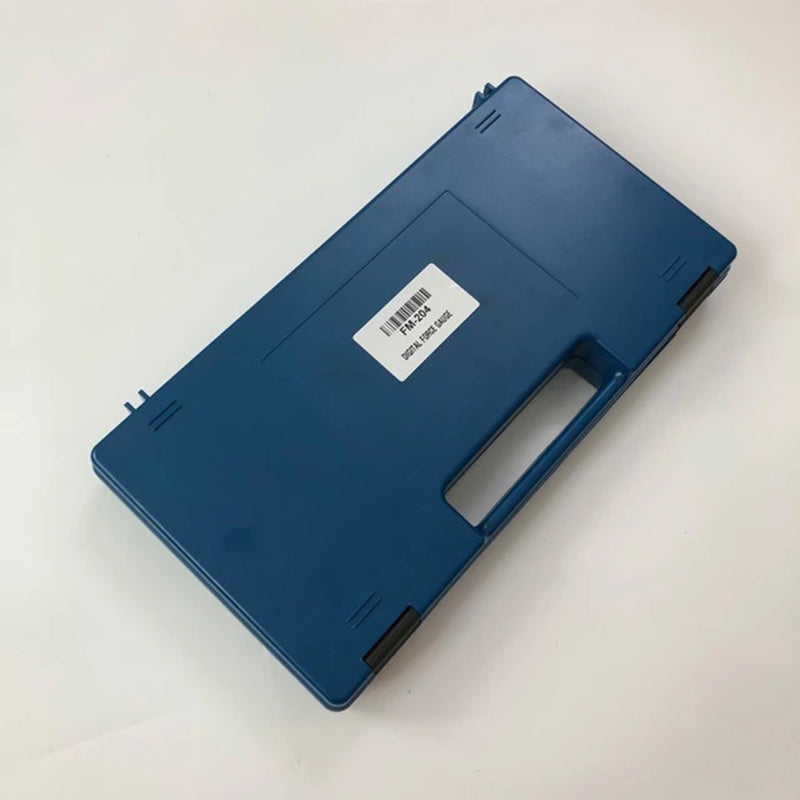

Carrying Case
Optional Accessories
Force Gauge Stand
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
