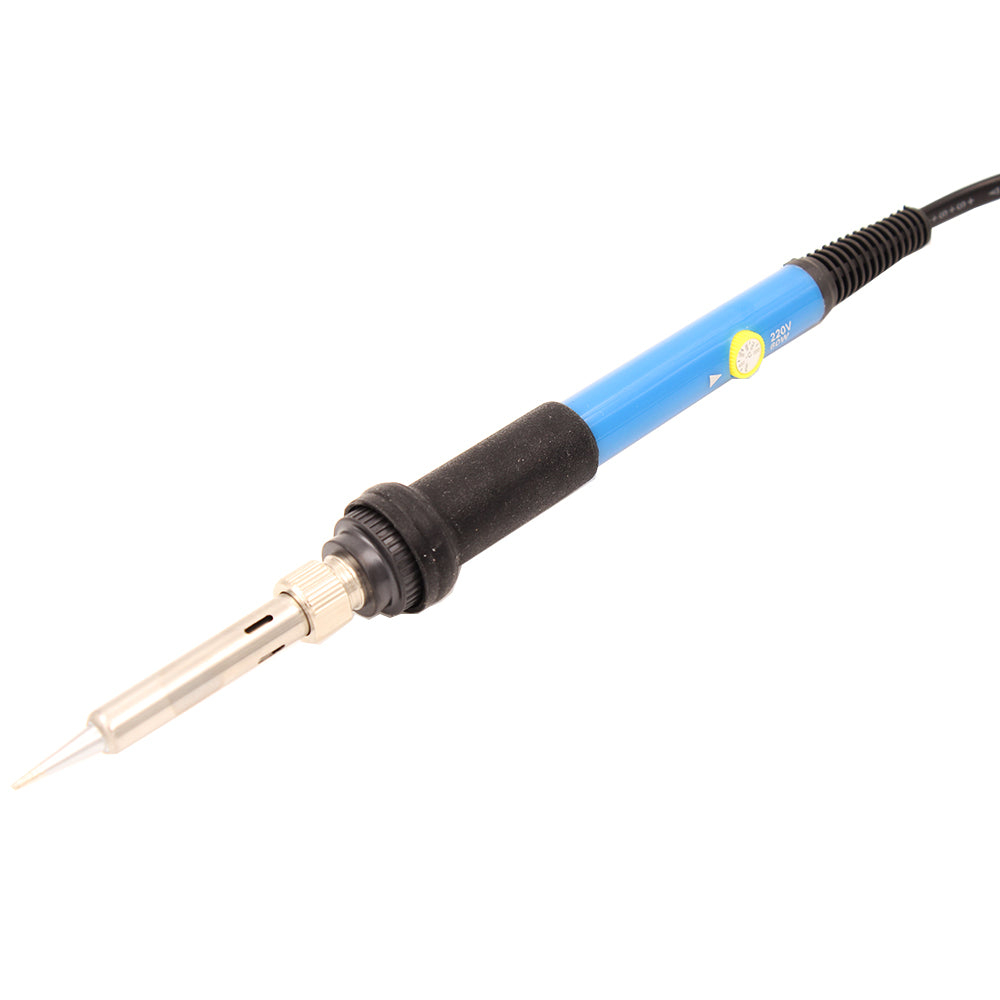

This compact desgined station is ideal for professional use. Soldering can be performed and adjusted from the control knob from 200°C - 450°C. Interchangeable iron plated tips are available to make the soldering station excellent for electronic and electric use.

 This professional soldering tool is great for lead-free soldering semiconductors with adjustable temperature controlled soldering irons: 200-450 ° C.

 Soldering Iron Length: 18.5 cm

 Cable Length: 143 cm

 Working Voltage: 110V / 220V 60Hz / 50HZ

 Power: 60W

   Instruction:

 Press the (+) button once to increase 1℃; press and hold it to increase temperature continuously. Press the (-) button once to reduce 1℃; press and hold it to reduce temperature continuously. The newly set temperature will be saved after 3 seconds,and will keep the temperature for next time powering-on.When (℉) or (℃) symbol flashes, it means the heating core has not reached the set temperature.

   Temperature Calibration:

 1.After 60 seconds of power on, put the soldering tip on a thermometer, and a moderate amount of solder on the soldering tip; make the test point and the soldering tip have good touch.

 2.When thermometer displays a stable temperature (about 2 seconds), write down the temperature.

 3.Move soldering iron away from thermometer; press the (-) and (+) button at the same time to enter temperature Calibration.

 4.Input adjustment quantity. Adjustment quantity=set temperature - measured temperature (see example)

 5.Press the (-) and (+) at the same time to exit temperature interface, finished. Example 1, when setting temperature is 350℃ while measured temperature is 342℃, the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the "+" button till the LCD displays 8℃ c.press the (-) and (+) at the same time to exit temperature correction interface Example 2, when setting temperature is 350℃ while measured temperature is 330℃,the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the (-) button till the LCD displays -20℃ c.press the (-) and (+) at the same time to exit temperature correction interface

   Parameter setting:

 1.To press the red and white button both at the same time before it is power on, power on,after the LCD is working,stop to press the button, you will enter the setting menu.The LCD shows (F) or (C)

 2.Press the white button to choose C(degree centigrade) or F(Fahrenheit).Press the Red button to choose Element U20(JCD01),U20(JC D02),U30(JCD03),U40(JCD04).

 3.Pressing the (-) and (+) at the same time to save your setting operation and quit the setting menu(finished) To protect the user from scald, when on the setting menu, it will stop heating.

   Failure warning indication

 The LCD shows (OP): the heating element is open circuit.

 Solution:

 1.change the element.

 2.To confirm that whether the pin of element is oxidized.

 The LCD shows(E1):

 The outlet is poor contact,or thebattery source interfering the soldering iron that it is power down.

 Solution:

 1.Unplug the soldering iron.

 2.Close the interfering source.

 3.To use it far away from the interfering source. Note: Please do not touch the soldering tip and tube when the power is turned on.

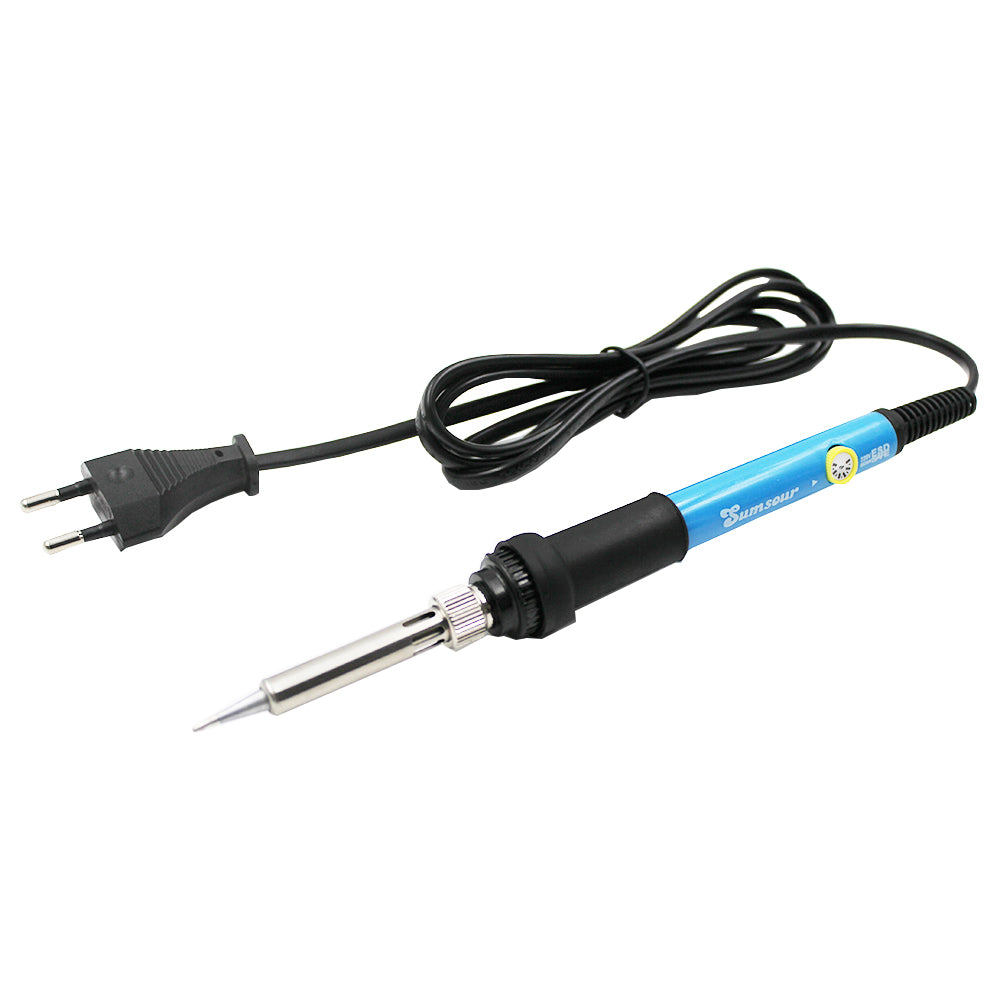

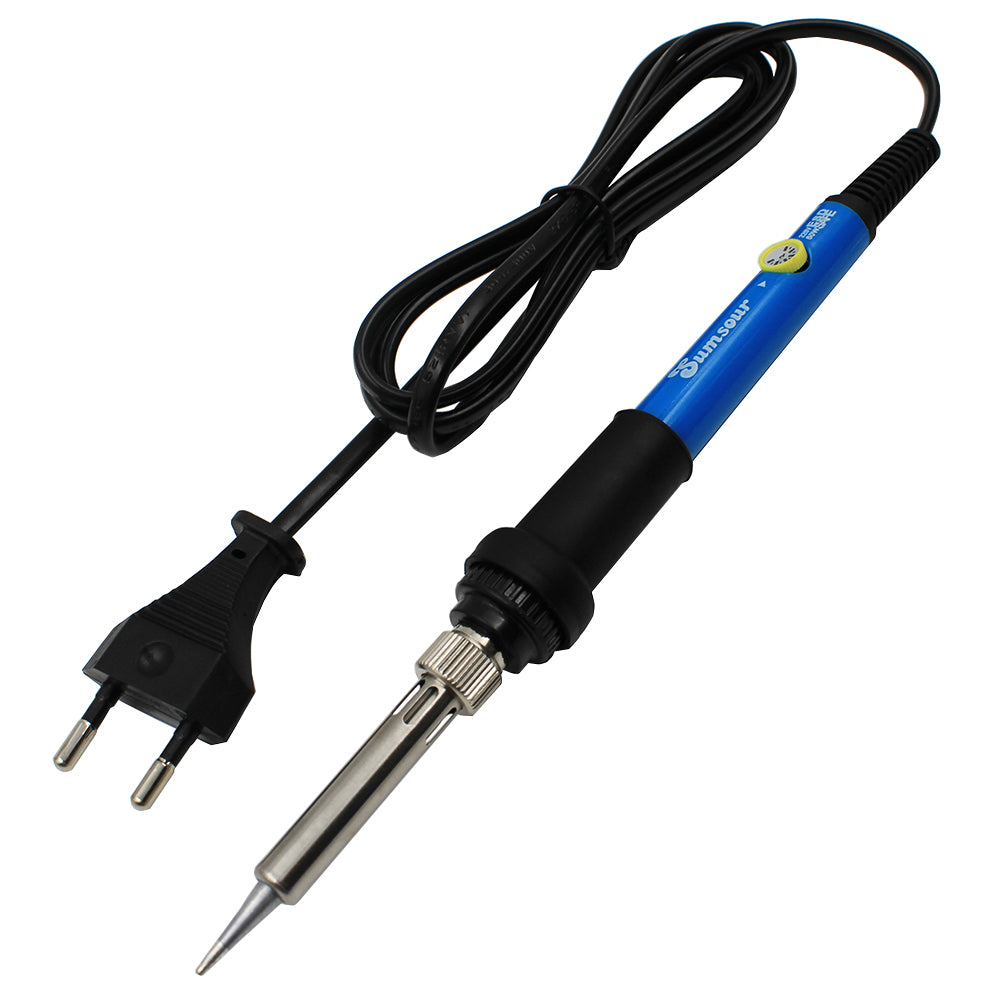

   60W iron package list :

 1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )

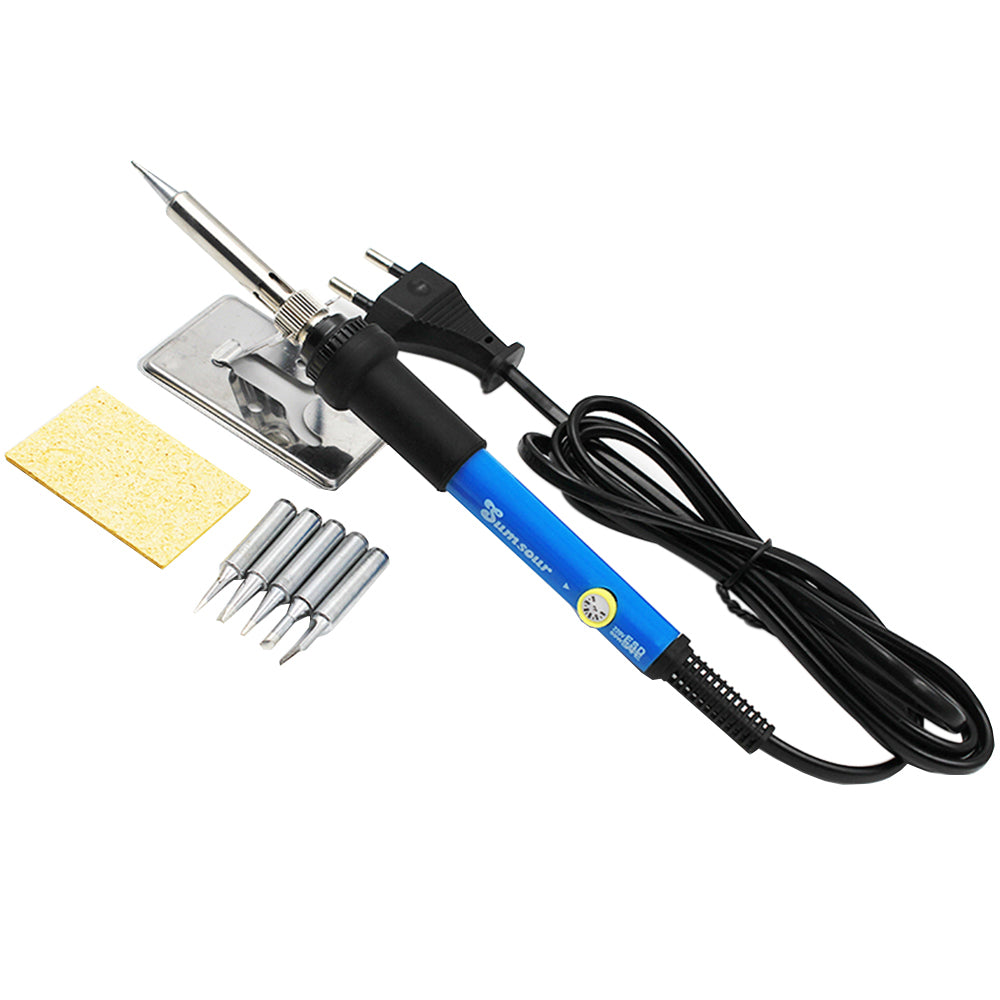

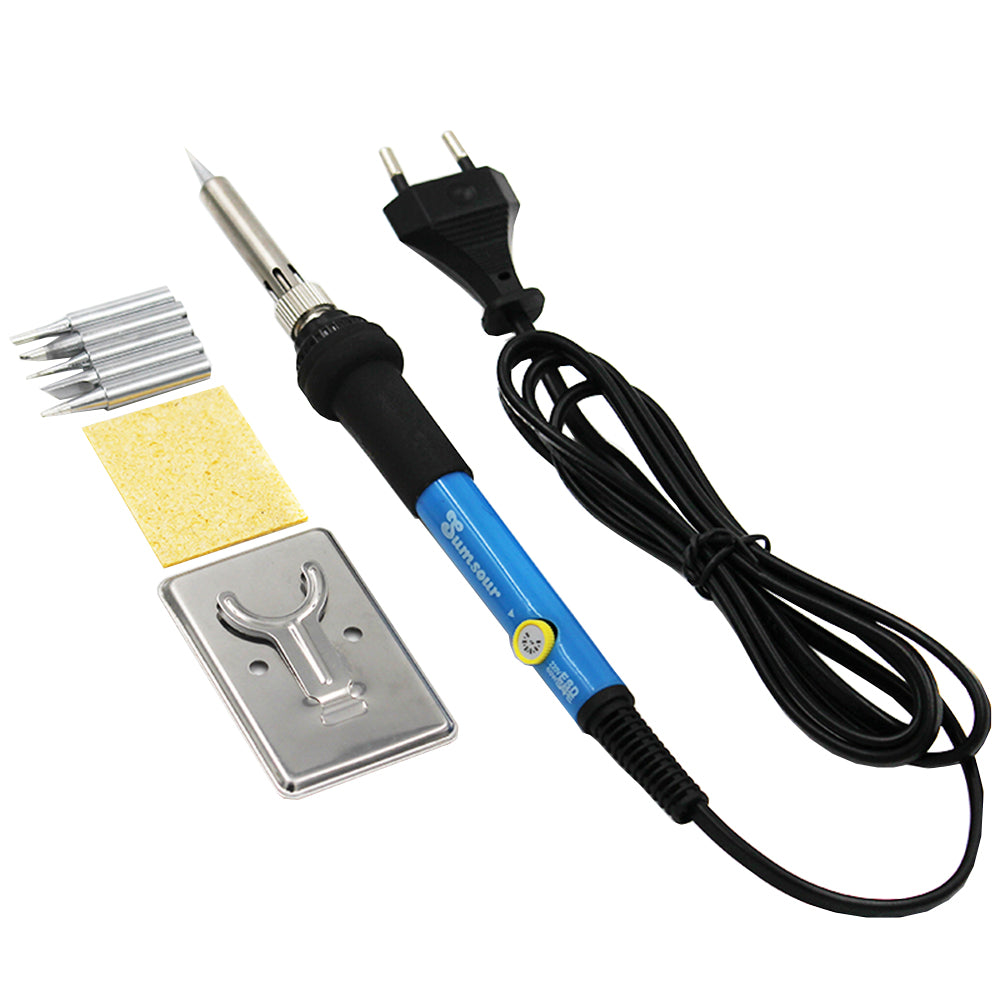

   60W iron set package list :

 1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )

 5PCS soldering iron tips (I / B / K /2.4D / 3C)

 1pcs Stainlness steel soldering stand

 1pcs sponge

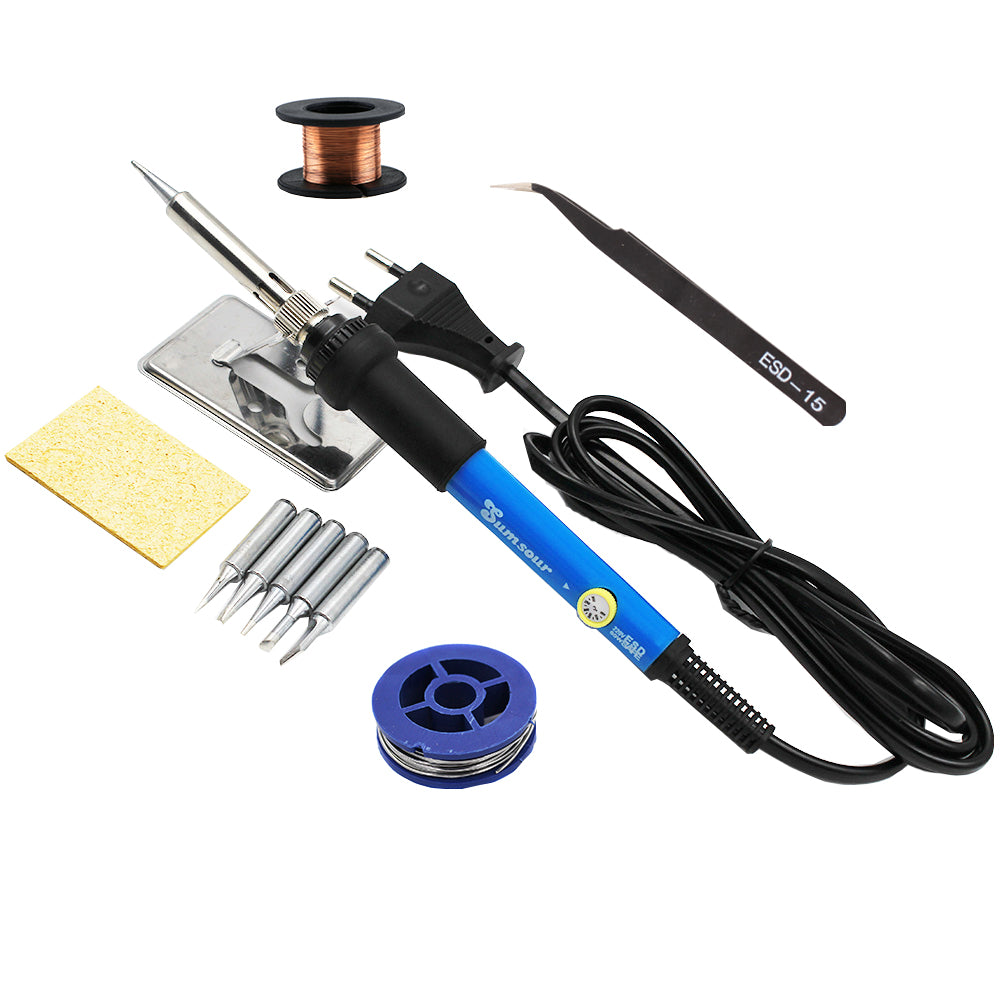

   60W iron Kit package list :

 1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )

 5PCS soldering iron tips (I / B / K /2.4D / 3C)

 1pcs Stainlness steel soldering stand

 1pcs sponge

 1pcs solder wire

 1pcs Copper wire

 1pcs ESD-15 Tweezers

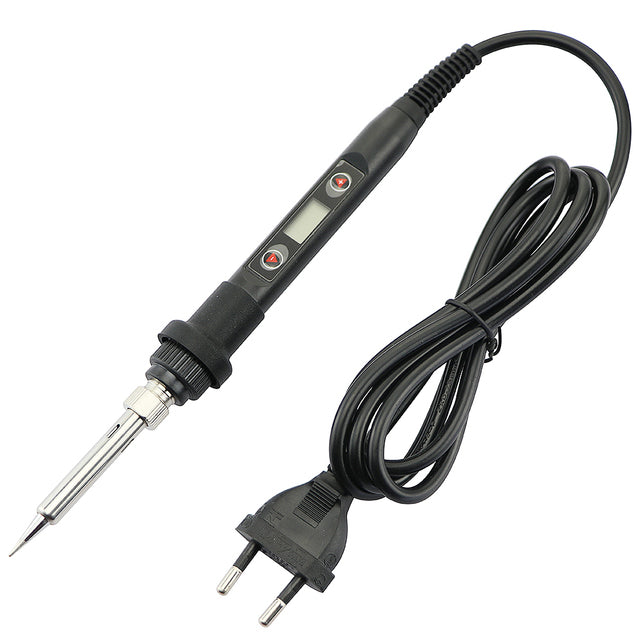

   80W iron package list :

 1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )

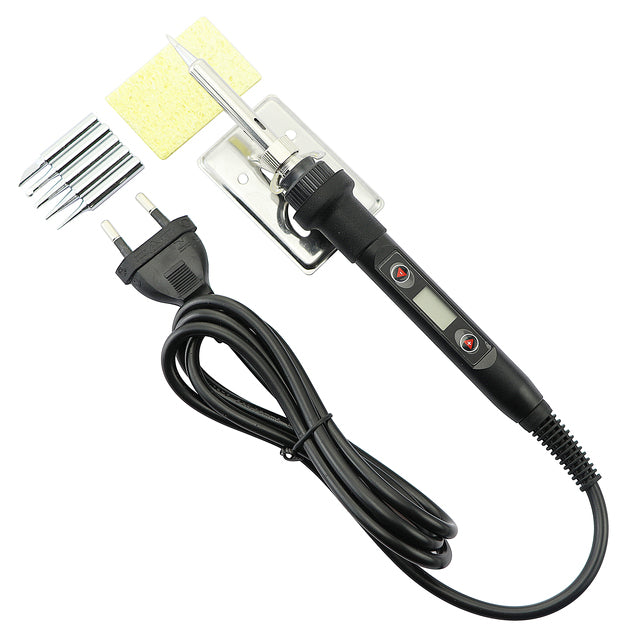

   80W iron Set package list :

 1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )

 5PCS soldering iron tips (I / B / K /2.4D / 3C)

 1pcs Stainlness steel soldering stand

 1pcs sponge

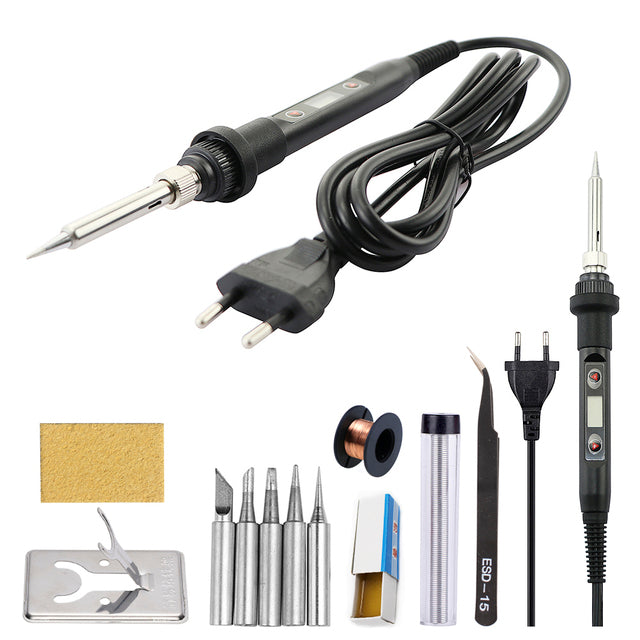

   80W iron kit package list :

 1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )

 5pcs soldering iron tips (I / B / K /2.4D / 3C)

 1pcs Stainlness steel soldering stand

 1pcs Sponge

 1pcs Solder wire

 1pcs Tweezers

 1pcs Rosin

 1pcs Copper Wire
