New Linshang LS108H Spectrum Transmission Meter Test Glass Lens Window UV IR

Visible Light Transmittance With 365nm Ultraviolet Sale

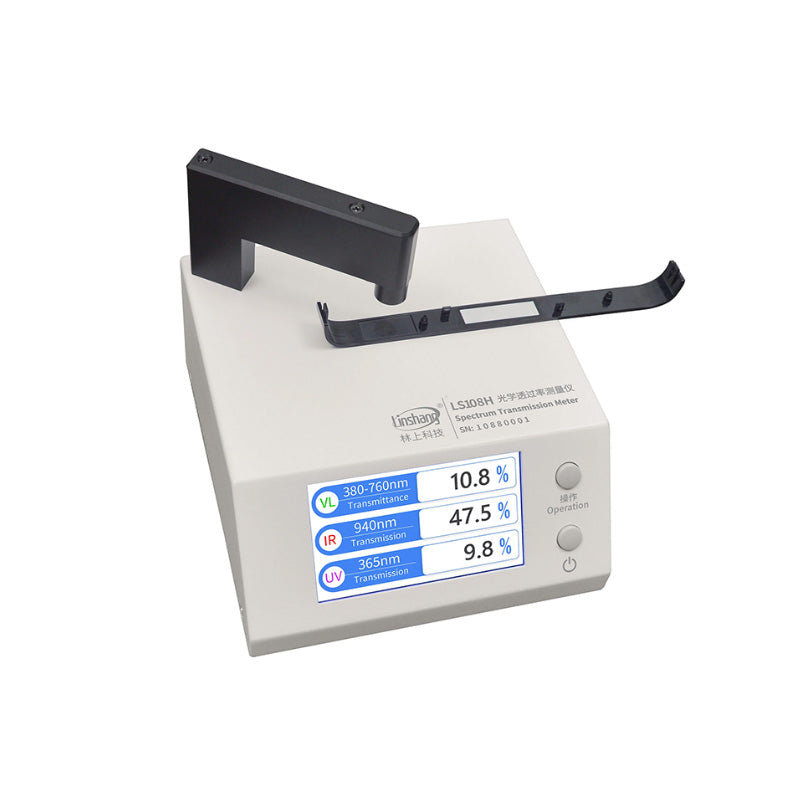

I. LS108H Spectrum Transmission Meter Introduction

LS108H spectrum transmission meter is a desktop instrument, which is professionally used for optical transmittance test of various materials such as lens, glass, coating material, organic material and paint, etc. The test aperture of the meter is 1mm, which is suitable for the measurement of light transmittance, infrared and ultraviolet transmittance of small-sized materials. The flat bench-top meter is convenient for placing various test samples. The test is fast and accurate. Once the test material is placed on the meter, the test results will be displayed immediately. The meter use parallel light path design that can measure thick materials.

The LS108H optical transmittance tester use ultraviolet light source, infrared light source and visible light source to illuminate the transparent material under test. The sensor detects the incident light intensity of the three light sources and the light intensity after passing through the transparent material under test. The ratio of the over light intensity to the incident light intensity is the transmittance, expressed as a percentage.

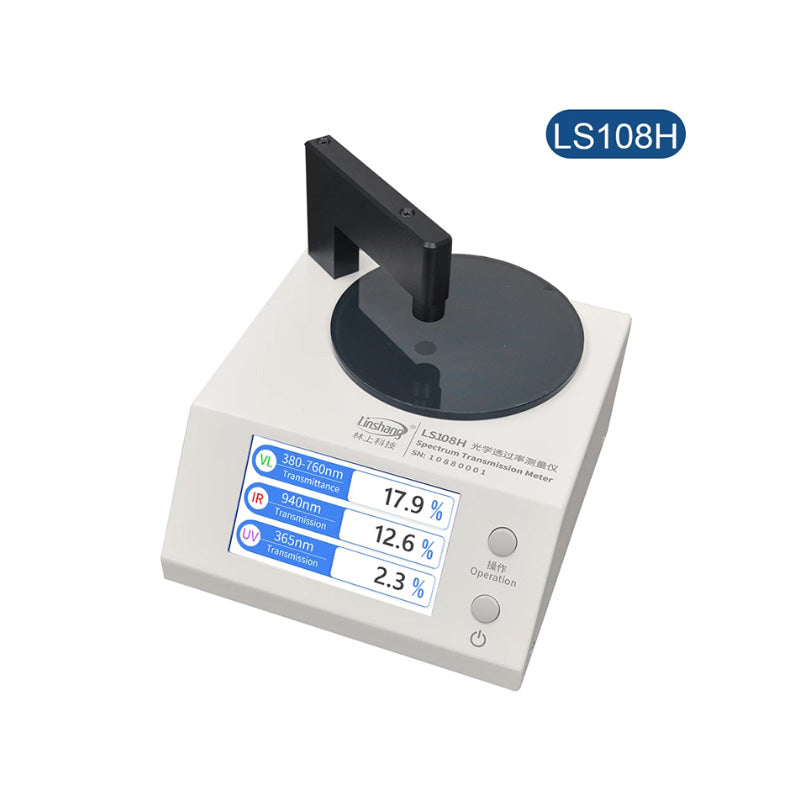

LS108H transmission meter test small-sized materials

1. Three light sources share a test hole, which can obtain 380nm-760nm visible light transmittance, 940nm infrared and 365nm ultraviolet transmittance in one measurement, easy to operate and save time.

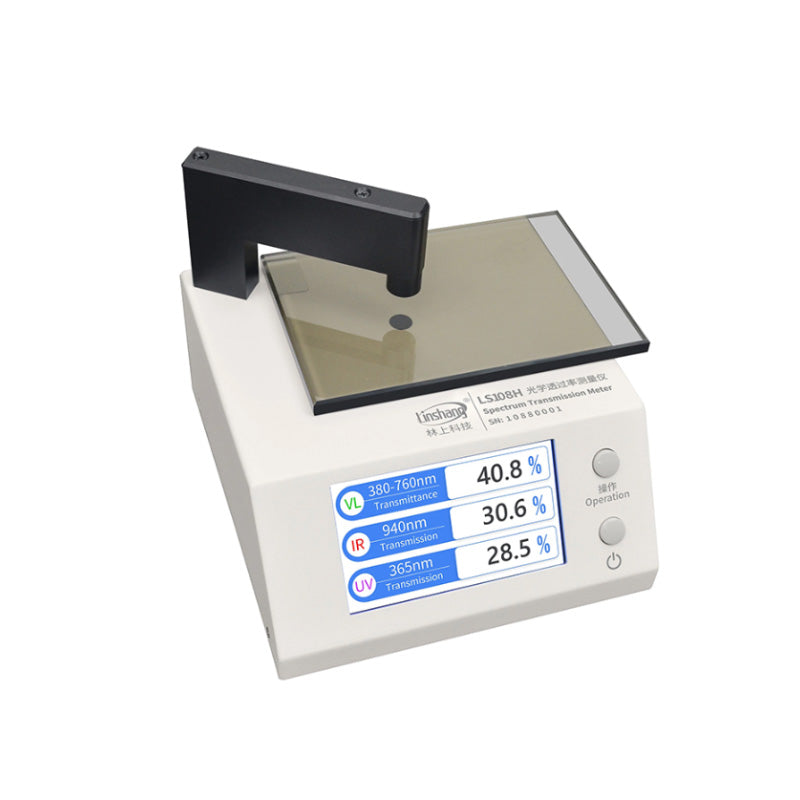

LS108H Transmittance Tester Test Acrylic

2. Parallel light design, the measurement results of testing large thickness materials are also stable and accurate.

3. The test aperture is 1mm, which can test the transmittance of small-sized materials.

light transmission meter test aperture

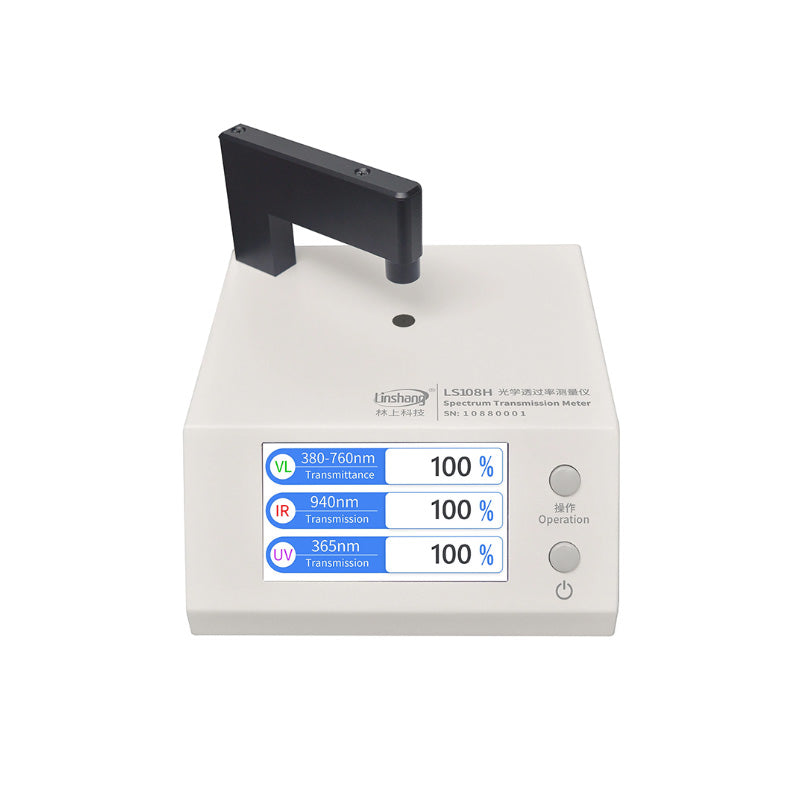

4. The light transmission meter has a real-time dynamic self-calibration function, which automatically calibrates to 100% transmittance after startup.

LS108H optical transmittance tester real-time calibration

V. LS108H Spectrum Transmission Meter Qualification

VI. LS108H Spectrum Transmission Meter Operation Video

VII.LS108H Spectrum Transmission Meter Packaging Details

      No.

   Description

   Quantity

   Unit

       1

   LS108H Spectrum Transmission Meter

   1

   pcs

       2

   DC5V Adapter

   1

   pcs

       3

   User Manual

   1

   pcs

       4

   Certificate / warranty card

   1

   pcs

       5

   Packing box dimension 231*241*161cm（L*W*H）

   1

   pcs
