Specification

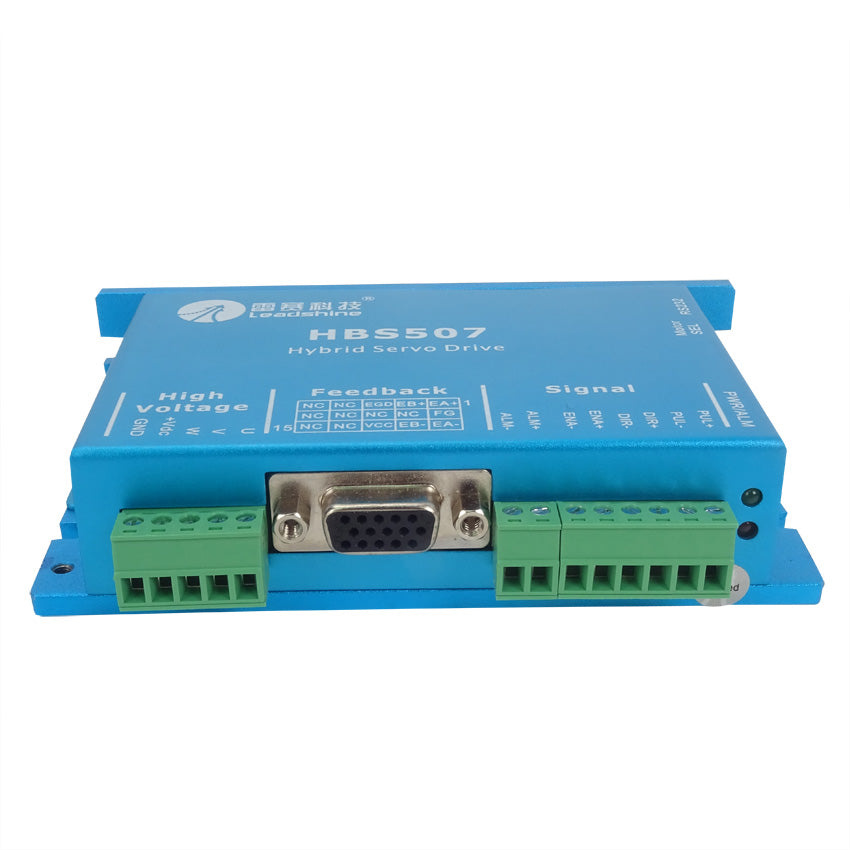

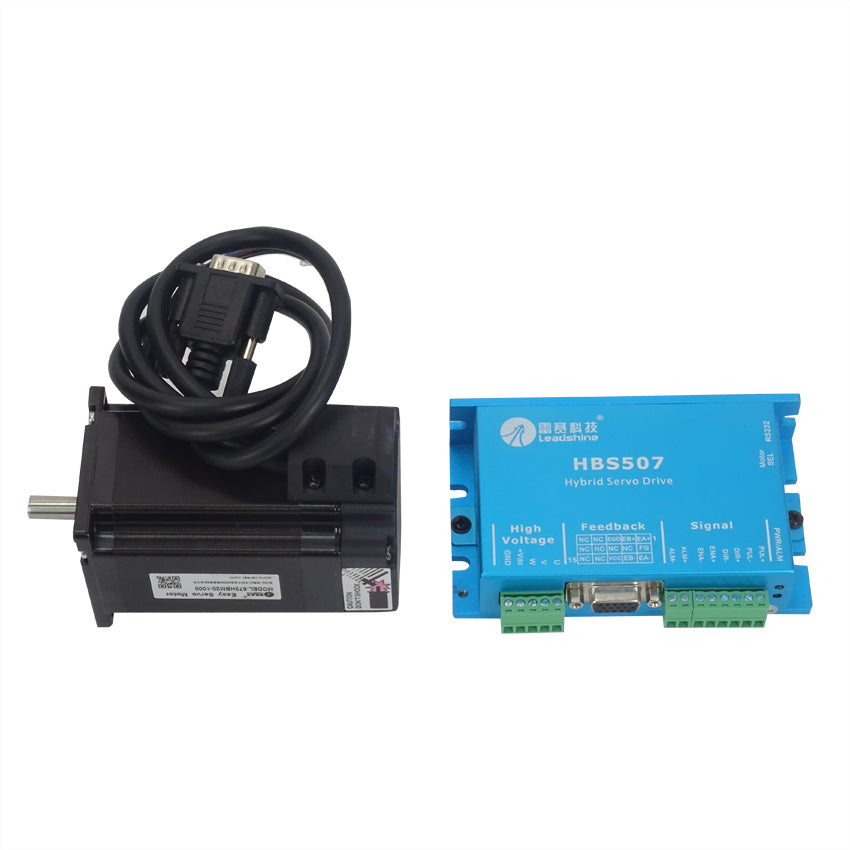

Name: 3-phase Hybrid Servo Drive Kit
Model: HBS507
Phase: 3
Control Mode: Step & Direction
Max Input Frequency: 200KHz
Encoder Feedback: Yes. Fully close the loop between the drive and drive motor
Input Voltage Range: 20 - 50 VDC
Peak Current: 8.00 A
Software Cofig Resolution Range: 200 - 102,400 (increased by 200)
Default Step Resolution: 4000
Default Holding Current Percentage: 40 %
Communication Type: RS232
Pulse enabled at: Rising edge
Isolation Resistance: 500M Ohm
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temporature: 0-50°C
Humidity: 40-95% RH
Operating Temporature: 0-70°C
Vibration: 5.9 m/s2 Max
Storage Temporature: -20-65°C
Specification: 4.57 X 2.72 X 1.04 Inches
Weight: 0.62 lb
Features:
The HBS series offers an alternative for applications requiring high performance
and high reliability when the servo was the only choice, while it remains cost-effective.
The system includes a 3-phase stepper motor combined with a fully digital, high
performance drive and an internal encoder which is used to close the position,
velocity and current loops in real time, just like servo systems. It combines the best
of servo and stepper motor technologies, and delivers unique capabilities and
enhancements over both, while at a fraction of the cost of a servo system
1.Broader operating range - higher torque and higher speed
2.Closed-loop, eliminates loss of synchronization
3.Reduced motor heating and more efficient
4.Do not need a high torque margin
5.Fast response, no delay and almost no settle time
6.Smooth motion and super-low motor noise
7.No Tuning and always stable
8.High torque at starting and low speed, high stiffness at standstill
