Features

 Best resolution 1μΩ. Accuracy 0.05%

5A (120 mΩ) max. test current.( PROVA 700)

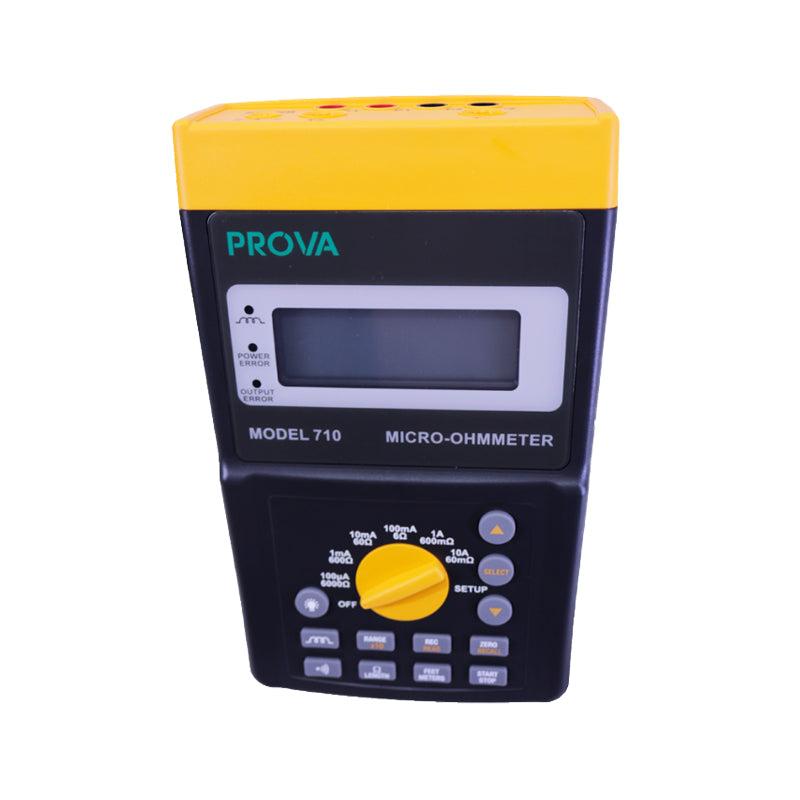

10A (60 mΩ) max. test current.( PROVA 710)

Manual or Auto Range. (There are 6 ranges of current measurement, and furthermore 3 ranges in each current range.)

Measurement of resistive and inductive materials (Two terminal measurement; Four terminal Kelvin measurement)

Programmable Hi-Lo alarm with memory of 20 data.

Auto-judgments of Hi (readings higher than Hi-Limit), Lo (readings lower than Lo-Limit) and Pass (readings between Hi-Lo Limits). Alarm (beeper) for Hi and Lo.

Readings Hold function.

Cable length measurement. The length unit can be selected between Meter (M) and Feet (FT).

Resistance measurement results excluding cable resistances.

Memory of 3,000 measurement data.

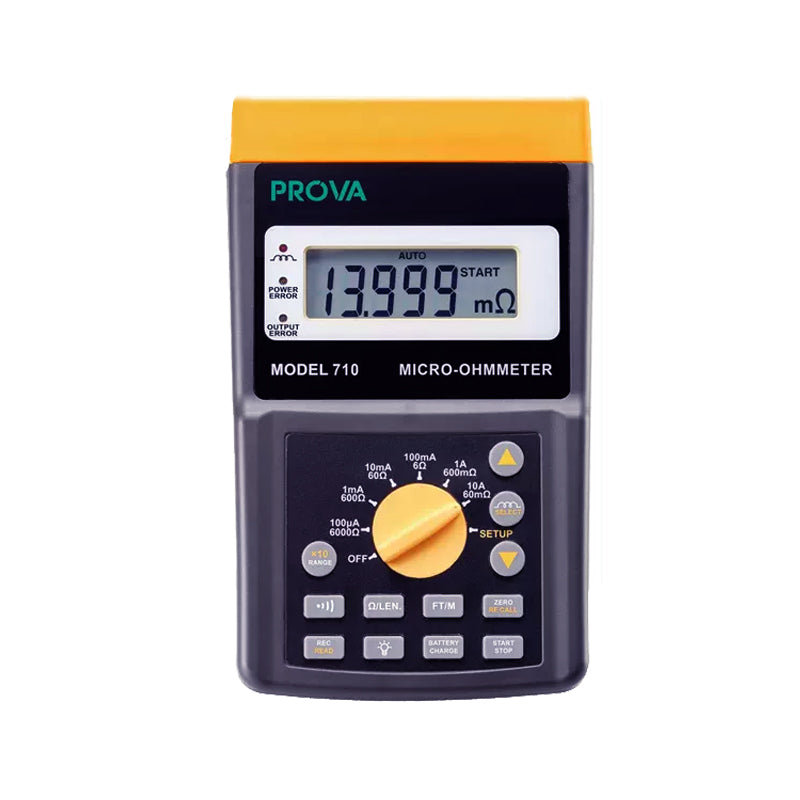

Large LCD (5-digit) with backlight (users can choose to disable it).

Rechargeable batteries and AC adaptor.

Low battery (voltage) alarm.

Low power consumption.

Communicate with PC via RS232C (to USB bridge) cable.

Application: various low-resistance (cables) measurement; contact resistance measurement, …etc.

 Specifications:

 Electrical Specifications (23°C ±5°C )

 Manual Range:

               Range

     Resolution

     Accuracy

             5A(PROVA-700)

     1.000 mΩ ~ 8.000 mΩ

     1 uΩ

     ±0.25%+25 uΩ

             5.00 mΩ ~ 32.00 mΩ

                  10 uΩ

                  ±0.25%+250 uΩ

             10.00 mΩ ~ 120.00 mΩ

                  10 uΩ

                  ±0.25%+250 uΩ

             1A

     4.00 mΩ ~ 40.00 mΩ

     10 uΩ

     ±0.25%+250 uΩ

             15.00 mΩ ~ 160.00 mΩ

     10 uΩ

     ±0.25%+250 uΩ

             50.00 mΩ ~ 600.00 mΩ

     10 uΩ

     ±0.25%+250 uΩ

             100 mA

     0.0400 Ω ~ 0.4000 Ω

     100 uΩ

     ±0.25%+2.5 mΩ

             0.1500 Ω ~ 1.6000 Ω

     100 uΩ

     ±0.25%+2.5 mΩ

             0.5000 Ω ~ 6.0000 Ω

     100 uΩ

     ±0.25%+2.5 mΩ

             10 mA

     0.400 Ω ~ 4.000 Ω

     1 mΩ

     ±0.25%+25 mΩ

             1.500 Ω ~ 16.000 Ω

     1 mΩ

     ±0.25%+25 mΩ

             5.000 Ω ~ 60.000 Ω

     1 mΩ

     ±0.25%+25 mΩ

             1 mA

     4.00 Ω ~ 40.00 Ω

     10 mΩ

     ±0.25%+250 mΩ

             15.00 Ω ~ 160.00 Ω

     10 mΩ

     ±0.25%+250 mΩ

             50.00 Ω ~ 600.00 Ω

     10 mΩ

     ±0.25%+500 mΩ

             100 uA

     0.0400 kΩ ~ 0.4000 kΩ

     100 mΩ

     ±0.75%+3 Ω

             0.1500 kΩ ~ 1.6000 kΩ

     100 mΩ

     ±0.75%+3 Ω

             0.5000 kΩ ~ 6.0000 kΩ

     100 mΩ

     ±0.75%+3 Ω

 Auto Range:

               Range

     Resolution

     Accuracy

             5A

     1.000 mΩ ~ 8.000 mΩ

     1 uΩ

     ±0.25%+25 uΩ

             8.00 mΩ ~ 120.00 mΩ

     10 uΩ

     ±0.25%+250 uΩ

             1A

     4.00 mΩ ~ 600.00 mΩ

     10 uΩ

     ±0.25%+250 uΩ

             100 mA

     0.0400 Ω ~ 6.0000 Ω

     100 uΩ

     ±0.25%+2.5 mΩ

             10 mA

     0.400 Ω ~ 60.000 Ω

     1 mΩ

     ±0.25%+25 mΩ

                          1 mA

     4.00 Ω ~ 600.00 Ω

     10 mΩ

     ±0.25%+250 mΩ

                          100 uA

     0.0400 kΩ ~ 6.0000 kΩ

     100 mΩ

     ±0.75%+3 Ω

 General Specifications:

                            Battery Type:

     Rechargeable, 2700mAh (1.2V) x 8

                          Battery Recharging Time:

     10 hours

                          AD Adaptor:

     12V DC 2A

                          LCD Display:

     4 5/6 Digit LCD + Backlight

                          Dimension:

     257 (L) x 155 (W) x 57 (H) mm

                          Weight:

     v1160g / 40.0oz (Batteries included)

                          Operation Environment:

     -10°C ~ 50°C , 85% RH

                          Storage Environment:

     -20°C ~ 60°C , 75% RH

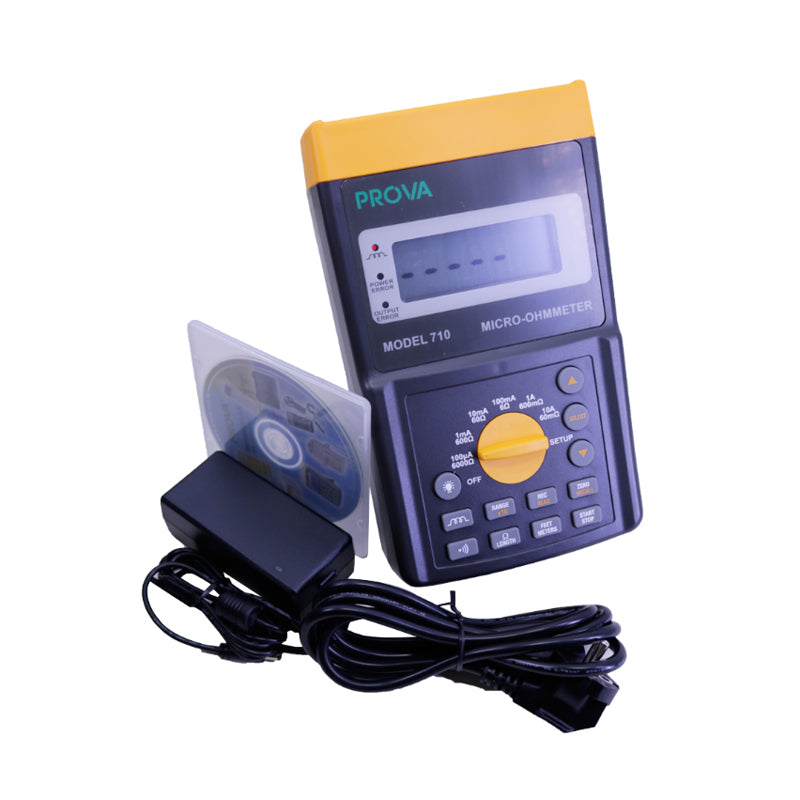

     Users manual x 1

RS232C (to USB Bridge) Cable x 1

Rechargeable batteries x 8(not included package)

AC adaptor x 1

Software CD x 1

Software Manual x 1

Kelvin Clips x 1 set
