1. MULTIPLE USAGES: OTDR optical time domain reflectometer can also be used as visual fault locator and optical power meter, portable design is simple and practical.

2. WIDE APPLICATION: Used for network construction, optical fiber breakpoint identification, optical cable length measurement, and relative optical power loss calculation.

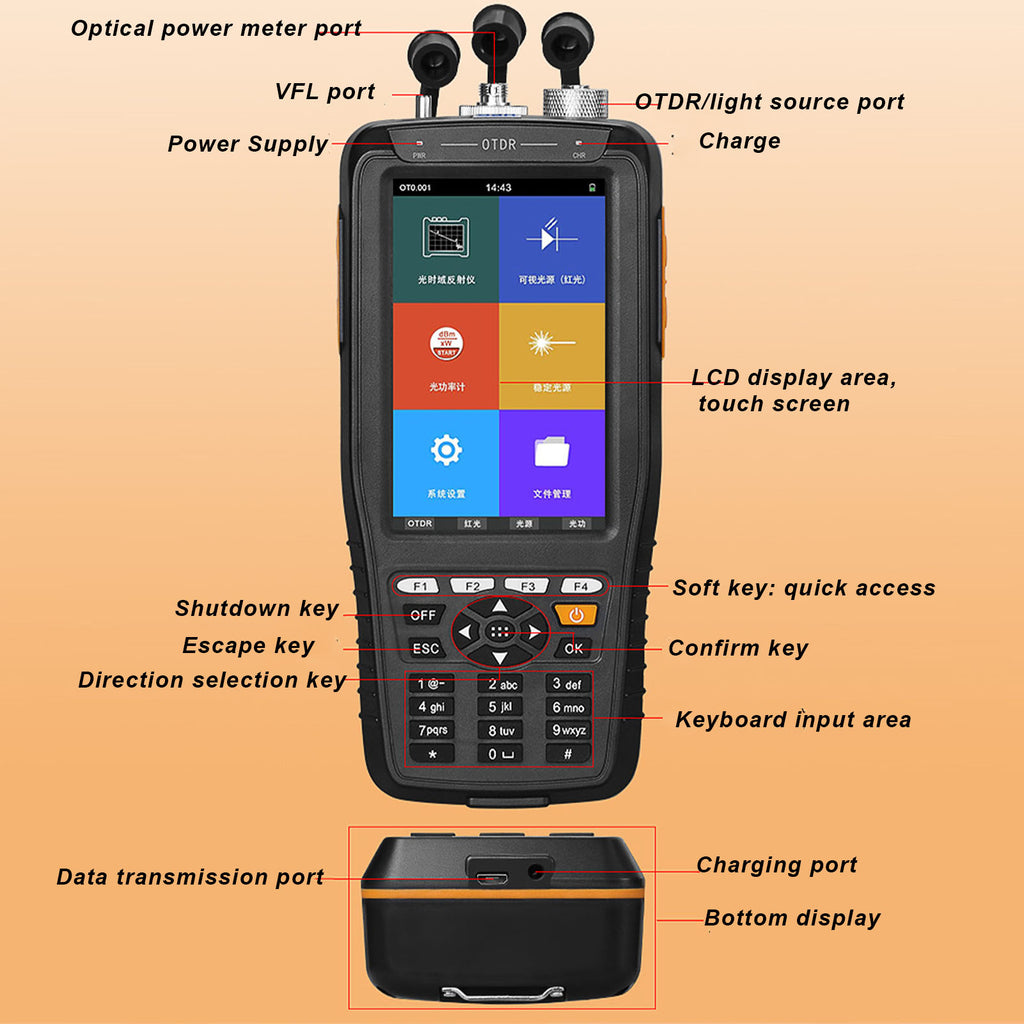

3. TESTER FEATURES: The optical fiber tester is equipped with USB data interface, built in 4400mAh lithium battery, 3.97in 800x480 IPS color touchable screen, easy to operate.

4. WORKING RANGE: The wavelength range of the optical power meter is 800‑1650nm, supports 6 calibration wavelengths, and the measurement range is ‑50~+26dBm.

5. PLASTIC HOUSING: The shell of the optical fiber power meter is made of ABS plastic, which has good toughness and corrosion resistance, suitable for various environments.

    Specification:

Item Type: OTDR Fiber Optical Tester

Model: AUA28A

Connector Type: APC

OPM: -50~+26dBm

Material: ABS

Wavelength: 1550nm (20dB)

Product Voltage: 100-240V

Input Voltage: 8.4V 0.5-1A

Dynamic Range: 20dB

Measuring Distance: 0-60km

Fiber Optic Connector Type: 9/125μm SM

Test Type: FC PC; SC PC（FC APC, SC APC Optional）

Unit: Meter, Inch, Mile

Reflection Blind Area: 2 meter

Data Storage: 200 Groups

Display: 3.97in

Resolution: 800 x 480pixels IPS screen (touchable screen)

Power Supply: 7.4V 4400mAh lithium ion battery (built in battery) can be used for more than 5000 times

Visual Fault Locator:

Wavelength: 650nm

Output Power: ≥10mW

Mode: CW, 1Hz, 2Hz

Optical Fiber Type: SM, MM

Optical Power Meter:

Measuring Range: -50~+26dBm

Wavelength Range: 800-1650nm

Calibration Wavelength: 850 1300 1310 1490 1550 1625

Detection Type: For InGaAs

Connector: Replaceable FC PC, SC PC (ST as Optional)

Optical Light Source:

Emitter: FP-LD

Wavelength: 1310/1550nm

Connector: FC PC (SC ST as Optional)

Output Power: ≥-5dBm

Fiber Type: SM

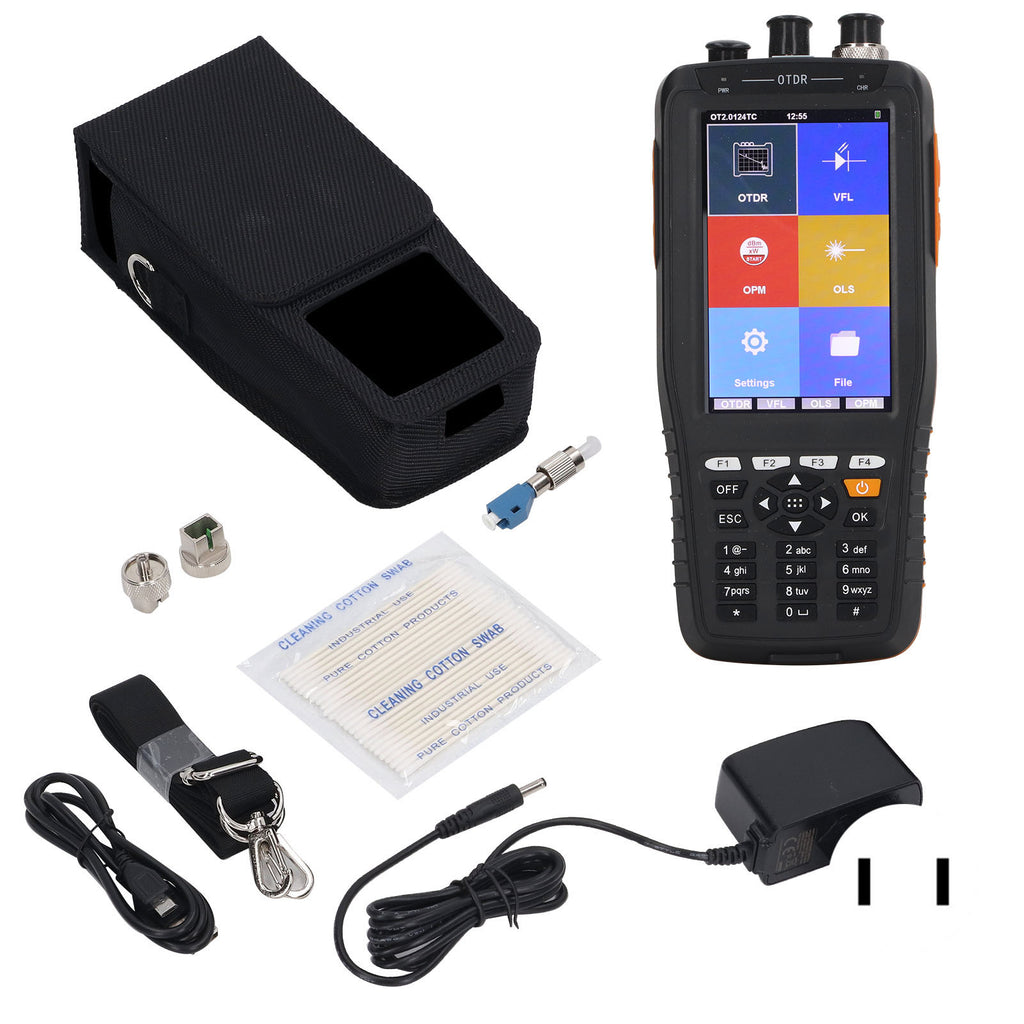

    Package List:

    1 x Reflectometer

    3 x User Manuals

    1 x Cotton Swab Bag

    1 x CD

    1 x Sling

    1 x SC Connector

    1 x FC Connector

    1 x USB Line

    1 x Power Cord

    1 x Storage Bag

    1 x FC-LC Adapter
