Features:
Widely compatible with 3D Printer model such as Reprap /Ender 3/Ender 3 Pro/ Ender 3 V2/ Ender 5/CR-10/ Voro 2.4; It is a necessary spare motor for Sherba Mini Extruder or Orbite Extruder V1.5.
Made of high quality stainless steel material, durable and lightweight.
Motor holding torque up to 100mN.m. The low loss stator has good thermal control ability.
This motor is compatible with 12V and 24V.
Any problem, please contact our store without hesitation. Honor to serve you.

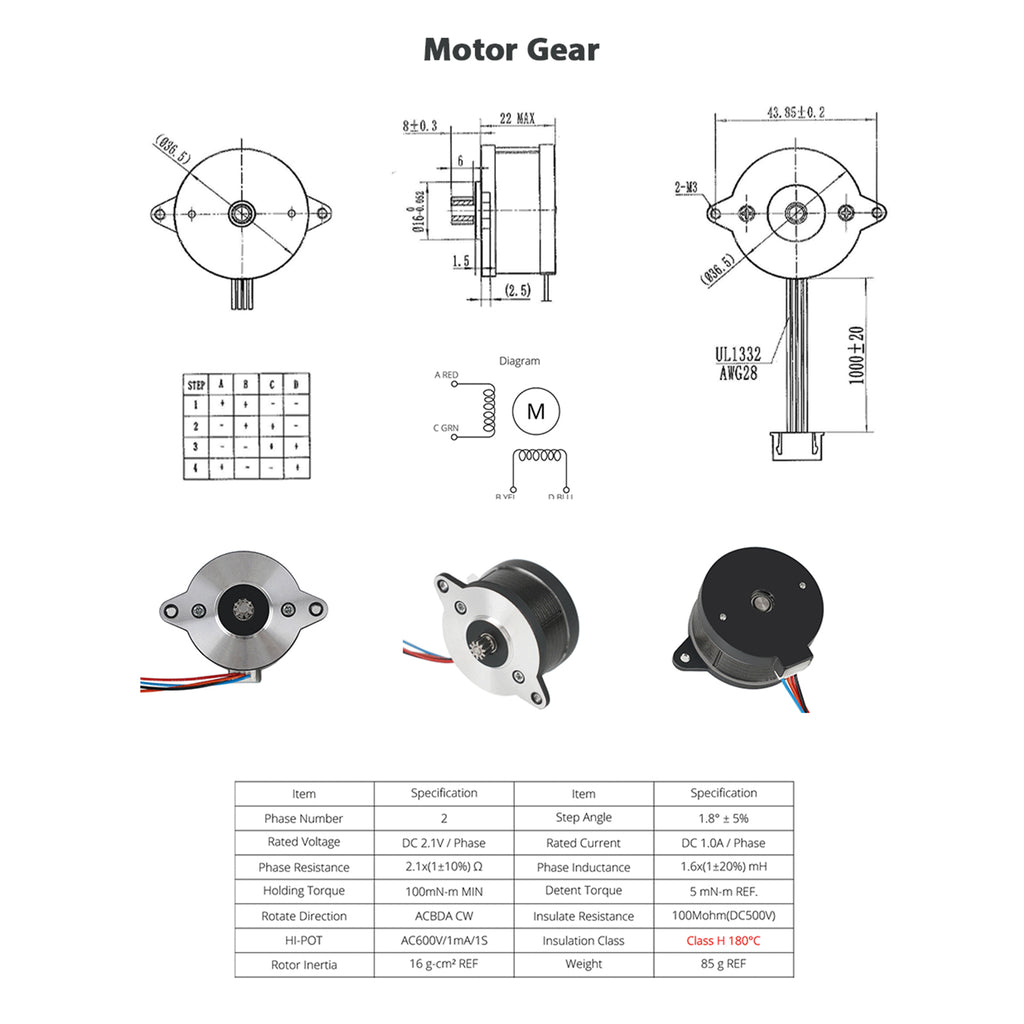

Specification:
Phase Number: 2
Step Angle: 1.8°± 5%
Rated Voltage: DC 2.1V / Phase
Rated Current: DC 1.0A / Phase
Phase Resistance: 2.1x(1±10%)Ω
Phase Inductance: 1.6x(1±20%) mH
Holding Torque: 100mN-m MIN
Detent Torque: 5 mN-m REF.
Rotate Direction: ACBDA CW
Insulate Resistance: 100Mohm (DC500V)
HI-POT: AC600V/1mA/1S
Insulation Class: Class H 180℃
Rotor Inertia: 16 g.cm2 REF
Weight: 85 g REF
Package Size: 10.5x6.5x4.5cm/4.1x2.5x1.7in
Package Weight: 110g/3.9oz
Packing List:
1 x Motor with Cable
