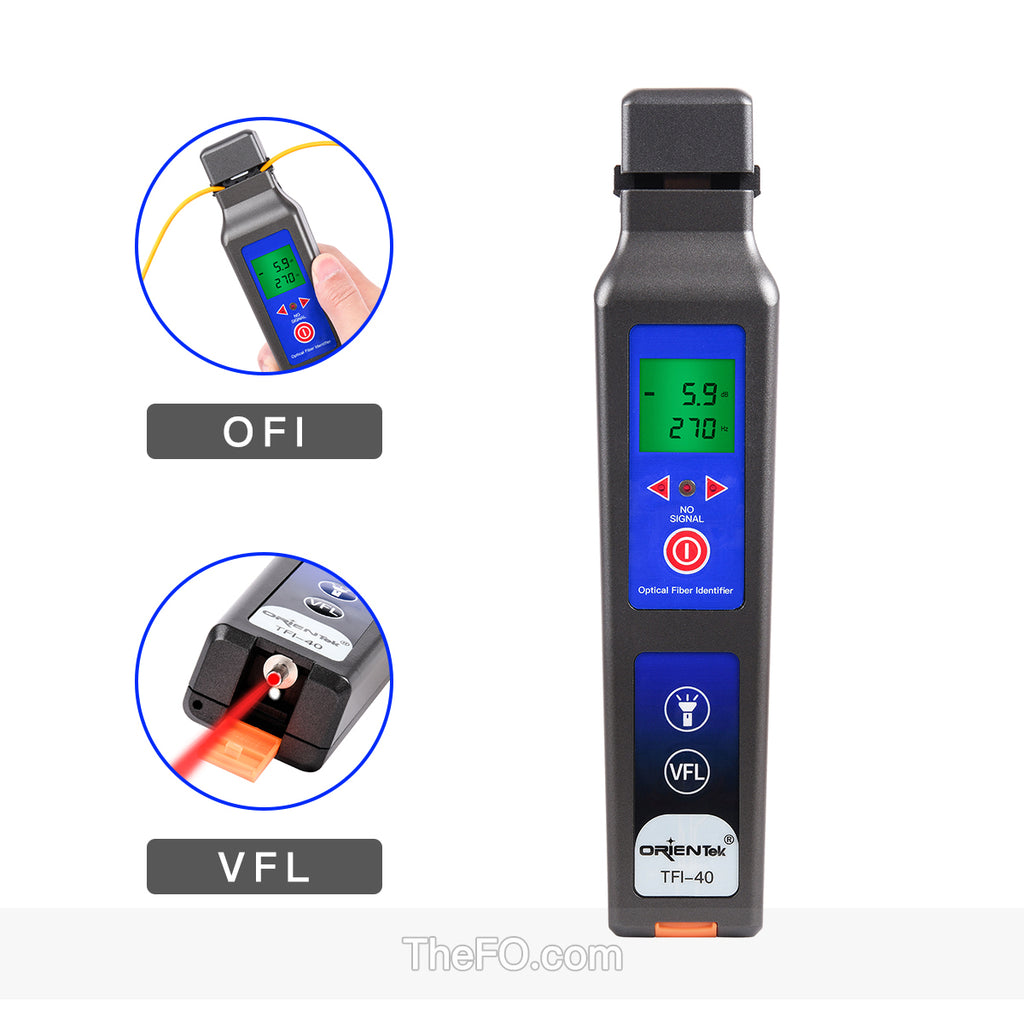

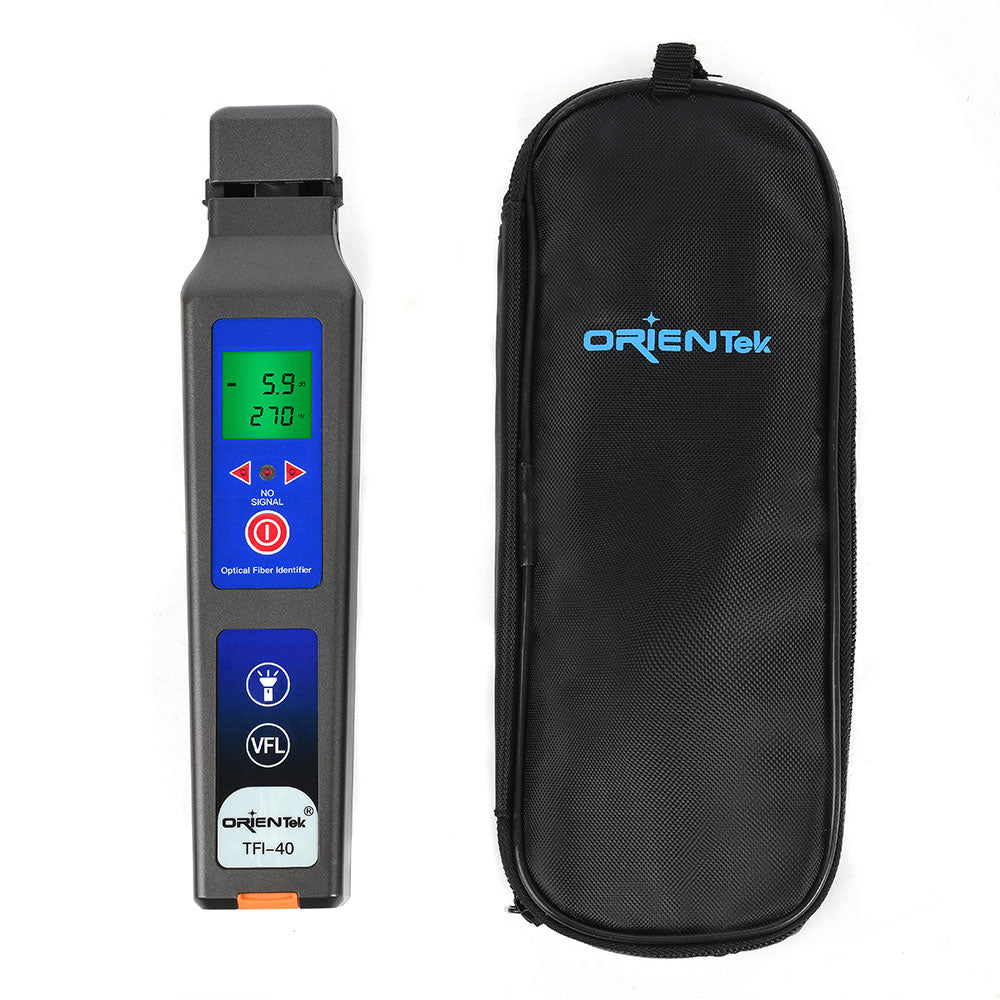

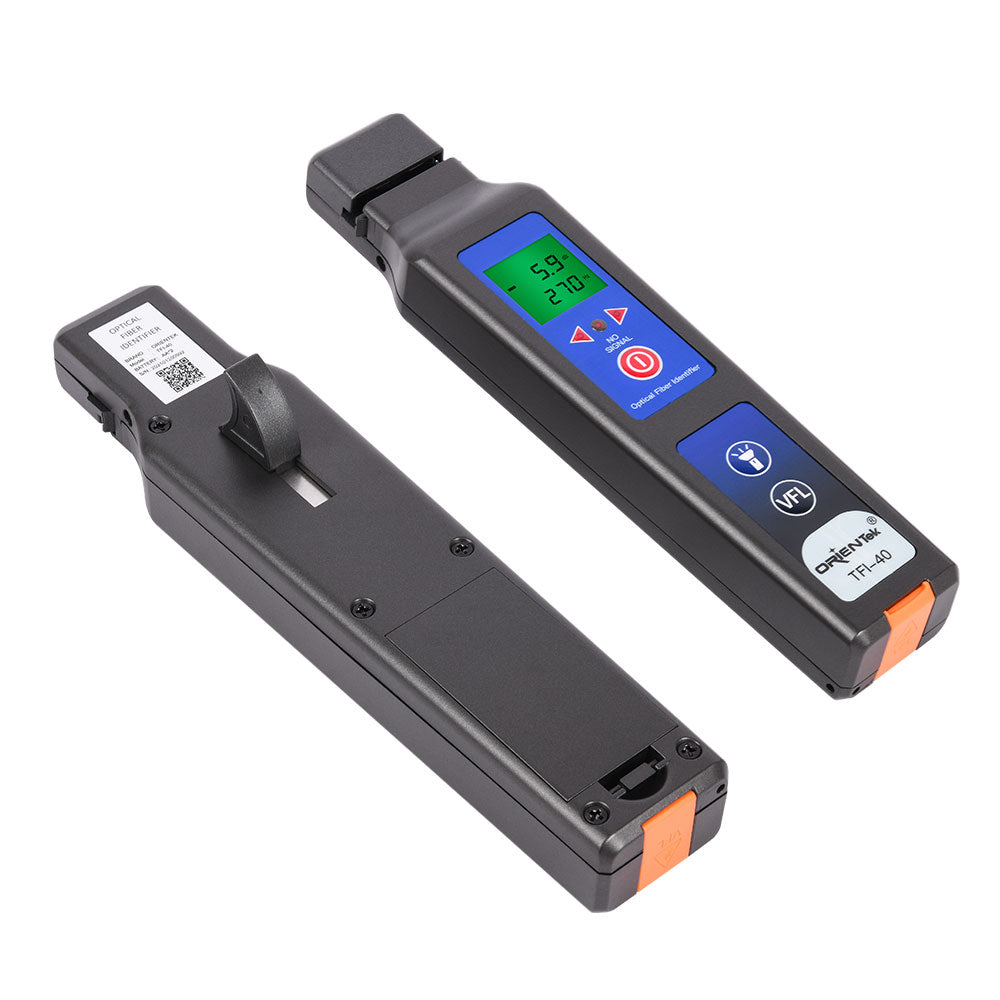

Orientek TFI-40 Optical Fiber Identifier OFI Live Fiber Identifier Detector Identificador de Fibra Optica
QA:
1. Are they come with fiber holder?
Answer: The Fiber Identifier no need change fiber holder, it's can used for fiber φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable
2. How long is the quality assurance？
Answer: 1 year warranty for this products. Also product's whole life technolgy supports for free
3.Handing time & delivery time?
Answer: Usually we will send out wihtin 2 days, except the holiday and weekend. Delivery time:15-20 days to worldwide
Model Number
TFI-40
Wavelength Recognition Range
800nm to 1700nm
Signal Recognition Type
CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
Detector Type
φ1mm InGaAs 2 pcs
Adapted fiber type
Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable
Signal Direction
Left & Right LED
Optical Power Reading Range
-40 dBm to 10 dBm
Signal Frequency Range
270Hz,1kHz,2kHz
Power Type
2 pcs * AA batttery (Package not included battery)
Operating Temperature Range
-10℃ to 60℃
Storage Temperature Range
-25℃ to 70℃
Dimension
219mm*45mm*28mm
Weight
235g

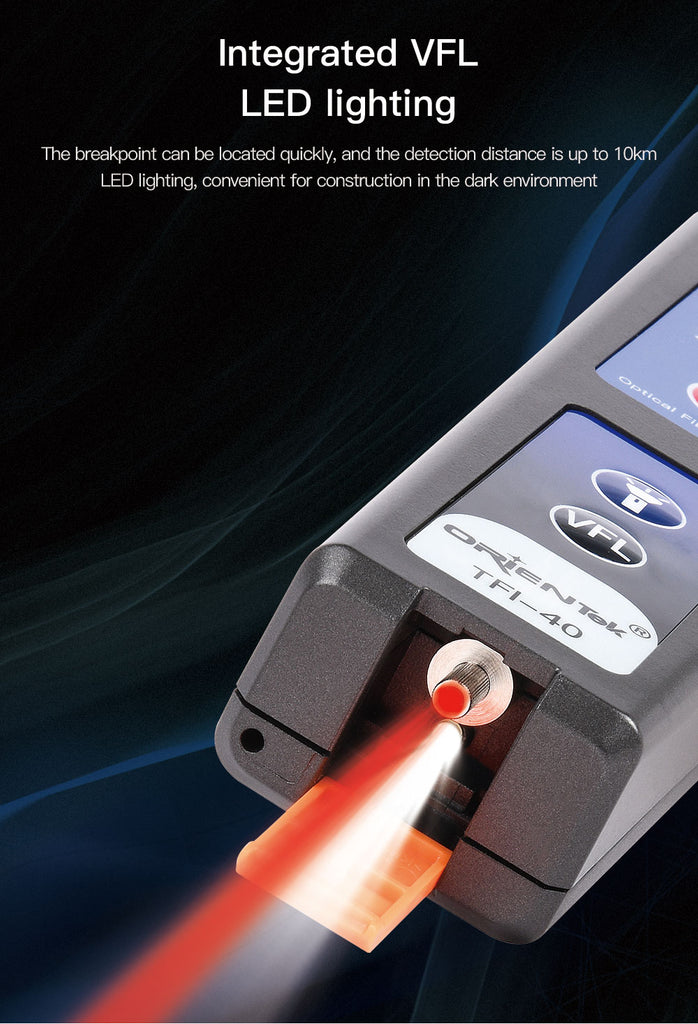

VFL function
Power range
1mW
Testing distance
3-5 km
Wavelength
650nm
Laser type
LD
LED light
Support
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
