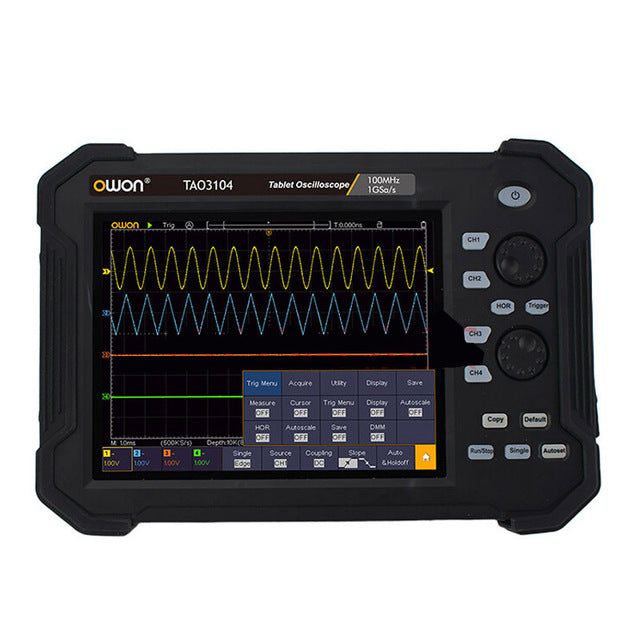

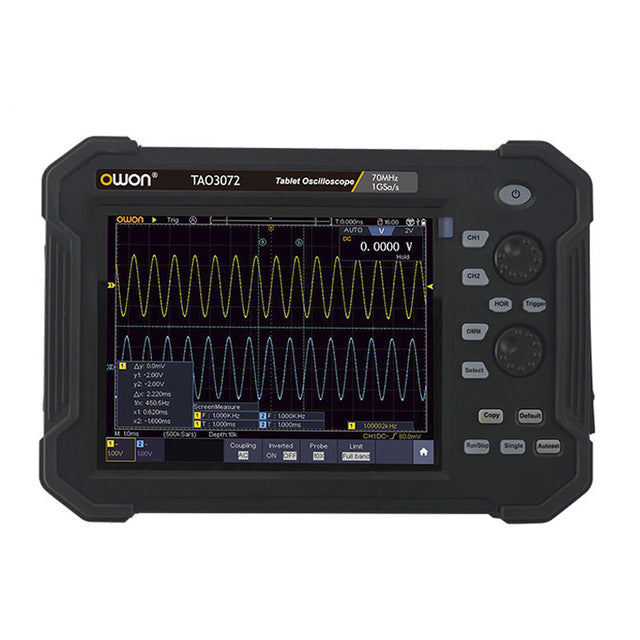

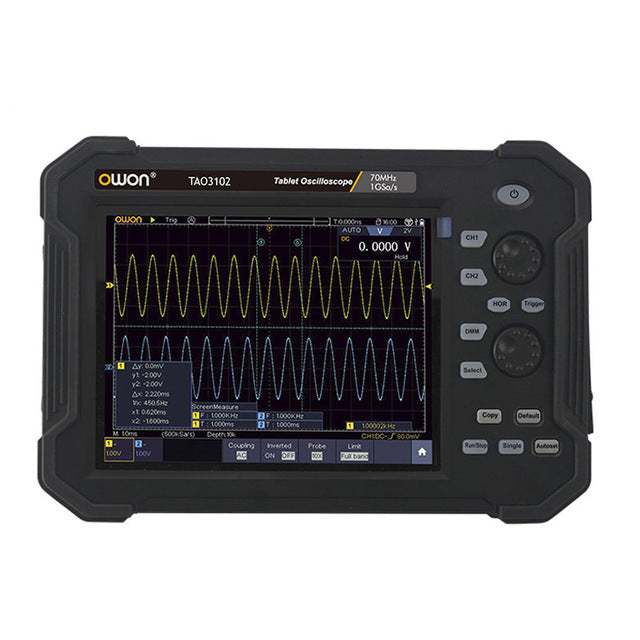

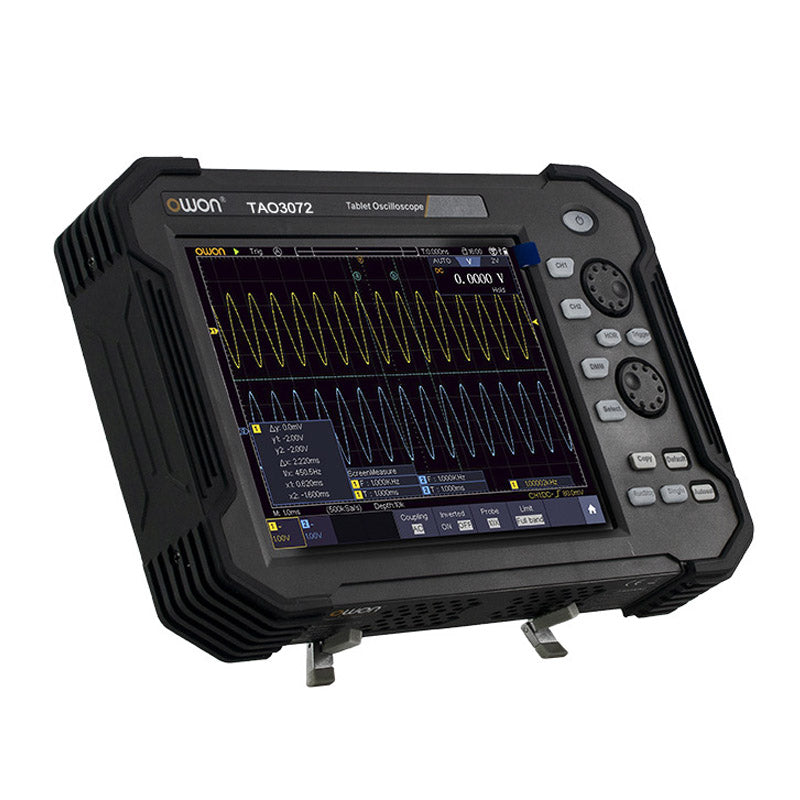

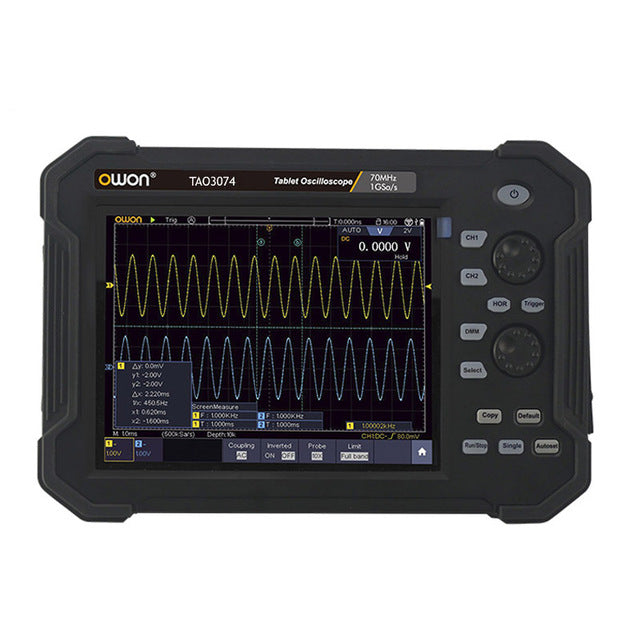

OWON TAO3072 TAO3074 TAO3102 TAO3104 Portable Tablet Oscilloscope 8 Inch LCD

Multi-touch Screen 1GS/S 8 Bits CAN Bus Decoding

Features:

* Max 100MHz Bandwidth,1GS/s sample rate

* Max 14-bit high resolution ADC

* Max 40M record length; max 45000 wfms/s waveform refresh rate

* low back ground noise

* 8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience

* SCPI, and LabVIEW supported

* Multi- trigger, and bus decoding function

* Multi-interface integration - USB host, USB device,LAN, Wifi(optional)

Specifications:

      Model

   TAO3074

   TAO3104

   TAO3072

   TAO3102

       Bandwidth

   70MHz

   100MHz

   70MHz

   100MHz

       Sample Rate

   1GS/s

       Vertical Resolution (A/D))

   8 bits

   8bits/12bits/14 bits

       Record length

   40M

       Waveform Refresh Rate

   45000 wfms/s

       Horizontal Scale (s/div))

   1ns/div - 1000s/div, step by 1 - 2 - 5

       Channel

   4

       Display

   8" color LCD, 800 x 600 pixels display,multi-touch screen

       Input Impedance

   1MΩ +/- 2%, in parallel with 15pF +/-5pF

       Max Input Voltage

   1MΩ ≤ 300Vrms;

       Probe Attenuation Factor

   0.001X - 1000X, step by 1 - 2 - 5

       Input Coupling

   DC, AC, GND

       Vertical Sensitivity

   1mV/div - 10V/div (at input)

       Trigger Type

   Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)

       Bus Decoding(optional)

   I2C, SPI, UART(RS232), CAN

       Trigger Mode

   Auto, Normal, and Single

       Automatic Measurement

   Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area

       Waveform Math

   +, -, ×, ÷, FFT,FFTrms,Intg,Diff,Sqrt, User Defined Function, Digital Filter

       Waveform Storage

   100 waveforms

       Communication Interface

   USB host, USB device, USB port for PictBridge,LAN, and WIFI (optional)

       Frequency Counter

   available

       Battery

   7.4V, 8000mAh, 5 hours operation

       Dimension(WxHxD)

   270x191x48mm

       Device Weight

   About 1.7kg
