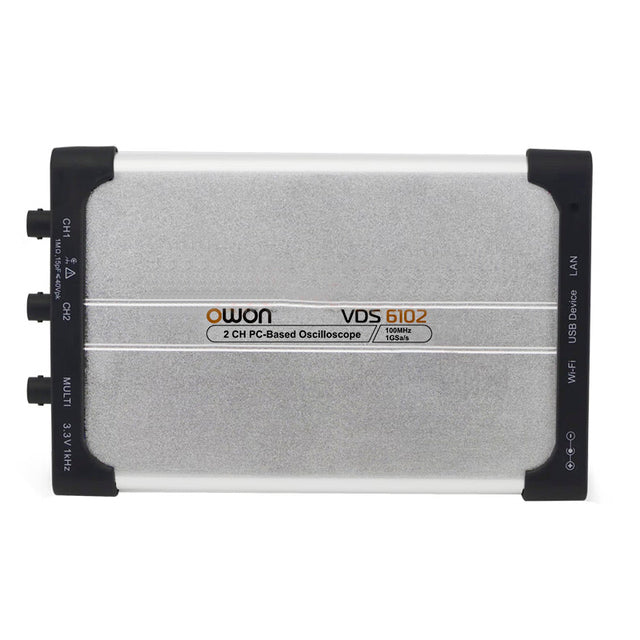

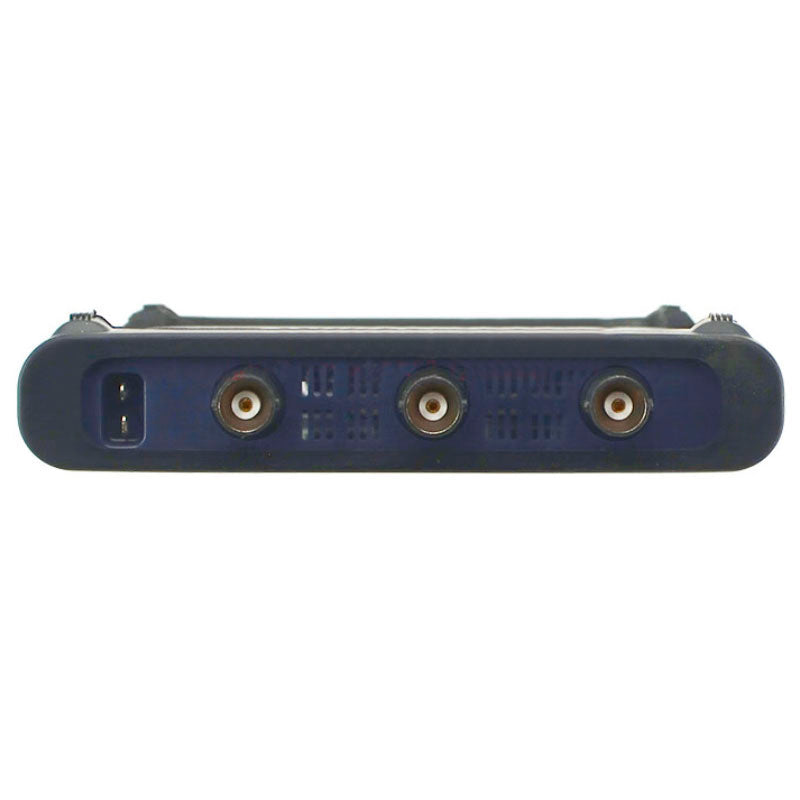

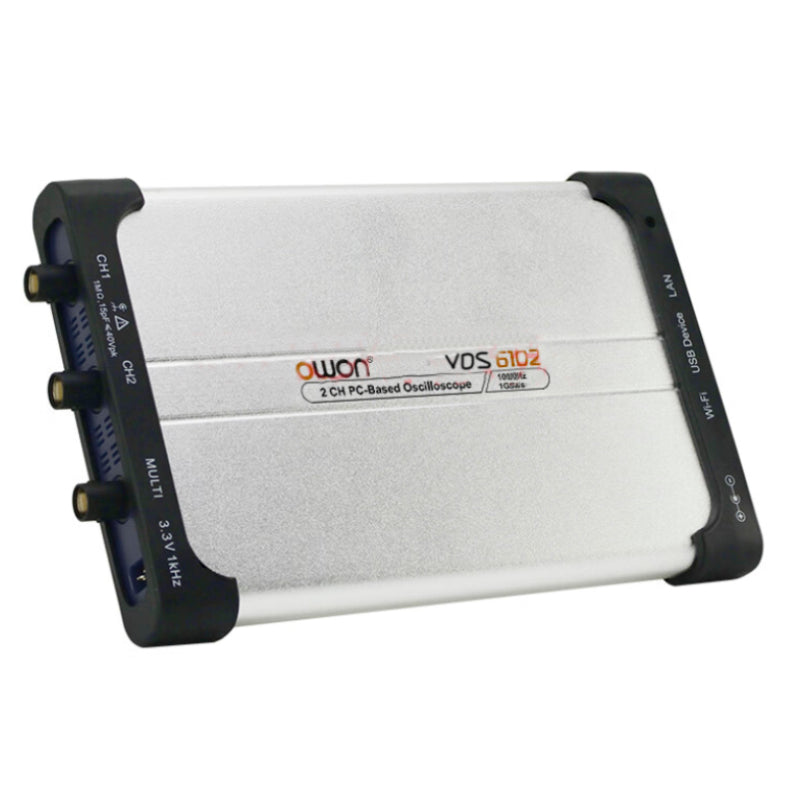

OWON VDS6102 VDS6102A USB PC Virtual Oscilloscope 2 Channel 100 MHz 1Gsa/s
14bits ADC Type-C Digital USB Oscilloscopes
Features：
●Dual-channel, ultra-thin body design.
●100MHz bandwidth, and 1GSa/s real-time sampling rate.
●Standard built-in 5MHz signal generator.
●8-bit, 12-bit, 14-bit vertical resolution, more accurate measurement.
●Max. 10M record length.
●Friendly UI, X-Y and waveform can be displayed on the same screen.

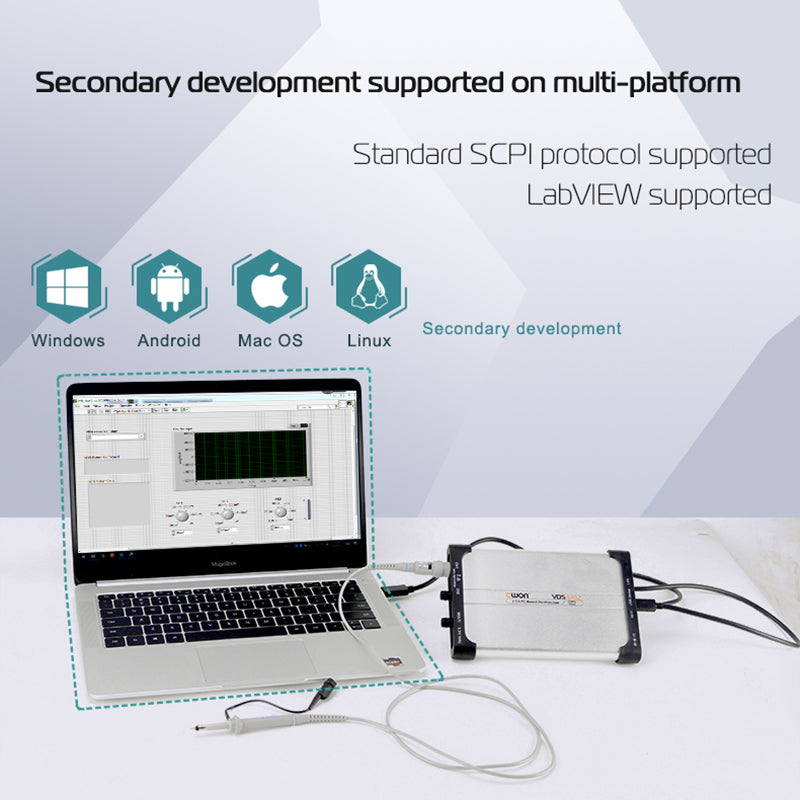

●Standard SCPI protocol supported, LabVIEW supported.
●Secondary development supported on Windows, Linux, Android, and iOS platform.
●USB Type-C powered, faster data transmission, support 5-15V wide voltage power supply.
●WiFi wireless transmission, more convenient to use. (Need to choose Wi-Fi optional)

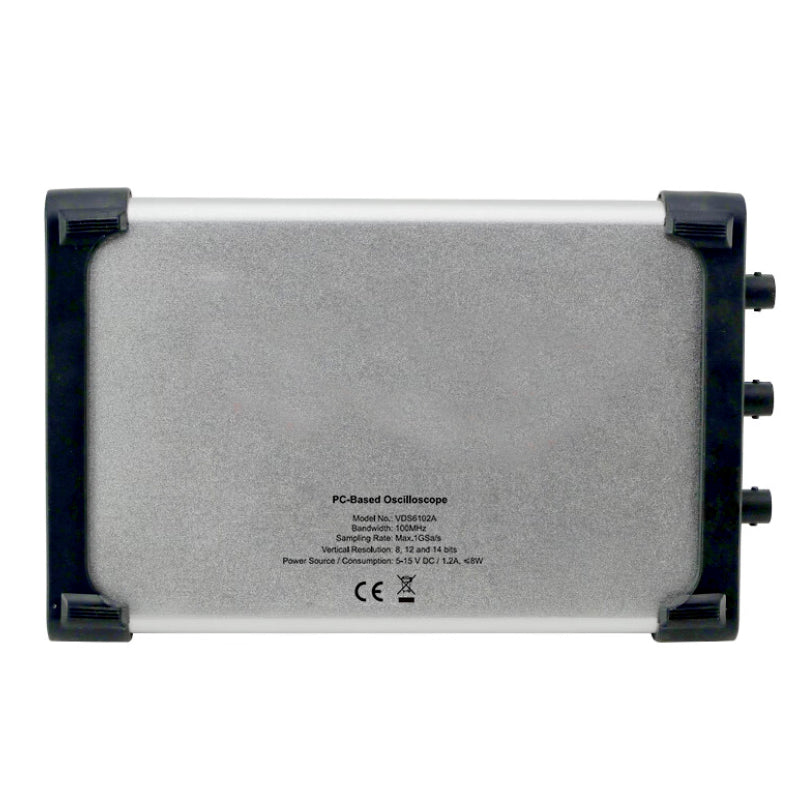

Specifications:
Model
VDS6102

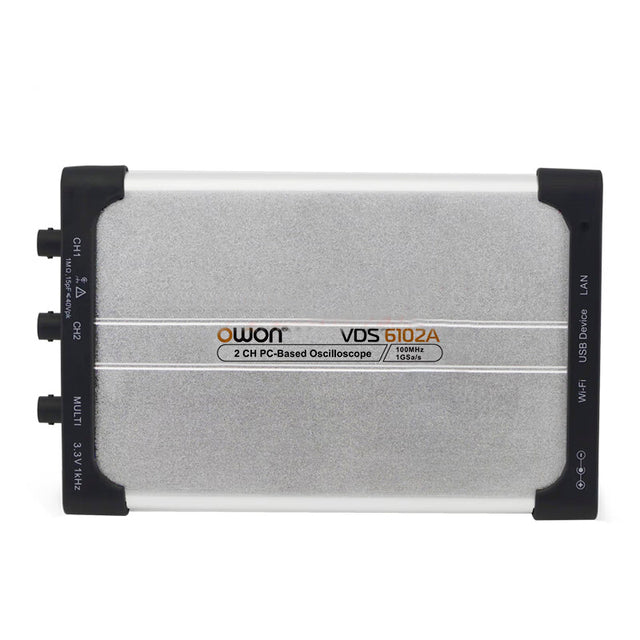

VDS6102A

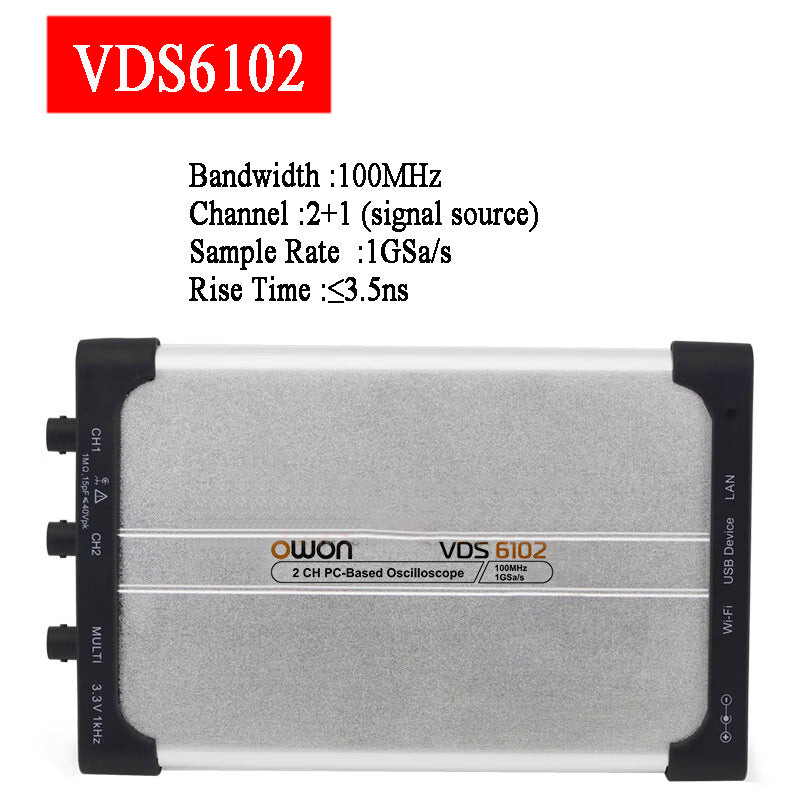

Bandwidth
100MHz
100MHz
Vertical Resolution (A/D)
8bits
14bits
Channel
2CH scope + 1CH FG
Sample Rate
Max 1GSa/s
Rise Time
≤3.5 ns
Horizontal Scale
5ns/div~100s/div,step by 1~2~5
Sampling Mode
Sample, Peak Detect, Average
Rcord Length
10M
Input Coupling
DC, AC, Ground
Input Impedance
1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
Vertical Sensitivity
2mV/div~5V/div
Max Input Voltage
40 V (DC + AC Peak)
Probe Attenuation Factor
1X,10X,100X,1000X
Channel Isolation
50Hz: 100 : 1,10MHz: 40 : 1
Interpolation
Sin(x)/x
Vertical Range
±2 V (2 mV/div – 50 mV/div);
±20 V (100 mV/div – 500m V/div);
±40 V (1 V/div – 5 V/div)
LF Respond (AC, -3dB)
≥5Hz (At Input, AC Coupling, -3dB)
Trigger Type
Edge, Video, Slope, Pulse
Line/Field Frequency (video)
Supported Standards: NTSC, PAL and SECAM Broadcast Systems
Trigger Mode
auto, normal, single
Automatic Measurement
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty
Communication Interface
USB (Typ-c);LAN, WIFi (optional)
Power Consumption
≤8W
Dimensions (W* H*D)

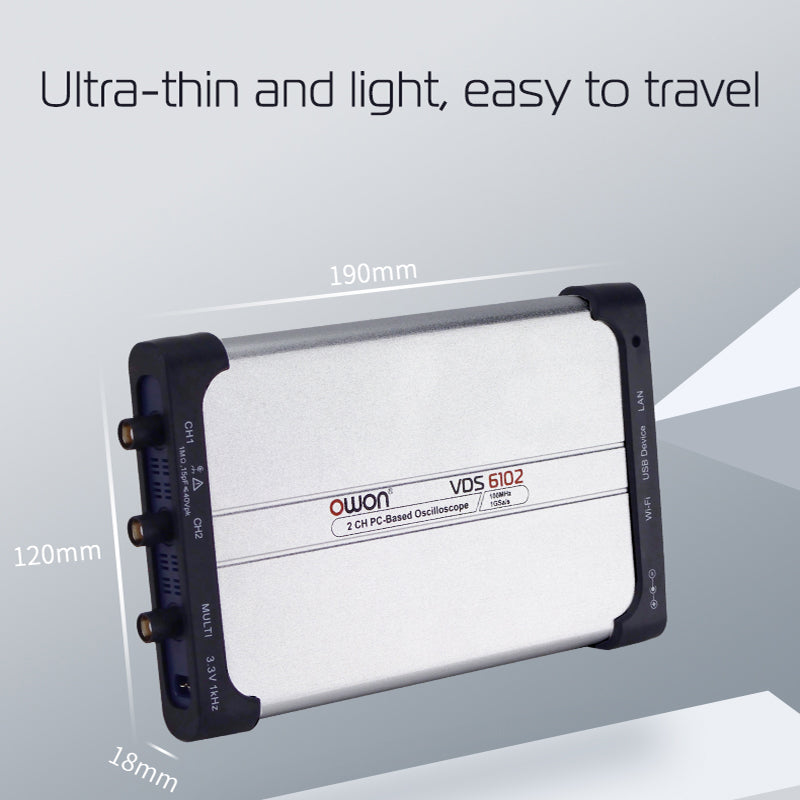

190mm*120mm*18mm
Device Weight
About 0.38 kg
