 Features:

[TFT LCD Screen] 3.5-inch 480*320 high resolution TFT LCD screen with backlight, 55,000 counts, DC voltage accuracy up to 0.05%, dual line display supported, providing a clear and precise display.

[Fast Measurement] Up to 65 readings per second, fast & accuracy.

[User-friendly Interface] With an easy-to-use interface that displays results in form of a table, you can access, store, process and manage your data.

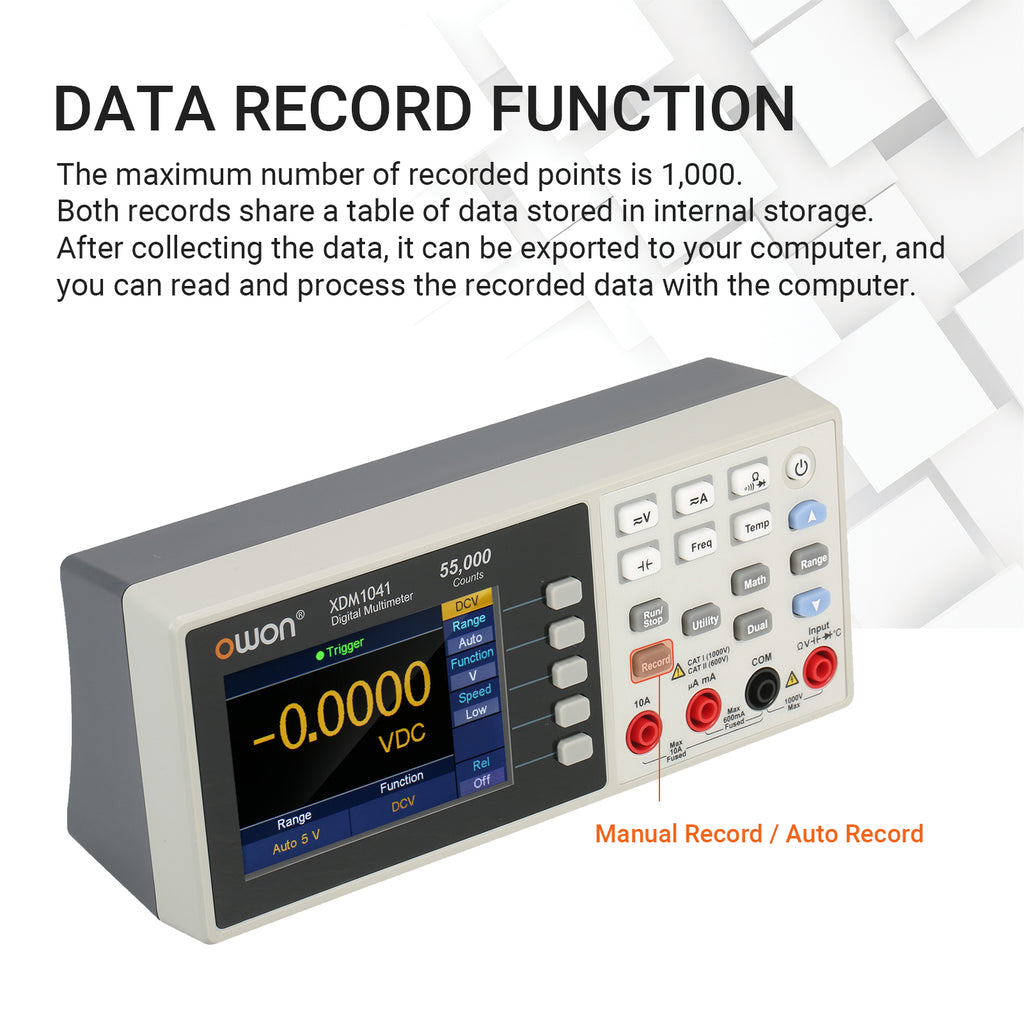

[Data Record Function] Including manual record and auto record. Both records share a table of data stored in internal storage. The maximum number of recorded points is 1,000. After collecting the data, it can be exported to your computer, and you can read and process the recorded data with the computer.

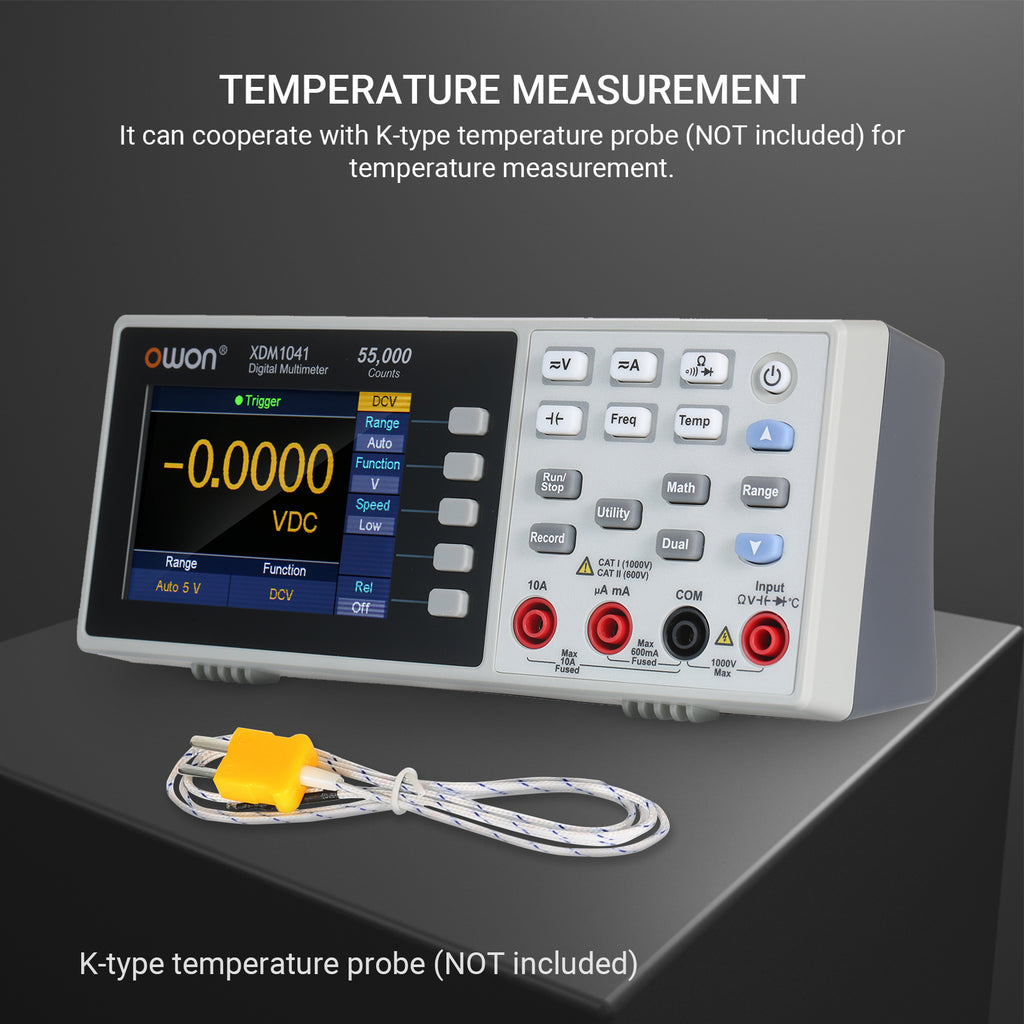

[Temperature Measurement] It can cooperate with K-type temperature probe (NOT included) for temperature measurement.

[Replaceable Fuse] Anti-burn design, safe and reliable. The line fuse is in the plastic fuse box below the power line input on the rear panel. Equipped with spare fuse, more convenient and cost-effective to replace the fuse.

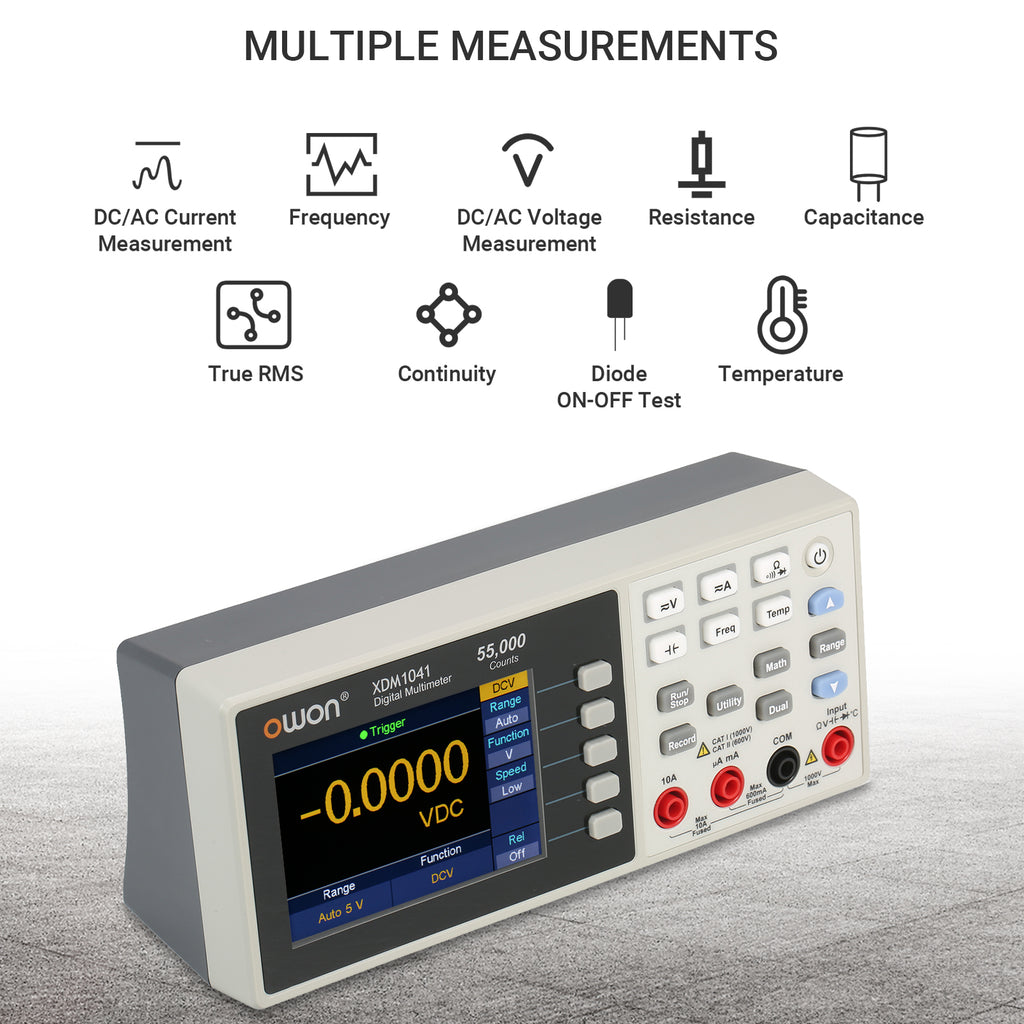

[Multiple Measurements] DC voltage / current measurement, AC voltage / current measurement, frequency, resistance, capacitance, True RMS, diode on-off test, continuity and temperature.

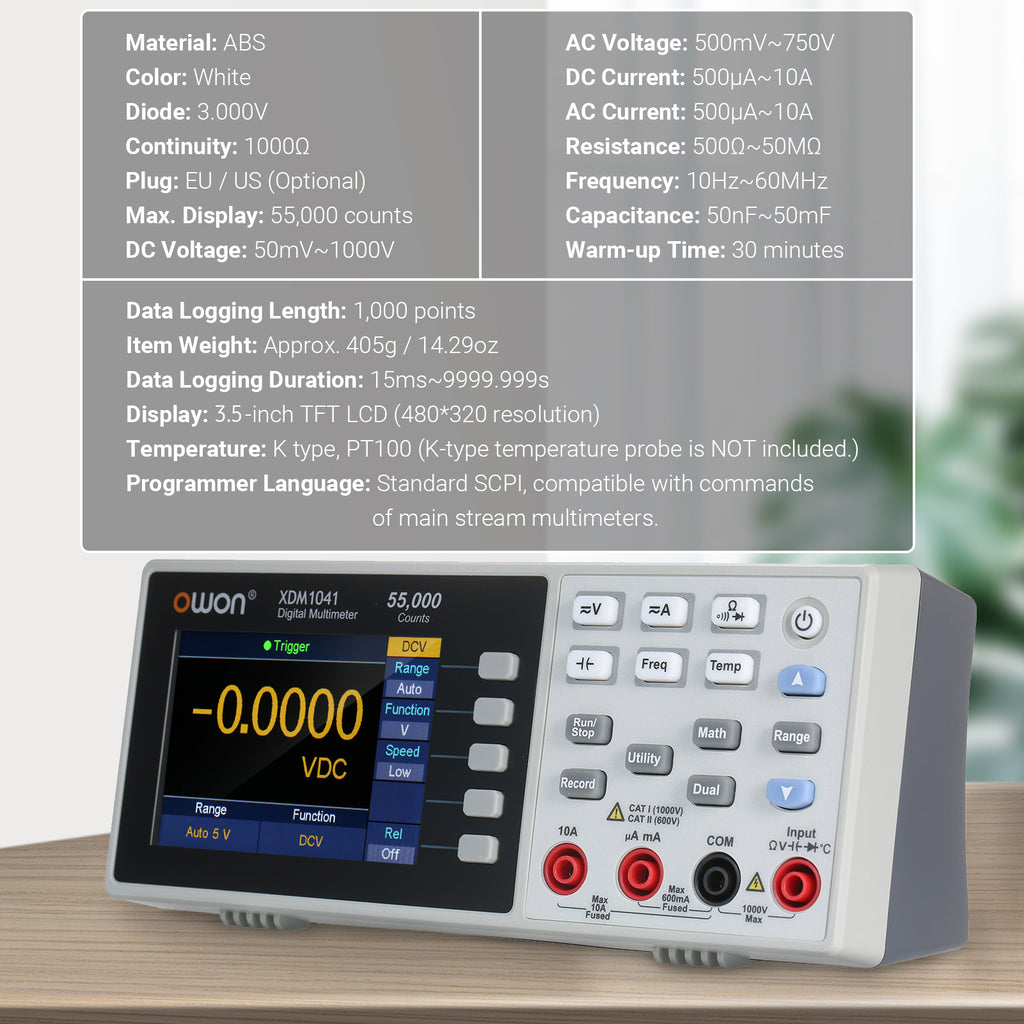

Specifications:

Material: ABS

Color: White

Plug: UK

Display: 3.5-inch TFT LCD (480*320 resolution)

Max. Display: 55,000 counts

DC Voltage: 50mV~1000V

AC Voltage: 500mV~750V

DC Current: 500μA~10A

AC Current: 500μA~10A

Resistance: 500Ω~50MΩ

Frequency: 10Hz~60MHz

Capacitance: 50nF~50mF

Diode: 3.000V

Continuity: 1000Ω

Temperature: K type, PT100 (K-type temperature probe is NOT included.)

Data Logging Duration: 15ms~9999.999s

Data Logging Length: 1,000 points

Warm-up Time: 30 minutes

Programmer Language: Standard SCPI, compatible with commands of main stream multimeters.

Item Size: Approx. 20*8.8*6.5cm / 7.87*3.46*2.56in

Item Weight: Approx. 405g / 14.29oz

Package Size: Approx. 24.5*17.5*7.5cm / 9.65*6.89*2.95in

Package Weight: Approx. 834g / 29.42oz

Note:

Please read the Users Manual carefully to avoid injury and damage to this product.

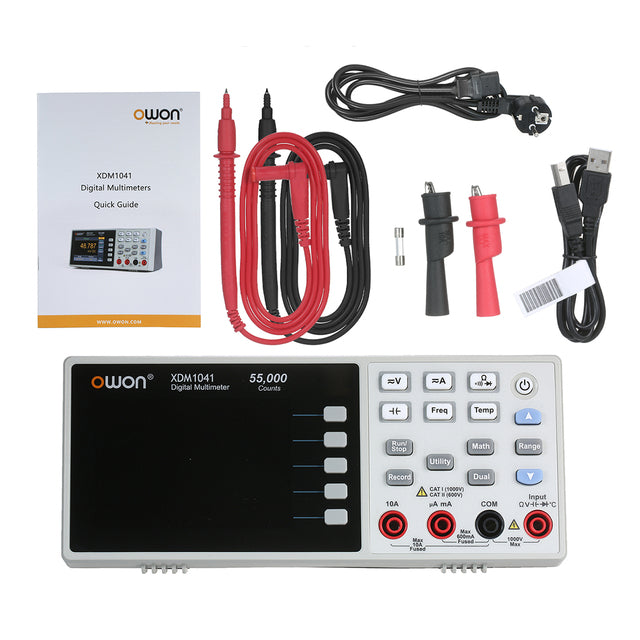

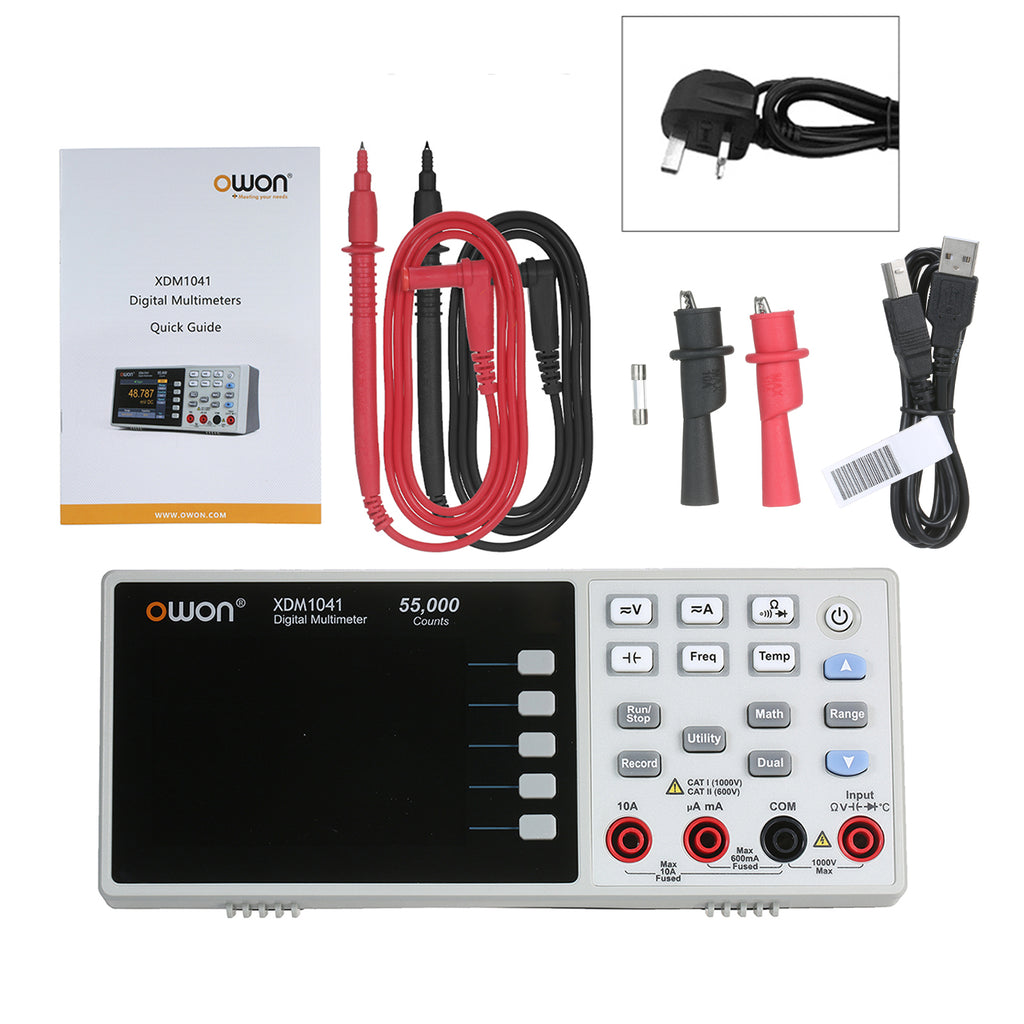

Packing List:

1 * Digital Multimeter

1 * Pair of Test Leads

2 * Alligator Clip

1 * Spare Fuse

1 * Power Cord

1 * Users Manual(English)
