The product adopts piezoelectric type acceleration sensor and is suitable for measurement of conventional vibration of mechanical equipment. It can measure the vibration speed, acceleration, displacement and is widely used in mechanical manufacturing, electric power, chemical engineering, space flight and aviation and other fields.
Product Description
Measuring range:acceleration:0.1~199.9m/s2
Velocity:0.1~199.9m/s
Displacement:0.001~1.999mm P-P
Accuracy:±5%
Vibration pickup:piezoelectric ceramic accelerometer
Measurement frequency rang of acceleration:
10Hz~1KHz(LO) 1KHz~10KHz(HI)
Measurement frequency rang of velocity:
10Hz~1KHz(LO)
Measurement frequency rang of displacement:
10Hz~1KHz(LO)
Max hold function:√
Temperature selection:√
Operation condition display:√
Weight:314g(without battery)
Specification:

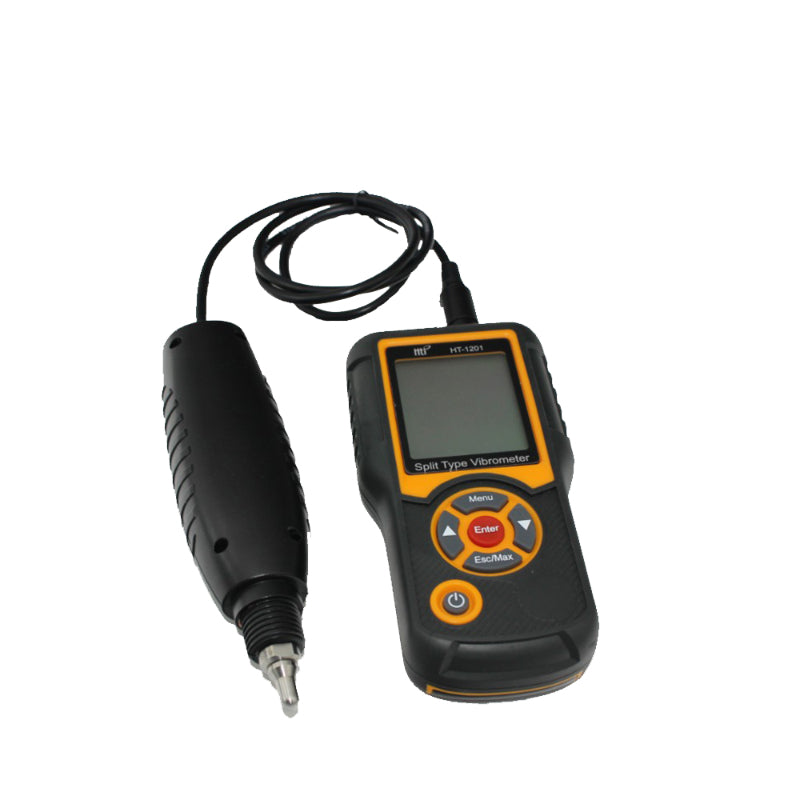

Model HT-1201 Vibration acquisition piezoceramic accelerometer (shearing type) LCD display
three and a half digit display Measurement range
Acceleration 0.1~199.9m/s2(peak value) Speed 0.1~199.9mm/s(effective value) Displacement 0.001~1.999mm(effective value) Measurement accuracy ±(5%+2digits) Frequency range Acceleration 15Hz-1KHz(LO); 1KHz-10KHz(HI) Speed 15Hz-1KHz(LO) Displacement 15Hz-1KHz(LO) Temperature measurement 0℃ to 60℃ Temperature accuracy ±2℃ Automatic power-off time 4 minutes Power supply 3 AA batteries Operation temperature 0℃-45℃ Operation humidity 20%RH-90%RH(No condensation) Storage temperature -20℃ - 60℃ Weight of the host 140g Dimension of the host 152*75*32mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
