Features

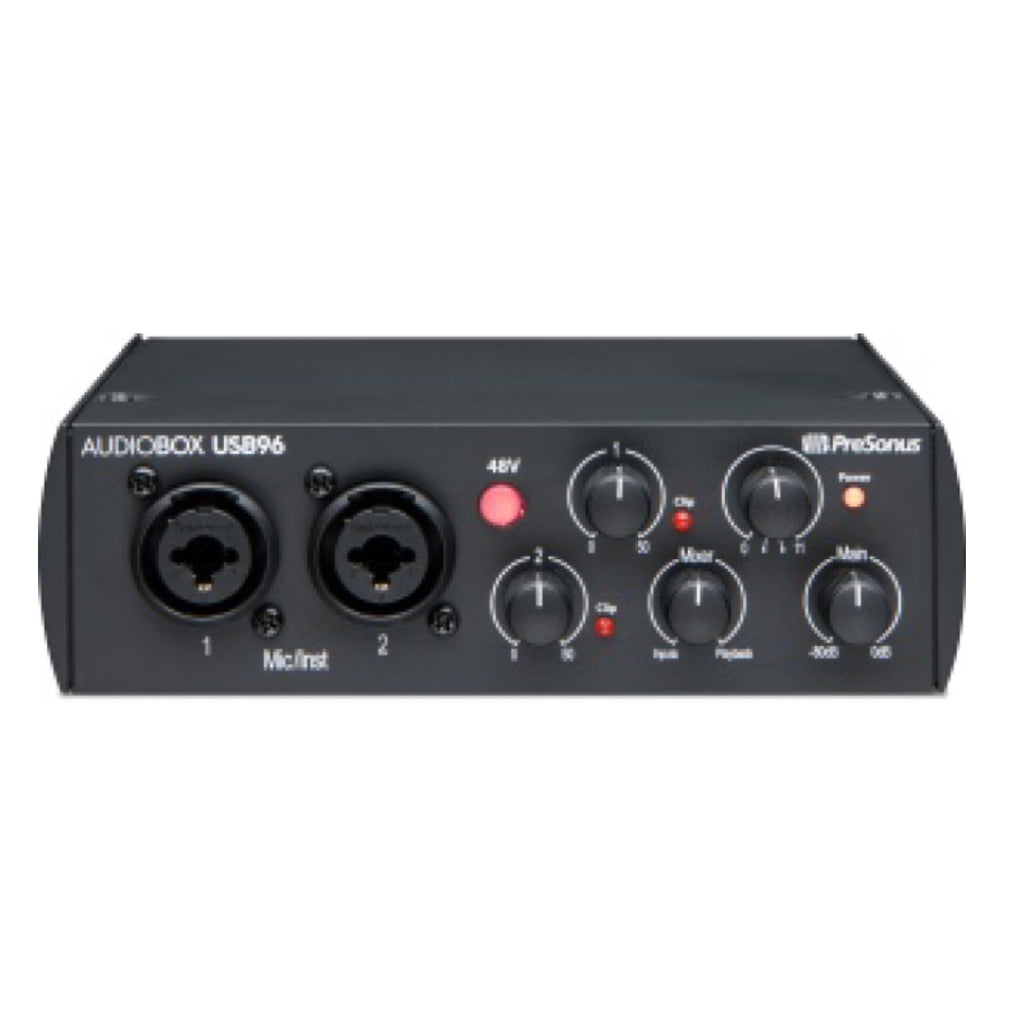

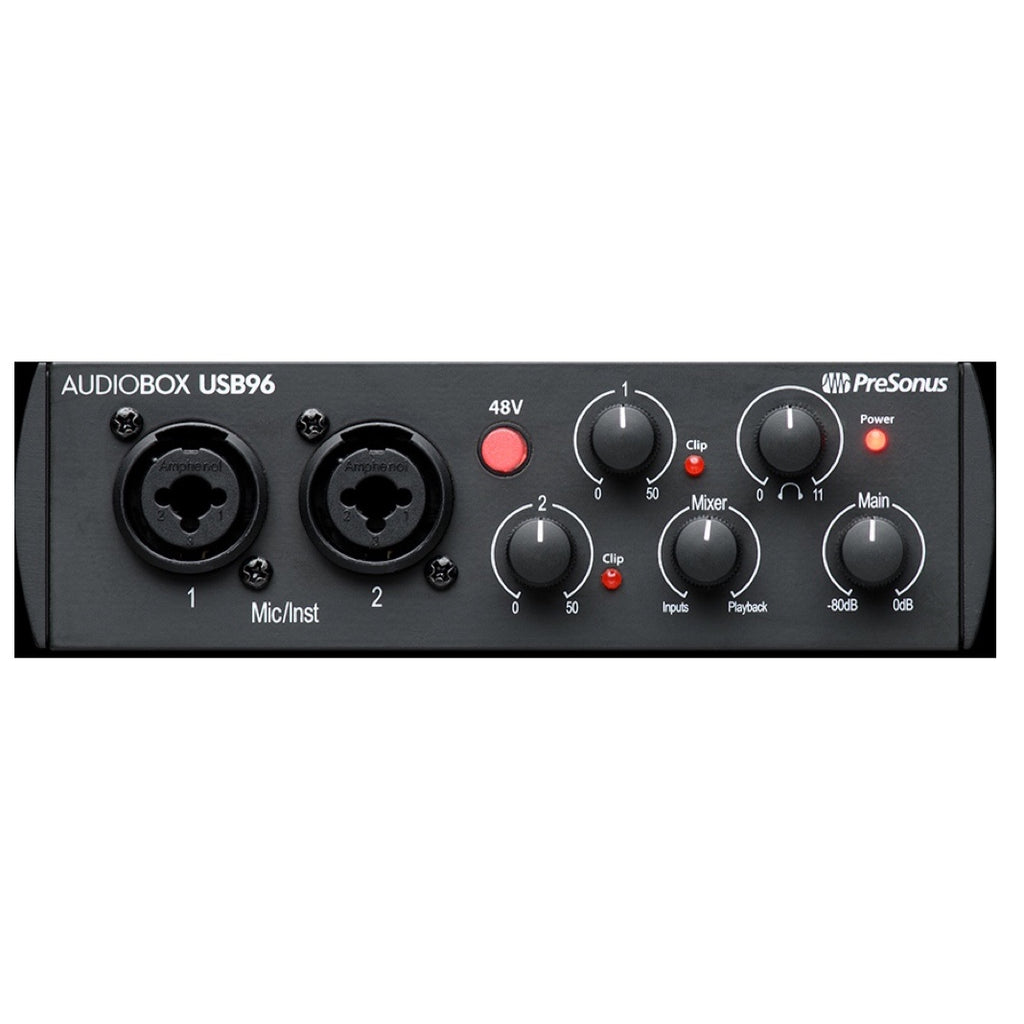

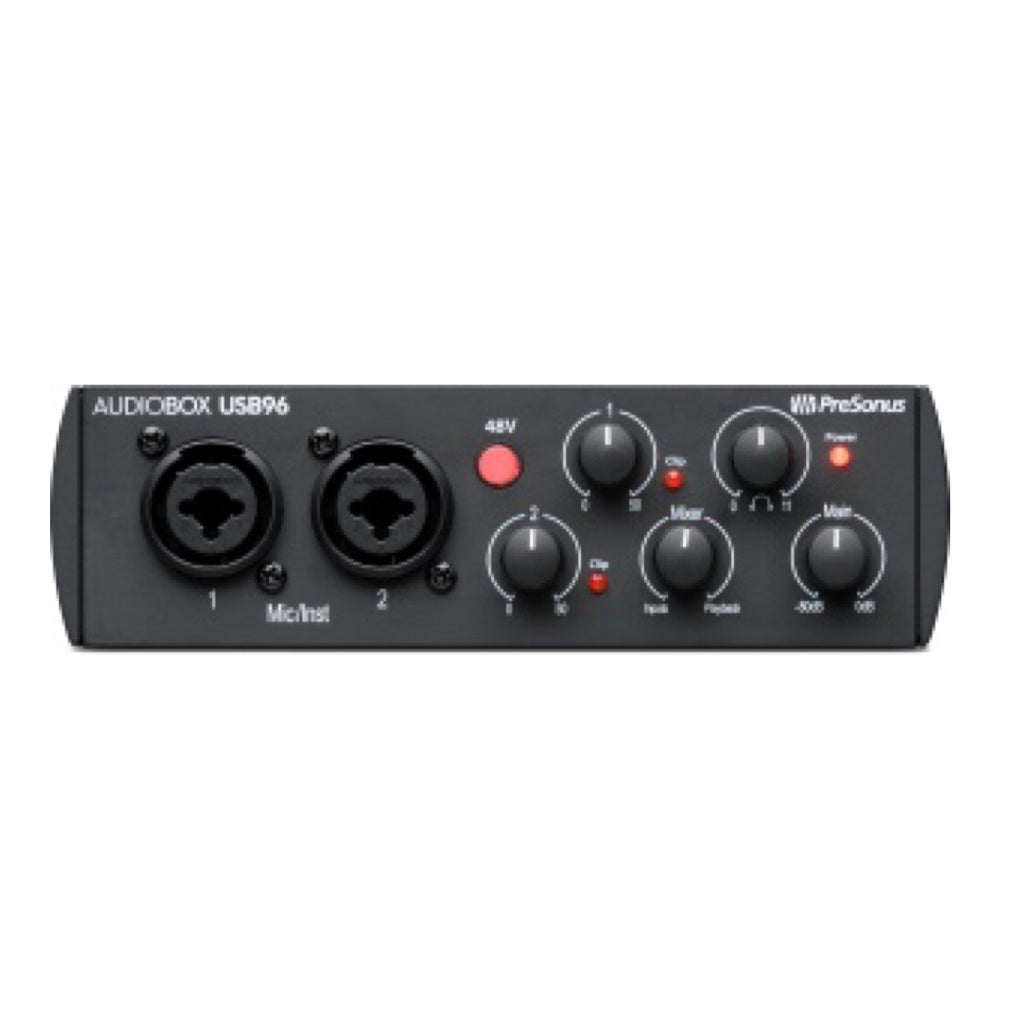

 2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers

 2 combo mic/instrument inputs

 Individual channel-trim controls with 0 to +35 dBu mic gain range

 48V phantom power for condenser microphones

 Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)

 Headphone jack with level control

 Main-output level control

 LED clip indicator for each channel

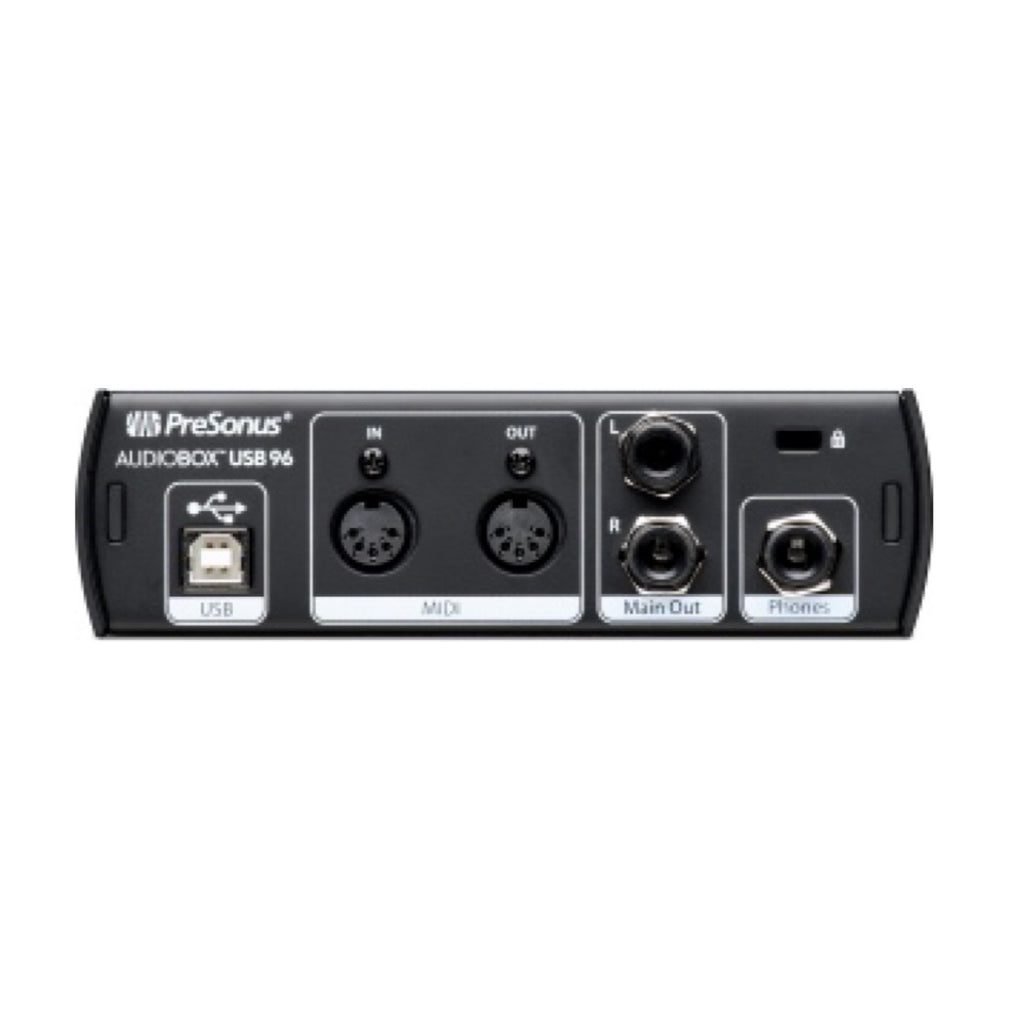

Input/Output

 1 USB 2.0 port

 2 combo XLR/¼-inch mic/instrument inputs

 2 balanced ¼-inch main (L/R) line outputs

 1 stereo ¼-inch headphone output

 MIDI In/Out

Digitalia

 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate

 Professional-grade A/D/A converters (+105 dBu dynamic range)

 Zero-latency monitoring via internal mixer

 Compatible with most Mac® and Windows® recording software

Included Software

 Studio One®Artist

 Studio Magic Software Suite

 Ableton®Live Lite

Physical

 1/3U rack-mountable (with optional 3UMR rack-mounting system)

 Road-rugged construction with all-metal chassis and metal knobs

 Weighs just 5 lbs (2.3 kg)

 Powered via USB bus—no wall wart!

Computer system requirements:

Below are the minimum computer-system requirements for AudioBox USB 96.

VST is a registered trademark of Steinberg Media Technologies GmbH

ASIO is a trademark and software of Steinberg Media Technologies GmbH

All other trademarks are property of their respective holders

 Technical Specifications

          Microphone Preamp

          Type

    XLR Female Balanced

          Frequency Response (±3.0 dB)

    20 Hz to 20 kHz

          Input Impedance (Balanced)

    1200Ω

          THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain)

    < 0.008%

          S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)

    > 95 dB

          Common Mode Rejection Ratio (1 kHz, 55 dB Gain)

    > 45 dB

          Gain Control Range (± 2 dB)

    +6 dB to +52 dB

          Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N)

    -3 dBu

          Phantom Power (±2 VDC)

    +48 VDC

          Instrument Input

          Type

    ¼" TS Female Unbalanced

          Input Impedance

    0.5 MΩ

          Gain Control Range (± 2 dB)

    +2d B to +48 dB

          Line Outputs

          Type

    ¼" Balanced

          Output Impedance

    51Ω

      Headphone Output

       Type

   ¼" TRS Active Stereo

       Maximum Output

   60 mW/Ch @ 60Ω Load

       Frequency Response (±1.0 dB)

   20 Hz - 30 kHz

      MIDI I/O

       Type

   Dual 5-pin Female DIN

      Digital Audio

       ADC Dynamic Range (A-wtd, 48 kHz Sample Rate)

   105 dB

       DAC Dynamic Range (A-wtd, 48 kHz Sample Rate)

   105 dB

       Bit Depth

   24

       Reference Level for 0 dBFS

   +4 dBu

       Supported Sample Rates (kHz)

   44.1, 48, 88.2, 96

       Power

   USB 2.0 bus-powered

      Physical

       Dimensions

   1/3U (steel chassis)

       Height

   5.5” (139.7 mm)

       Depth

   1.75" (44.45 mm)

       Width

   5.5” (139.7 mm)

       Weight

   1.3 lbs (0.59 kg)
