Feature:
The instrument uses high-strength engineering plastics and flexible anti-slip silicone design, the whole machine is solid and comfortable to hold.

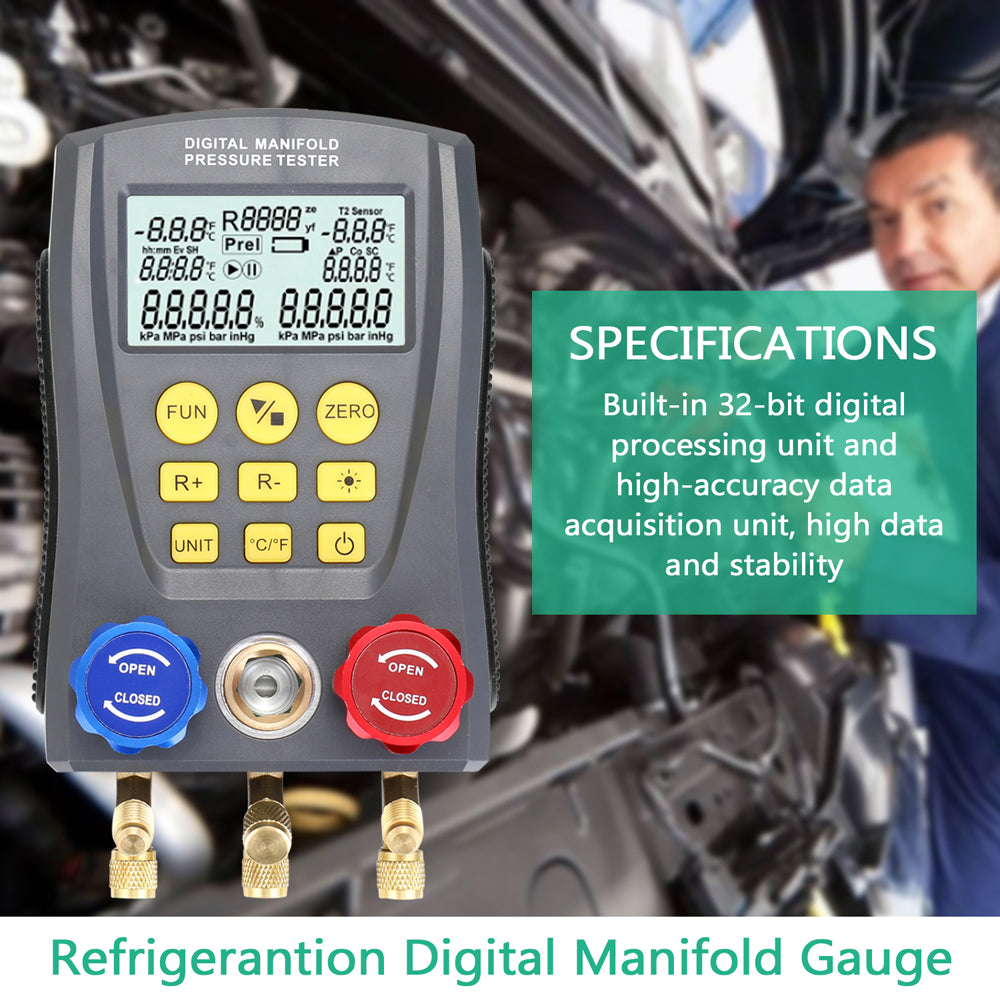

Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability.
Large-size LCD display, backlight support, data display clear and easy to read, convenient light operation.
Long-life valve-switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.

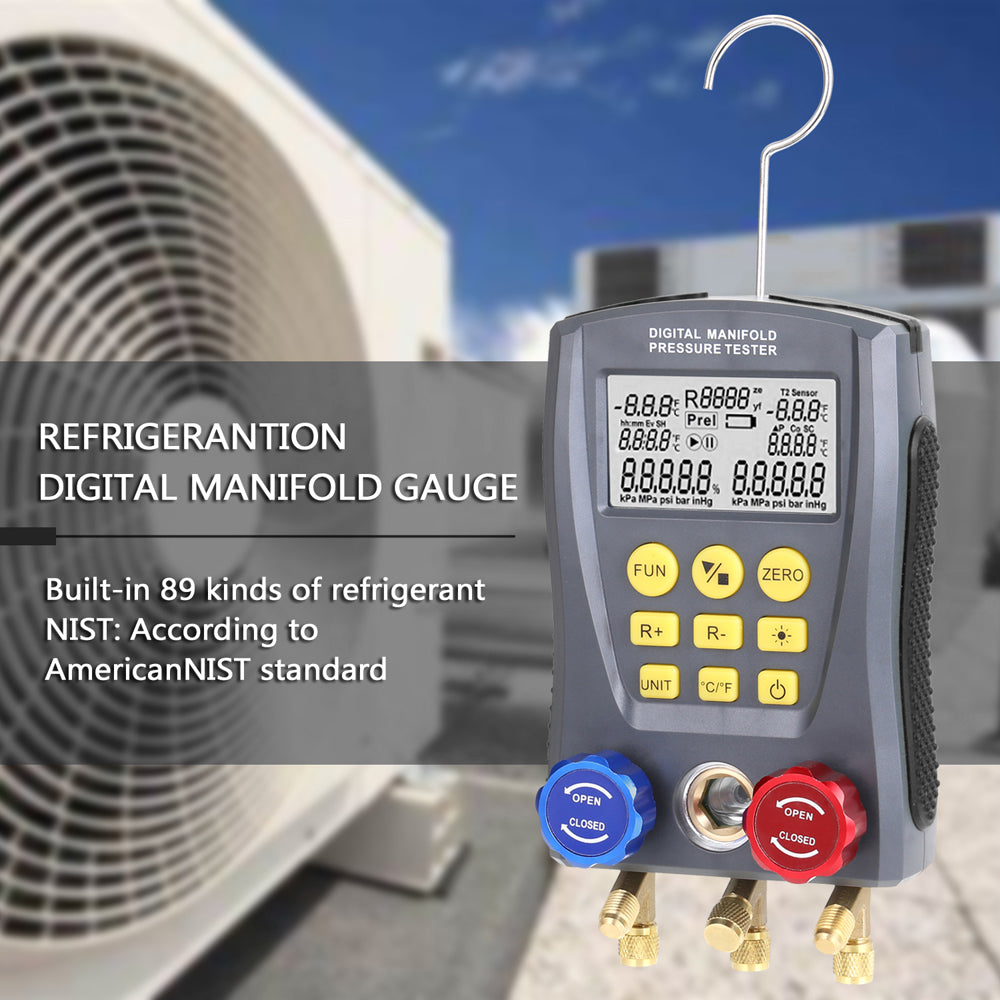

Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.
It tests percentage of vacuum measurement; pressure leak measurement, leak time speed record.
Multi-functional, accurate and simply operated digital manifold let you do the work right.
Specifications:
Material: plastics

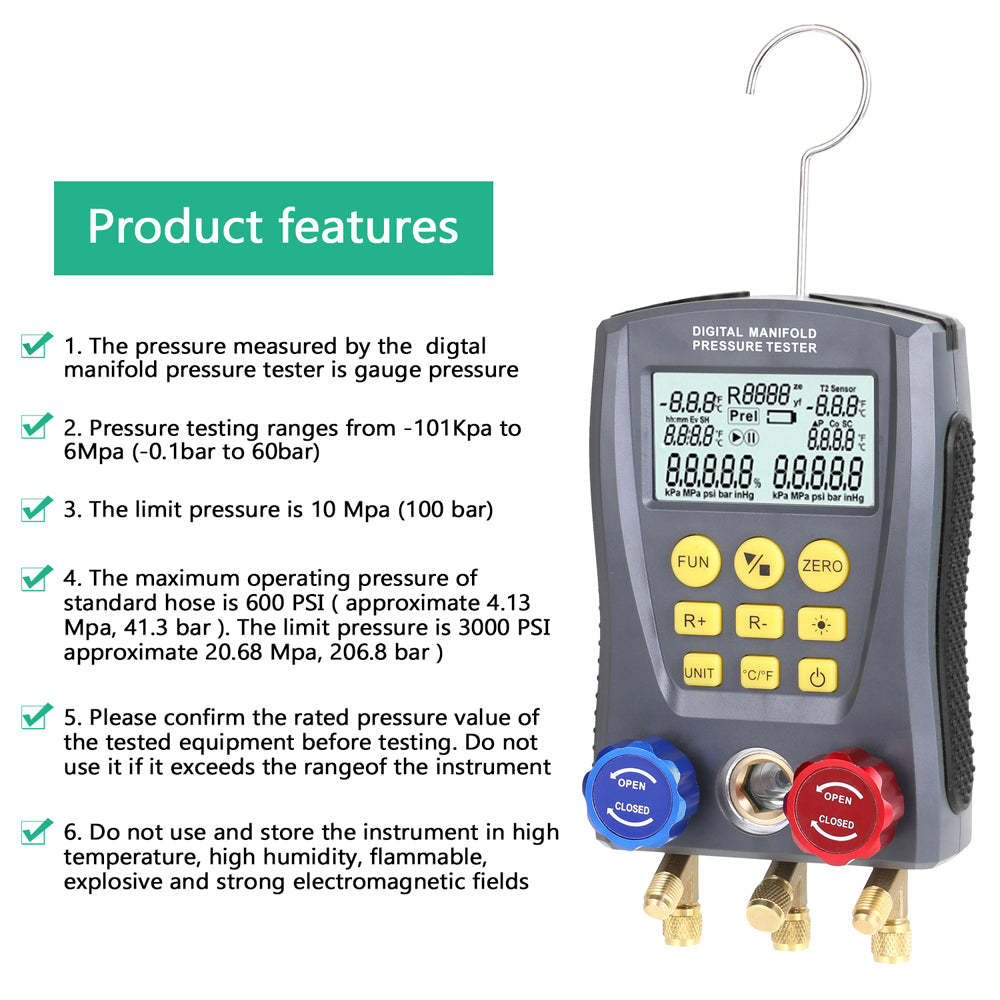

Pressure test ranges: 0 Kpa – 6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)

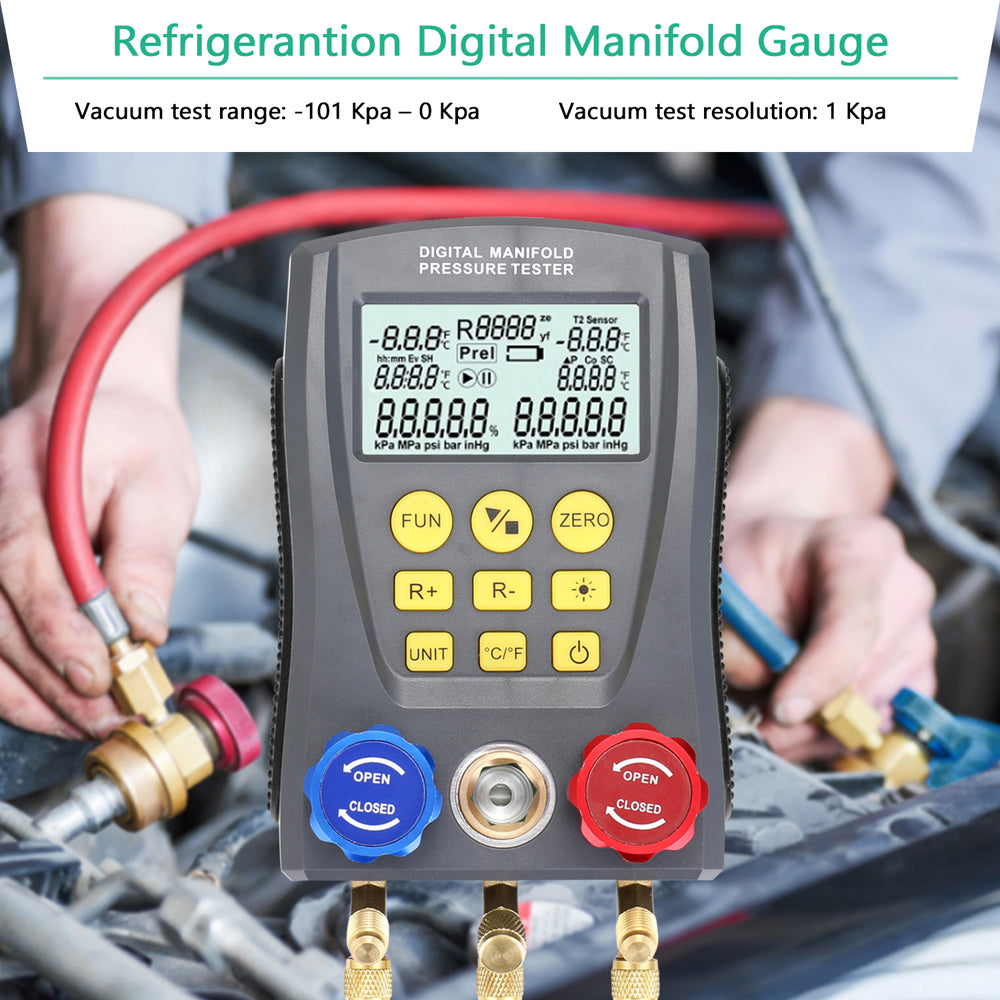

Vacuum test range: -101 Kpa – 0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test ranges: -40°C–150°C (-40°F–302°F)
Temperature test resolution:
0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)
0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt
Power: 4 * 1.5V (SIZE.AA / LR6) Battery (not include)
Pressure of tube: 600-3000
Item weight: 1500g / 3.3lb
Package size: 250 * 150 * 80mm / 9.8 * 5.9 * 3.1in
Package weight: 1800g / 4.0lb

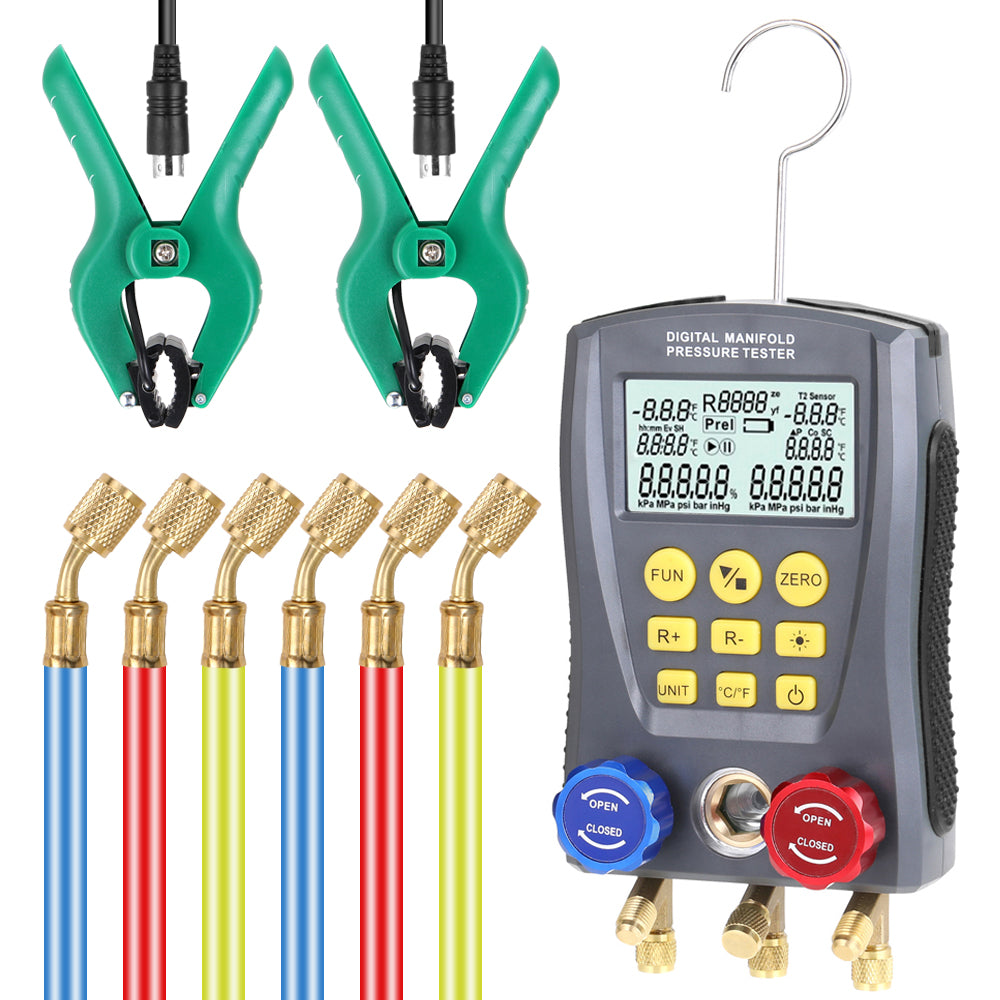

Package List:
1 * Refrigerantion Digital Manifold Gauge
1 * User Manual
2 * Temperature Clip
3 * Test Pipes
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
