Specifications:

Model: X5

Material: Aluminium Alloy

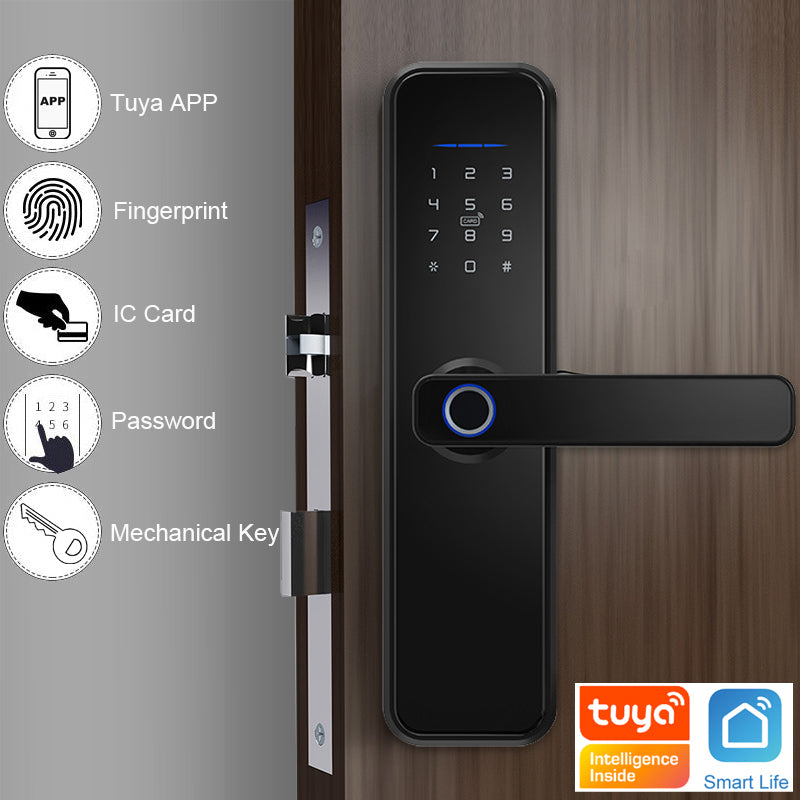

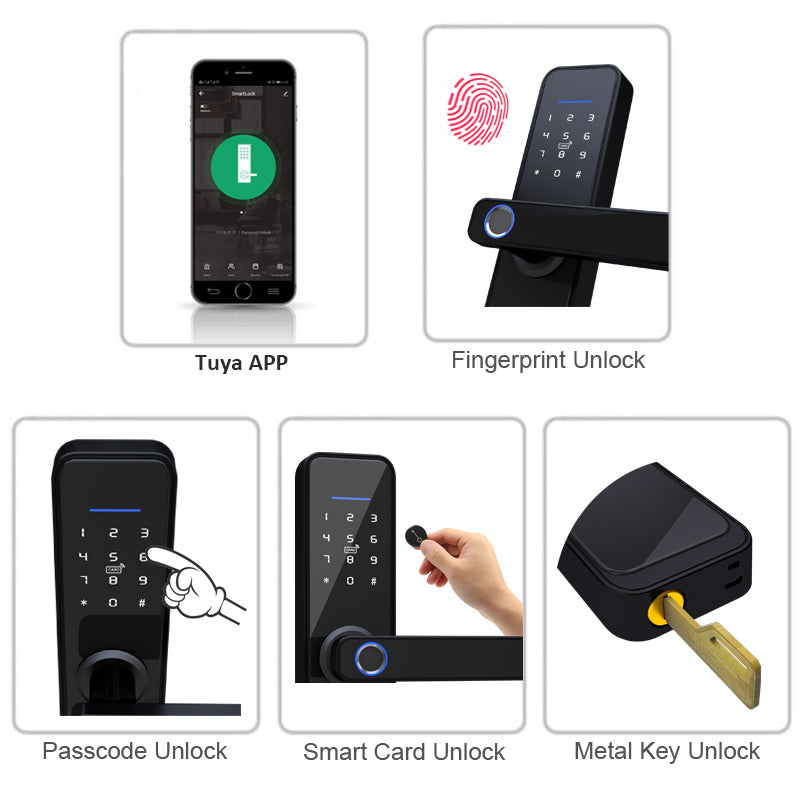

Unlock mode: APP / Fingerprint / Password / Smart card / Key

Fingerprint read: FPC Sensor (Semiconductor Sensor)

Color:  B         l         ack

                 User(fingerprint/card/password): Total 99

Chip Type: Dual Core Driver

Touch screen: IML Material

Working power: 4 x AA 1.5V batteries (not include)

Operating temperature: -20 to 55 Centigrade

Password function: support virtual password

Suit for the door thickness about 38 -55mm

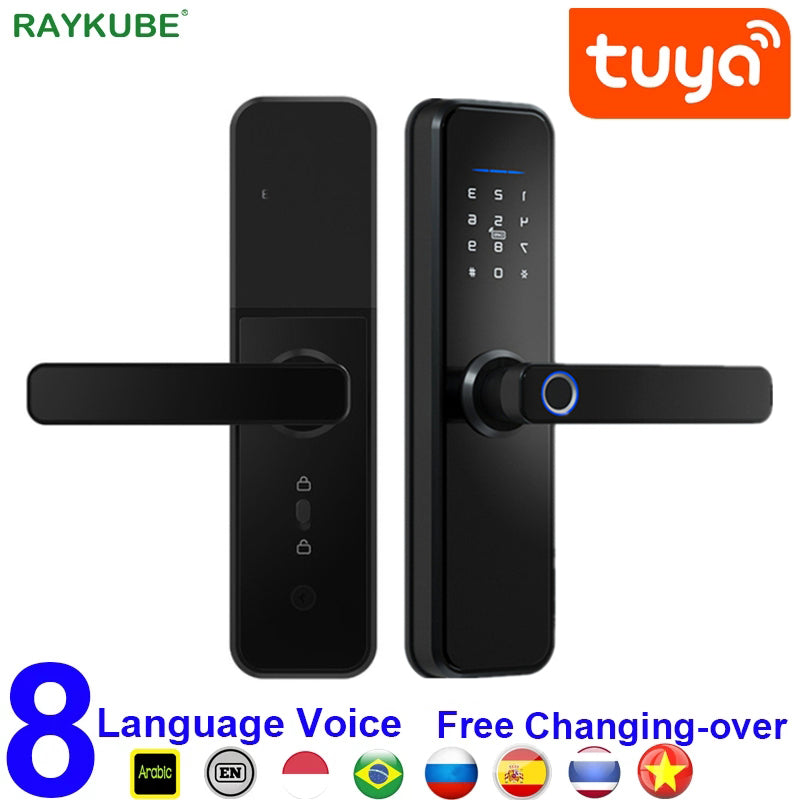

        System Voice: Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese

        (Russian warehouse shipments only support English voice)

        The package contains an English manual, if you need (Arabic /Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese) electronic version of the manual, please contact us

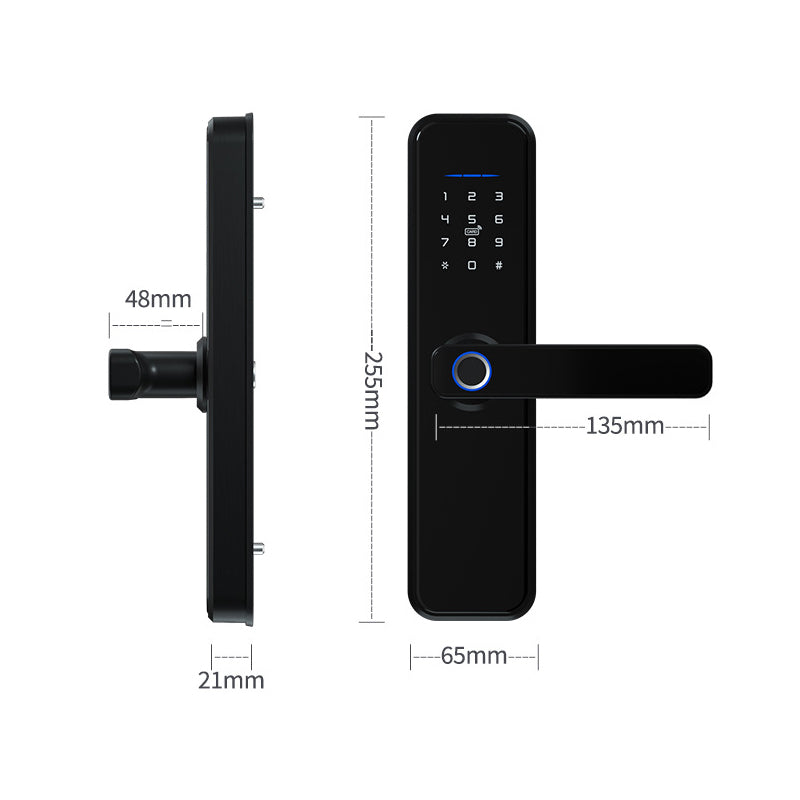

               Size:

               Comparison With Other Model:

               Color:

        Mode X5 have 3 color (Black/Silver/Red Bronze),

Default is Black, if you need other color please tell us

               Use 4pcs AA 1.5V Battery

        Please use the not rechargeable Alkalin battery; The AA battery is bigger than the AAA battery, it have longer Endurance capability,Other model is use smaller AAA battery.

(battery not include in the package)

               About Installtion:

        This lock suit for the door thickness 38-55mm door thickness.

please measure your old mortise lock size, and check our all options different mortise lock size which one suit for your door. That will more easy replacement.

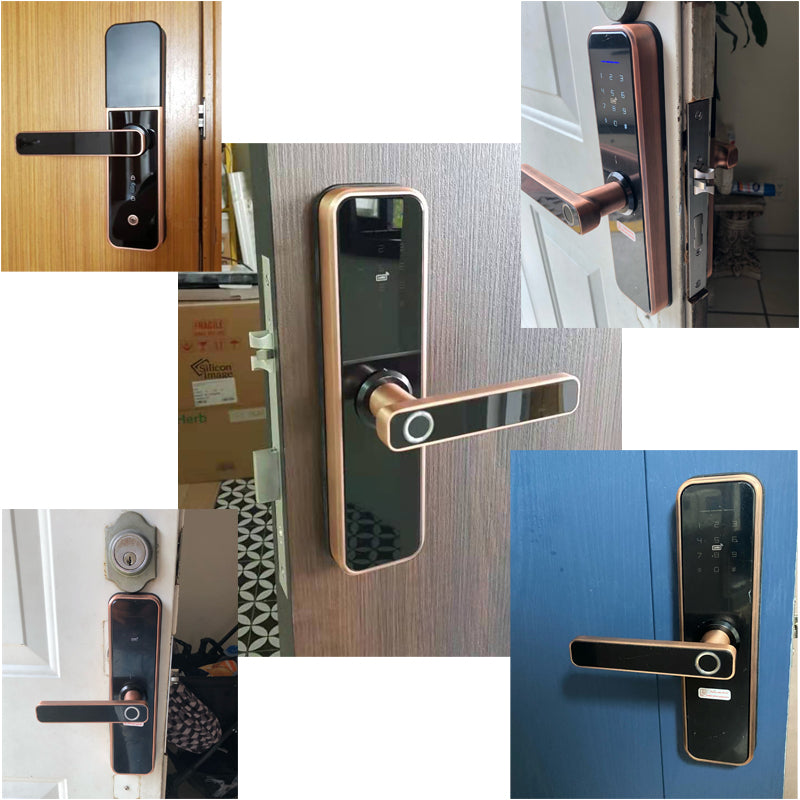

               Installtion Case:

        Universal both for right and left direction, Push and Pull opening

You can adjust the handle direction free.

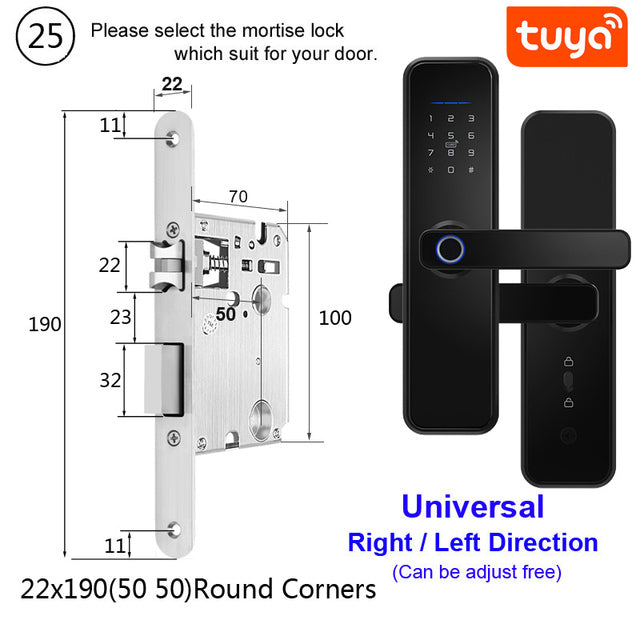

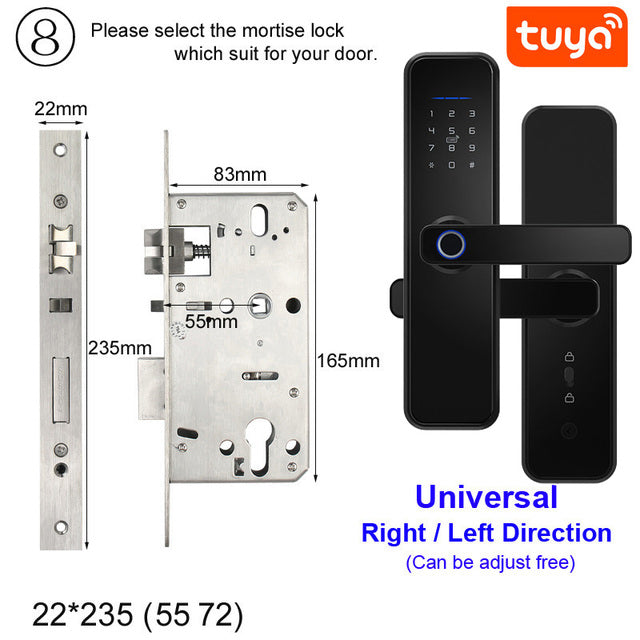

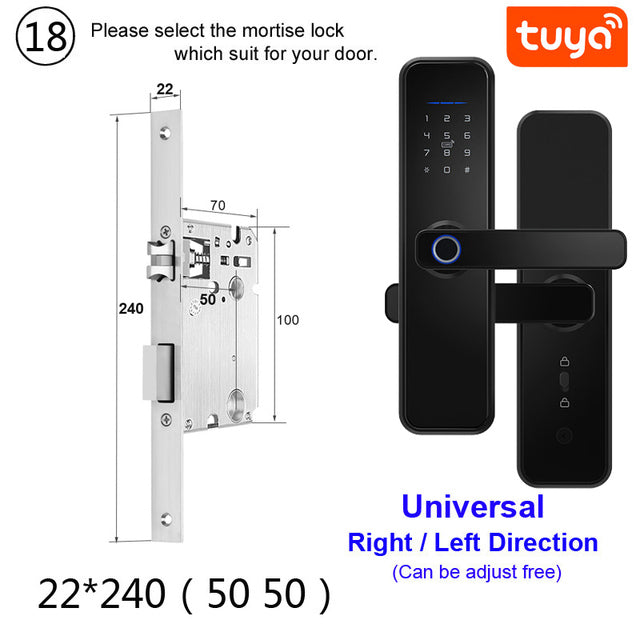

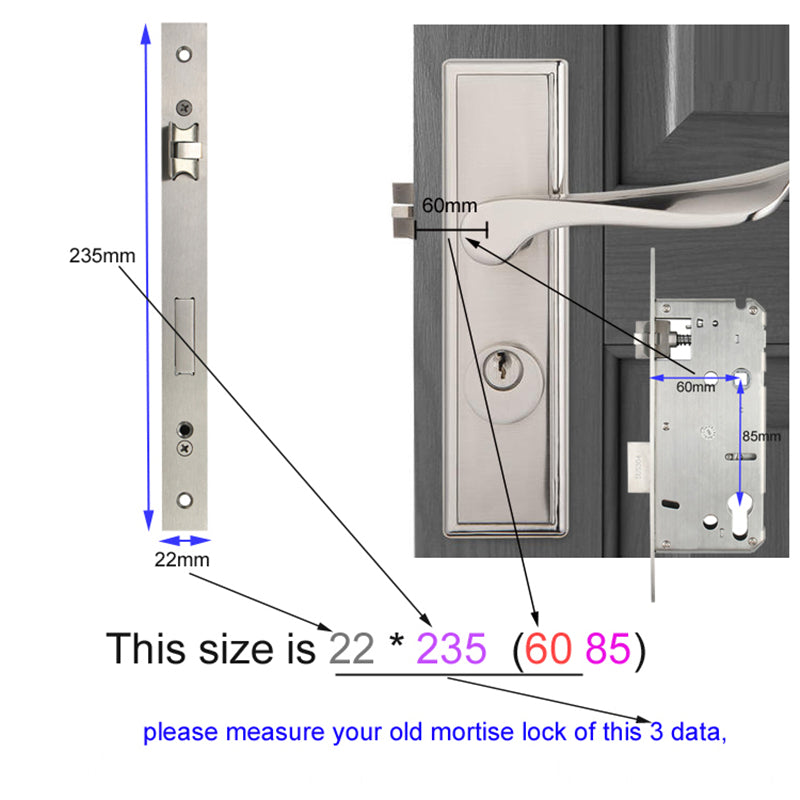

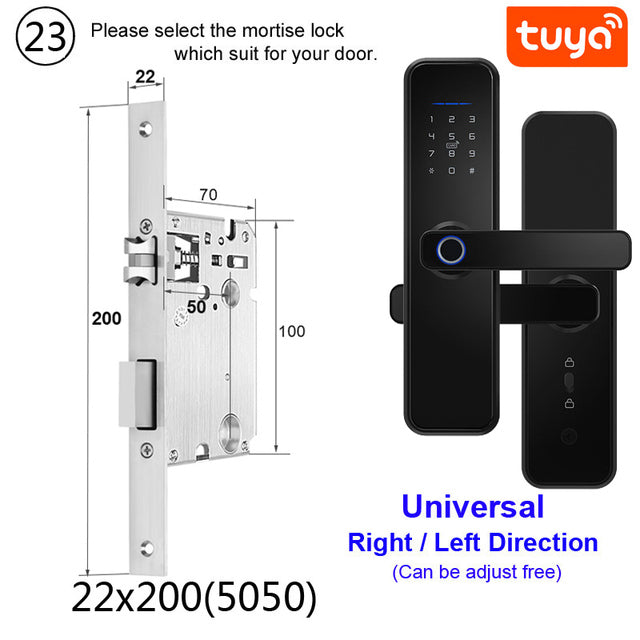

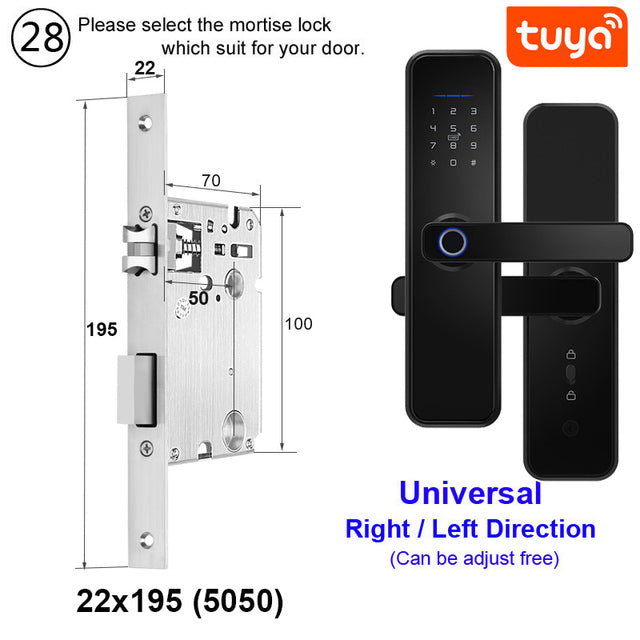

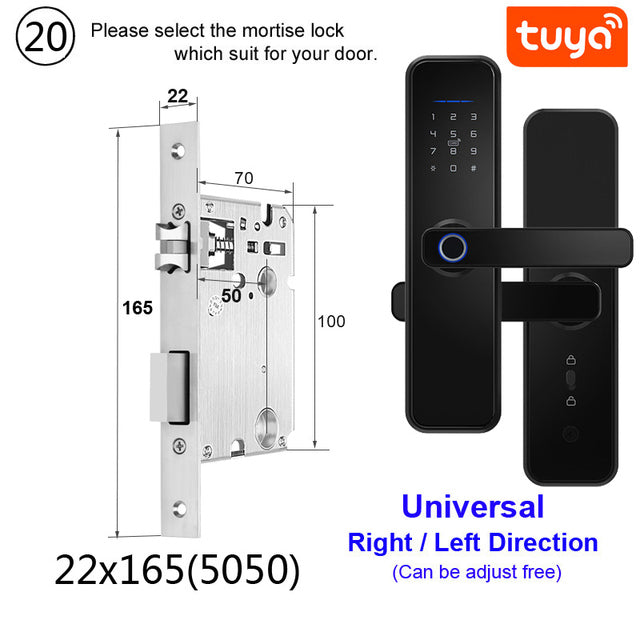

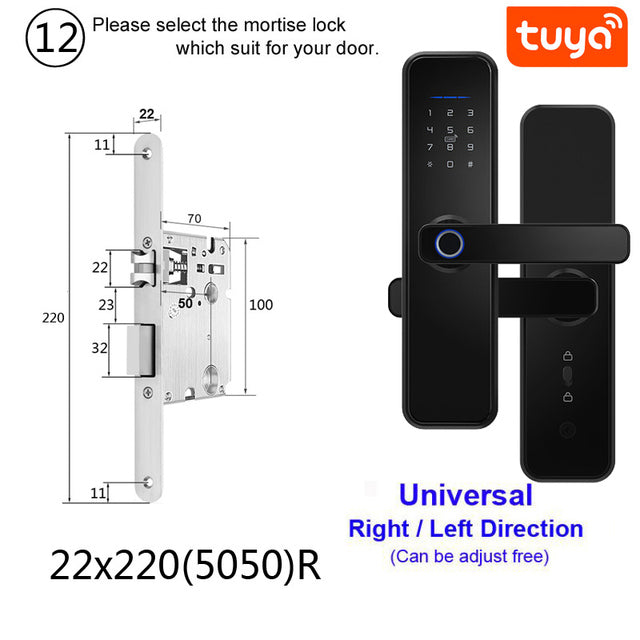

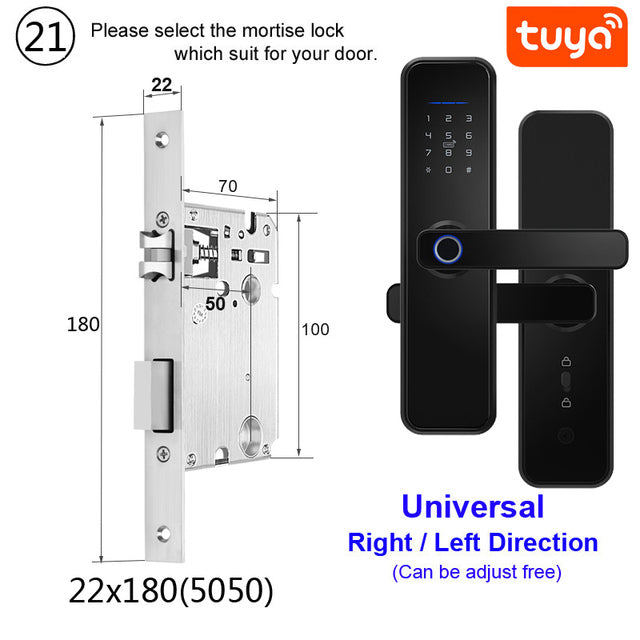

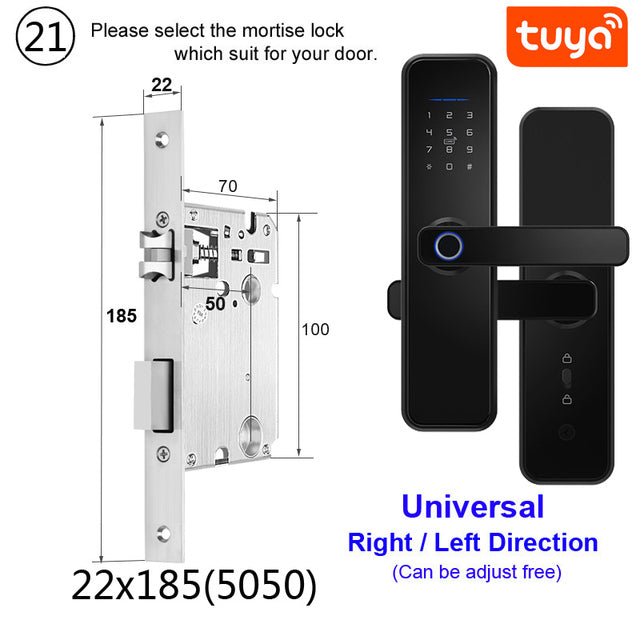

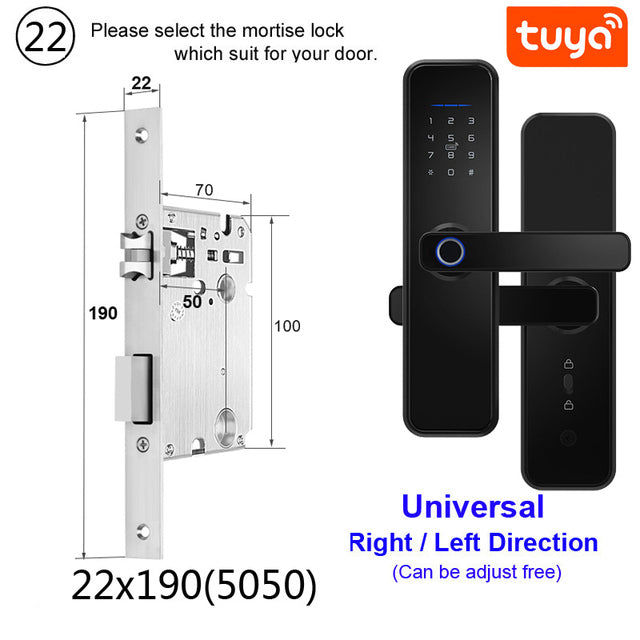

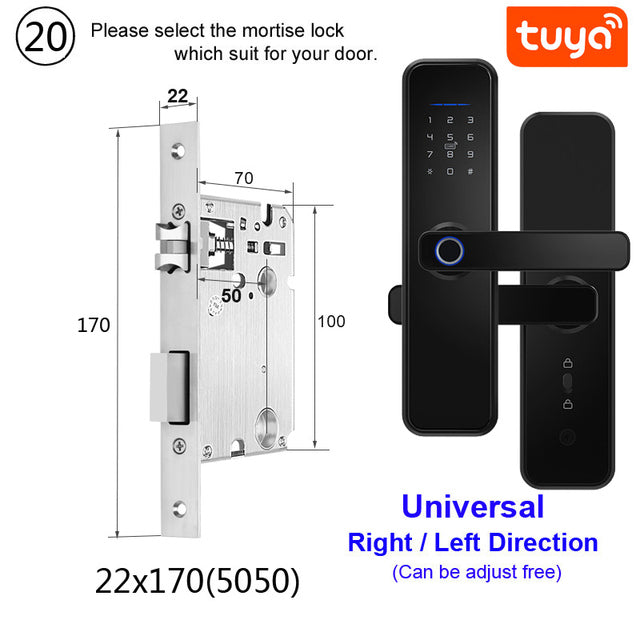

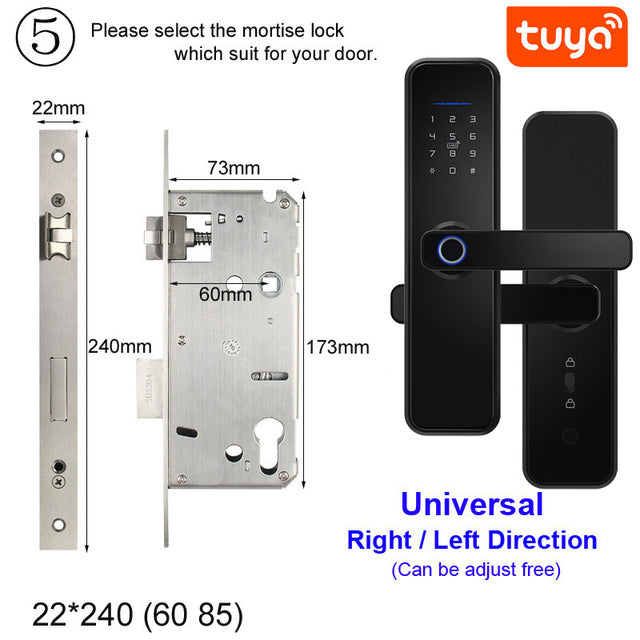

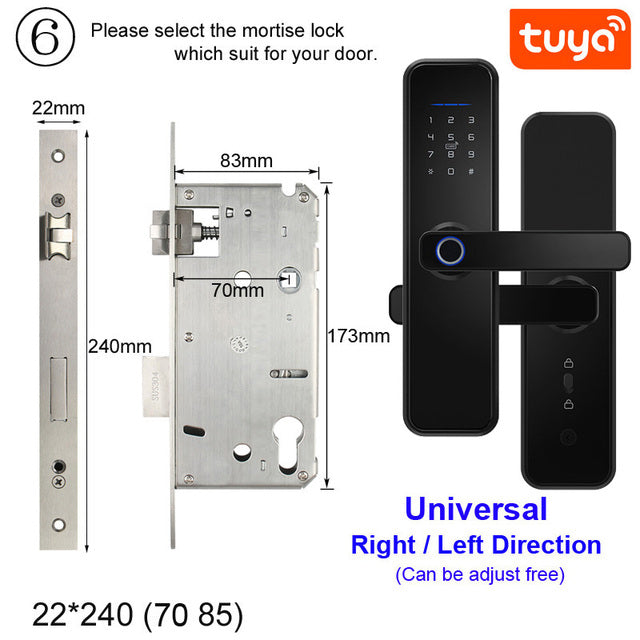

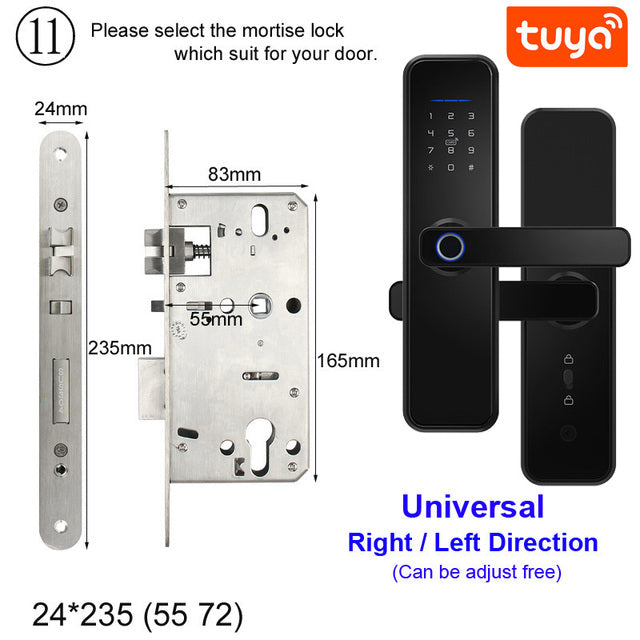

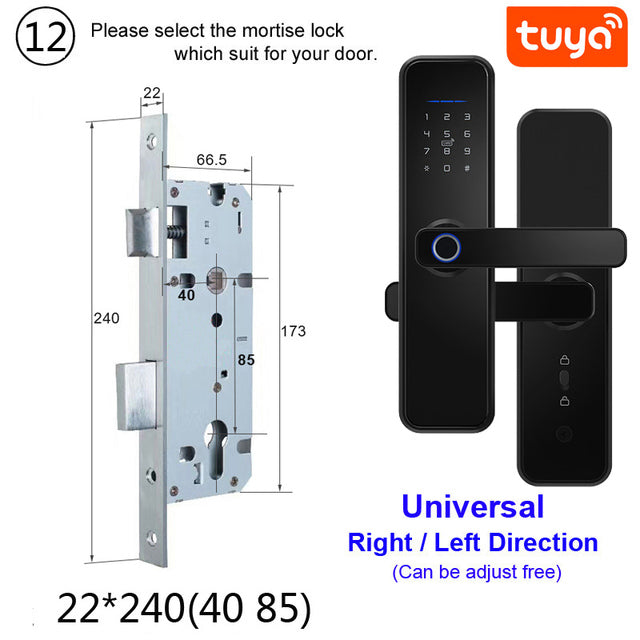

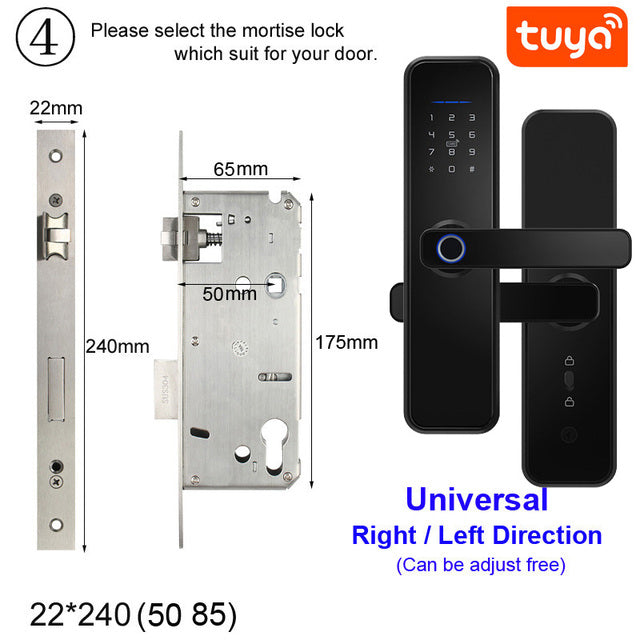

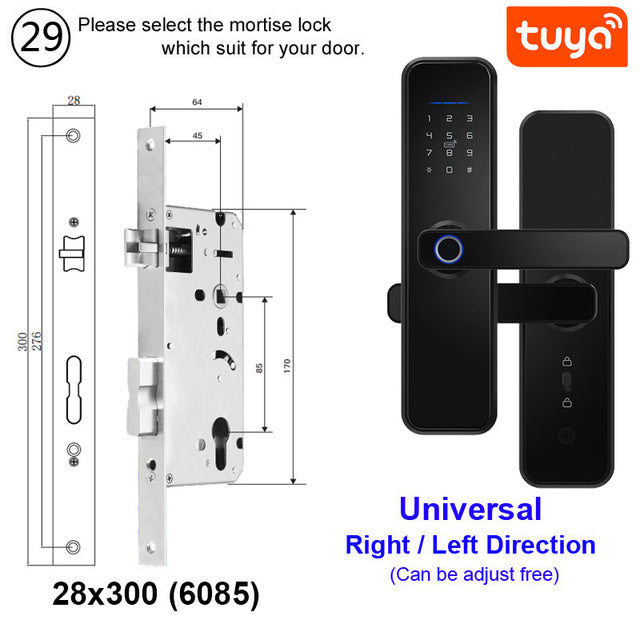

               How to select the correct mortise lock size

        We have over 24 different mortise lock size for choose, so please measure the old lock size follow this picture that you would know which size suit for your door. (once you select the correct size, you will very easy to replace the old lock)

               APP Screen shot details:

               About the Tuya (Smartlife) APP:

        1.Connect to the wifi direct, not need any gateway;

2.Unlock remotely by phone APP;

3.Get the unlock record when someone open the lock;

4.Make the temporary password / timed password in APP

               Item Include:

        Front panel x 1

Rear panel x 1

Mortise lock x 1(options)

Smart card x 5

Mechanical Key x 2

Screw Kit x 1
