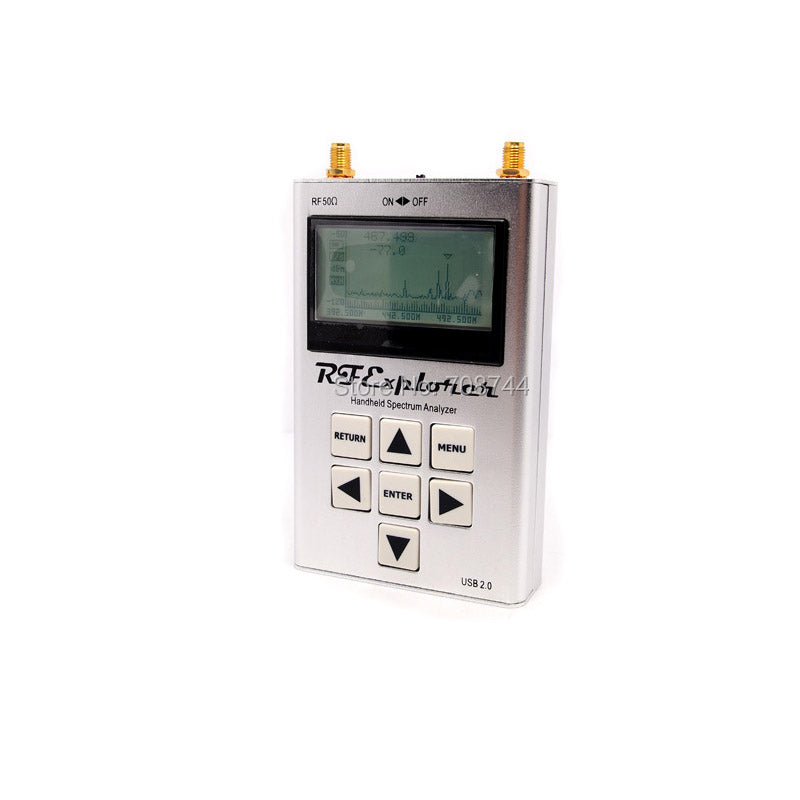

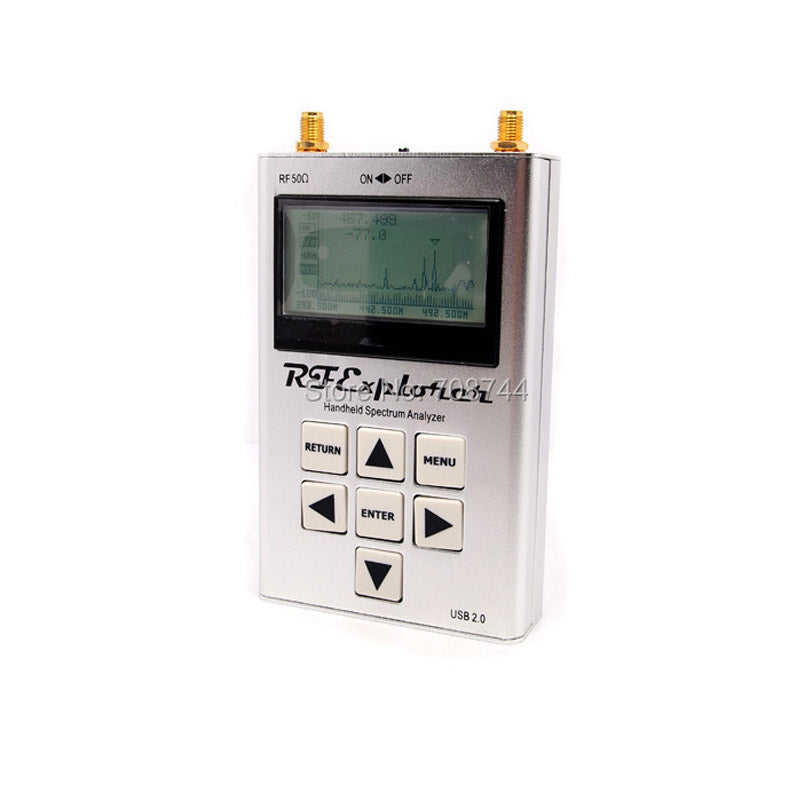

RF Explorer ISM Combo Handheld Digital Spectrum Analyzer LCD Display 240-960 MHz 2.35-2.55 GHz 113*70*25mm High Capacity

     RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.

   It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

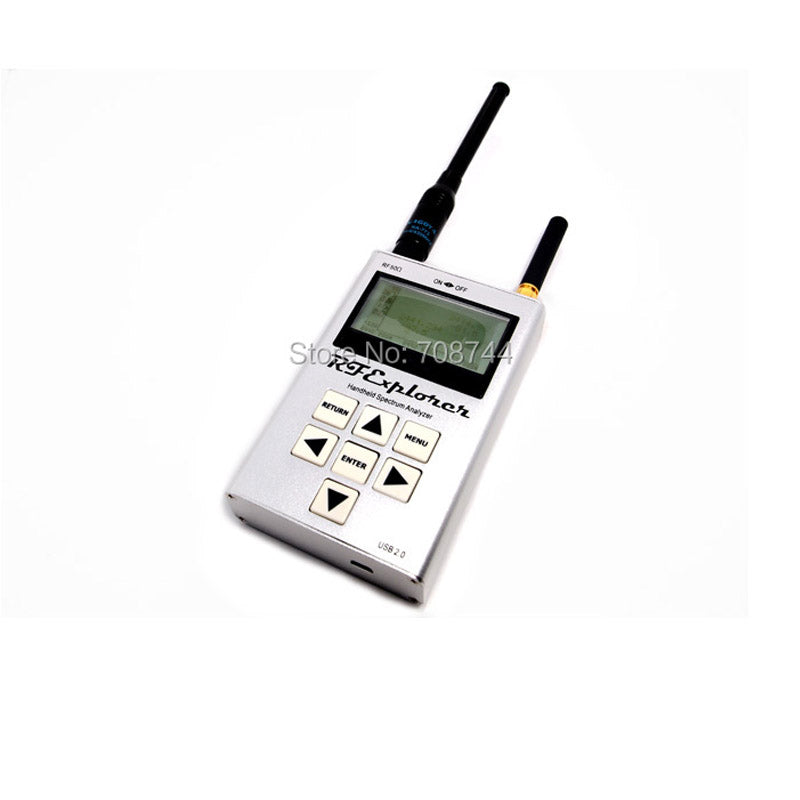

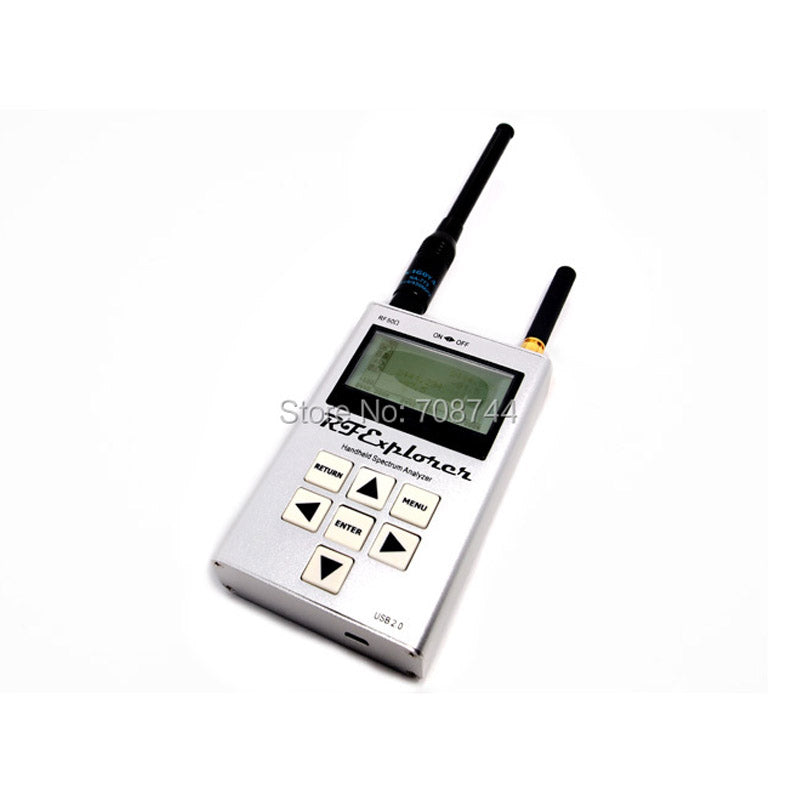

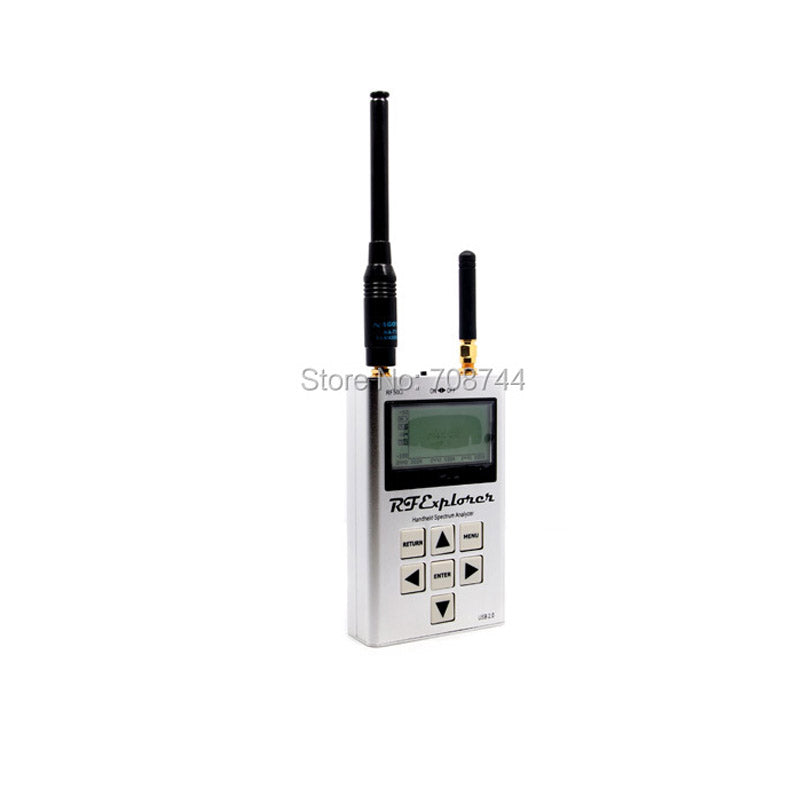

   This model includes a WSUB1G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice Nagoya NA-773 wideband telescopic antenna for all Sub-GHz frequencies and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

   The combination of these two models offer the wide band coverage of the WSUB3G module, together with the highest sensitivity and quick response of the WSUB1G model for the popular sub-1GHz frequencies.

   Feature

   ·Pocket size and light weight

   ·Solid aluminum metal case

   ·Includes a transport EVA carry case for RF Explorer

   ·Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

   ·Lifetime free firmware upgrades available, open to community requested features

   ·High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

   ·Windows PC client Open Source

   ·Can be extended with internal Expansion Modules for additional band and functionality

   ·Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

   ·Firmware: RF Explorer 3G Combo is delivered with upgraded firmware v1.09. Note some of the features and operation accuracy will be improved in upcoming lifetime free firmware revisions.

   Important

   Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available.

   Specification

       Frequency band: 240 - 960 MHz and 2.35 - 2.55 GHz

       Frequency span: 112KHz - 100MHz

       Graphics LCD 128x64 pixels, great visibility outdoors

       PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

       Backlight for great indoor visibility

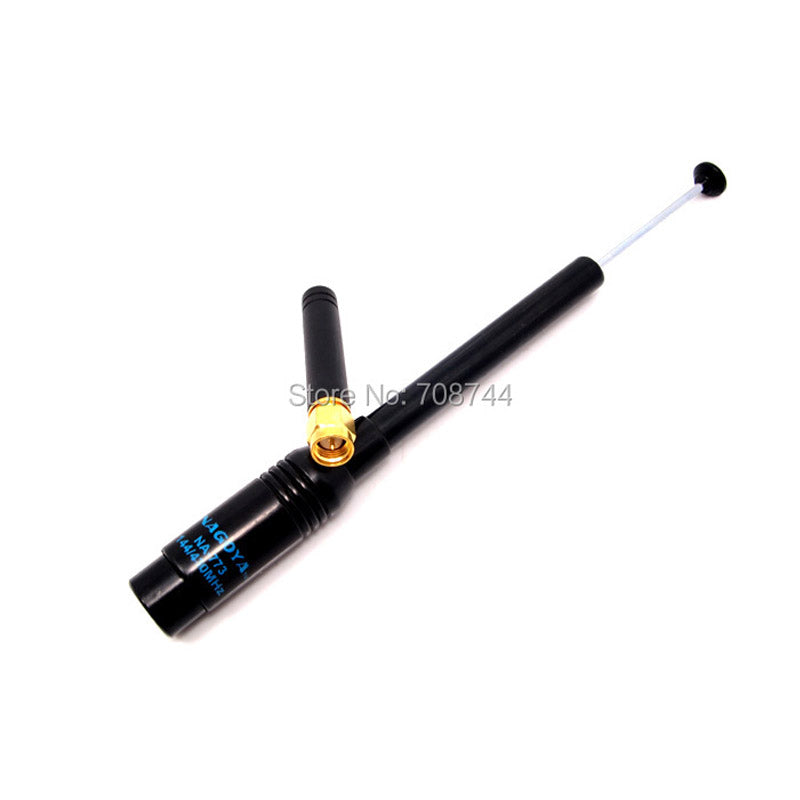

       2 standard SMA 50 ohms connector, one for Sub-GHz wideband Nagoya NA-773 telescopic antenna included and another one for 2.4GHz band with helical antenna included.

       Amplitude resolution: 0.5dBm

       Dynamic range: -115dBm to 0dBm

       Absolute Max input power: +5dBm

       Average noise level (typical): -110dBm

       2.4GHz RF Generator amplitude: -30dBm to +1dBm

       Frequency stability and accuracy (typical): +/-10ppm

       Amplitude stability and accuracy (typical): +/-3dBm

       Frequency resolution: 1Khz

       Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

       Host Machine Weight: 207g / 7.29oz

       Host Machine Size: Approx. 11.3 * 7 * 2.5cm / 4.5 * 2.8 * 1in (L * W * H)

       Package List: 1 * Host Machine(included battery); 2 * Antennas

   For more info and to get started with your RF Explorer, visit the start page.
