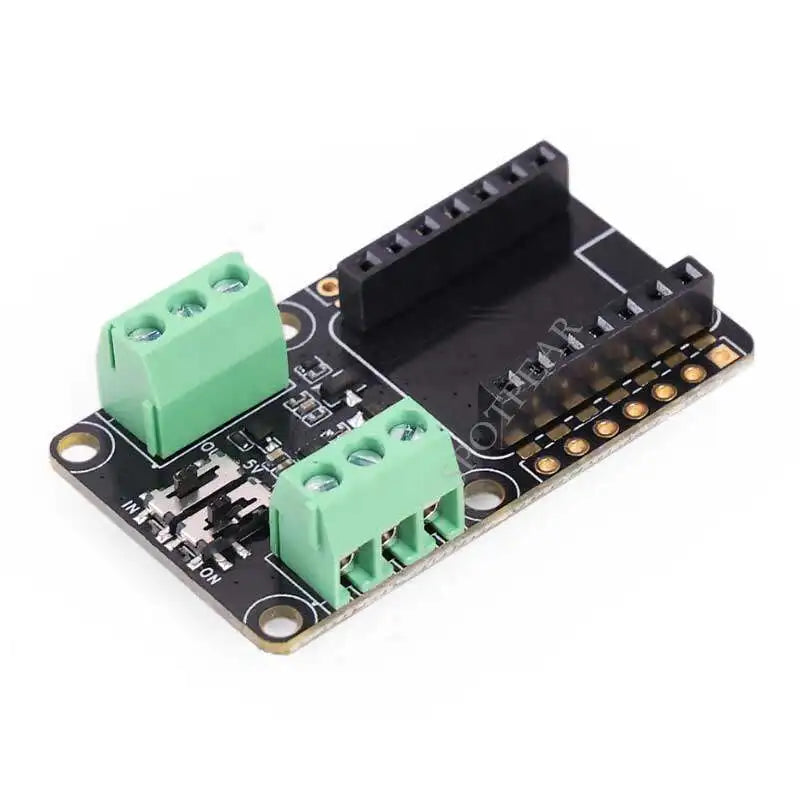

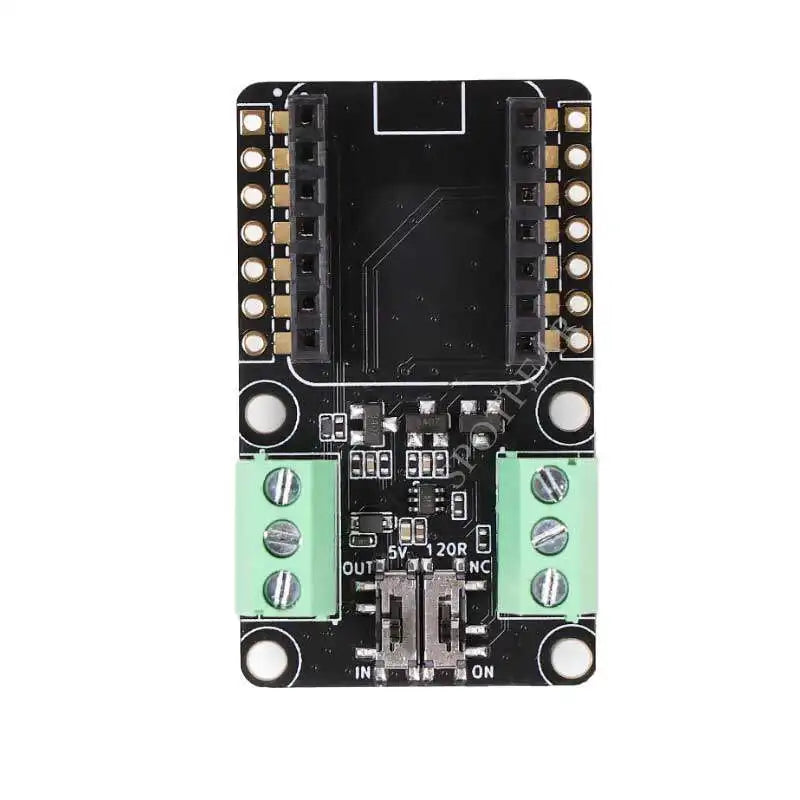

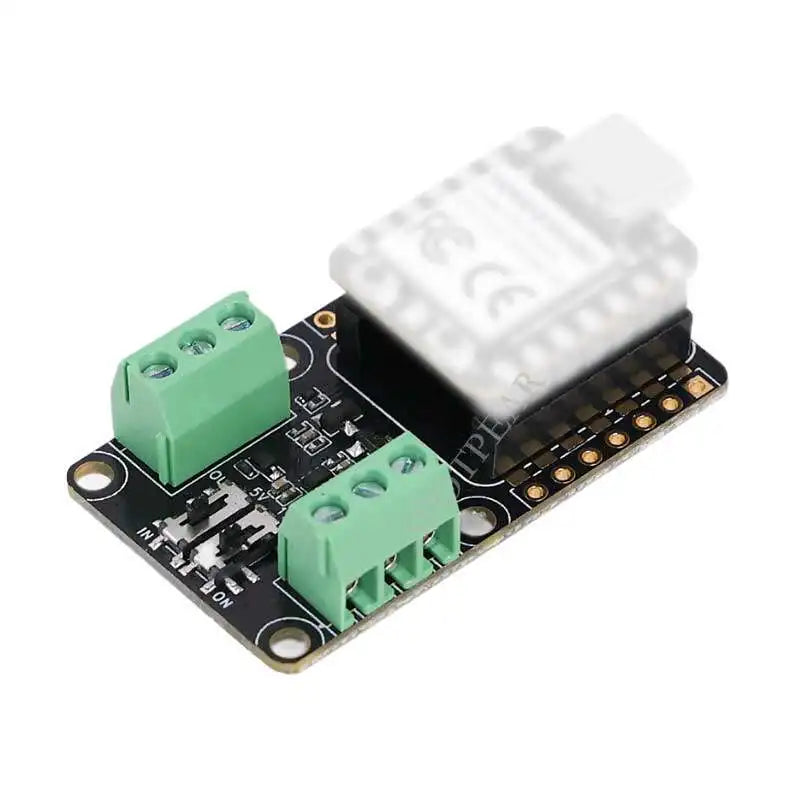

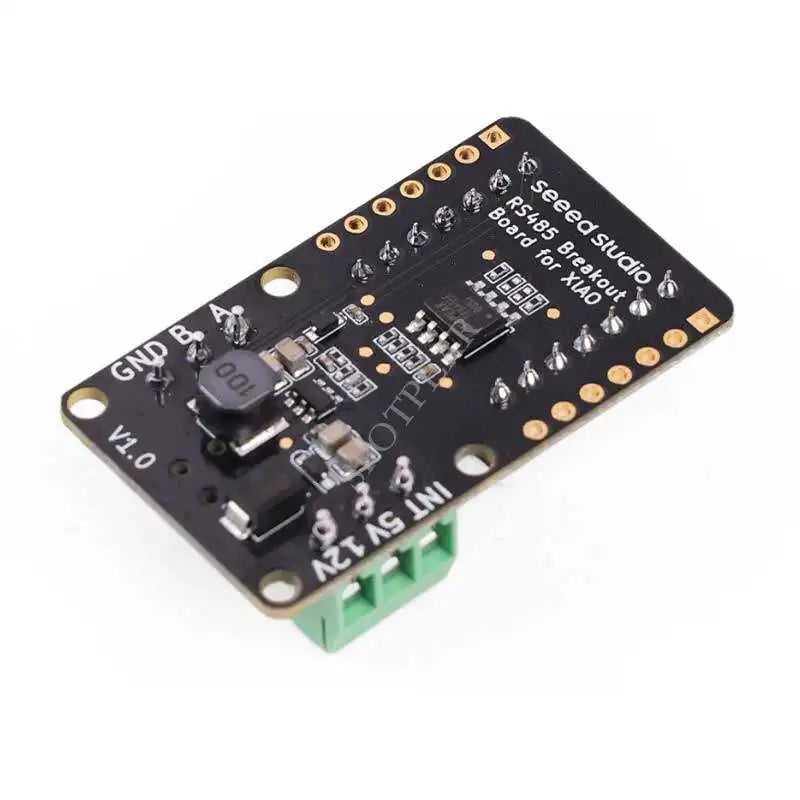

[] Seeed Studio RS-485 Breakout Board is a multi-functional RS-485 expansion board designed for all Seeed Studio XIAO development boards. This breakout board features the TP8485E transceiver IC that efficiently converts UART serial streams into RS-485 signals. The TP8485E operates as a half-duplex transceiver, enabling one-way communication with a communication distance of up to 1200 meters. Designed for efficiency, this breakout board requires only a single 5V or 12VDC power supply. Its RS-485 output is implemented via a 3-pin terminal for signal line and power supply connections. These characteristics make it ideal for robust data transmission over long distances and in high-noise environments. 【Function】 [] Seamless compatibility with Seeed Studio XIAO: Designed to work seamlessly with the Seeed Studio XIAO development board. [] Long-distance transmission: Suitable for communication distances up to 1200 meters (approximately 3973 feet). [] Support wide voltage input: compatible with 5V and 12V power supplies [ ] Two-terminal connection: two 3-pin terminals for signal lines and power supply [ ] Compact design: The breakout board has a compact form factor (the size of 2 XIAO boards), suitable for projects with limited space 【What is RS-485? 】 [] RS-485 is an efficient and reliable serial communication standard suitable for a variety of applications requiring long distance and multi-point connections. Its noise immunity and flexibility make it widely used in industrial and communication fields. [How does RS-485 work? 】 [] RS-485 uses a pair of signal lines (A and B) to transmit data, has excellent noise immunity and supports half-duplex communication mode. It allows up to 32 devices to be connected on the same bus, each device having an address for identification when sending and receiving data. This standard is widely used in industrial automation, remote monitoring and other applications, and when combined with the Modbus protocol, it facilitates efficient data exchange and management between devices. [ ] With the Seeed Studio RS-485 Breakout Board, you can leverage the power of the Seeed Studio XIAO development board and its extensive ecosystem to create projects that require reliable high-speed, long-distance communications. Whether you are developing industrial control systems or IoT devices, this breakout board provides a reliable and compact solution for integrating RS-485 functionality into your project.
