Features:

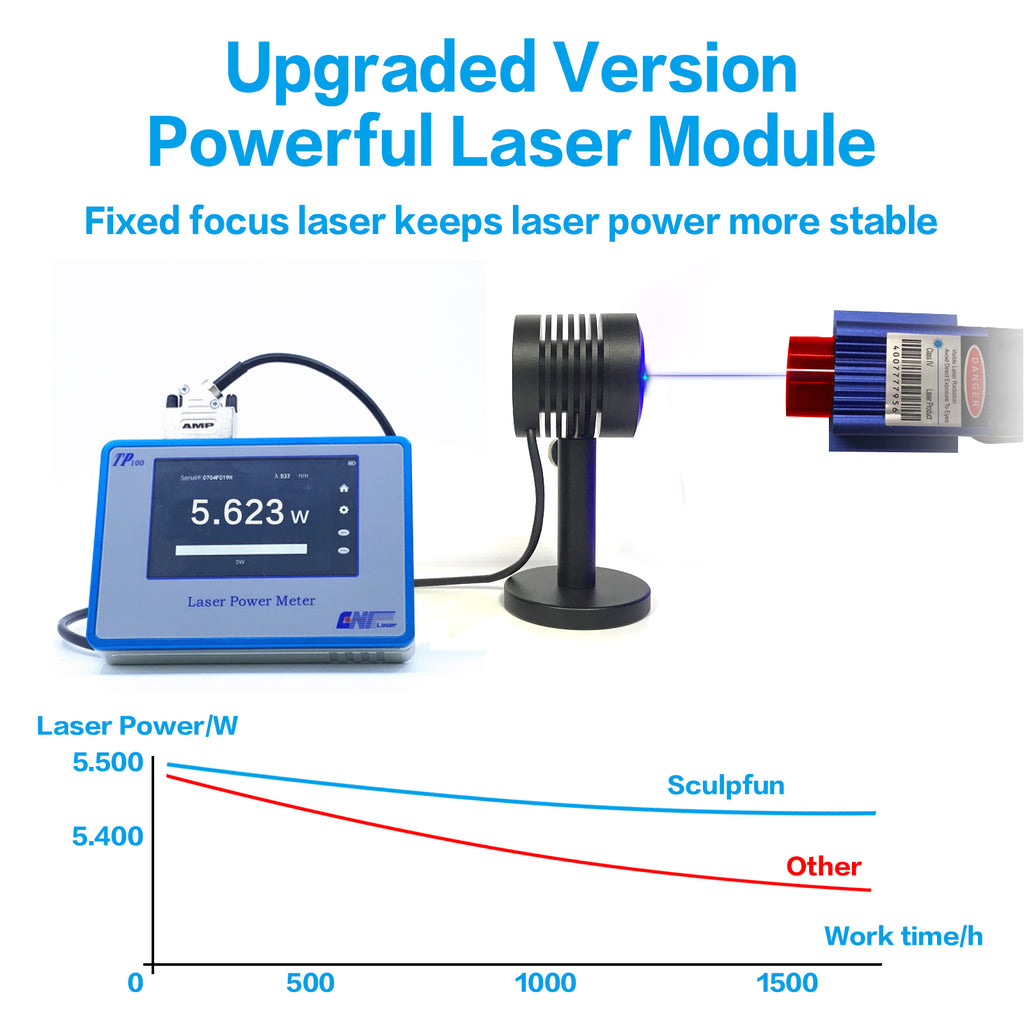

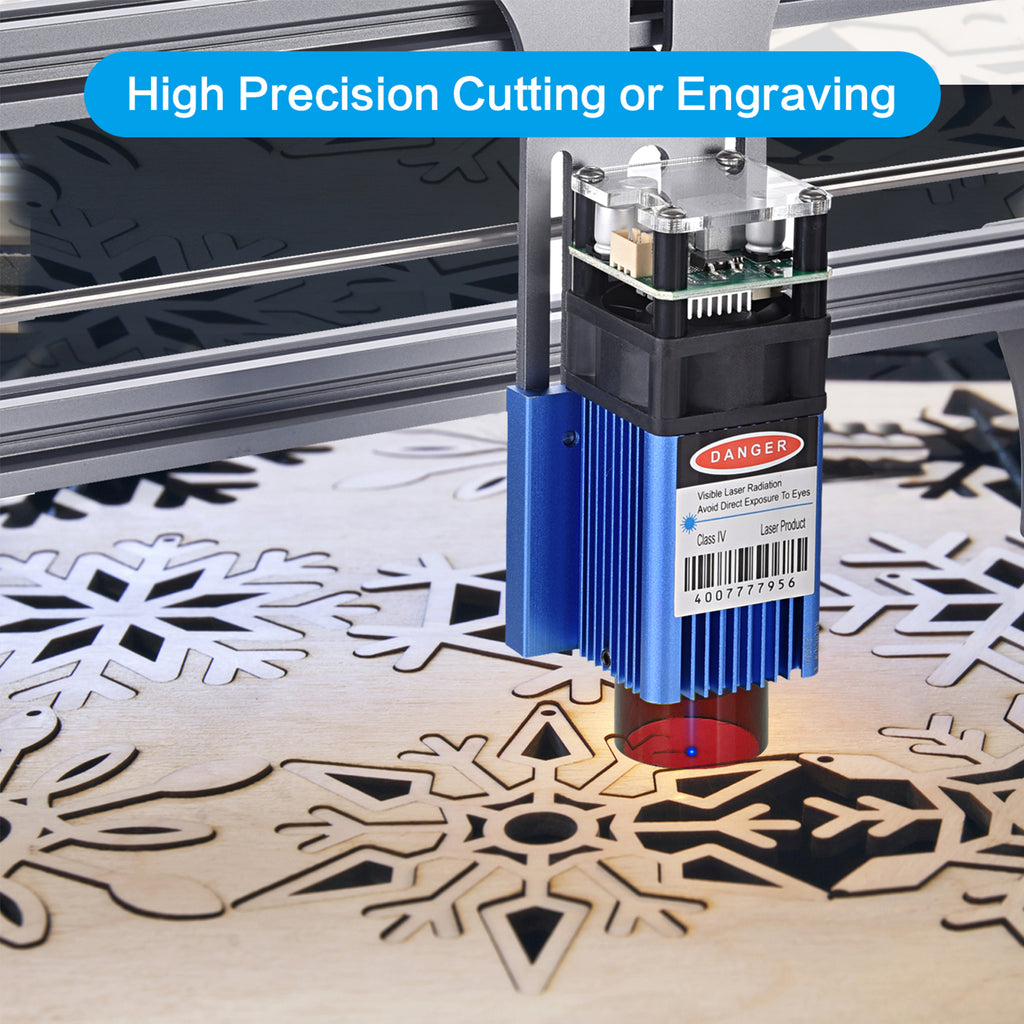

 【Upgraded High-power Laser】: The latest 5.5W laser power fixed-focus laser, which has an ultra-fine 0.15mm laser focus. It combines both precision engraving and high-energy cutting. It can cut 12mm thick wood and acrylic, engrave black-painted stainless steel, ceramics and stones.

 【New Eye Protection Design】: The laser filter cover filters 98% of the ultraviolet light to eye, You and the people around you can watch laser engraving without wearing goggles. The cover also prevents animals grabbing the laser spot.

 【Fast Focusing Design】: S6 combined fixed focus laser and sliding design. You only need to slide the laser and tighten the screw to complete the focusing.

 【Solid and Quick Assembly Structure Design】: The all-metal structure design makes the machine more solid, and improve the accuracy of engraving. The whole structure is designed for quick installation, it usually takes 10-20 minutes to finish installation.

 【Widely Compatibility】: The machine works well with various engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, and also supports MAC system(LightBurn), engraving file supports JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.

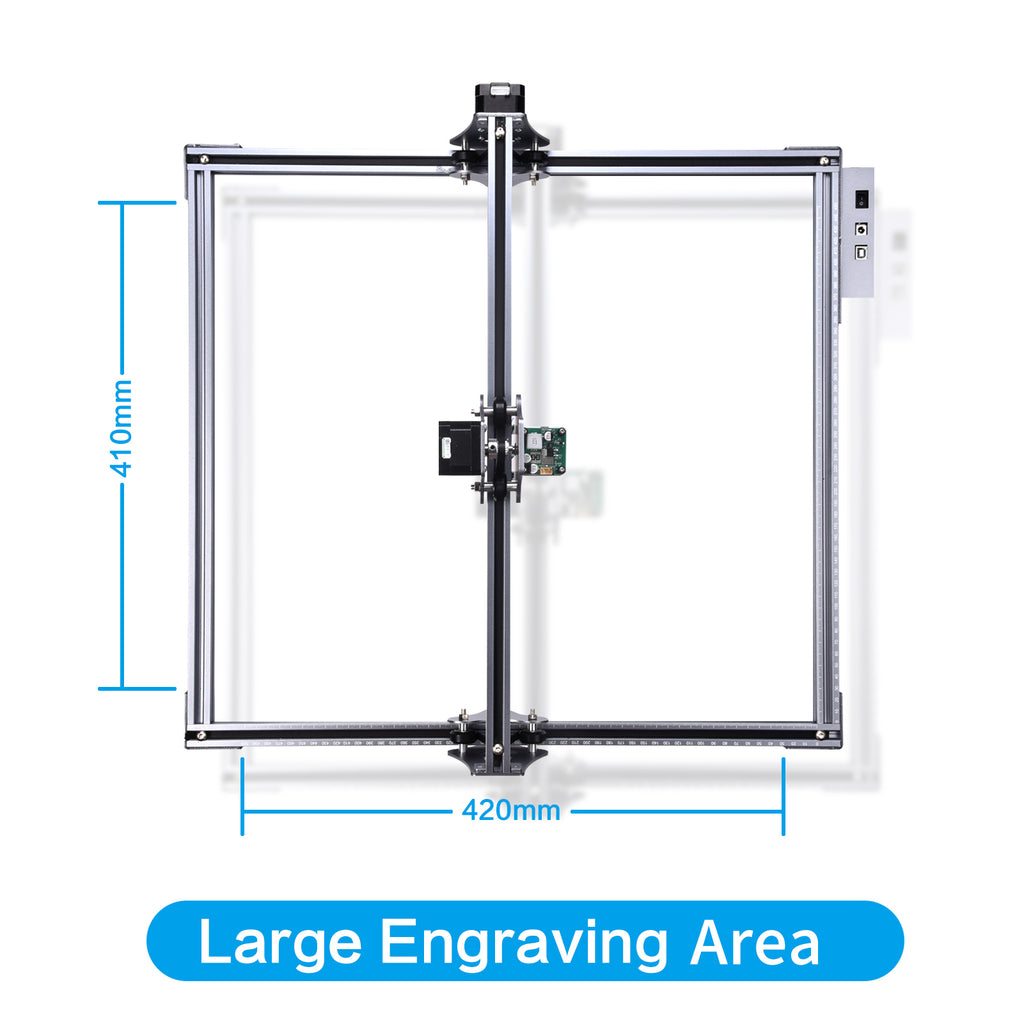

 【Square Measuring Ruler Axis】: X-Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects. The 410x420mm large engraving area can meet various engraving needs.

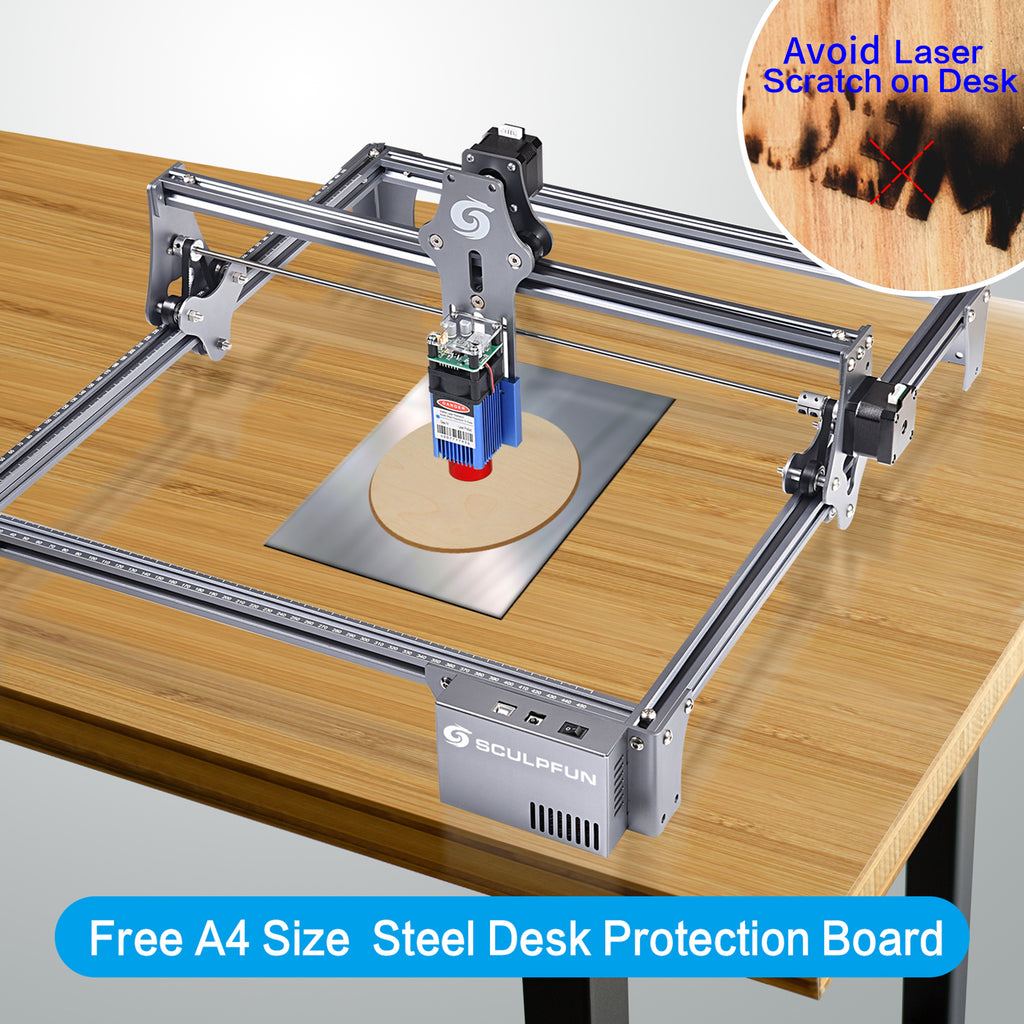

 【Safety Design & A4 Size Steel Pad】: There is a power switch on the machine for emergency power off. Fixing holes are reserved on the four feet and the body to fix the machine and the data cable. A gift of A4 size steel pad can well protect your table from laser damage.

 Specifications:

 Product Model: SCULPFUN S6 30W

 Plug: EU

 Power Supply: 100-240V AC, 50/60HZ

 Output: 12V 5A

 Engraving Size: 410*420mm

 Engraving/Cutting Material:

 Engraving Materials: wood, paper, cardboard, plastic, leather, PCB board, aluminum oxide, black-painted metal/ceramic

 Cutting material: cardboard, fabric, wood board, bamboo, acrylic, plastic board

 Total Machine Power: 30W

 Laser Output Optical Power: 5.5-6W

 Laser Wave Length: 455±5nm

 Engraving Accuracy: 0.01mm

 Focusing Method: fixed focus laser + sliding device

 Laser Protective Cover: The light filter cover on the laser protects the user's eyes and prevents animals grabbing the laser spot.

 Operating Software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.

 Data Transmission Method: USB connection

 Equipment Size: 52 * 57 * 25cm / 20.5 * 22.4 * 9.8in

 Equipment Net Weight: 3.0kg / 6.6lbs

 Package Size: 61.5 * 34.5 * 13.0cm / 24.2 * 13.6 * 5.1in

 Package Weight: 4.4kg / 9.7lbs

 Notes:

 For detailed machine instructions, please refer to the manual for parameter settings.

 When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.

 Please do not touch the laser emitter with your hand, or it may burn your hand.

 Please avoid strong impact on the machine.

 Children under 14 are not allowed to use this product and children over 14 need adult supervision.

 The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

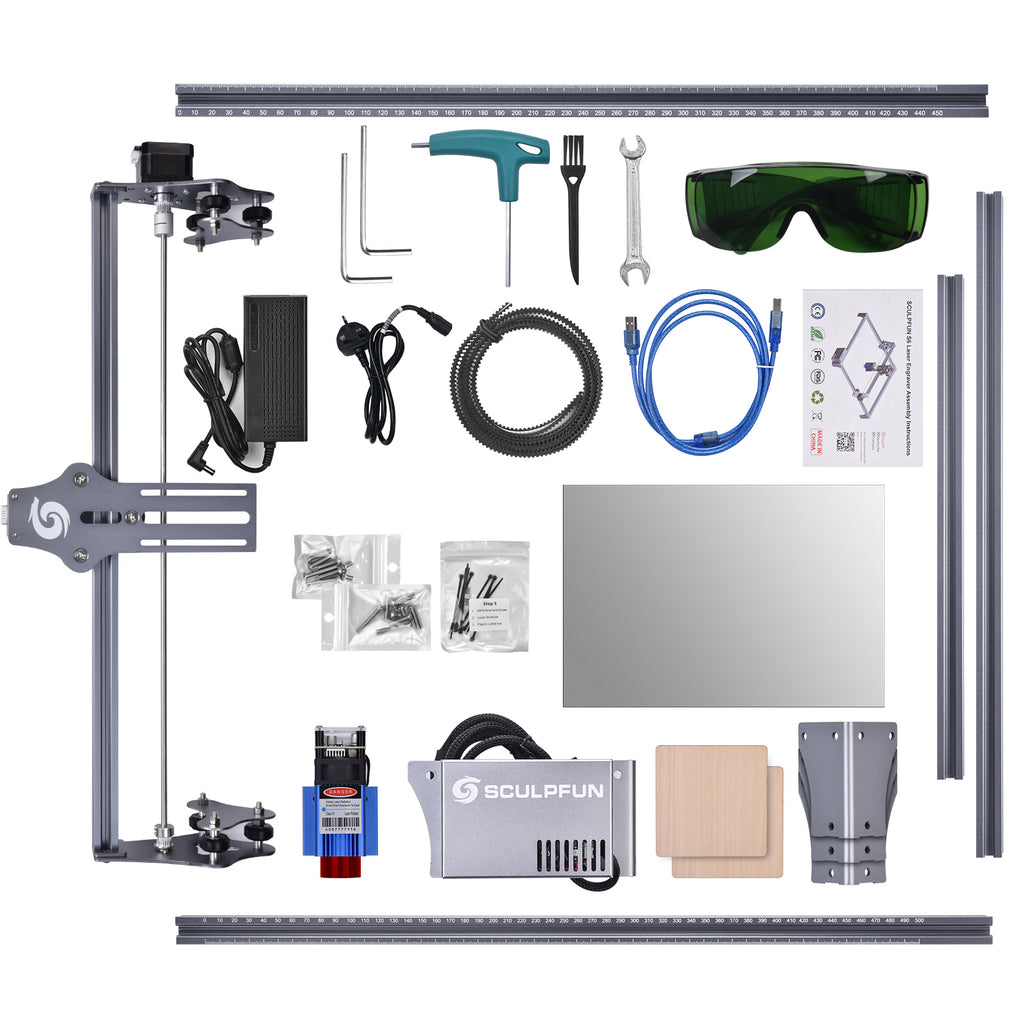

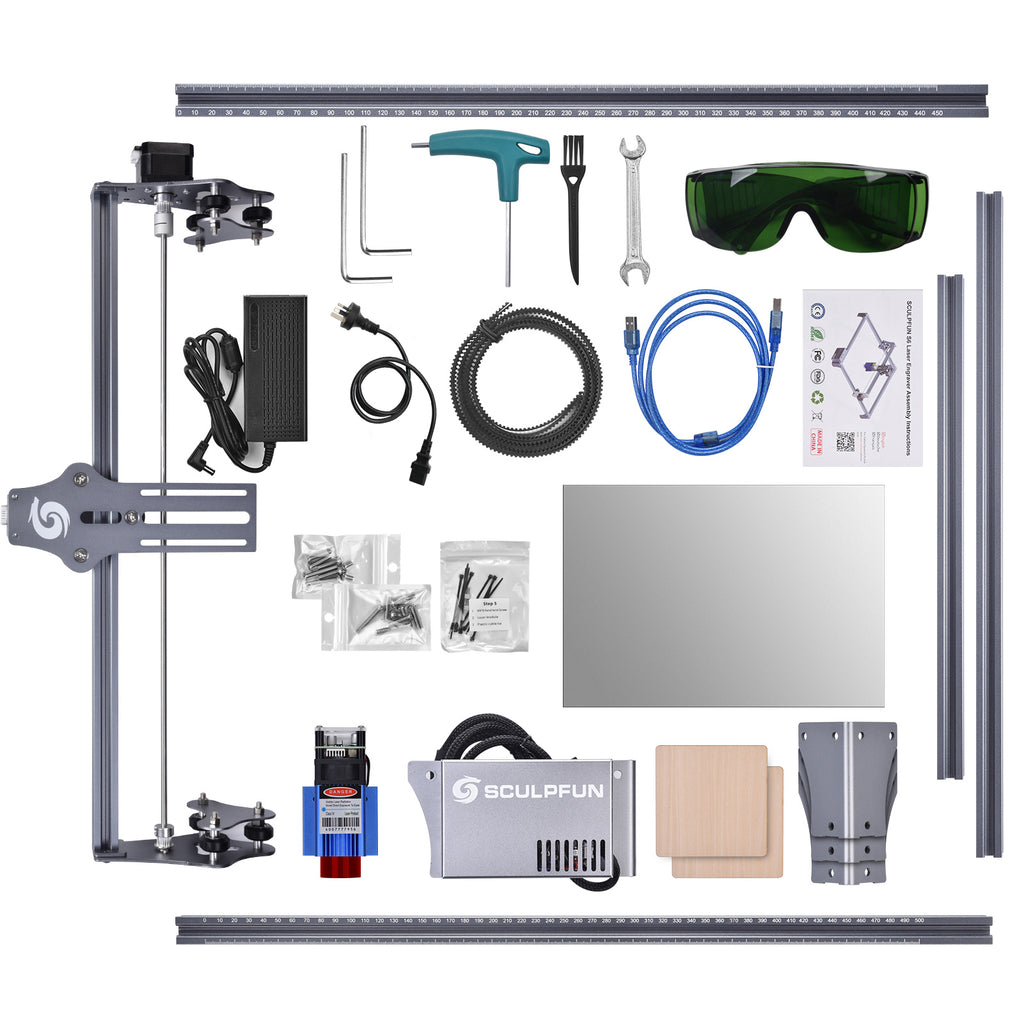

 Packing List:

 1 * X Axis Assembly

 2 * X Shaft

 2 * Y Shaft

 1 * Control Box Module Set

 3 * Support Feet

 1 * Laser Module Set

 1 * 12V 5A Power Adapter

 1 * Power Cord

 1 * USB Cable

 1 * Step 1~5 Screw Installation Package

 2 * Belt

 1 * T-shaped M5 Screwdriver

 1 * L-shaped M4 Screwdriver

 1 * L-shaped M3 Screwdriver

 1 * 8-10mm Nut Wrench

 10 * Tie

 1 * Brush

 1 * Laser Goggles

 2 * 10x10cm Wood Pieces 3mm Thickness

 1 * A4 Size Steel Desktop Protection Pad
