Product Introduction

    1.Power Supply:AC90--275V,50--60HZ

    2.Power Consumption:75W

    3.Fixing Lamp:LED 75W

    4.Beam Angle: 25-30 degrees

    5.DMX-Control-Channels:10/13 DMX Channels

    6.Pan: Horizontal 540 °

    7.Tilt: Vertical 270 °

    8.P/T Fine: 8-16bit

    9.Prism: 3-Face Rotatable prism

    10.Focusing: Electronic linear focusing from near to far

    11.Shuttle:Flash rate:0--16HZ

    12.Dissipate Heat:Air / convective heat transfer

    13.Dimmer:0-100% mechanic dimmer

    14.Long Lifespan LEDs(more than 60,000 hours)

    15.Color Wheel:7 colors + blank

    16.GOBO:7 patterns + blank, 2 of which are glass patterns

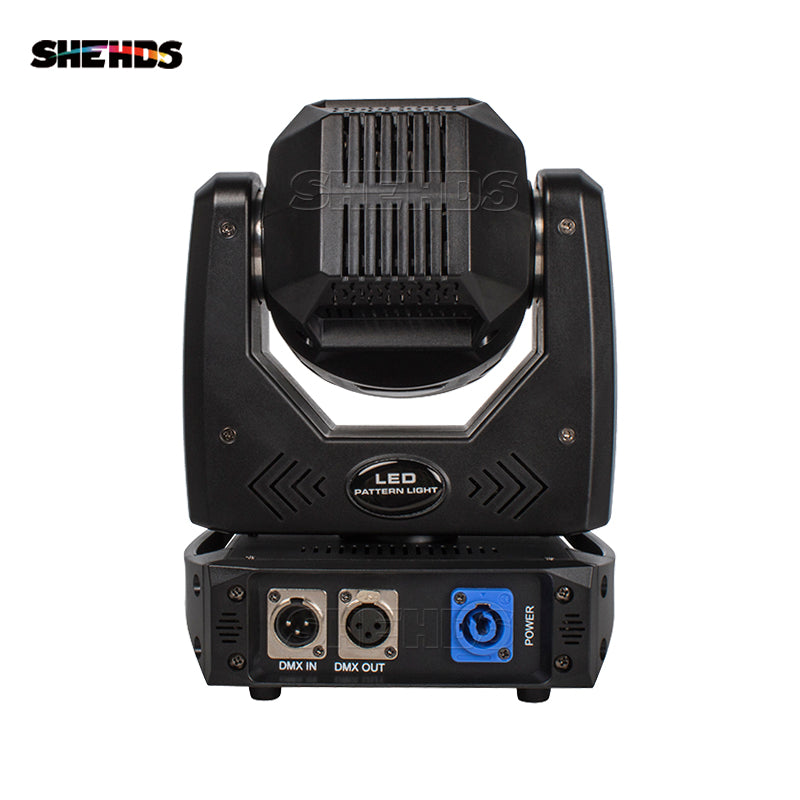

    17.Data Input and Output: 3-core XLR plug audio socket

    18.Size:27x16.5x21cm

    19.Weight:3.5kg

    20.Packing Size: 25.5x31.5x20cm

    21.Package Weight: 4.05kg

    22..Certificate: CE & ROHSY ULY SAA

    23.Plug: to send you to meet the requirements of the plug, European plug, American plug, AU plug, British plug, etc.

    24.Use Of Premises: Scenarios, discos, disco, hotels, shops, family birthday party, good for DJ, etc.

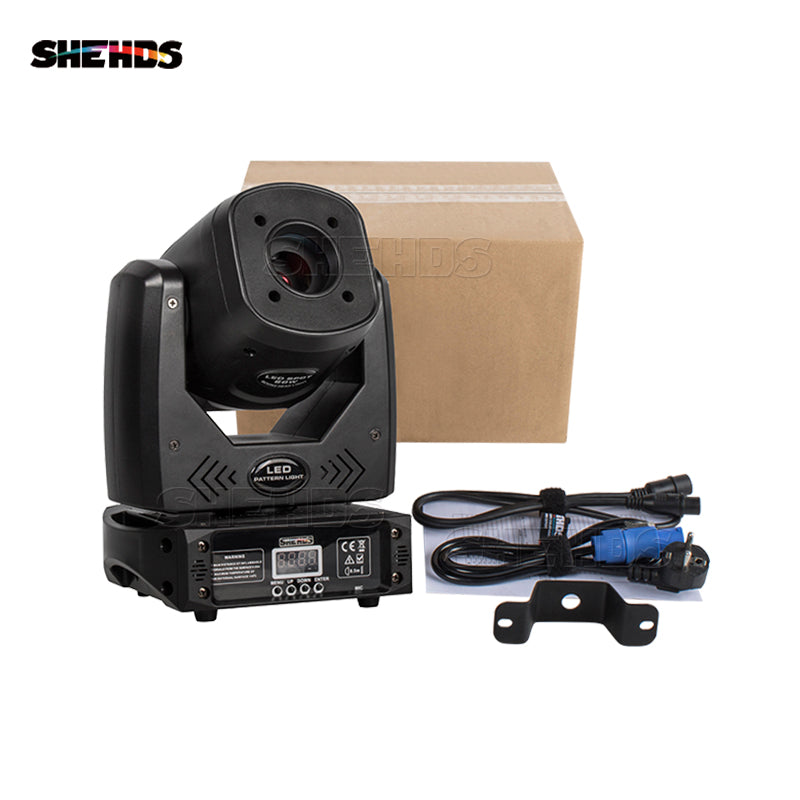

    Package Contents:

    1xLED Gobo 75W Lighting

    1xDMX Cables

    1X Power Cord Plug

    1x User Manual

    1x Steady

    Fine Tuning in Motor And Controlling Temperature in Fans

    Press 'MENU', enter menu→Press 'ENTER' at least 3 seconds, menu interface will show 'Pan'(fine tuning in X axis)'→By addition and subtraction keys to select Tilt(fine tuning in Y axis) , 'COLO(fine tuning in color plate)', 'GOBO(fine tuning in gobo plate), 'PRIS(fine tuning in prism)', 'STEM(temperature setting(when fans starts))'→Press 'ENTER', then adjust motor position when value range between -127---127→Press 'ENTER' to save the value what you adjusted in last step('STEM' is temperature setting(when fans starts), default 45°)

    PS: after the machine connect the threshold NTC-10K, the menu TEMP can show the temperature of LEDs aluminum sheet, the system will automatically reduces power (maximum to 75% of the original); if the temperature still rise to 80°, system will automatically cuts off the LED, and automatically turns on again when the temperature cools to 69° or below. fans can be set the start threshold in menu 'STEM'(default 45°, maybe have error 1---2° because of the different voltage of fans.), speed of fans will increase by 10% when temperature rises by 1° every time; the system forces fans to work when the temperature reaches
