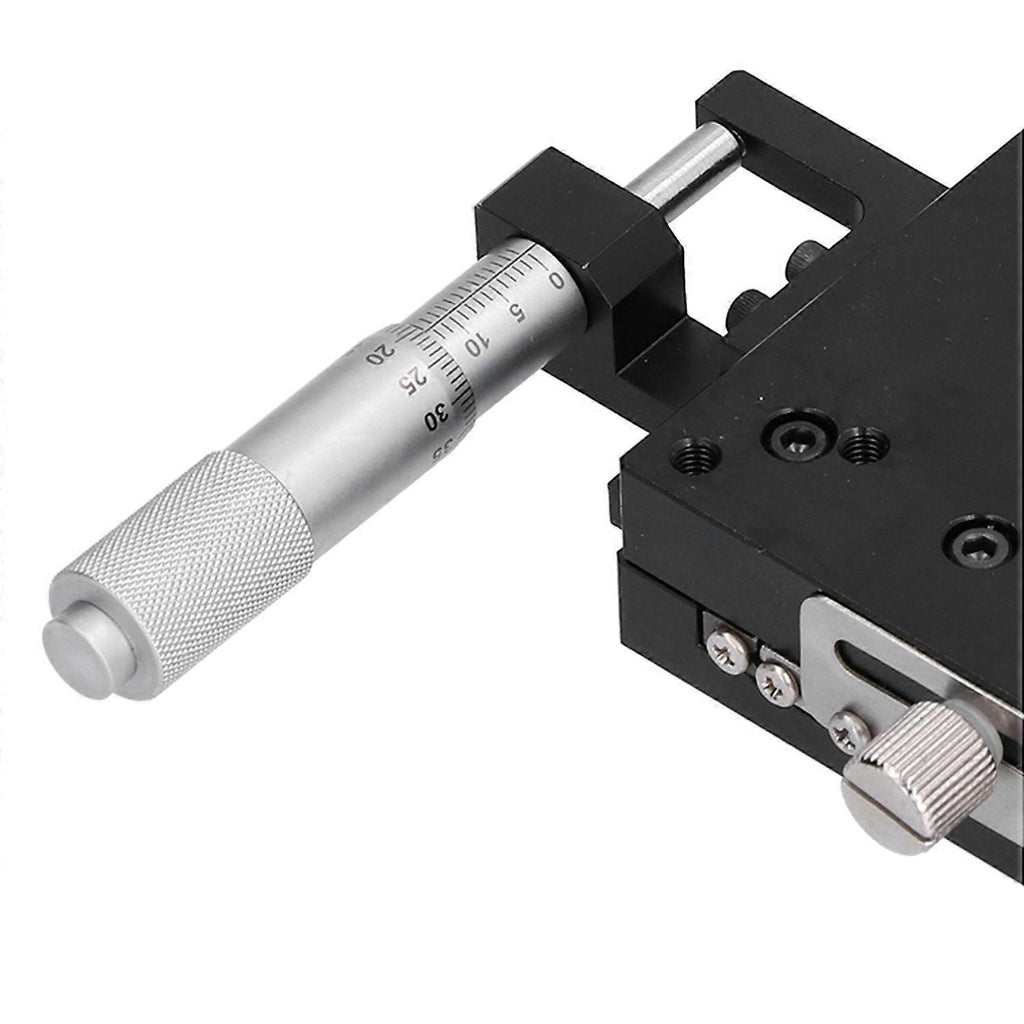

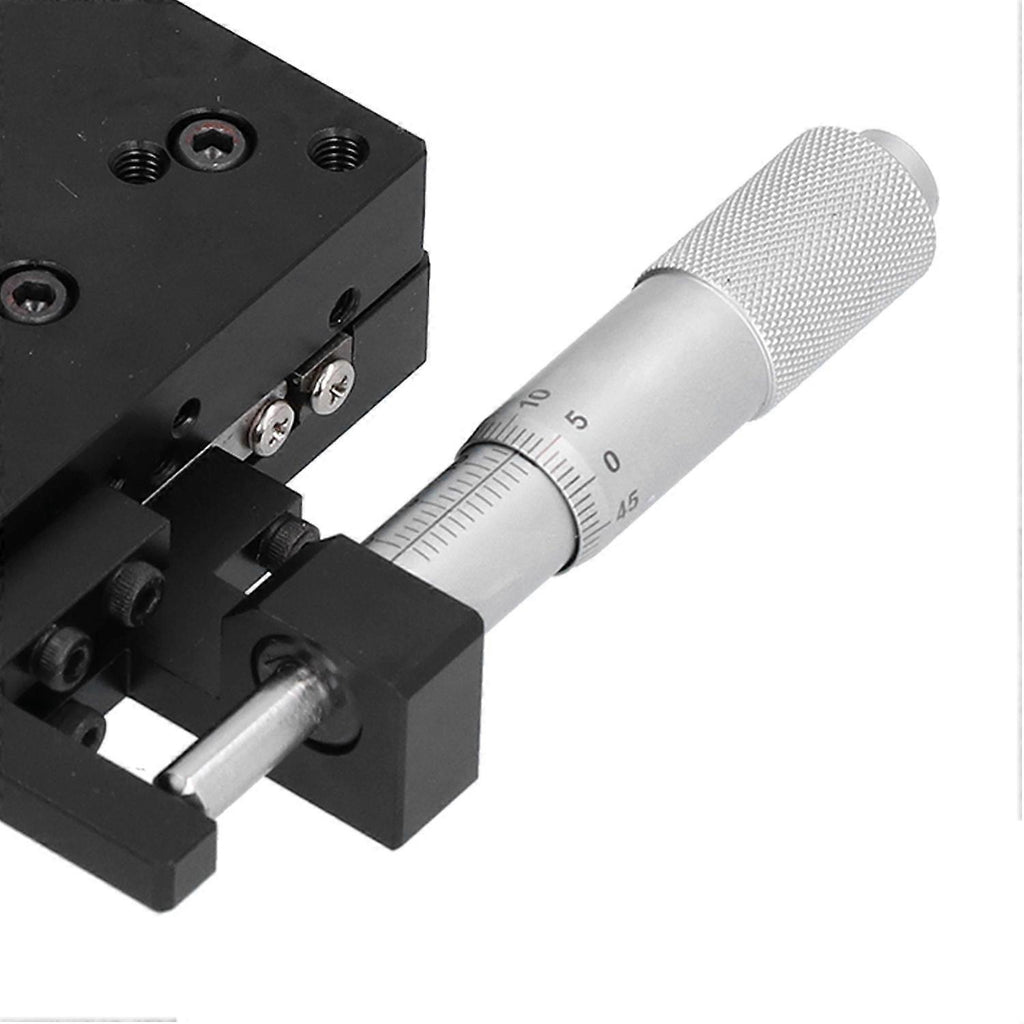

Feature: 1. The sliding stage has 2 moving directions of XY axes, and the guide rail design runs more smoothly. 2. The main body is made of aluminum alloy, black anodized, is lightweight, wear?resistant and corrosion?resistant. 3. Adopt micrometer rotating knob to push and cross roller guide, has high accuracy and high load resistance. 4. Manually adjust the moving distance and rotation angle through the knob, the positioning is more precise. 5. Widely used in detection devices, optical experimental measurement, fine-tuning displacement, precise positioning, etc. Specification: Item Type: Sliding Stage Model: M2WG-A80 Table Size: Approx. 80 x 80mm / 3.1 x 3.1in Product Thickness: Approx. 22mm / 0.9in Movement Direction: 2 directions of XY axes Sliding Table Material: Aluminum alloy (black anodized) Drive Mode: Micrometer rotating knob, cross roller guide Glide Trajectory: Cross roller Guide Type: Micrometer cross roller Thread Mounting Hole Number: 12pcs + 1pc Thread Mounting Hole Diameter: 12pcs M4, 1pc M16 Thread Mounting Hole Depth: Approx. 8mm / 0.3in Vertical Load Resistance: 39.2N (4Kgf) Moving Stroke: Approx. ??12.5mm / 0.5in Minimum Scale: 0.01mm Straightness: 0.03mm Application: Optical equipment, measuring devices, semiconductor manufacturing equipment, testing machines, microscopes, handling machines, processing machines, printing machines and others 1. The mechanical sliding table is a general component that completes the feed movement. The complete mechanical sliding table is composed of the sliding table part and its moving common parts, the complete mechanical sliding table part and other moving device brakes and other auxiliary parts. 2. According to the process requirements of the processed parts, a power box, drilling bit, boring bit, milling bit, boring bit, turning bit, etc. can be installed on it to form various combined machine tools to complete drilling, expansion, and reaming. , pitting, scraping end face, chamfering, turning end face, milling, drilling and tapping, etc. deep hole processing can be completed by configuring a graded feed mechanism on the sliding table. 3. Through manual adjustment, precise distance movement/angle rotation can be achieved, so as to meet the requirements of accurate machining or high-accuracy operations.. Package List: 1 x Sliding Stage Note: Avoid working in high temperature, high humidity or humid rain water environment.
