Small Aperture 2*4mm Gloss Meter WG60G 60 Degree for Cambered Arc Small Parts for paint  ink stoving varnish coating Marble

 Gloss Meter WG60G-For Cambered /Arc/ Small surface

 60°,0-2000GU, with PC software

 Introduction:

      WG60G gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.

      It is mainly used on Non-metallic materials like coatings, plastic, printing ink, paint, wood, marble, granite, polishing brick, porcelain, paper, stoving varnish and vitrified polished etc.  Metal materials (High gloss materials) like Iron, electroplating, anodizing, copper, stainless, mirror etc.

  Measuring Application:

 60° test angle for normal gloss, from 0-2000 Gu.

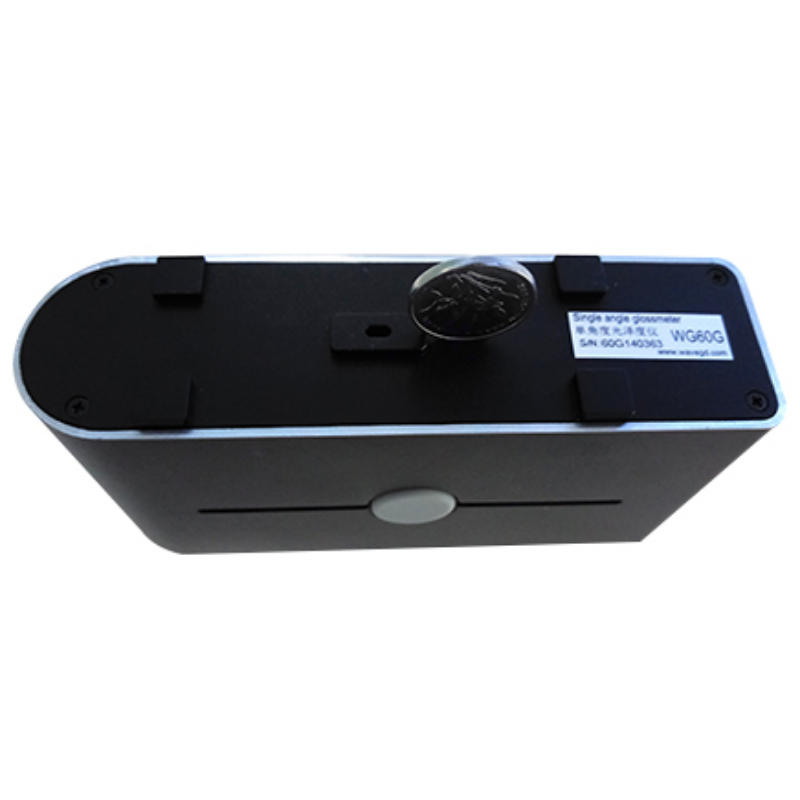

 Small aperture 4*2mm is suitable flat or Cambered /Arc/ Small surface.

 like egg, ball, Pipe, hardware parts etc.

 Advantages:

 (1)     High accurate and consistent capacity;

 (2)     Automatic measure, Statistical Mode, Tolerance determination, manually entering standard samples gloss data;

 (3)     Humanized design, good man-machine communication interface;

 (4)     Store 500 groups records;

 (5)     PC software support, can output many kinds of format of report, data transmission etc.

 GlossW Software:

 Specification:

                Model

       WG60G

               Measurement Range

       0-2000Gu

               Application

       paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material.

               Projection Angle

       60°

               Measuring Spot

       (ellipse: long axis*minor axis)4mm*2mm(customized 3mm*1mm 2mm*1mm)

               Measuring Mode

       Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode

               Standard Sample Setting

       Manually setting/bring out stored data for setting/manually setting tolerance

               Data Storage

       500 groups

               Language

       Chinese/English

               Output

       Software to PC

               Division Value

       0.1Gu

               Repeatability

       0.2Gu

               Reproducibility

       0.4Gu

               Indication Error

       1.0Gu

               International Standard 60°

       ISO-2813,ASTM-C584,ASTM-D523,DIN-67530,ASTM-D2457,JND-A60,JND-P60

               National Standard 60°

       GB 9754,GB 9966,GB 8807

               Working Temperature

       10℃ - 40℃

               Storage Temperature

       -10℃ - 70℃

               Humidity Range

       Relative humidity less than 85%, without condensation

               Volume

       159x49x72mm

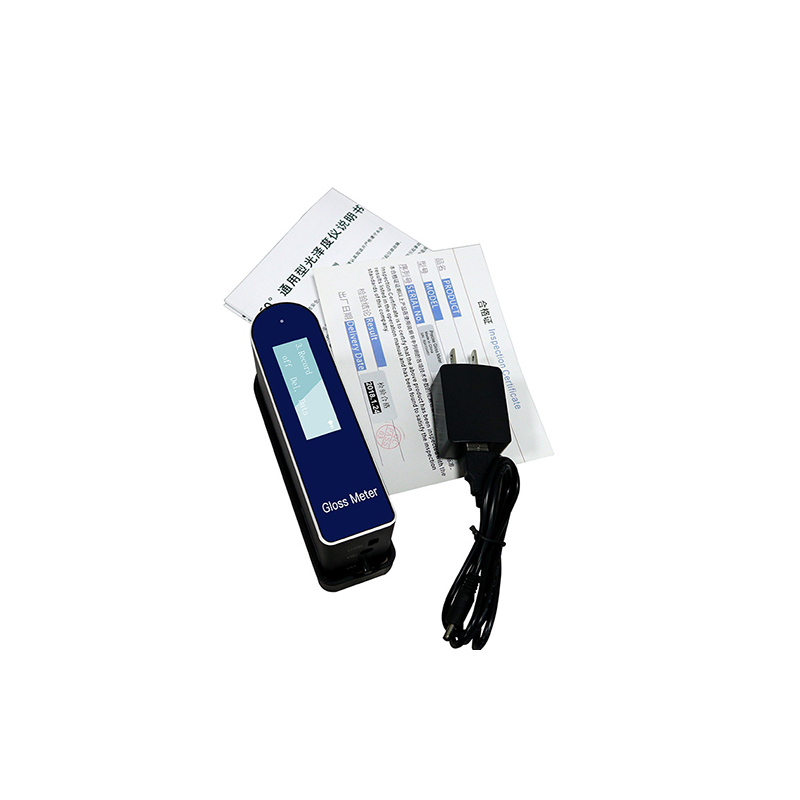

               Standard Accessories

       Power adapter/user manual/warranty certification/standard board/software GlossW
