Smart Electronic Password Coded Inductive Lock Sauna Gym Locker Cabinet Induction Cipher Lock

      Features:

            Made of high quality zinc alloy material, safe and eco-friendly, durable and sturdy to use.        Compact design, exquisite and precision workmanship. Suitable for both metal and wooden cabinet.        Multiple ways to unlock: password unlock, card unlock, or password + card unlock.        Accurate reading, sensitive response. Touch keypad password lock, no keys needed, cool to use.        Easy installation. All necessary accessories are provided to you that convenient to install.

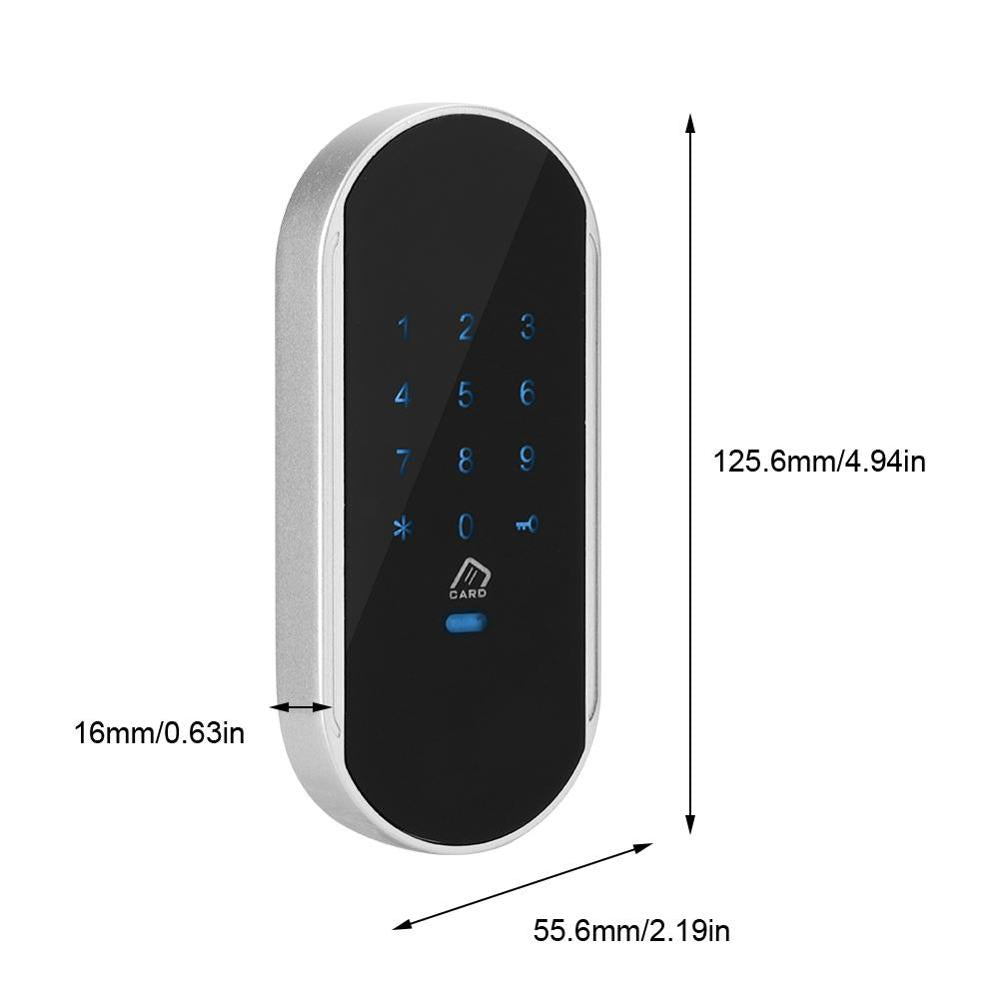

 Specification:

 Model: 952

 Material:Zinc Alloy(Frame) + Acrylic(Touch Screen)

 Battery: 4pcs * AA Batteries

                            Operating Commands

           A. Managing User Management

           1. Add management card:

  When the lock is out of the factory, the first card swiped is added as the management card.

  2. Modify the management password:

  Original management password + key button 1 + new management password + key button,  new management password + key button

                         B. Adding Users

           1. Add user password:

  Management password + key button 8 + number (001-200) key button,  user password, key button, user password, key button... can be added continuously

  2. Add user cards:

  Swipe management card twice + swipe card...; can be added continuously

                         C. Delete Users

           1. Delete user passwords:

  Management password + key button 4 + number (001-200), key button number (001-200), key button... can be deleted continuously

  2. Delete user cards:

  Swipe management card twice + 4 + number (001-200), key button number (001-200), key button...; can be deleted continuously

  3. Delete all user passwords:

  Management password + key button 0 + key button

  4. Delete all user cards:

  Swipe management card twice + 0 + key button

                         D. System settings

           1. Switching between household and public modes:

  Management password + key button, 7, key button

  2. Switching from single-open mode to double-open (combination) mode:

  Management password + key button, 6, key button

  3. Switching from double open (combination) mode to single open mode:

  Management password + key button, 5, key button

                         E. Open the door

           1. Open the door in single mode:

  Card swipe: door lock open, closing after 5 seconds

  Password: door lock open, close after 5 seconds

  The password can be changed during the 5 seconds opening. After the lock tongue enters, follow the following operation:

  1 + new password + key, new password + key;

  2. Open the door in double card mode:

  Management password key (or management card); door lock, closing after 5 seconds

  User password key (or card) + card (or user password key); Door Lock, Close after 5 seconds

           Note:

  1.Opening the door in double-open mode does not support the function of modifying user password.

  2. Keyboard locked for 2 minutes after 7 consecutive typing errors

                         Configuration in public mode

           1 group of management passwords, 1 group of temporary passwords, 1 management card, 1 temporary card

           Password digits: 4-15 digits

           1. Exit Status:

  Press the button five times continuously, and the door lock will be restored to the factory status. management password: 12345678, default home mode, single-mode unlock.

  2.Switching to Public Door Lock Mode:

  Management password + key button, 7, key button: switch to public mode, when the door lock is in the open state.

                         Operating Commands

           A. Managing User Management (Normally Open and Lock-in States are Operational)

           1. Add management card:

  When the door lock is out of the factory, the first card brushed is added as the management card.

  2. Modify the management password:

  The original management password + key + 1 + new management password + key + new management password + key

                         B. Adding temporary users (usually open to operate)

           B. Adding temporary users (usually open to operate)

  1. Add temporary password (single open mode):

  New Temporary Password + key button, New Temporary Password + key button; Door Lock Closed

  2. Add temporary cards (single-open mode):

  Card swiped; door lock closing

  3. Add temporary passwords and cards (in double-open mode):

  New temporary password + key button, new temporary password + key, and then swipe the card; door lock closed

  Or swipe card, new temporary password + key button, new temporary password + key; door lock closed

                         C. System settings

           1. Switching between household and public modes:

  Management password + key button, 7, key button

  2. Switching from single-open mode to double-open (combination) mode:

  Management password + key button, 6, key button

  3. Switching from double open (combined) mode to single open mode:

  Management password + key button, 5, key button

                         D. Open the door

           1. Open the door in single mode:

  User password (or management password) +key button; door lock Normal Open, temporary password and card invalid

  Card swipe; door lock Normal Open, temporary password and card invalidation

  2. Open the door in double card mode:

  Management password key (or management card); door lock Normal Open, temporary password and card invalidation

  User password key (or card) +card (or user password key); lock Normal Open, temporary password and card invalidation

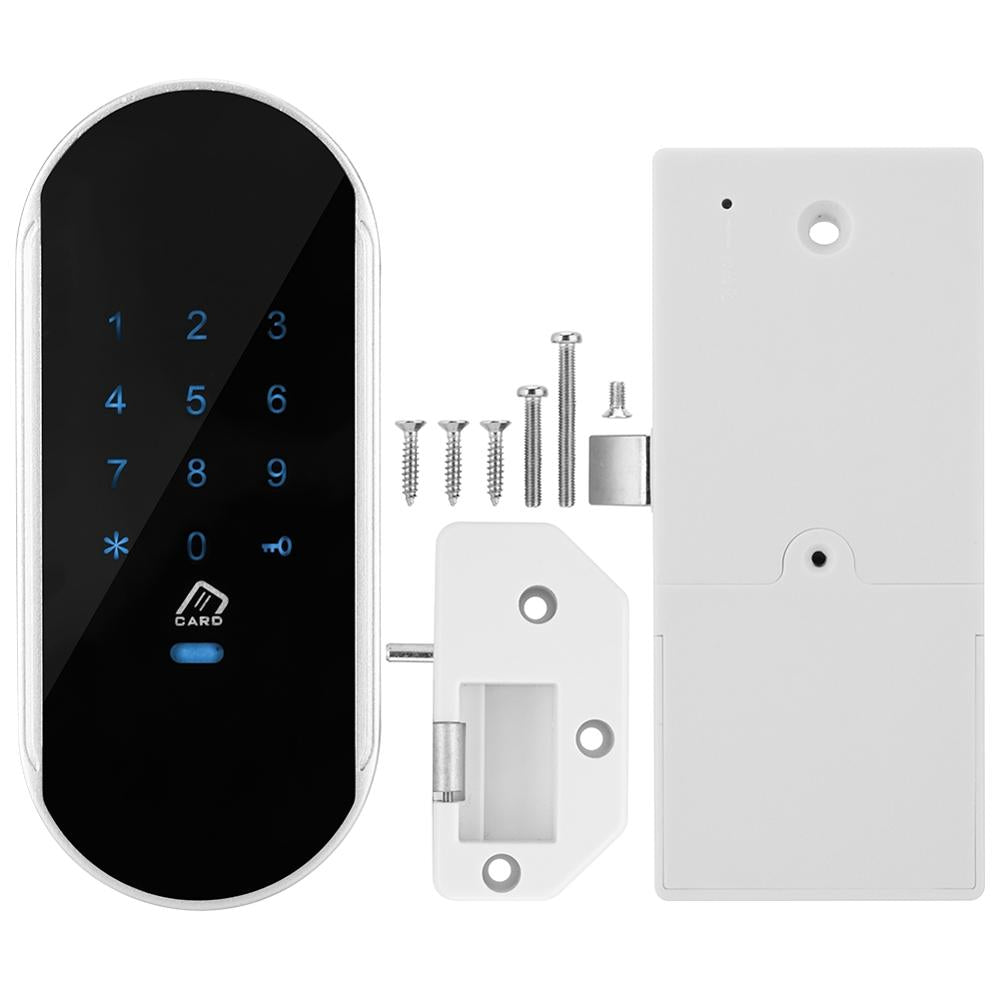

 Package list:

 1 * Lock Body

 1 * Lock Panel

 1 * Installation Kit

 1 * Lock Clip
