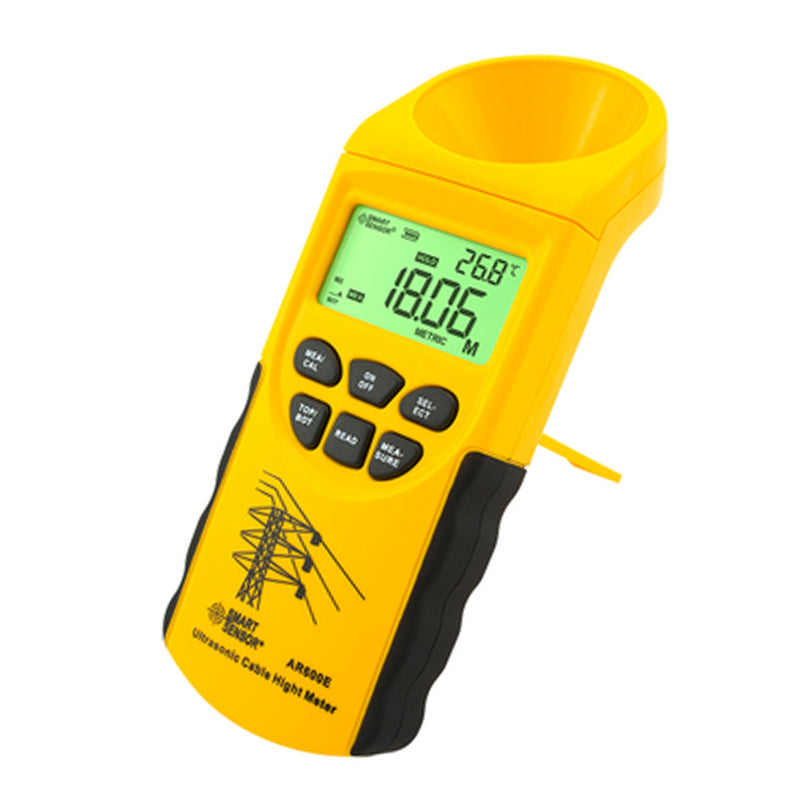

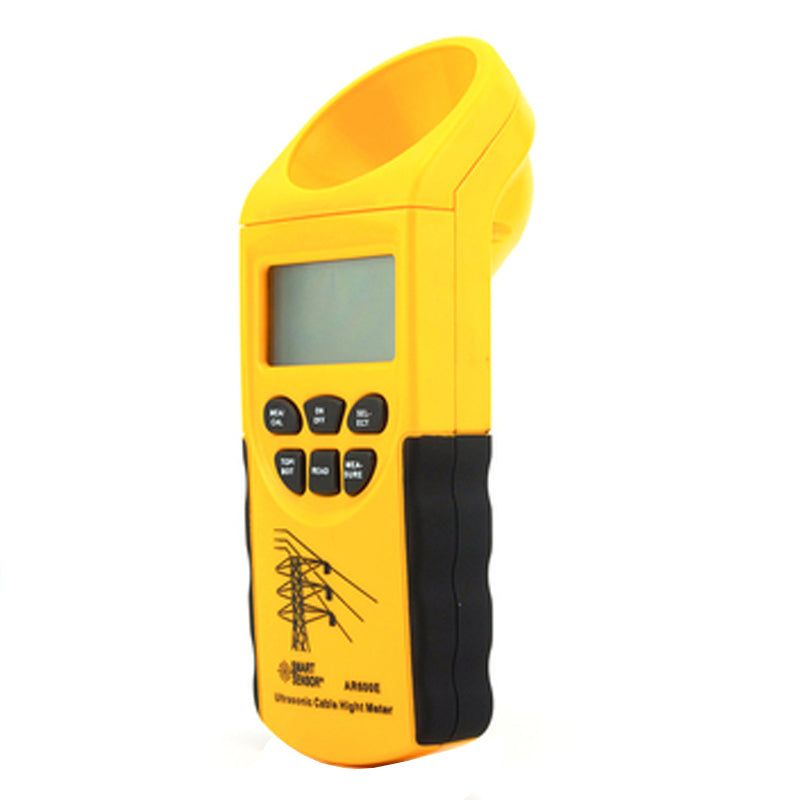

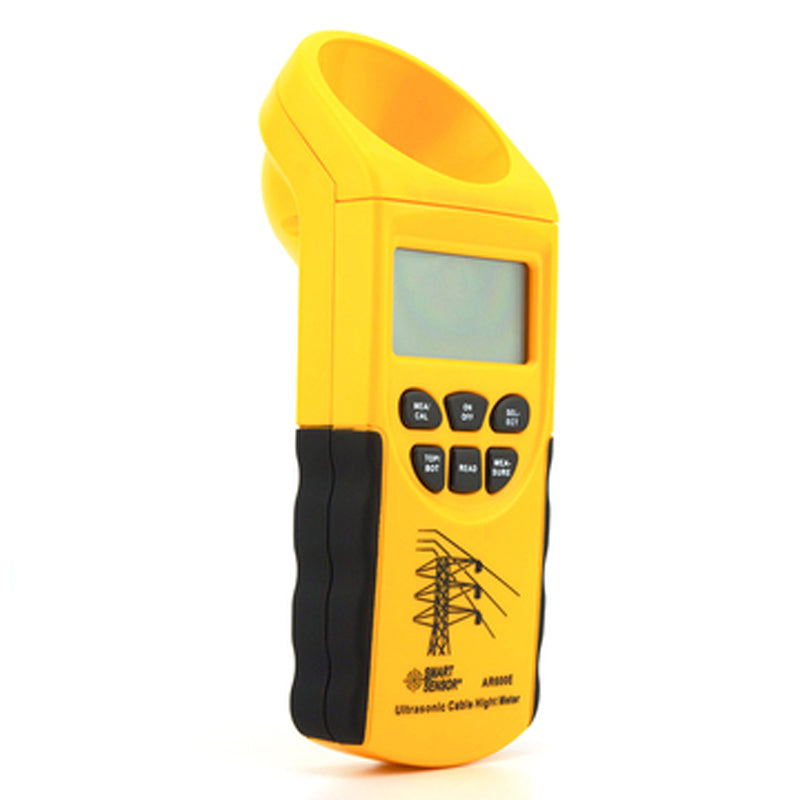

Smart Sensor Ultrasonic Cable Height Meter AR600E LCD Display Measuring

 Range( Height 3-23m ,Plane 3-15m) 6 Cables Measurement

 Product Description：

 SMART SENSOR This Ultrasonic Cable Height Meter is a user friendly and easy-to-operate instrument. A circuit maintenance can make measurement of cable height. The AR600E with the Horizontal Adapter can be used for depth measurement, (examples: An elevator shaft or well) provided there is sufficient width to permit a proper ultrasonic reflection.

Typical Measurement Applications: Electrical, Forestry, Industrial, Mining, Overhead cables, Tree branches, Elevator shafts, Depth of Wells.

 Product Features：

 1. For measuring the height up to 6 cables together

2. Convenient to take measurement, easy to aim at the measuring position and to read measuring results.

3. For measuring the distance between wire and wire

4. Be applicable to different use of cables

5. Uses large measuring sensor, higher accuracy than existing cable height meter in market

6. Compact and easy to take along.

7. For measuring dimension of house and distance between objects

8. The temperature compensation function enables the unit compensates error automaticlly under the temperature of -10C+40c, and ensures the measuring accuracy on different temperature conditions

 Product Specification：

          Technical parameter

     Techical Specifications

          Range (25mm cable mini)

     3~23m

           Range (12mm cable min)

     3~15m

           Range ( 5.5mm cable min)

     3~12m

           Range  ( 2.5mm cable min)

     3~10m

           Horizontal measuring range

     3~18m

           Operating temperature range

     -10~40C

           Resolution(range<10m)

     5mm

           Resolution(range > 10m)

     10mm

           Measuring accuracy

     0.5%+-2d

           Minimum gap between wires

     150mm

           BOT mode: measuring the height of the most lower 6 cables

     V

           Top mode: measuring the height of  the most higher 6 cables

     V

           Auto power off delay

     120s

           Low battery alarm

     7.2v+-0.2V

           Imperial & metric unit transition

     V

           Displays real time temperature

     V

           Operating voltage

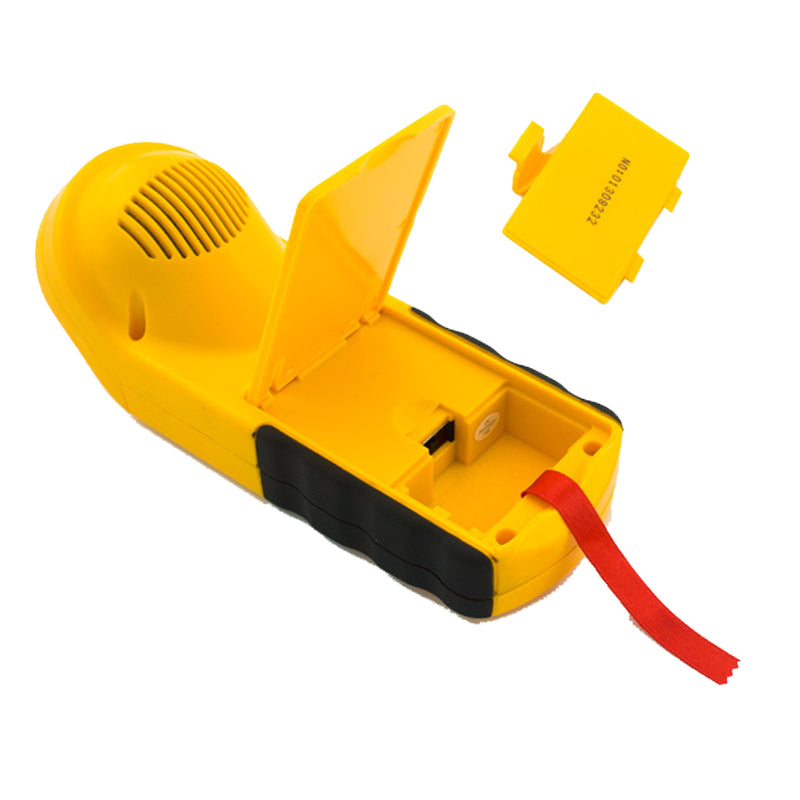

     9V 6F22

           Product Dimision

     75 x72 x 200mm

           Product Net Weight

     205g

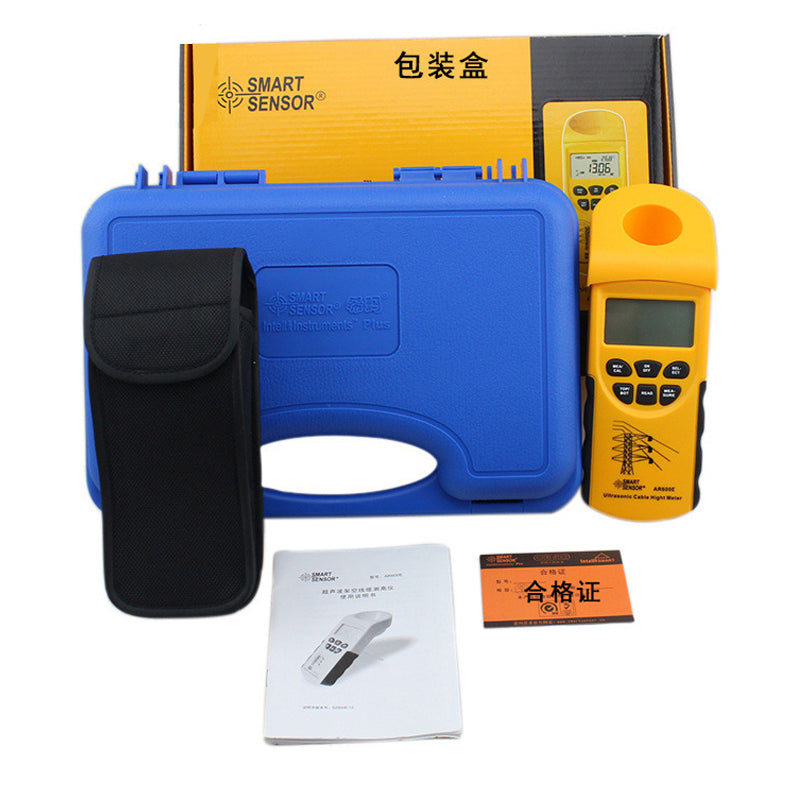

 The batteries not included package
