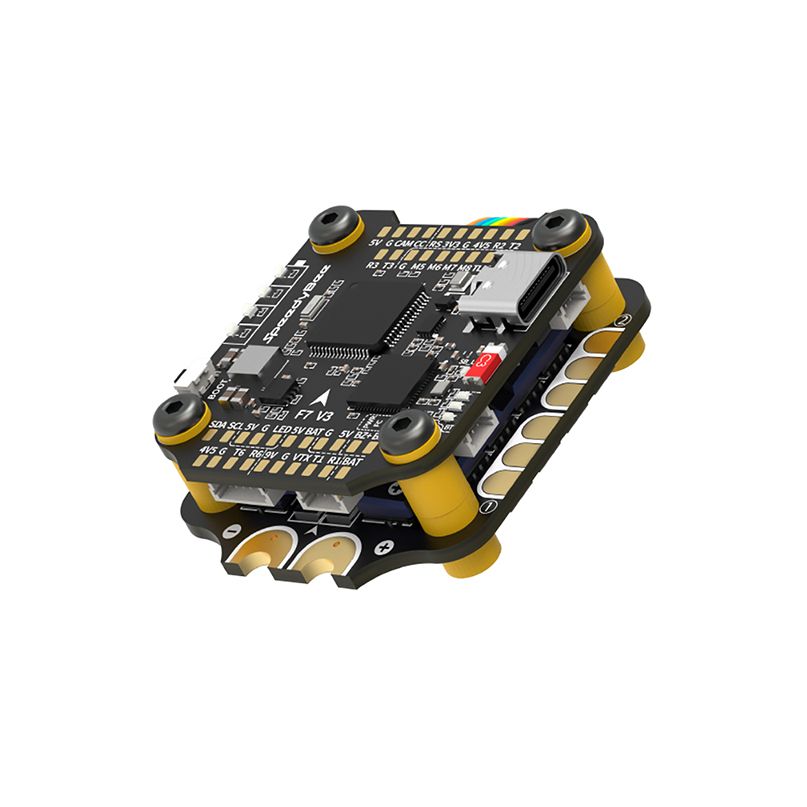

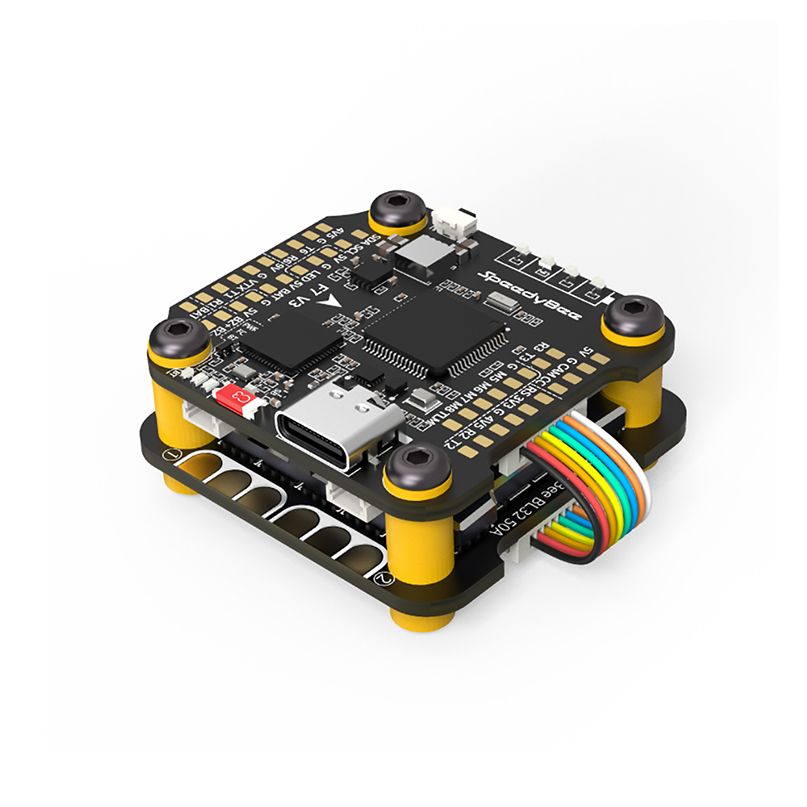

SpeedyBee F7 V3

                 PREMIUM SPEC.

AFFORDABLE PRICE

                              Flash your firmware 33% faster

wirelessly + full FC configuration

                 Built with a better Bluetooth/WiFi 2-in-1 chip for 33% faster wireless data

transfer. Update FC firmware with your smartphone in just 1 minute!

Connect this FC via Bluetooth and fully configure any setting for

Betaflight/Emuflight/INAV as you want.

                              Get your Blackbox data in

1 minute anytime, anywhere

                 With an optimized algorithm and upgraded Bluetooth/WiFi chip, you can

dive into your Blackbox data every time you land your quad. Just take

your smartphone out, connect, and download your flight in 20 seconds.

The path to progress has never been easier.

                              Hate soldering?

Just plug them all in!

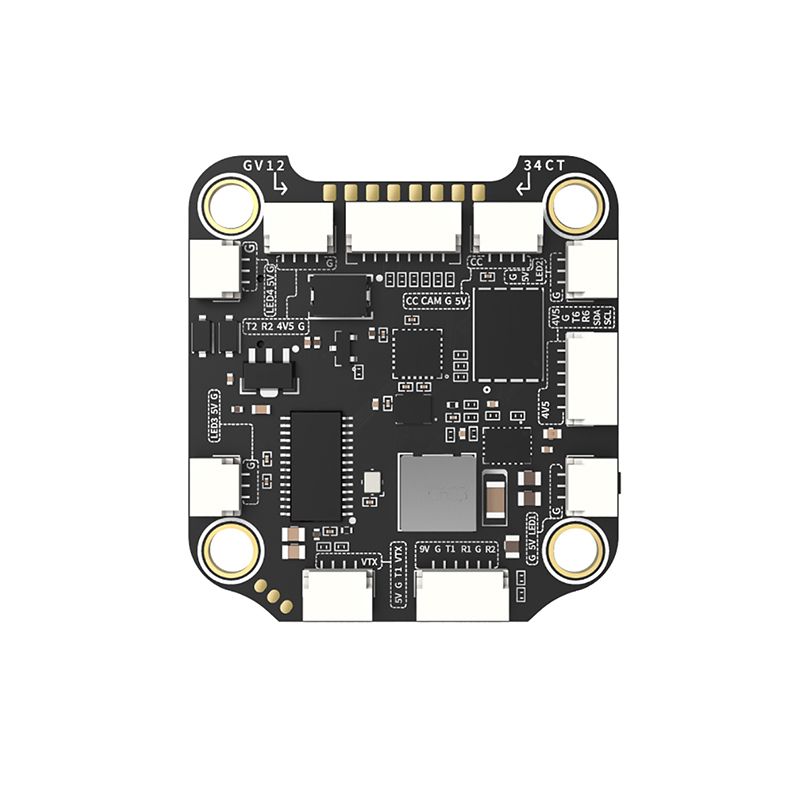

                 It’s 2022, so having a plug vs soldering option is a must! Plug in your

digital video transmitter, receiver, camera, VTX, and GPS to complete

your build in no time. Also comes with 4x LED plugs so you can light

up your quad with no headache. Prefer soldering? Just flip the board

and start working on it.

                              Change your motor

direction wirelessly

                 Finishing your latest build? Just replaced your

motor after a crash? Take your smartphone out,

and configure your motor direction wirelessly

with the latest SpeedyBee app. Works for all

BLHeli32 / BLHeli_S / BlueJay ESCs.

                              8 motors output, perfect for

your X8 cinelifters!

                 There’s no other X8 flight controller better than this. Forget about

crawling through your massive build just to plug in that USB cable.

Just take out your phone to configure that X8 monster wirelessly

before that challenging commercial shot. Professional FPV pilots

got no time to waste.

                              Light up your quad in no time

with 4x LED plugs

                 Need more visibility at night? Just plug in your LEDs and blaze the

darkest trail you can find, no soldering required. With just one tap

on the Boot button, you can cycle through all different LED presets*

and pick the one you love!

                 *Or long press the boot button to switch to Betaflight LED mode

                              Forgot your LiPo checker?

Just look at the FC!

                 Built with a 4-level LED battery indicator, now you can fly anywhere

worry-free - even without your lipo checker!

                              32MB (typical FC memory) X 16

=500MB onboard Blackbox

flash memory

                 Store up to 100 complete flights with our huge 500MB onboard

Blackbox flash memory. Or keep your encrypted Area 51 files in

it for your top-secret Man in Black mission. Whatever suits your

tactical purpose.

                     *The Flash memory chip manufacture calculates the capacity by a

rate of 1000(instead of 1024), so the display capacity on your

computer will be slightly less than 500MB.

                              And packed with other useful

features

                 ● 9V 4A + 5V 2A individual BECs

● Power your GPS with a USB cable - no battery needed

● 22mm cutouts for FPV camera in your tight build

● Built-in barometer for accurate height calculation

                              SpeedyBee BL32 50A 4-in-1 ESC

                 50A ESC MADE FOR CHAMPIONS

                              When we say 50A, we mean it.

                 Real 50A output, ready for your baddest, meanest 6S motors.

Blast through any obstacle during freestyle with no worry, or

keep that highest throttle position during races.

                              1500uF Low ESR capacitor + TVS

protective diode = Extra protection

                 The ESC is built with TVS protective diode to absorb the voltage spike

when you plug in the battery, or during crashes that block your props.

We also provide a humongous 1500uF low ESR capacitor, ensuring

clean data from the gyro to the FC.

Tested by 2 top racing pilots with both over 1500 packs, or you can

put it to the test yourself.

                              Wanna crank it up to 128KHz PWM?

Why not?

                 With F4 MCU, you can set the PWM frequency up to 128KHz. Find

the best PWM frequency* to get for your build without any limitation.

                     * The ideal PWM frequency for each build varies depending on the

frame, motors, props, and other factors. Higher PWM frequency

doesn't necessarily means smoother flight. If the default 48KHz is

not working for your build, you can increase the value gradually

until you find the sweet spot. Check your motor temperature to

avoid overheating.

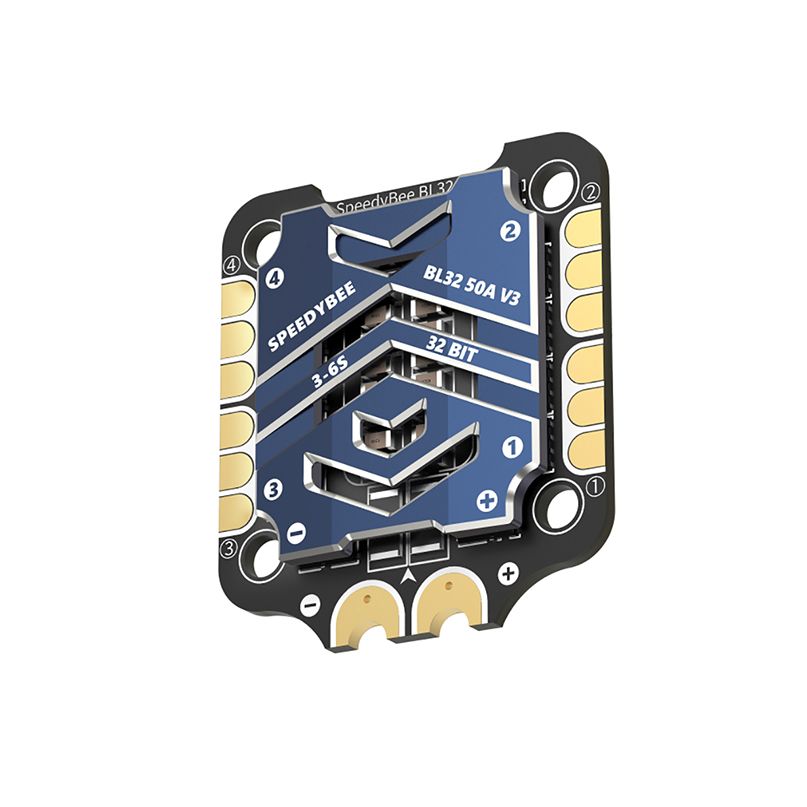

                              CNC heat sink shield =

no overheating in any condition

                 Built with high-quality CNC heat sink to significantly reduce the

heat from your MOSFETs ensuring stable current flow at a high

throttle position. Great benefit in a stylish blue finish.

                              Dimensions

                              Wiring Diagram

Method 1 - Direct Soldering

                              Specifications

                                  Product Name

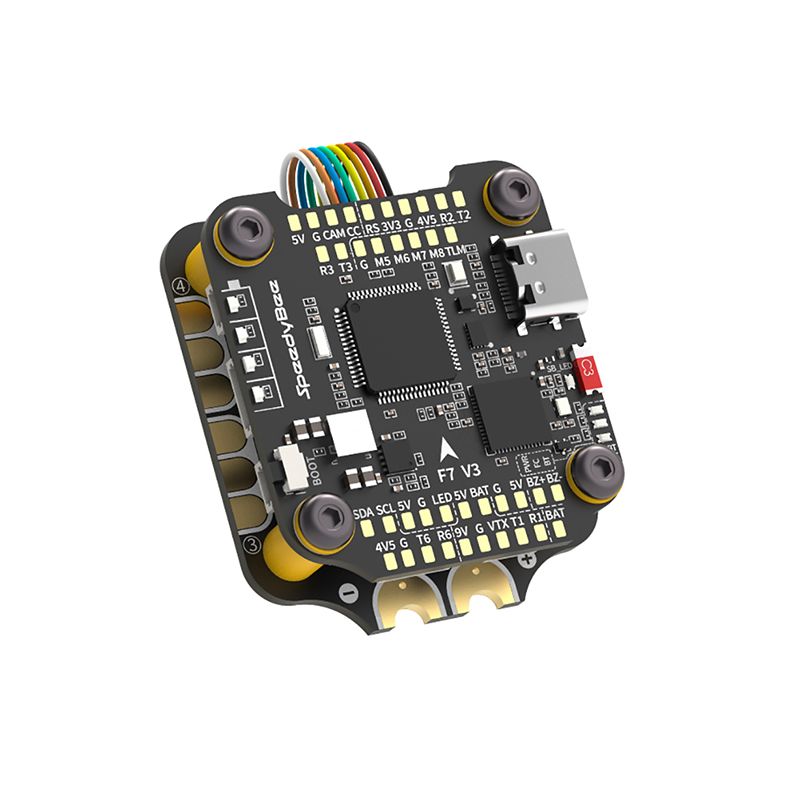

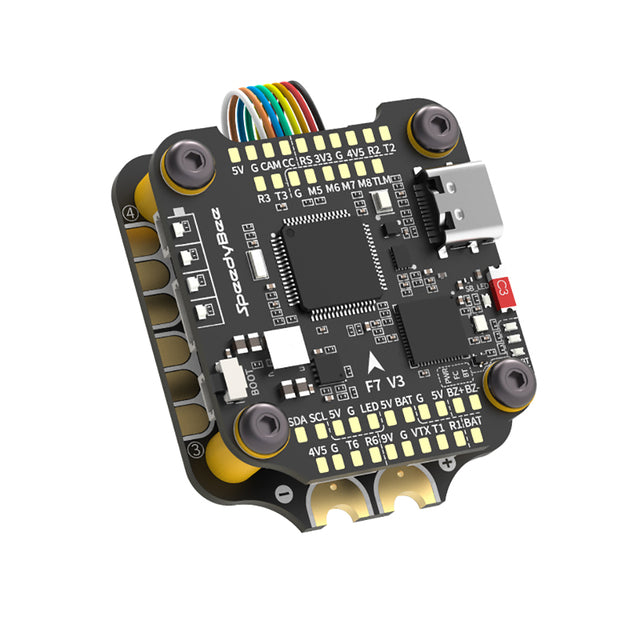

          SpeedyBee F7 V3 Flight Controller

                            MCU

          STM32F722

                            IMU(Gyro)

          BMI270

                            USB Port Type

          Type-C

                            Barometer

          BMP280

                            OSD Chip

          AT7456E chip

                            BLE Bluetooth

          Supported. Used for Flight Controller configuration

                            Flash FC Firmware Wirelessly

          Supported. Please enter MENU > FC Firmware Flasher

                            Download/Analyze Blackbox

          Supported.Please enter MENU > Blackbox Analyzer

                            DJI Air Unit Connection Way

          Two ways supported: 6-pin connector or direct soldering.

                            Flash(for BlackBox)

          500MB

                            BetaFlight Camera Control Pad

          Yes(CC pad on the front side)

                            Power Input

          3S - 6S Lipo

                            5V Output

          10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A.

                            9V Output

          2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 4A.

                            3.3V Output

          Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

                            4.5V Output

          Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

                            ESC Signal Pads

          M1 - M4 on bottom side and M5-M8 on front side.

                            UART

          5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6)

                            ESC Telemetry UART

          R4(UART4)

                            I2C

          Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.

                            LED Pad

          Used for WS2812 LED controlled by Betaflight firmware.

                            Buzzer

          BZ+ and BZ- pad used for 5V Buzzer

                            BOOT Button

          Supported.

[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.

[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.

                            RSSI Input

          Supported. Named as RS on the front side.

                            SmartPort

          Use any TX pad of UART for the SmartPort feature.

                            Supported Flight Controller Firmware

          BetaFlight(Default), EMUFlight, INAV

                            Firmware Target Name

          SPEEDYBEEF7V3

                            Mounting

          30.5 x 30.5mm( 4mm hole diameter)

                            Dimension

          41(L) x 38(W) x 8.1(H)mm

                            Weight

          10.7g

                                  Product Name

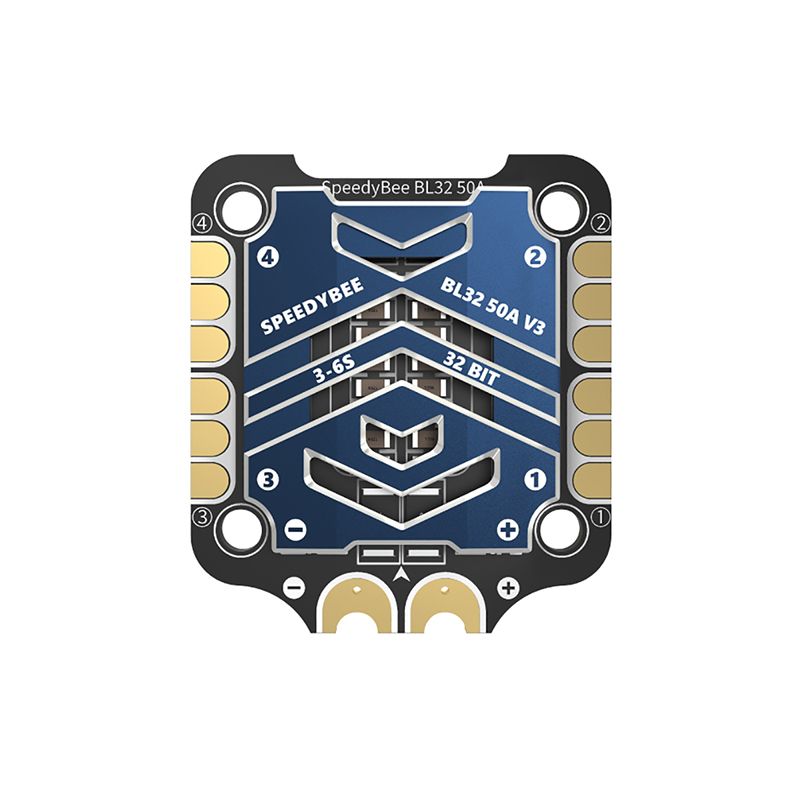

          SpeedyBee BL32 50A 4-in-1 ESC

                            Firmware

          SpeedyBee BL32 50A

                            Configurator Download Link

          http://github.com/bitdump/BLHeli/releases

                            Continuous Current

          50A * 4

                            Burst Current

          55A(5S)

                            TVS Protective diode

          Yes

                            Heat Sink

          Yes

                            External Capacitor

          1500uF Low ESR Capacitor(In the package)

                            ESC Protocol

          DSHOT300/600

                            PWM Frequency Range

          16KHz-128KHz

                            Power Input

          3-6S LiPo

                            Power Output

          VBAT

                            Current Sensor

          Support (Scale=490 Offset=0)

                            Mounting

          30.5 x 30.5mm( 4mm hole diameter)

                            Dimension

          45.6(L) * 40(W) * 8.8mm(H)

                            Weight

          19.2g with heat sink
