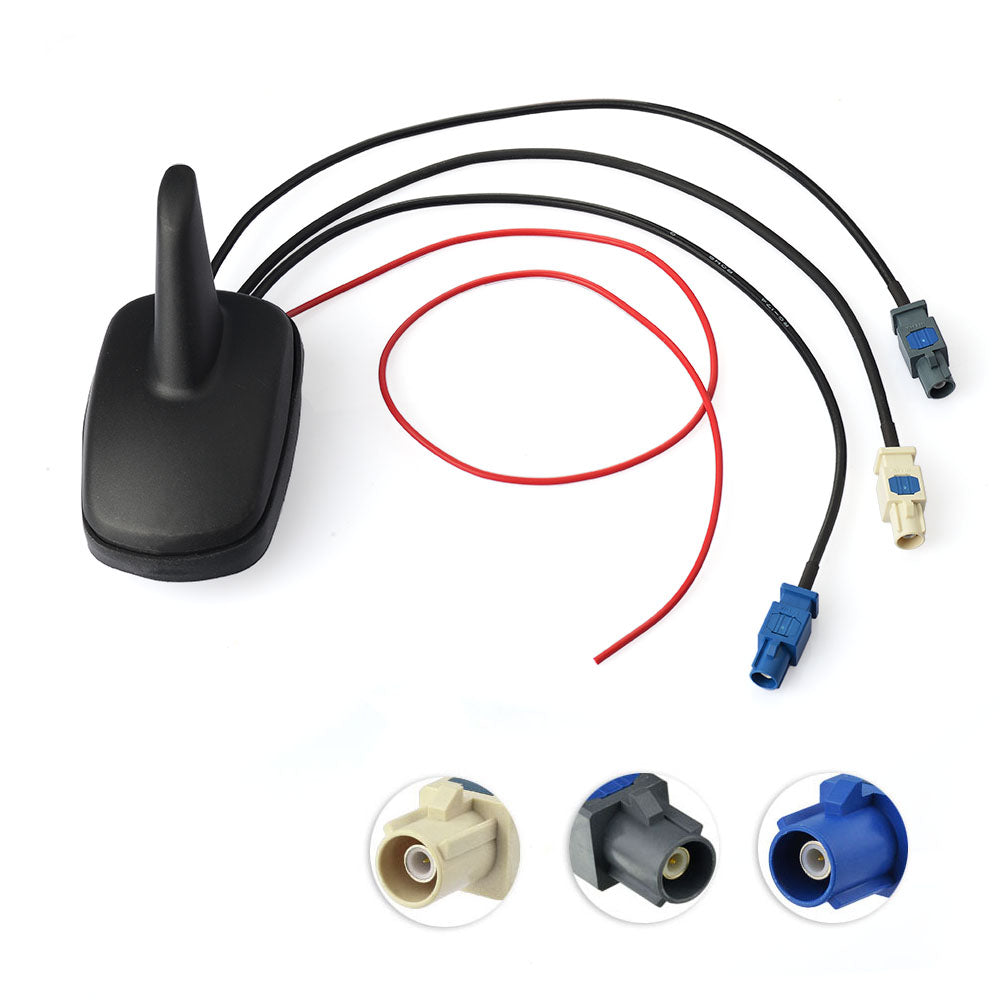

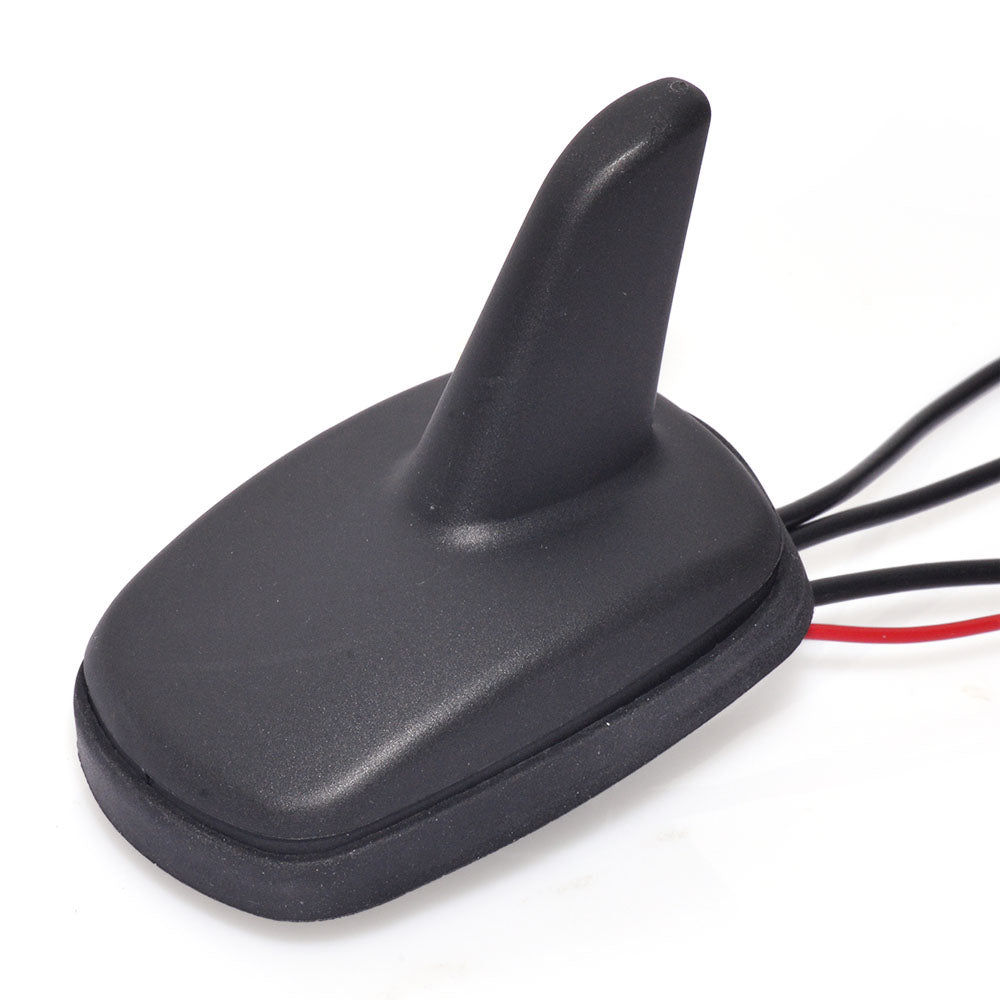

Superbat DAB/DAB+/GPS/FM Car Digital Radio Amplified Aerial Roof Mount Antenna for Alpine Ezi-DAB
Specification
DAB
Frequency:170MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)
Impedance :50 Ω
Amplification：20dB
VSWR:≤2.0:1

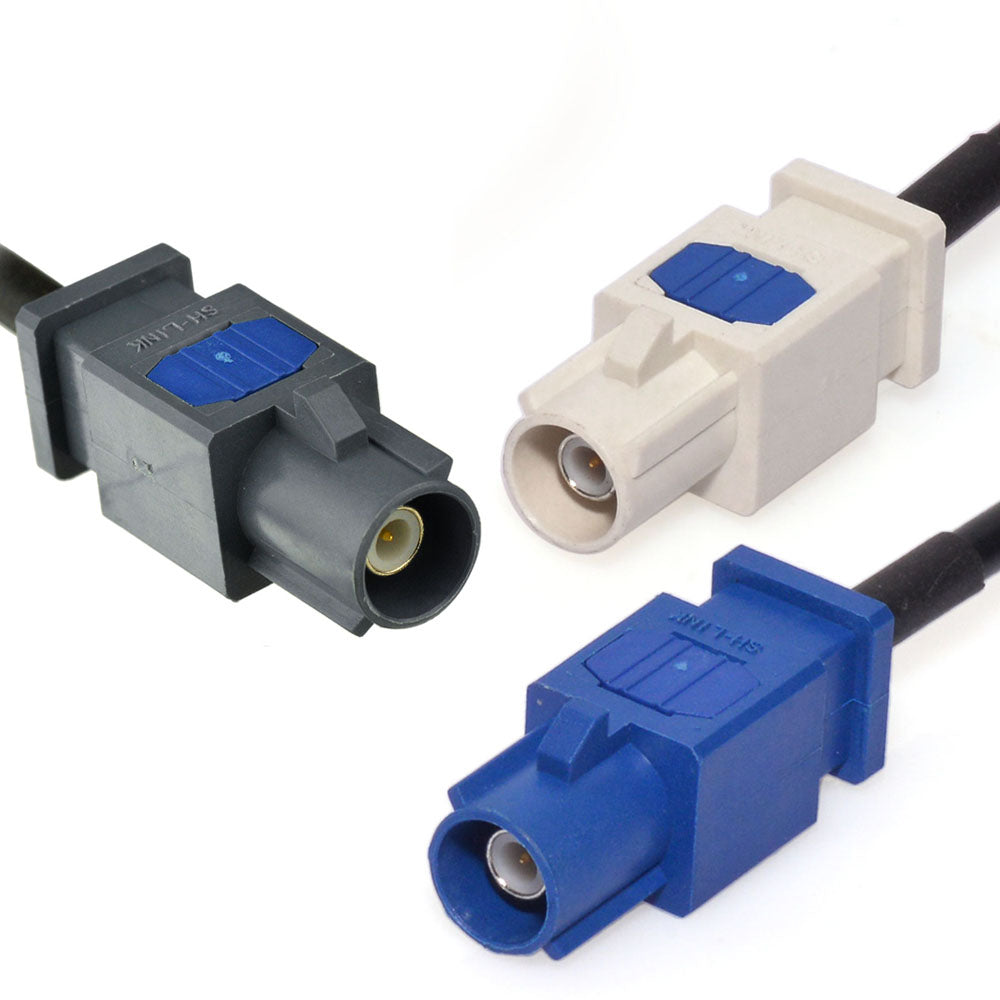

Connector :FAKRA"G" Male
Power Supply:+12v
Cable:30cm RG174
GPS
Frequency:1575.42MHz
Impedence :50 Ω
Amplification:28±3db
VSWR:≤1.5:1
Gain:32dbi
Connector: FAKRA“C” Male
Cable: 30cm RG174
FM
Frequency:87.5-108 MHz
Impedence : 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector:FAKRA"B" Male
power Supply:+12v
Cable: 30cm RG174
Voltage : 12v direct feed for both DAB an FM
Current Consumption : 50mA
Package Included:30cm DAB/FM Car Aerial with GPS
Advantages:
Very neat and stylish.
Roof mount DAB car radio aerial.
No need to unscrew mast for carwash, etc.
Can also be fitted to wing, boot lid etc. (at slight expense of performance)
Vandal resistant.
Amplified
Listing Suitable for the Following DAB Radios:
Alpine Ezi-DAB
pure Highway 300Di
Cautions:
DAB / FM / GPS only.
FM reception good, but not up to a top quality, full rod aerial.
Not designed for AM reception; will nevertheless receive strong MW signals.

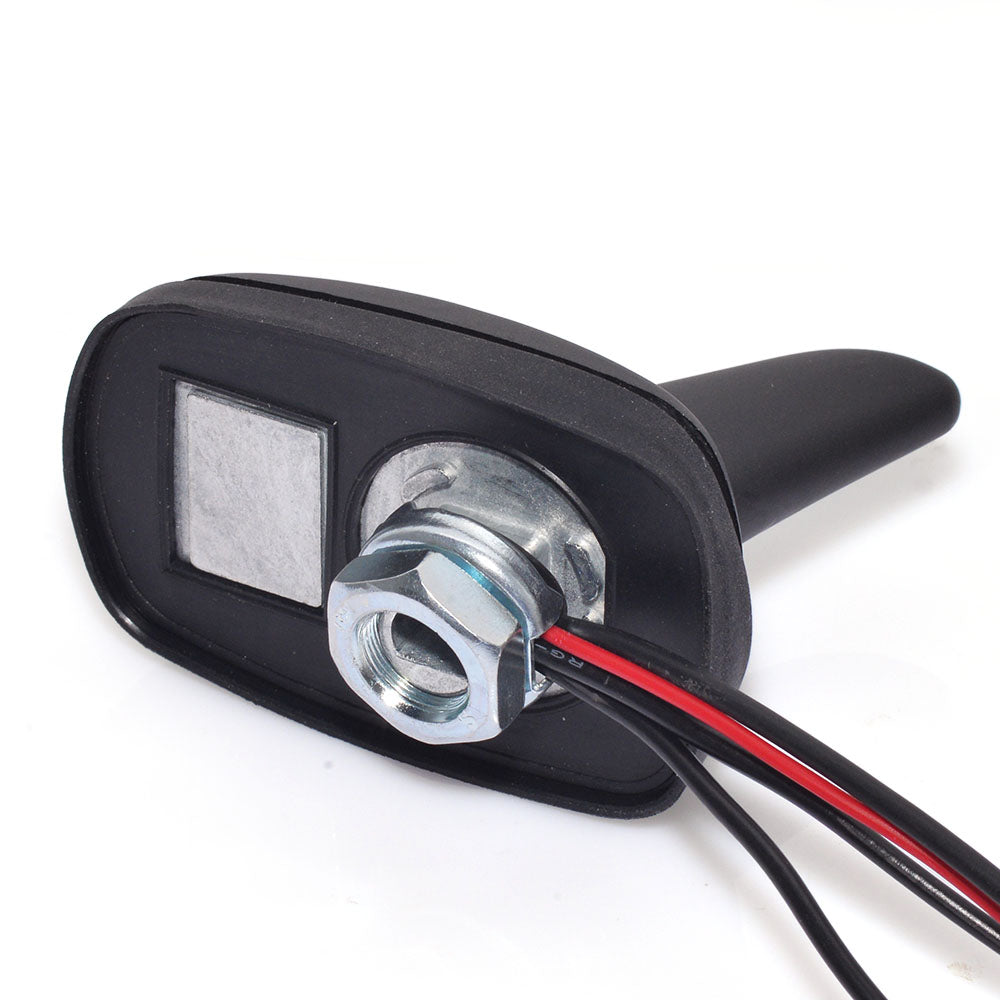

Mounting surface must be flat to within 1.5mm.
Must not be mounted on a panel whose underside is exposed to the elements.
Max panel thickness: 2.5mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
