Features:
Support voltage 9V~24V; Rated output current 3A, maximum output current 4A(non-double current)/6A(double current).
Support duty ratio speed regulation (voltage regulation), torque control (current stabilization), speed closed-loop control (speed stabilization), position closed-loop control (Angle, distance control) and many speed regulation modes.
Support potentiometer, analog signal, logic level, switching quantity, PWM, frequency, pulse, RS485 input signals.
Analog signal voltage range configuration and logic level voltage configuration, analog signal can support 0~3.3V equal voltage range, logic level can support 0/3.3/5V equal voltage; Support analog signal linearity adjustment and logic level threshold configuration.

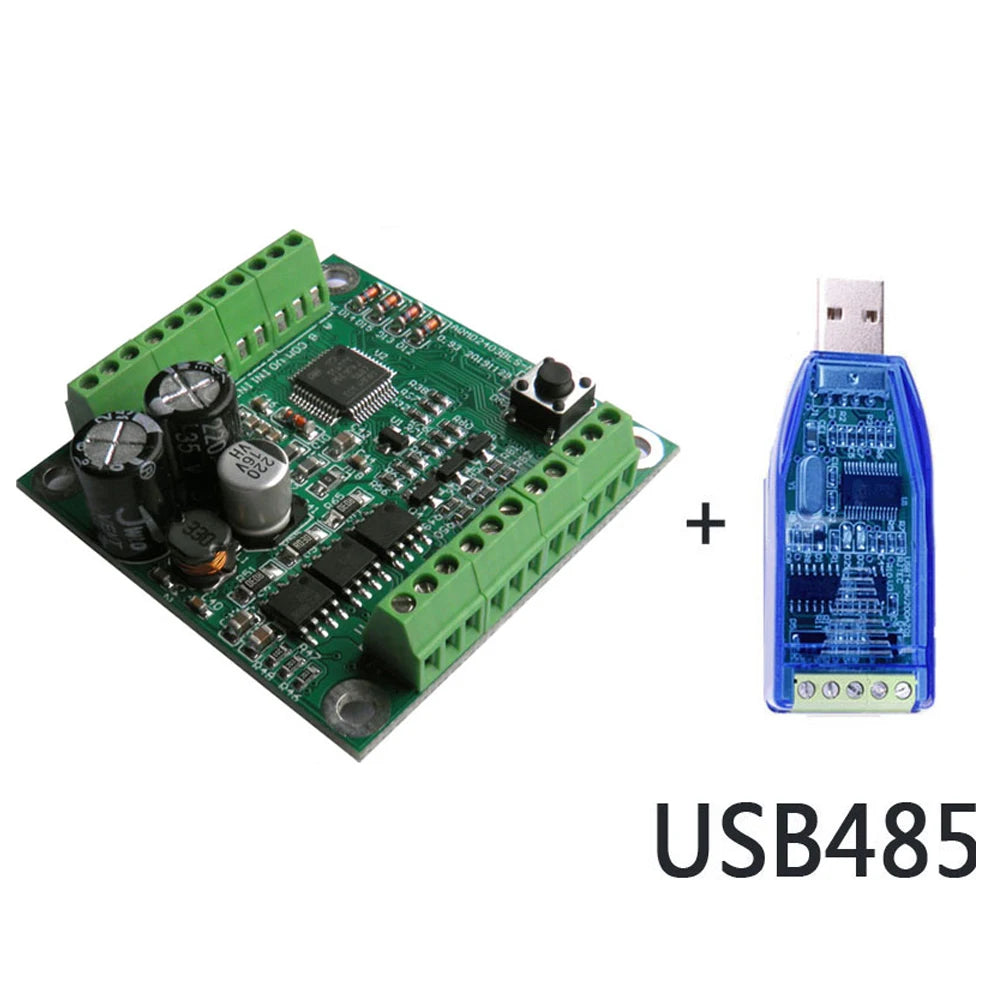

485 common mode voltage protection, support RS485 multi-machine communication, support MODBUS-RTU communication protocol, convenient for a variety of controllers (such as PLC) communication control, support communication interruption shutdown protection.
Support acceleration and deceleration buffer time and acceleration and deceleration acceleration control, can automatically accelerate and decelerate within the specified stroke and accurate positioning.
Motor current PID control, maximum starting/load current, braking (braking) current can be configured separately.
Support driver internal temperature monitoring, can be configured with overheat protection temperature.
Support driver power supply voltage monitoring, overvoltage/undervoltage shutdown monitoring value can be configured.
Support double current output, starting, large load can be large torque output.
Support motor overload current limiting and shutdown, as well as instantaneous high current monitoring, to prevent overcurrent damage to the motor or drive.
Support one-key motor phase sequence learning; Support Hall error protection, fault alarm.
Support motor positive and negative rotation limit, can be connected with two external limit switches respectively for positive rotation and reverse limit.
Support motor speed measurement, support motor lock-up detection/lock-up limit stop.
18kHz PWM frequency, motor speed regulation without PWM noise.
Very small PWM dead zone, only 0.5us, PWM effective range of 0.1%~100%.
Use the ARM Cortex-M3@72MHz processor.
Specification:
Power input voltage: DC9V~24V
Rated output current: 3A
Maximum output current: 6A (double current output) /4A (non-double current output)
Max soft braking current: 3A
Support motor speed range: 0~100000RPM
Number of output channels: single
Operating temperature: -30℃~70℃
Overall dimensions: 45mmx45mmx17mm
