2. Glow suppression has been added to enhance the glow suppression function, which automatically turns on after 3 seconds of exposure, greatly reducing the glow and obtaining highquality deep space images.
4. Pixel merging Bin 2/Bin 3/Bin 4 greatly improves the sensitivity of deep space camera photography.

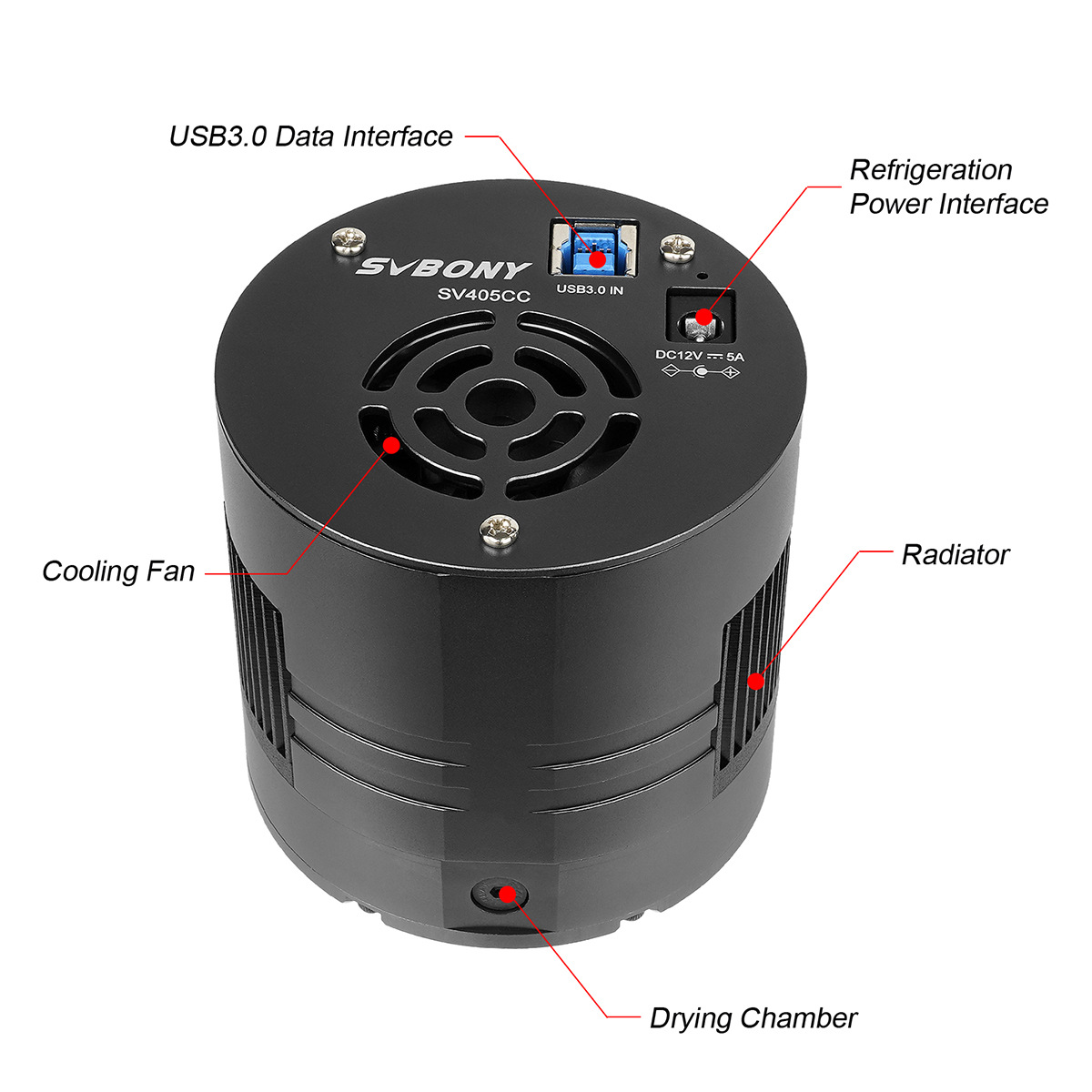

6. Cooling function: SV405CC adopts doublelayer semiconductor cooling, which can cool down to 30 degrees below ambient temperature. The cooling function requires a 12V external power supply to work.
7. USB 3.0 highspeed interface: With a bandwidth of up to 5Gb, SV405CC can easily reach 19 frames per second in RAW8 mode and 16 frames per second in RAW16 mode at a full resolution of 11.7 million pixels.
8. The SVBONY series camera design with consistent structural design is in metallic gray. Durable and drop resistant, with excellent sealing performance, it can work normally in humid outdoor conditions.
| Camera parameters | |||||
| chip | SONY IMX294 CMOS | Image resolution | 4144*2822 | ||
| Total Pixels | 1170Megapixel | Pixel size | 4.63μm | ||
| Target surface size | 19.2mm*13mm | diagonal | 23.2mm | ||
| 19FPS | shutter type | Rolling Shutter | |||
| USB type | Type-B USB 3.0 | cache | DDR3 256M | ||
| Time of exposure | 0.05mS-2000S | Read noise | 1.2e | ||
| QE peak | 75% | Full well charge | 63ke | ||
| ADC | 14bit | Temperature display | Display on software | ||
| TECsemiconductor2Grade refrigeration | Digital noise reduction | ||||
| Whips. | Any resolution | Pixel Merge | BIN1,BIN2,BIN3,BIN4 | ||
| operating system | Windows,Linux, | Protective window optical glass | ARAnti reflective film | ||
| Camera interface specifications | 2″ / 1.25″ / M42X0.75 | Posterior intercept | 6.5mm | ||
| working temperature | -10°---+50° | Storage temperature | -20°---+60° | ||
| Working humidity | 20% RH-80% RH | Storage humidity | 20% RH-95% RH | ||
| Working current | 300MA | Standby current | 30MA | ||

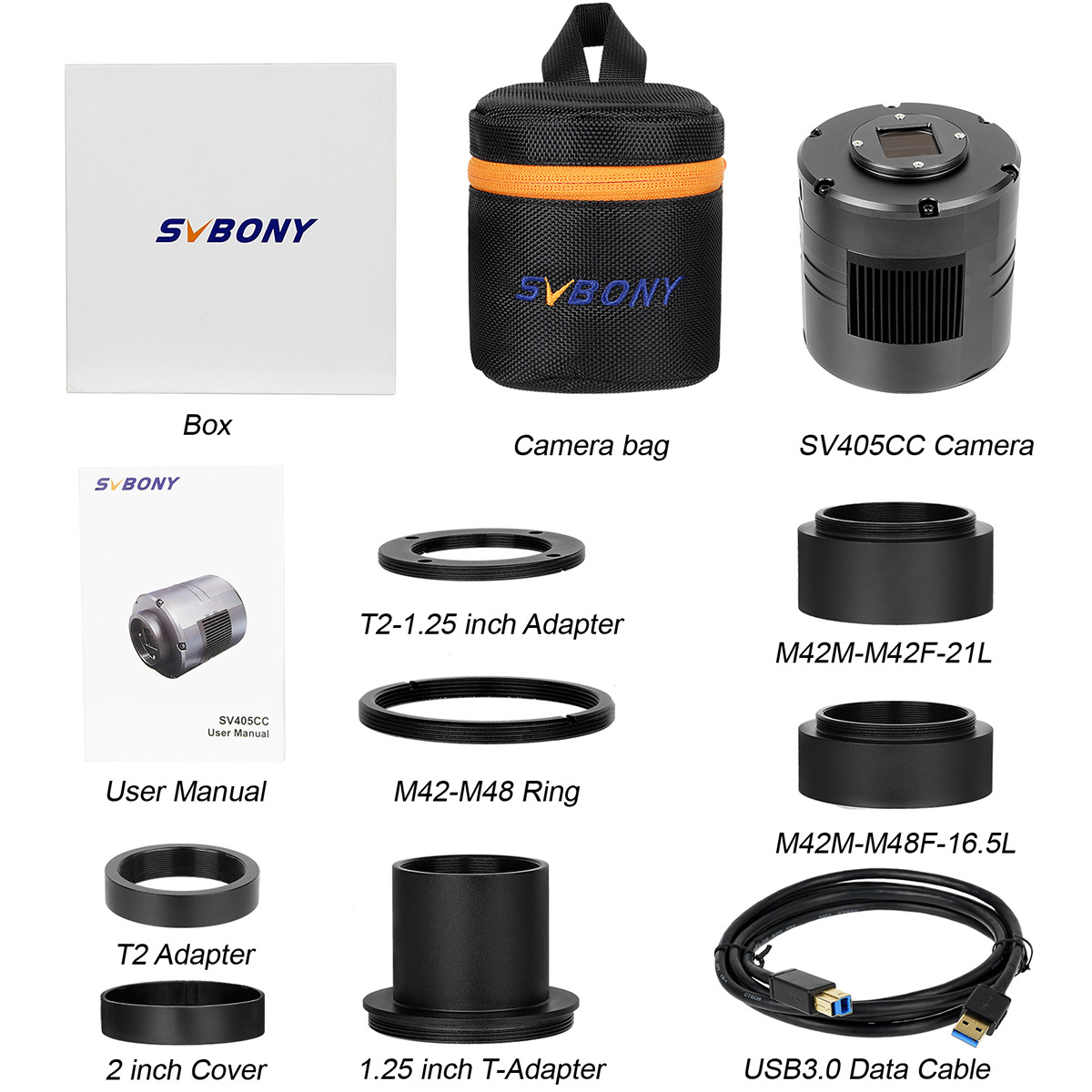

| Packaging List | Serial number | material | quantity | |

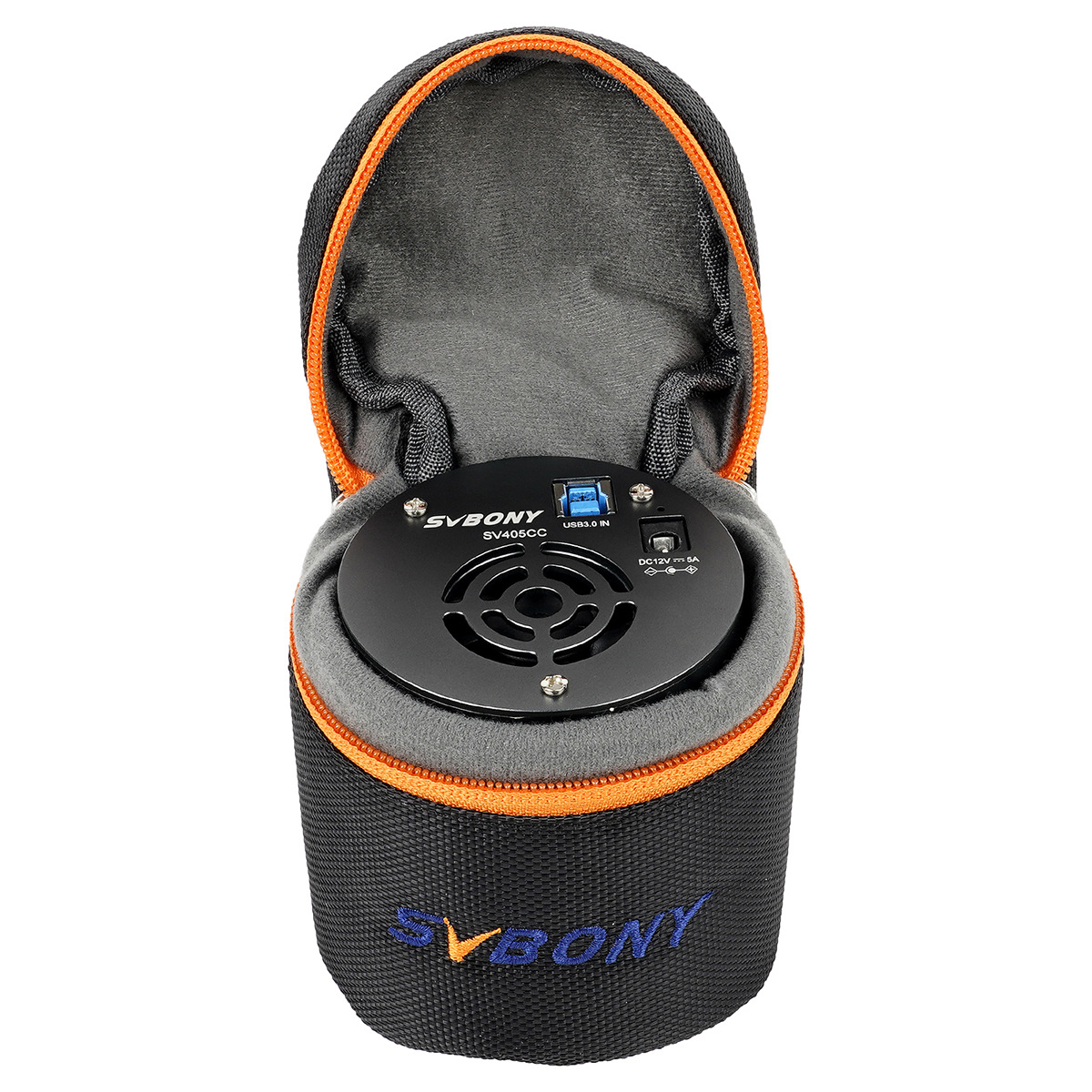

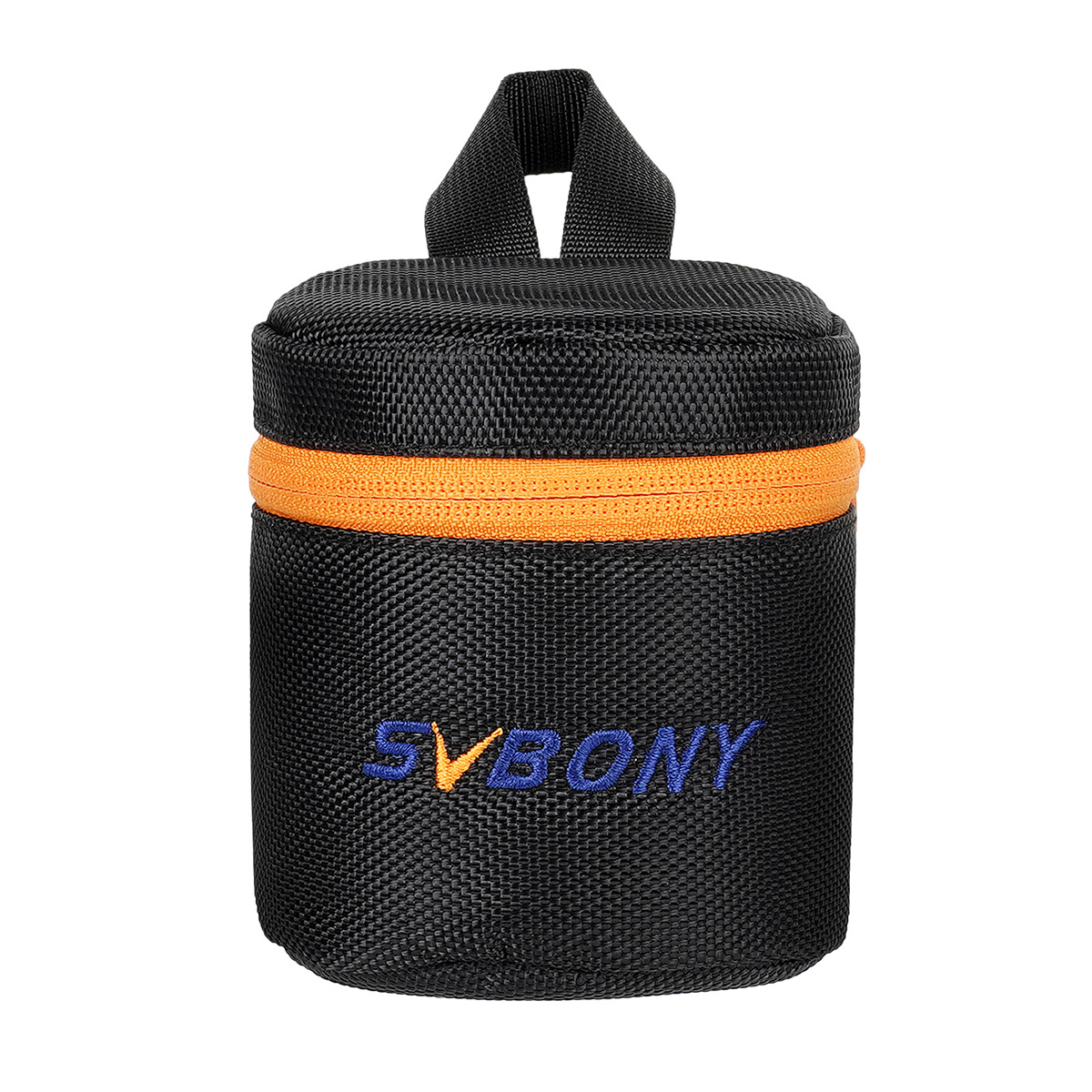

| 1 | Camera bag | 1 | ||
| 2 | camera | 1 | ||
| 3 | 2inch dust cover | 1 | ||
| 4 | M42-M48 adapter ring | 1 | ||
| 5 | T2turn1.25Inch adapter ring | 1 | ||
| 6 | 1.25 inch Tshaped adapter ring | 1 | ||
| 7 | M42M-M48F-1.65 ring | 1 | ||
| 8 | M42M-M42F-21L Ring | 1 | ||
| 9 | T2Adaptation ring | 1 | ||
| 10 | instructions | 1 | ||
| 11 | USB3.0Data cable | 1 | ||
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
