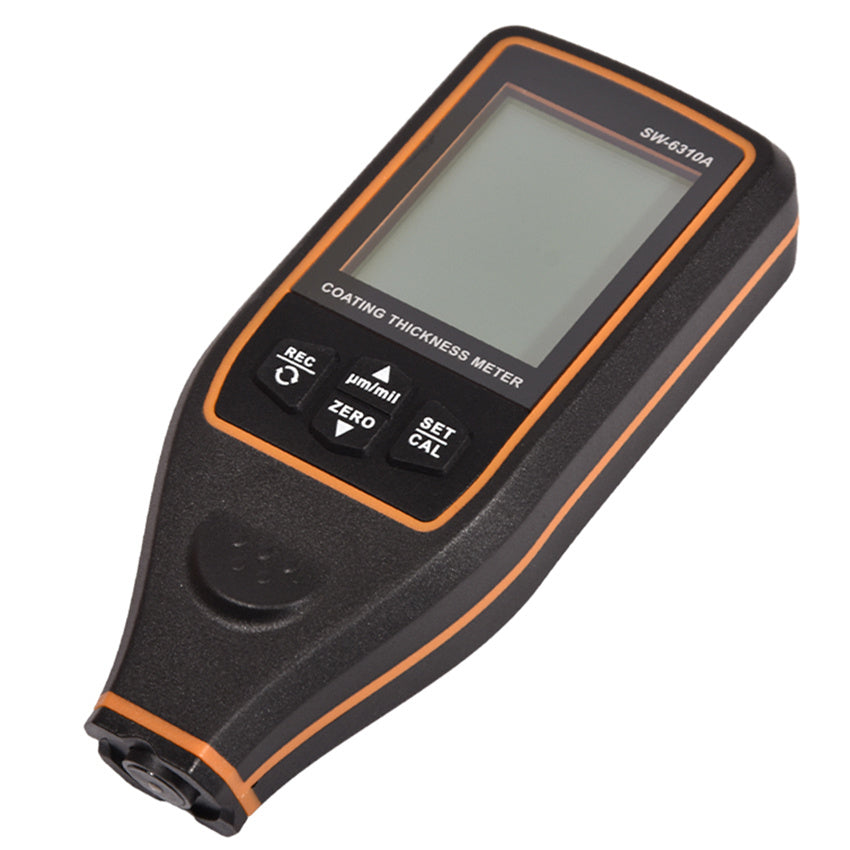

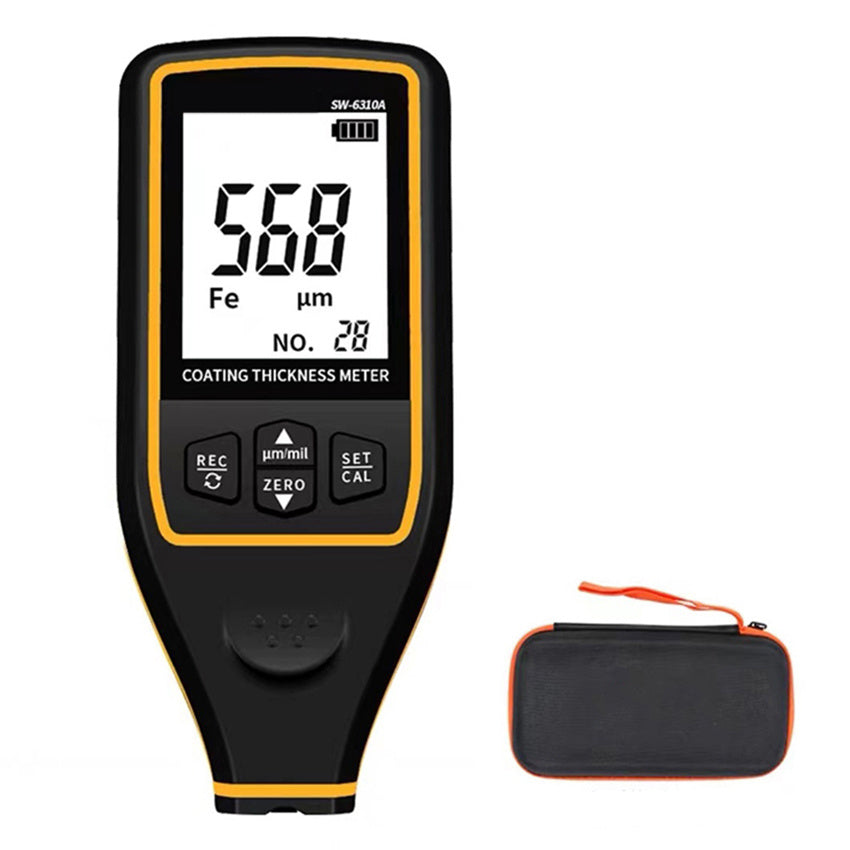

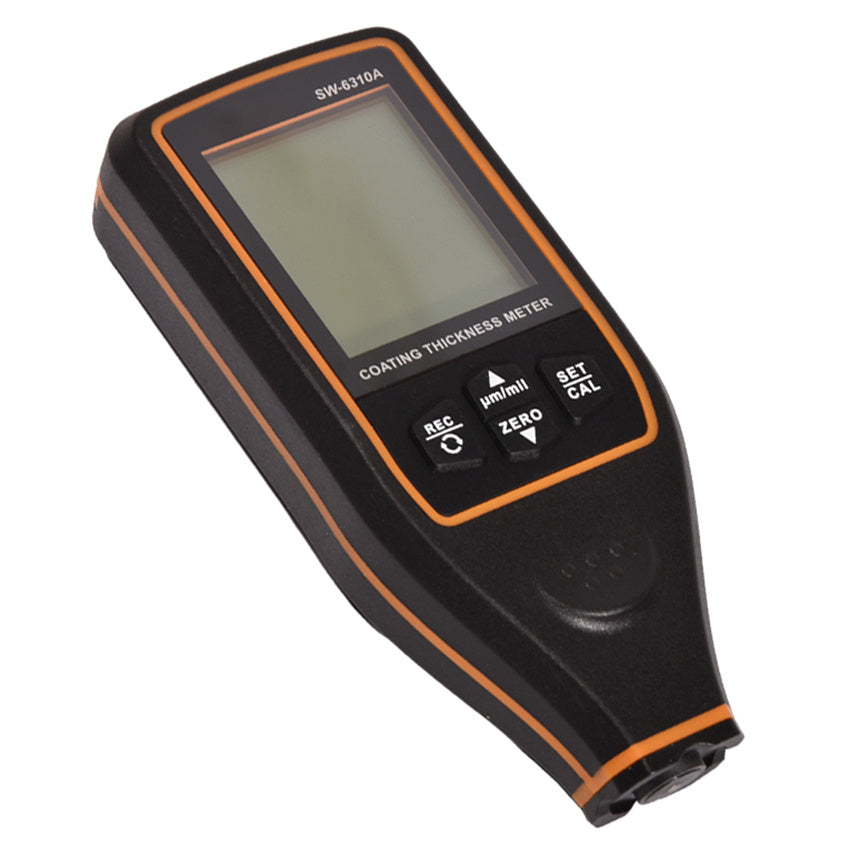

Name: Coating Thickness Gauge
Model: SW6310A (iron and aluminum dual-use)
Measurement range: 0~1700μm
Resolution:
0.1μm @ (0~99.9μm);
1μm @ (100~1700μm)
Measurement error:
±(2+2%*H)μm @ (0~500μm);
±(2.5%*H)μm @ (500~1700μm)
Minimum measurement area: 25x25mm
Minimum curvature: 5mm on convex side; 30mm on concave side
Minimum substrate thickness: magnetic 0.2mm; non-magnetic 0.05mm
Display: 2.0 inch segment code screen
Data storage: 30
Language switch: Chinese, English
Power supply: 2*1.5V AAA battery (not included)
Working temperature and humidity: 0℃~50℃,10%~80%RH
Storage temperature and humidity: -10 ℃ ~ 60 ℃, 10% ~ 70% RH
Net weight: 350g
Size: 120x52x26mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
