Features:

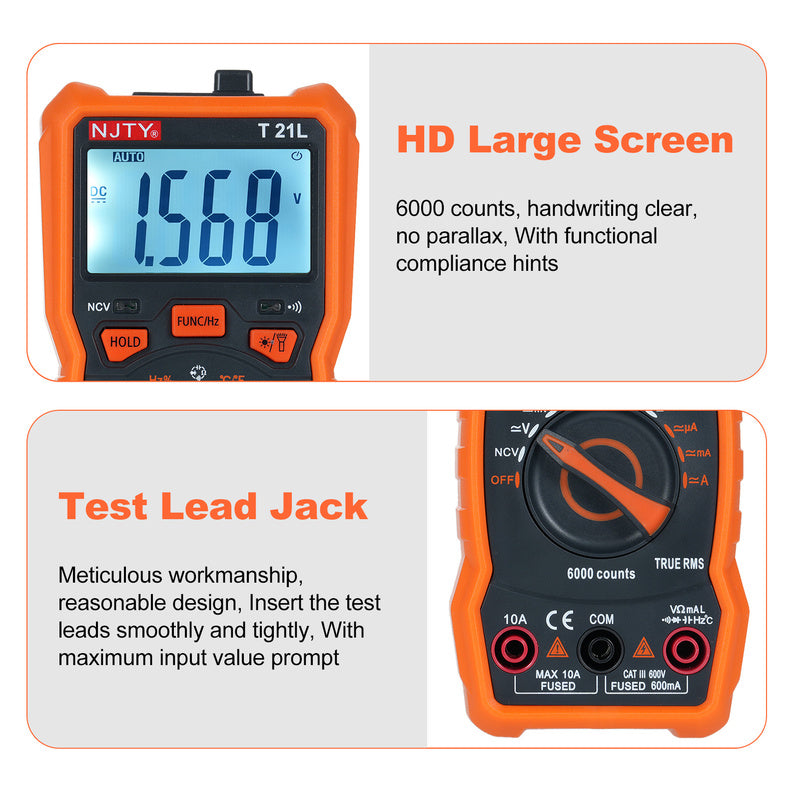

HD Large Screen: 6000 counts, handwriting clear, no parallax, with functional compliance hints.
Multi-Functional: This meter can be used to measure DC and AC voltage, DC and AC current, resistance, capacitance, inductance, temperature, diode, and circuit continuity testing.
Test Lead Jack: Meticulous workmanship, reasonable design, insert the test leads smoothly and tightly, with maximum input value prompt.
Backlight and Flashlight: This instrument is equipped with a backlight and an illumination lamp to facilitate users to read the measurement display value in a dark place.

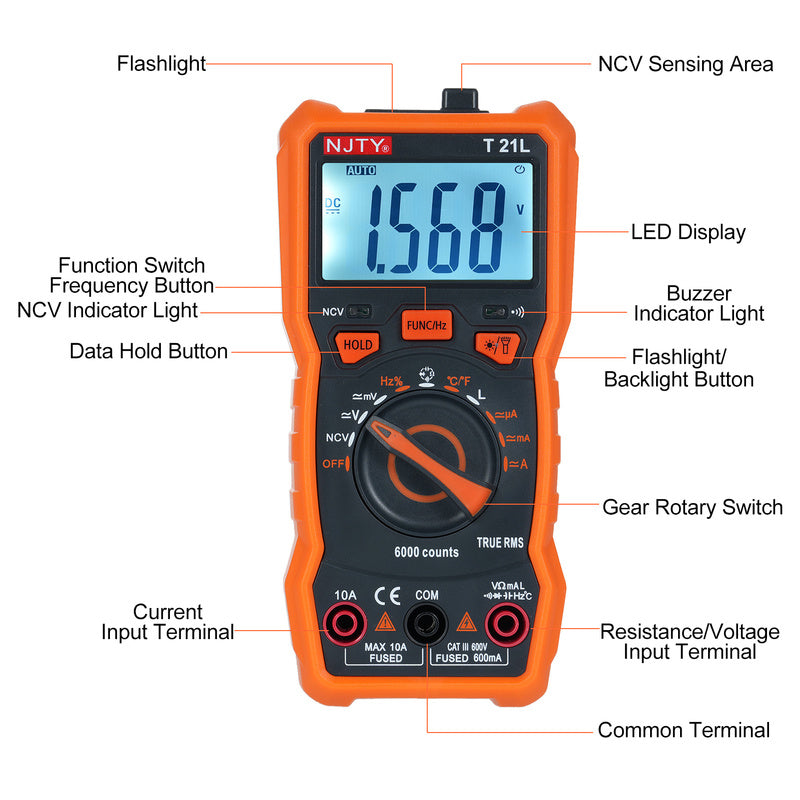

Full Functioning: The operation layout is clear and intuitive, with a variety of measurement functions, one-key measurement, no need to change gears.
Specifications:
Model: T21L
Material: ABS
DC Voltage: 60mV, 600mV, 6V, 60V, 600V; ±(0.5% reading +5 digits)
AC Voltage: 60mV, 600mV, 6V, 60V, 600V; ±(1% reading +4 digits)
DC Current: 600μA, 6000μA, 60mA, 600mA, 6A, 10A; ±(1.2% reading +5 digits), ±(3% reading +5 digits)
AC Current: 600μA, 6100μA, 60mA, 600mA, 6A, 10A; ±(1.2% reading +5 digits), ±(3% reading +5 digits)
Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ; ±(0.8% reading +5 digits)
Frequency: 9.999Hz, 99.99Hz, 999.9Hz, 9.999KHz, 99.99KHz, 999.9KHz, 9.999MHz; ±(1.5% reading +5 digits)
Capacitance: 6000pF, 60nF, 600nF, 6μF, 60μF, 600μF, 6mF, 60mF, 100mF; ±(4.0% reading +5 digits)
Temperature: -20℃~1000℃ / -4℉~1832℉
Inductance: 600μH, 6mH, 60mH, 600mH, 6H, 60H; ±(4.0% reading +5 digits)
Diode: √

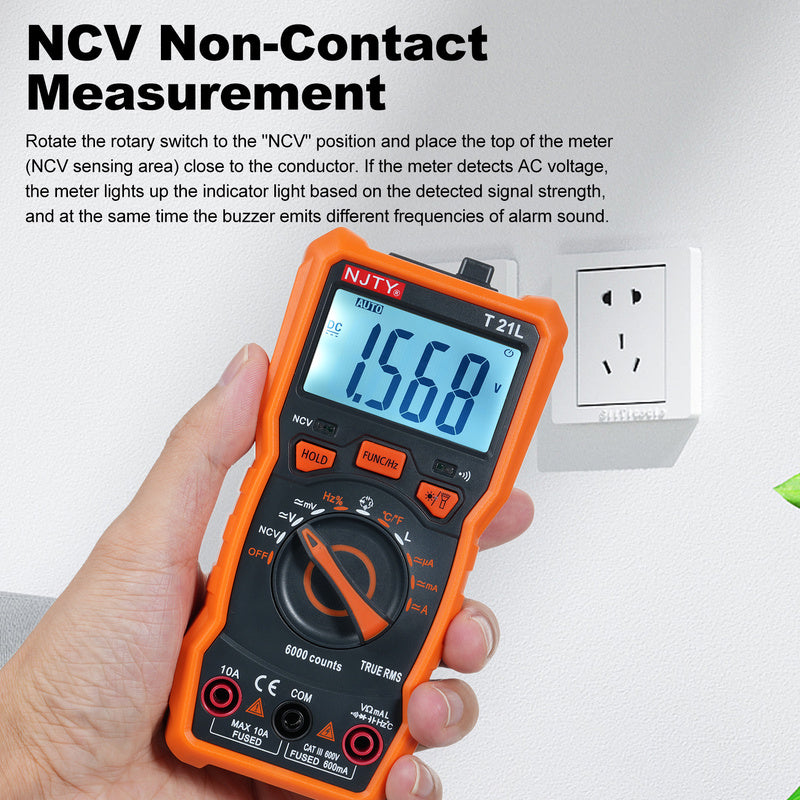

NCV: √
Data Retention: √
Backlight / Flashlight: √
Automatic Shutdown: √
Display: 6000 counts
Power Supply: 3 * 1.5V AAA batteries (Not included)

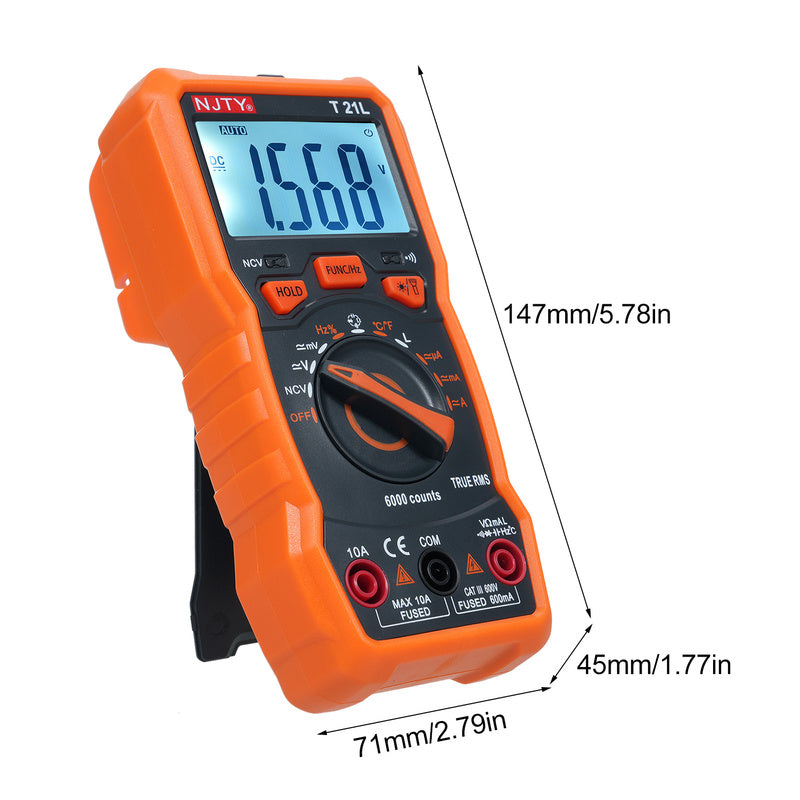

Item Size: 147 * 71 * 45mm / 5.78 * 2.79 * 1.77in
Item Weight: 220g / 7.76oz
Package Weight: 340g / 11.99oz
Package Size: 17.4 * 11.3 * 5.3cm / 6.85 * 4.45 * 2.08in

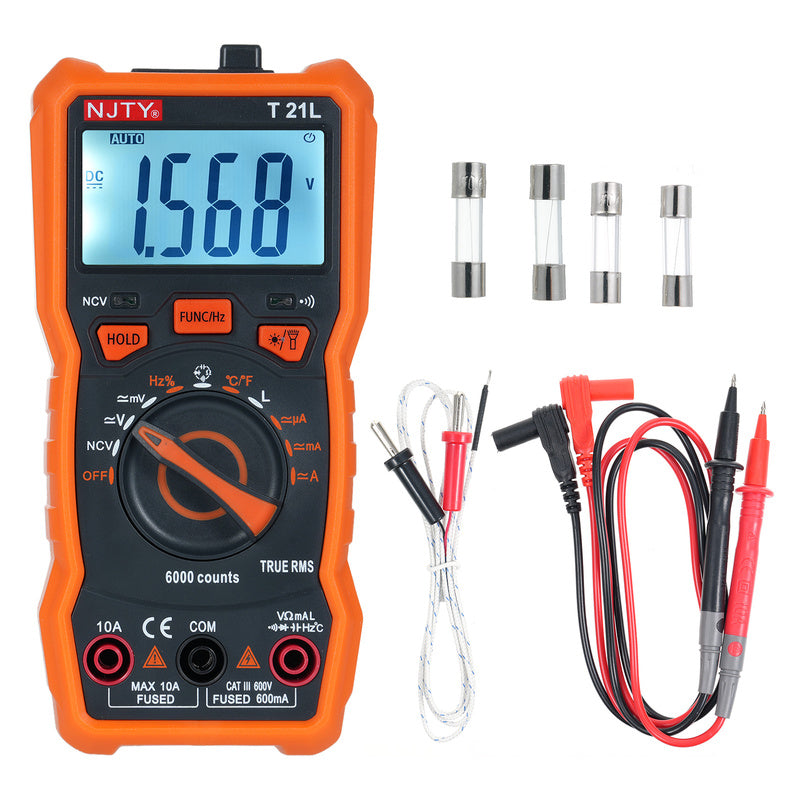

Package List:
1 * LCR Multimeter
1 * Pair of Test Pen
1 * Thermocouple
1 * User Manual (English)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
