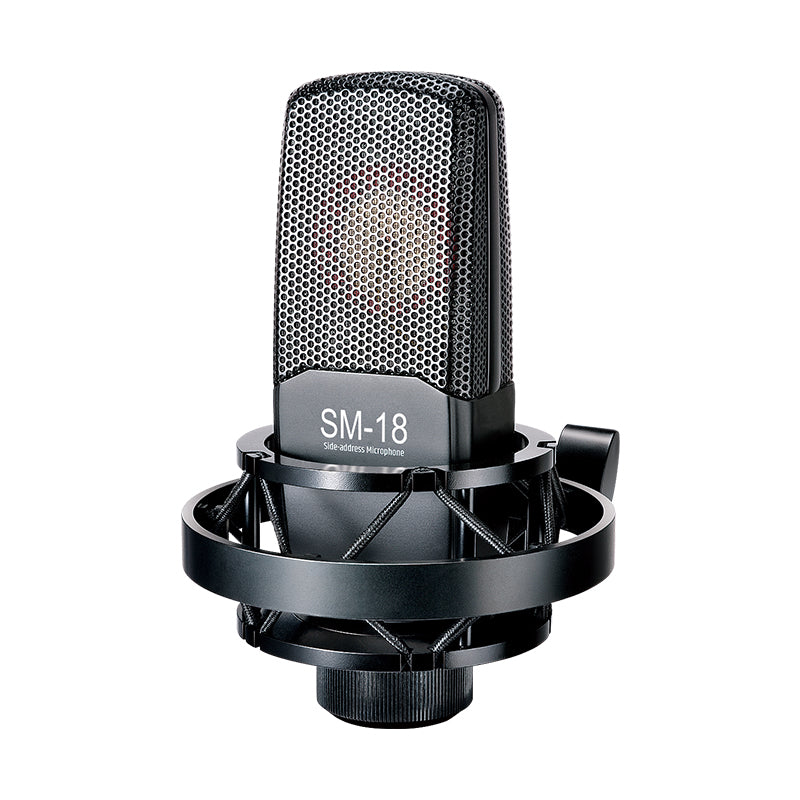

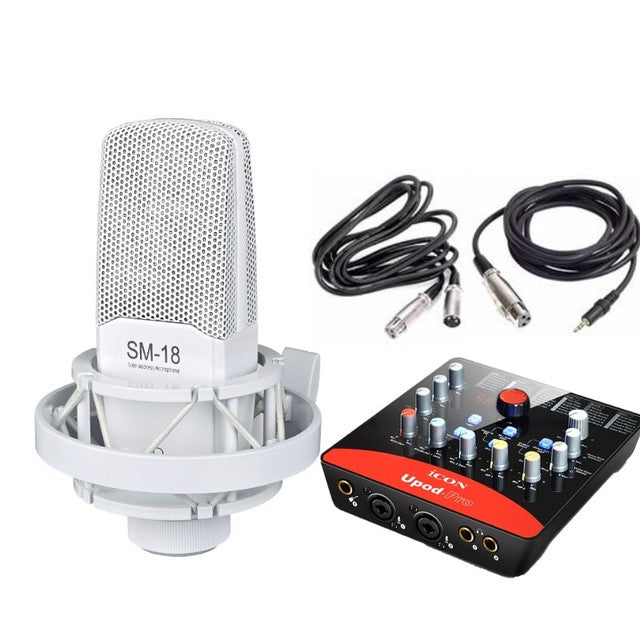

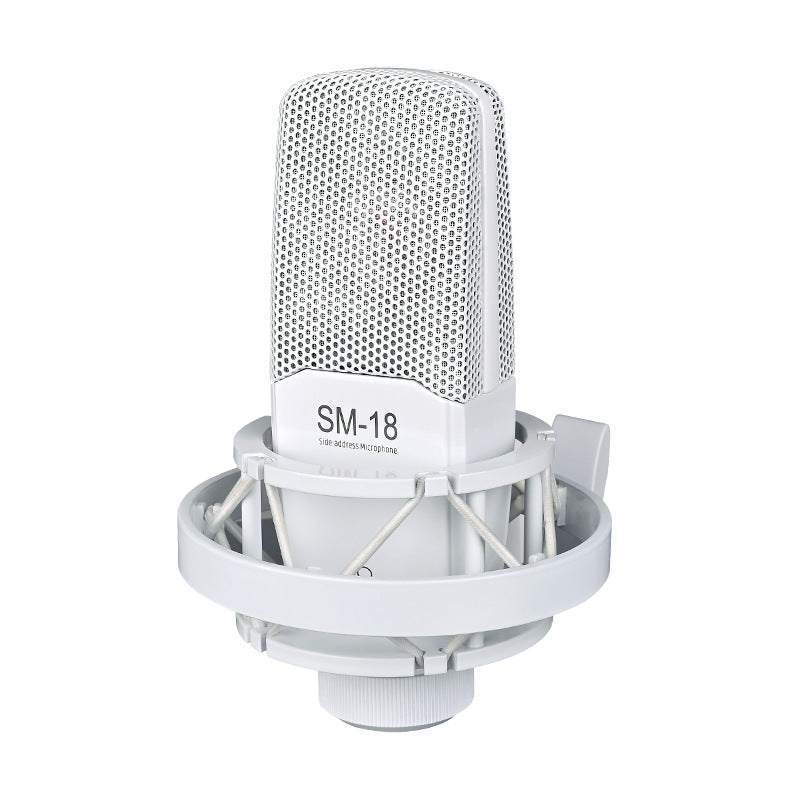

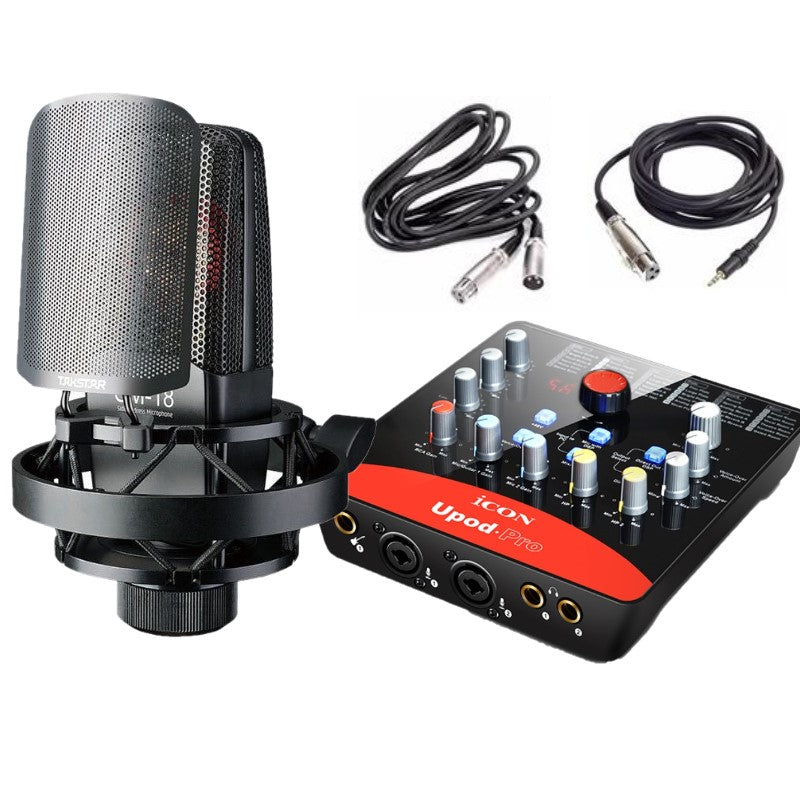

Features:

• Cartridge Φ34mm large gold plated diaphragm, wide frequency response, reproducing original sound

• High sensitivity, picking up more sound details

• Prominent sound pressure processing capability prevents from overload distortion and suits for picking up various audio source

• Low residual noise, pure recording sound, suitable for various recording and live broadcast

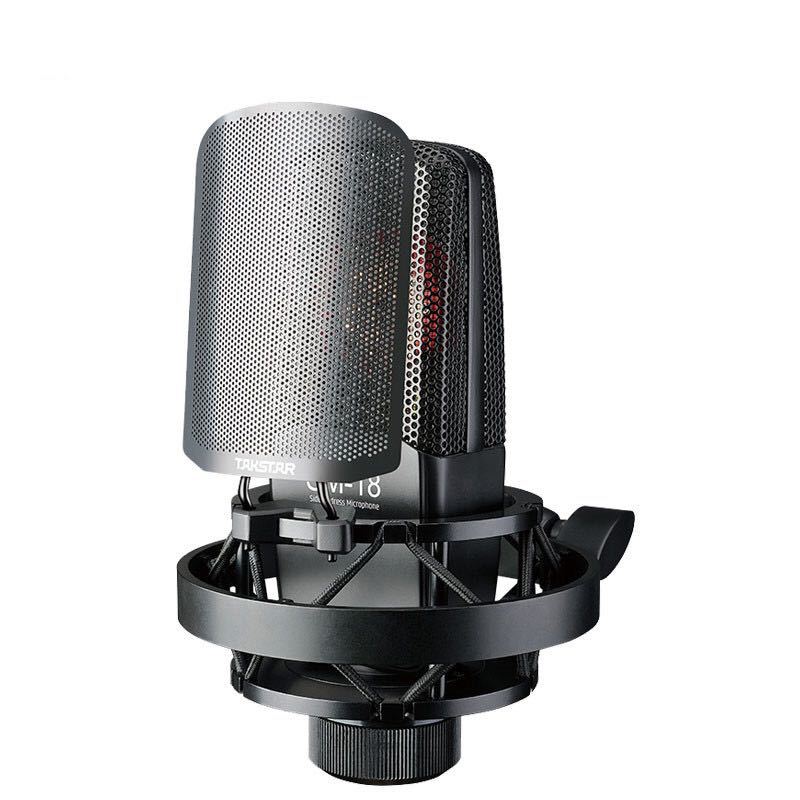

• Compact metal grille eliminates pop noise and will not cover your face

• Pro shock mount prevent from vibration

• Al alloy case for convenient storage and carrying

Specification:

▪ Cartridge: cartridge of 34㎜ gold plated diaphragm

▪ Polar Pattern: unidirectional

▪ Frequency Response: 20Hz-20KHz

▪ Sensitivity: -30dB±3dBV(0dB=1V/Pa at 1KHz)

▪ Equivalent Noise Level: ≤20dBA(IEC 581-5)

▪ Peak SPL: 135dB(THD≤1% at 1KHz)

▪ Output Impedance: 110Ω±30%（at 1KHz）

▪ Operation Voltage: 48V phantom power

▪ Dimension: 157*55*38mm

▪ Net Weight: approximate 372g

Application:

vocal recording, pro recording, network live broadcast, instrument recording

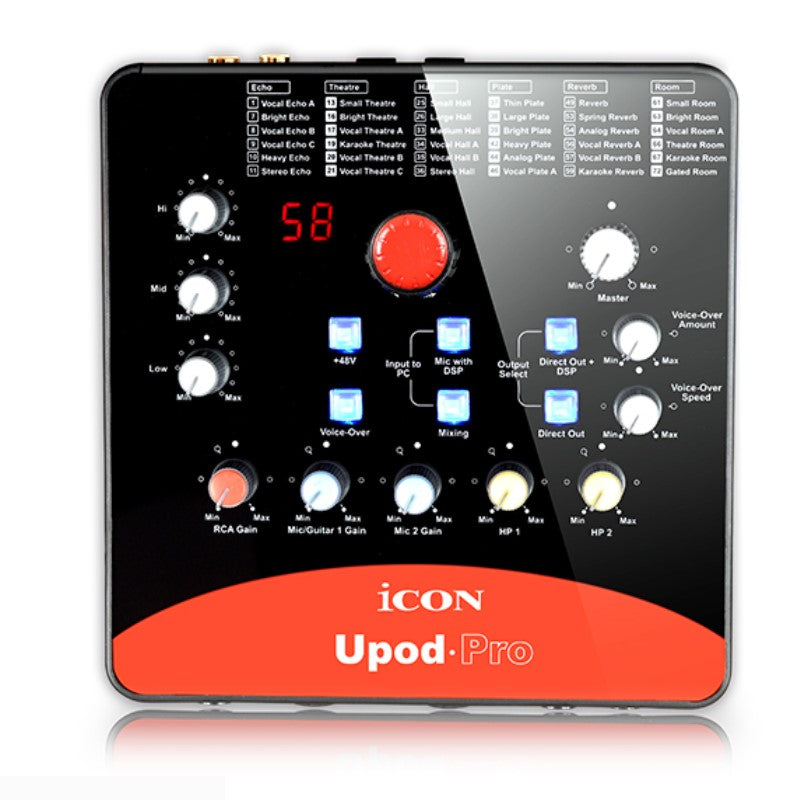

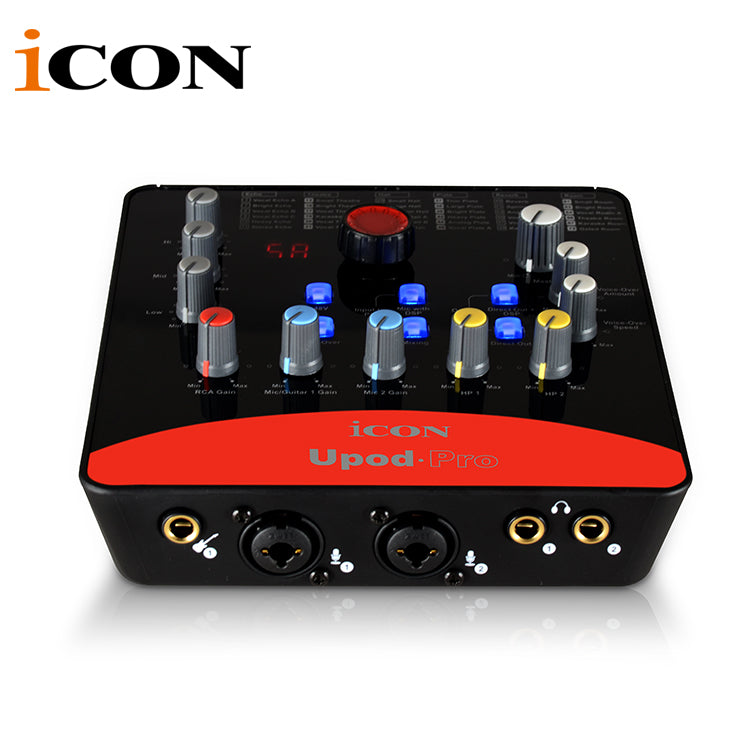

Features:

*16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface

*2x2 analog I/O full duplex recording and playback

*ICON innovative unique mic preamp with individual gain control.

*+48V phantom power equipped.

*Build-in ICON 16-DSP effect with control knob on the top panel.

*2 DSP parameter adjustment knobs on the top panel.

*2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.

*Build-in stereo RCA input with individual gain control

*Allow to use as a stand-alone device with RCA input & DSP processing.

*Attenuator function button equipped for music fade out automatically when mic signal present.

*Buttons equipped for controlling mic signal (dry/wet) recording to PC.

*Buttons equipped for controlling monitoring signal (dry/wet).

*Master volume control on the top panel

*2 headphone outputs on 1/4” TRS jacks with individual volume control

*USB2.0 compatible and USB bus-powered

*Plug and play and no driver installation is needed.

*Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)

*Full duplex, simultaneous record/playback

Tech Specs:

Mic Input

Frequency Response ： 22Hz to 22kHz (+/-0.2dB)

Dynamic Range ：95dB, A-weighted

Signal-to-Noise Ratio ： -95dB, A-weighted

THD+N ：<0.0061% (-80dB)

Crosstalk ： -85dB @ 1kHz

Input Impedance Mic in : 1.8K Ohms, typical

Total Gain Range ：+39dB

Inst Input

Frequency Response ：22Hz to 20kHz (+/-0.2dB)

Dynamic Range： 95dB, A-weighted

Signal-to-Noise Ratio ：-95dB, A-weighted

THD+N ：<0.0061% (-80dB)

Crosstalk ：-85dB @ 1kHz

Input Impedance Inst in : 500K Ohms, typical

Total Gain Range ： +38dB

Line Inputs (RCA IN, Unbalanced)

Frequency Response ：22Hz to 20kHz (+/-0.2dB)

Dynamic Range： 95dB, A-weighted

Signal-to-Noise Ratio： -95dB, A-weighted

THD+N ：<0.003% (-86dB)

Crosstalk ：-90dB @ 1kHz

Input Impedance ：10K Ohms, typical

Adjustable Gain ：+8dB

Line Outputs 1/2 (Stereo, Unbalanced)

Frequency Response ： 22Hz to 20kHz (+/-0.2dB)

Dynamic Range ：95dB, A-weighted

Signal-to-Noise Ratio ： -95dB, A-weighted

THD+N ： <0.003% (-86 dB)

Crosstalk ：-90dB @ 1kHz

Nominal Output Level Unbalanced : +2dBV, typical

Headphone Outputs (at Maximum Volume; Into 100 Ohm load)

Frequency Response ：22Hz to 20kHz (+/-0.2dB)

Power into Ohms ：20 mW into 100 Ohms

THD+N ： <0.06% (-66dB)

Signal-to-Noise Ratio ：-95dB, A-weighted

Max Output Level into ：100 Ohms +2.0dBV, typical

Load Impedance ：32 to 600 Ohms
