TS-K201 Portable Wireless Microphone

     • Tailored for sound card, power amplifier or speaker cabinet during webcast, Karaoke, speech;

     • UHF technology, without the trouble of cable connection;

     • Automatic matching technology, easy operation, high capability of anti-interference, about 25m operation range in open area;

     • 50 channel for adjustment, without frequency interference, supporting multiple microphones used simultaneously;

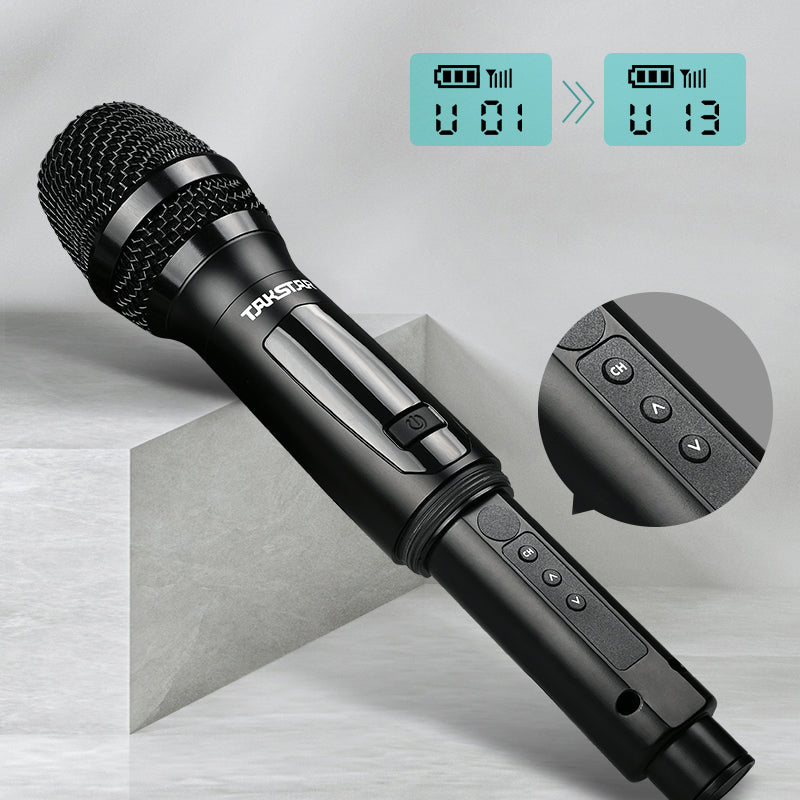

     • LED display, easy operation, intuitive information;

     • Compact design, plug and play, conveniently connecting with various audio equipment;

     • Press one button for mute function. Cutting down mic signal quickly according to actual situation;

     • φ6.3mm adapter to conveniently connect with audio equipment of φ6.3mm connector.

     Specification:

     • Frequency Range: 630-698MHz

     • (frequency band) Channel Quantity: mono Frequency Band Quantity: 50

     • FM Width: 12.5MHz

     • Frequency Band Interval: 250KHz Modulation: FM

     • Mute: wave guid/digital  ID

     • Frequency Response: 120Hz-17KHz   (1KHz reference -3dB)

     • Frequency Stability: ±7KHz

     • S/N Ratio: ≥95dB

     • Dynamic Range: ≥90dB

     • Distortion: ＜1%(at 1KHz)

     • Operation Range: approximate 25m(open area)

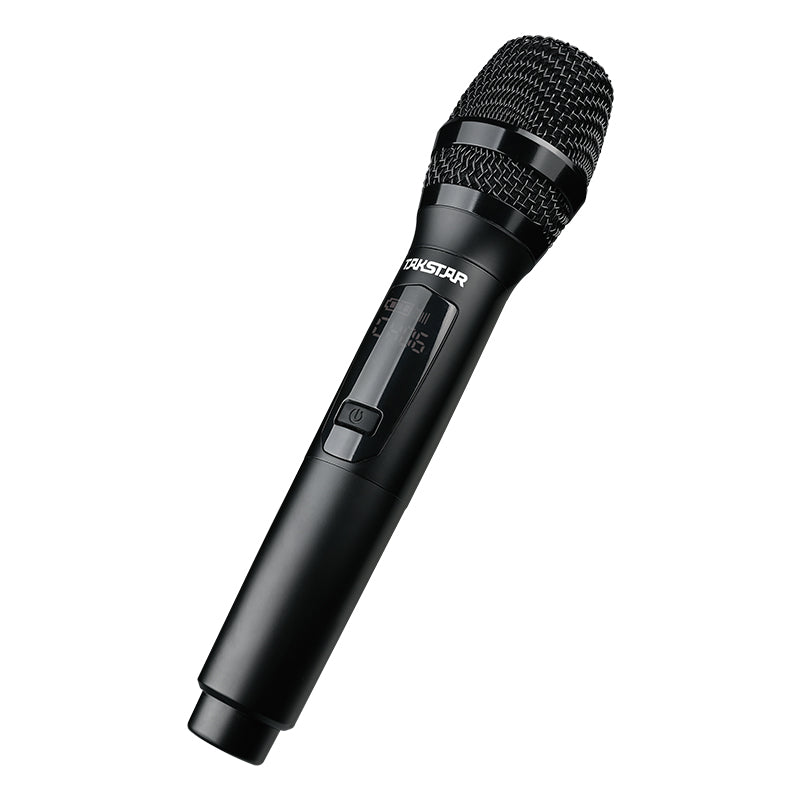

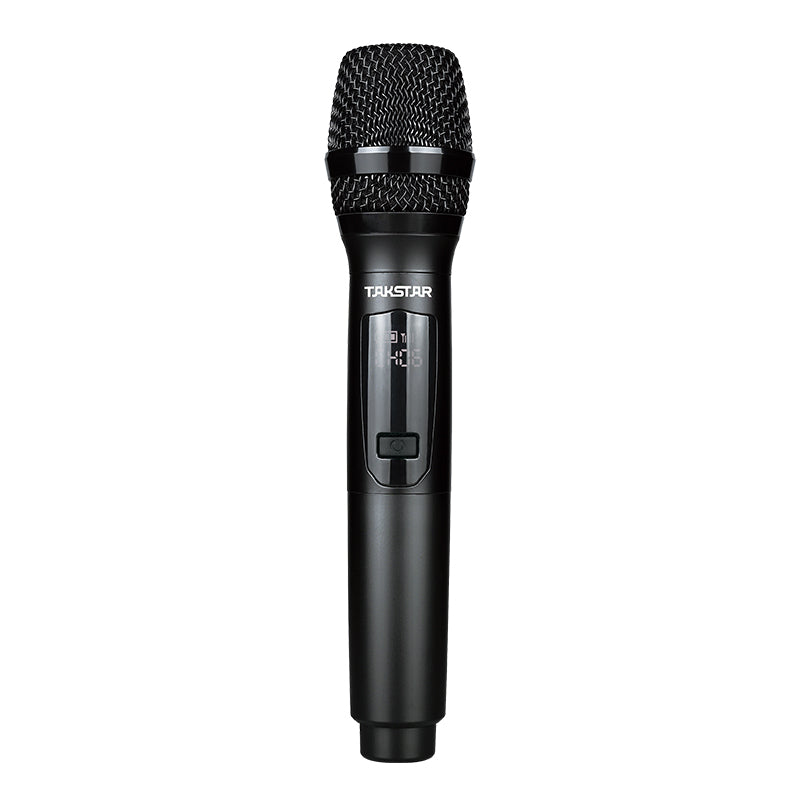

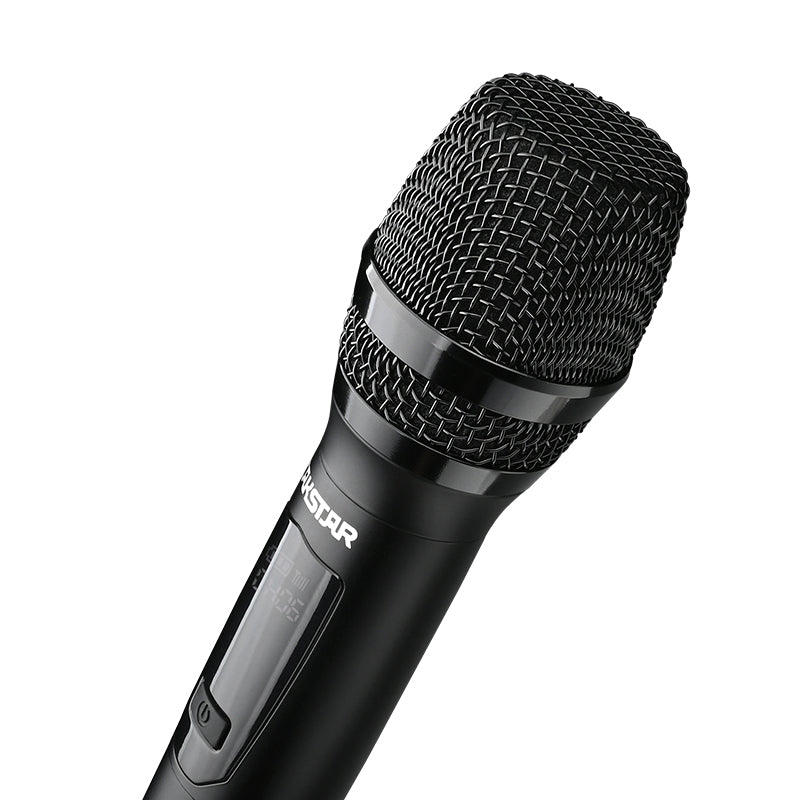

     Transmitter (microphone)

     • Cartridge: dynamic

     • Polar Pattern: unidirectional

     • Sensitivity: -55±3dB  (0db=1V/Pa/m at 1kHz)

     • Gain Adjustment: -18dB - 21dB

     • Transmitter Power: ≤10mW

     • Power Supply: 2 AA batteries

     • Dimension: Φ36.5mmX245mm

     • Net Weight: approximate 237g

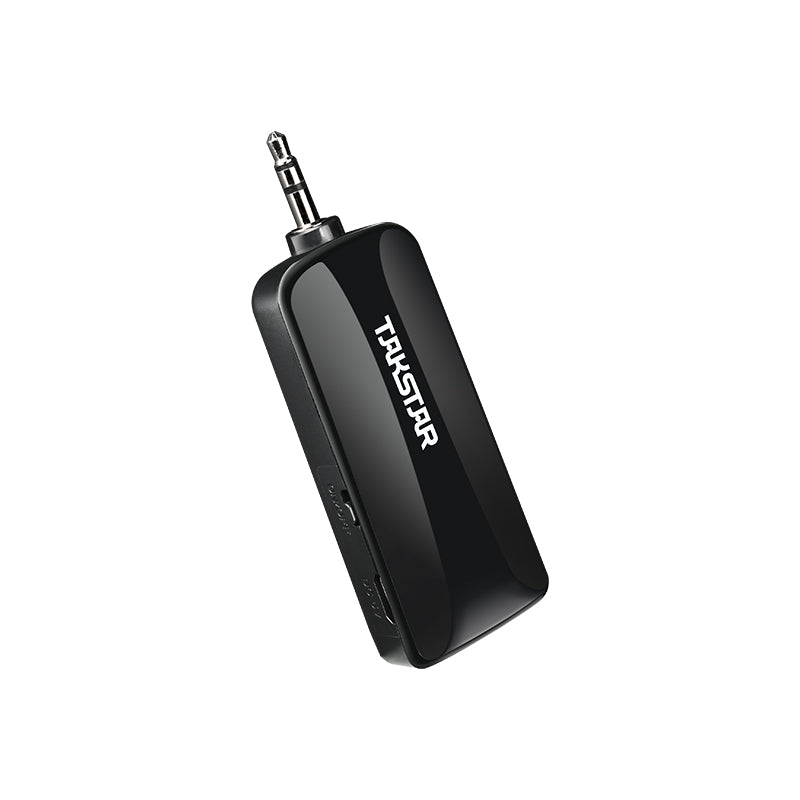

     Receiver

     • Audio Output: Φ3.5mm line out

     • Battery: Li-ion battery

     • Battery Specification: 3.7V/400mAh

     • Charging: USB 5V/200mA (max battery charging current)

     • Charging Time: approximate 2h

     • Operation Time: approximate 5h

     • Dimension: 80.5mmX28mmX15.5mm(L X W X H)

     • Net Weight: approximate 22g

     Note: the above data is obtained from the test of Takstar laboratory, and Takstar has the final interpretation right!

     Application:     Webcast,Karaoke, propaganda, speech

     Product Content:

     • Microphone1pc

     • Receiver1pc

     • Charging cable1pc

     • Adapter1pc

     • Anti-skidding loop1pc

     • User manual1pc
