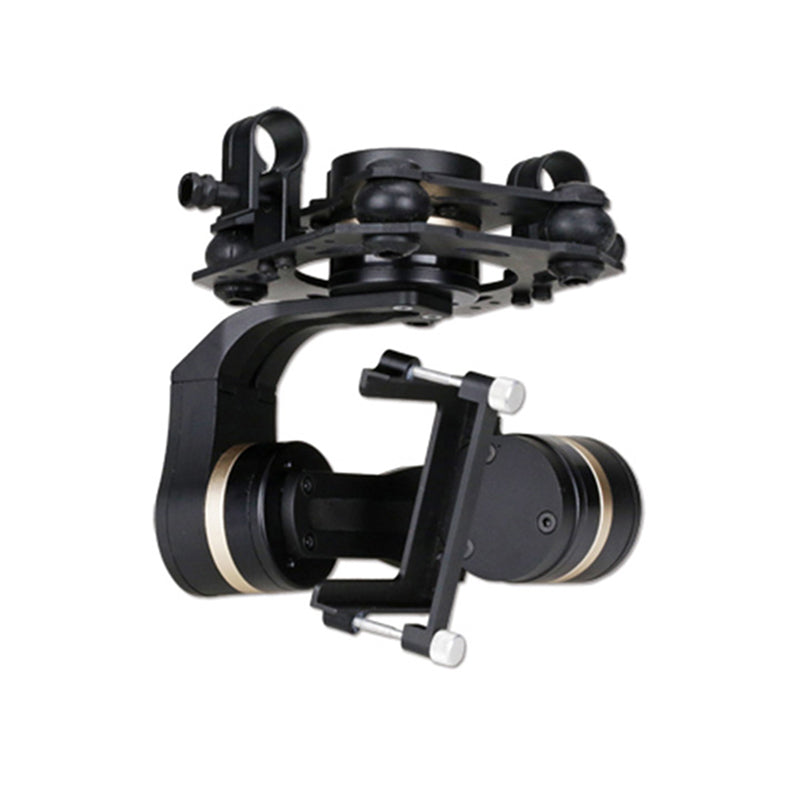

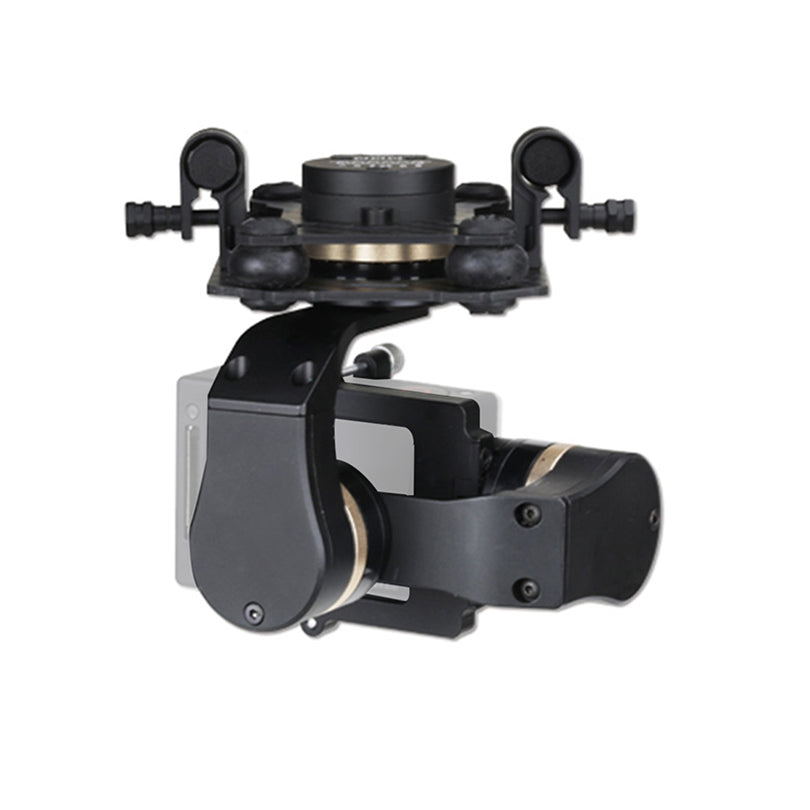

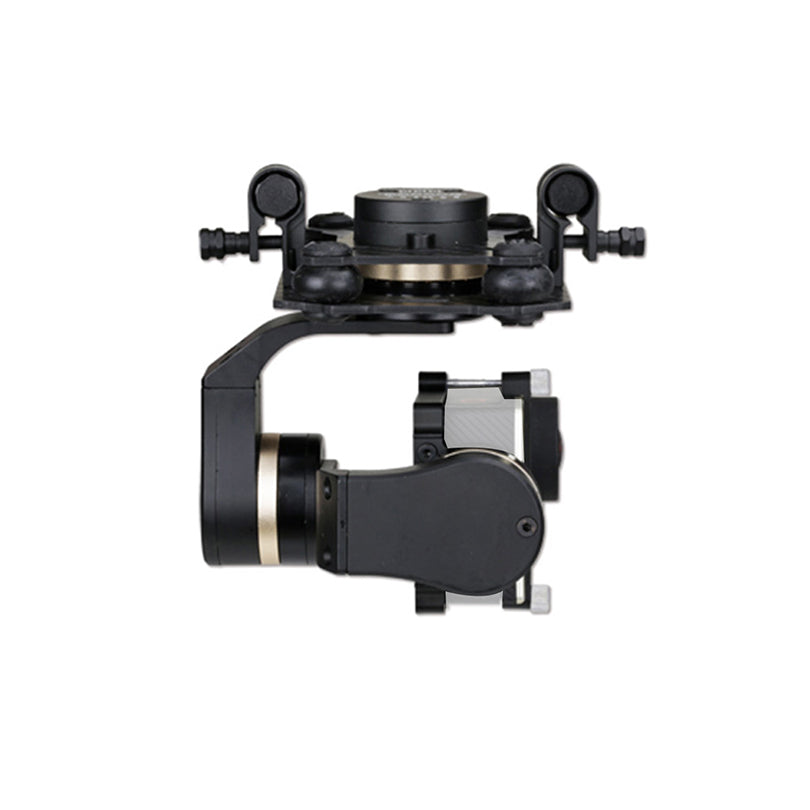

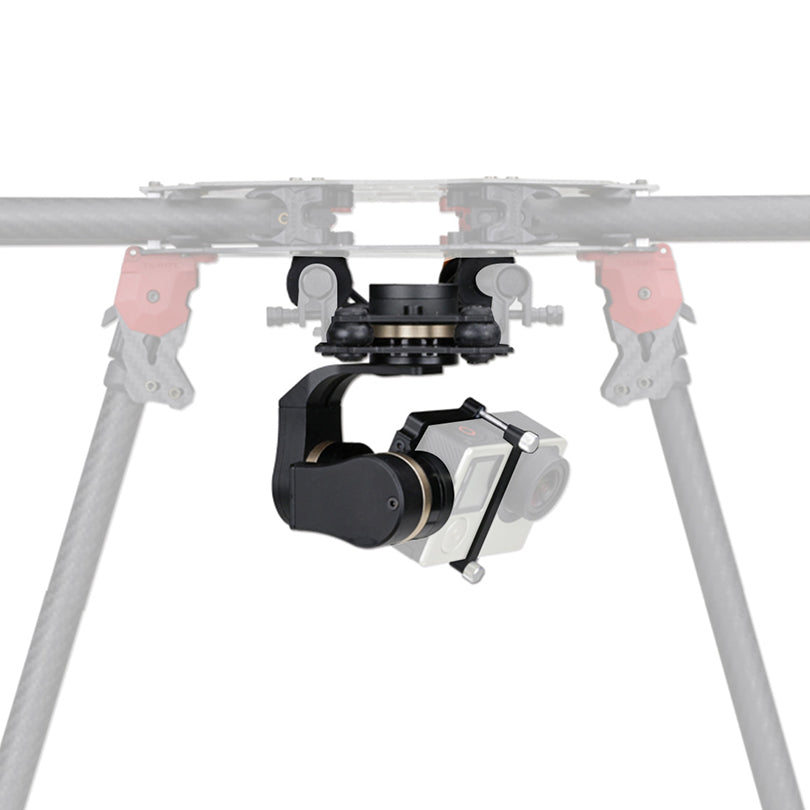

Tarot TL3T-OEM01 Gopro Hero3/3+/4 Metal Three-Axis Gimbal OEM Version For Quadcopter Multicopter Frame / Rc Racing Drone Part
Product specifications:
Metal three-axis gimbal OEM version×1

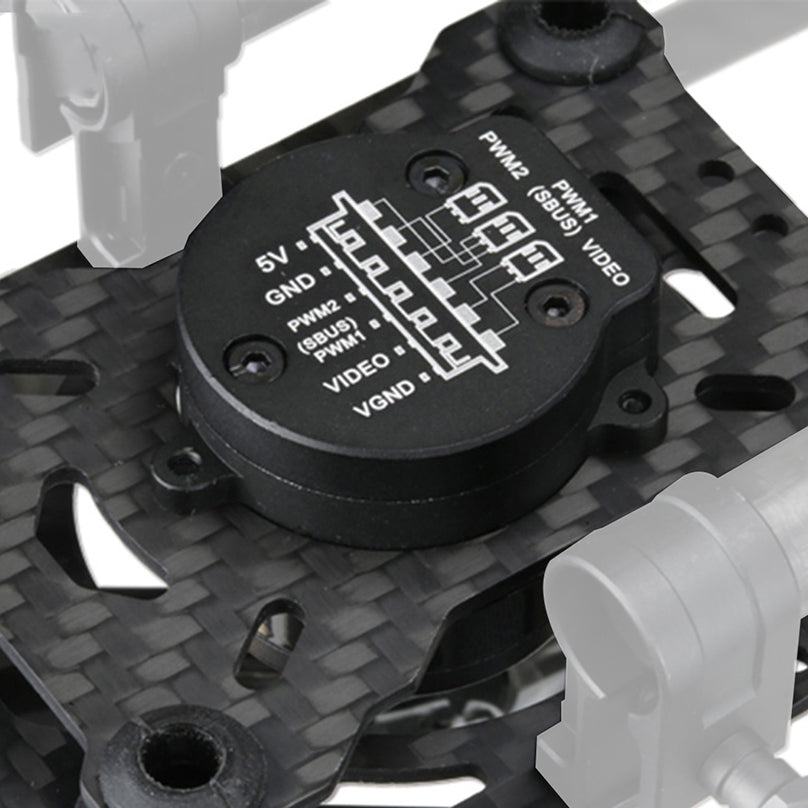

PTZ main control module (36×25×11MM)×1
8P gimbal main control and gimbal main body connection line×1
5V output, receiver and video cable×1
USB module (27×21×7MM)×1
GOPRO HERO 3/3+/4 video cable×1
Packing box×1
Optional parts-1080P 60FPS camera × 1
Optional parts-camera to pan/tilt video cable × 1
Mechanical/electronic characteristics:
Applicable camera type: GOPRO HERO 3/3+/4 and customized camera
Input power: 3S-6S Li (11V-26V)
Working current: 30mA (@25V) / 50mA (@12V)
Stall current: 350mA (@25V) / 700mA (@12V)
Attitude control accuracy: ±0.02 degrees
Maximum controllable speed
Rotation direction (PAN): ±200°/s
Pitch direction (TILT): ±200°/s
Rolling direction (ROLL): ±200°/s
Controllable rotation range
Rotation direction (PAN): ±330°
Tilt direction (TILT): -135° to +45°
Rolling direction (ROLL): ±48°
S-Bus/PPM/DSM receiver support
Working environment temperature: -20℃~+50℃
Maximum dimensions (length, width and height): 60 mm *75 mm *100mm
Assistant software installation requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Product manual:
This metal three-axis gimbal is an OEM-special customized model, and its full-featured attributes are 100% the same as Tarot 3DIII/TL3T01.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
