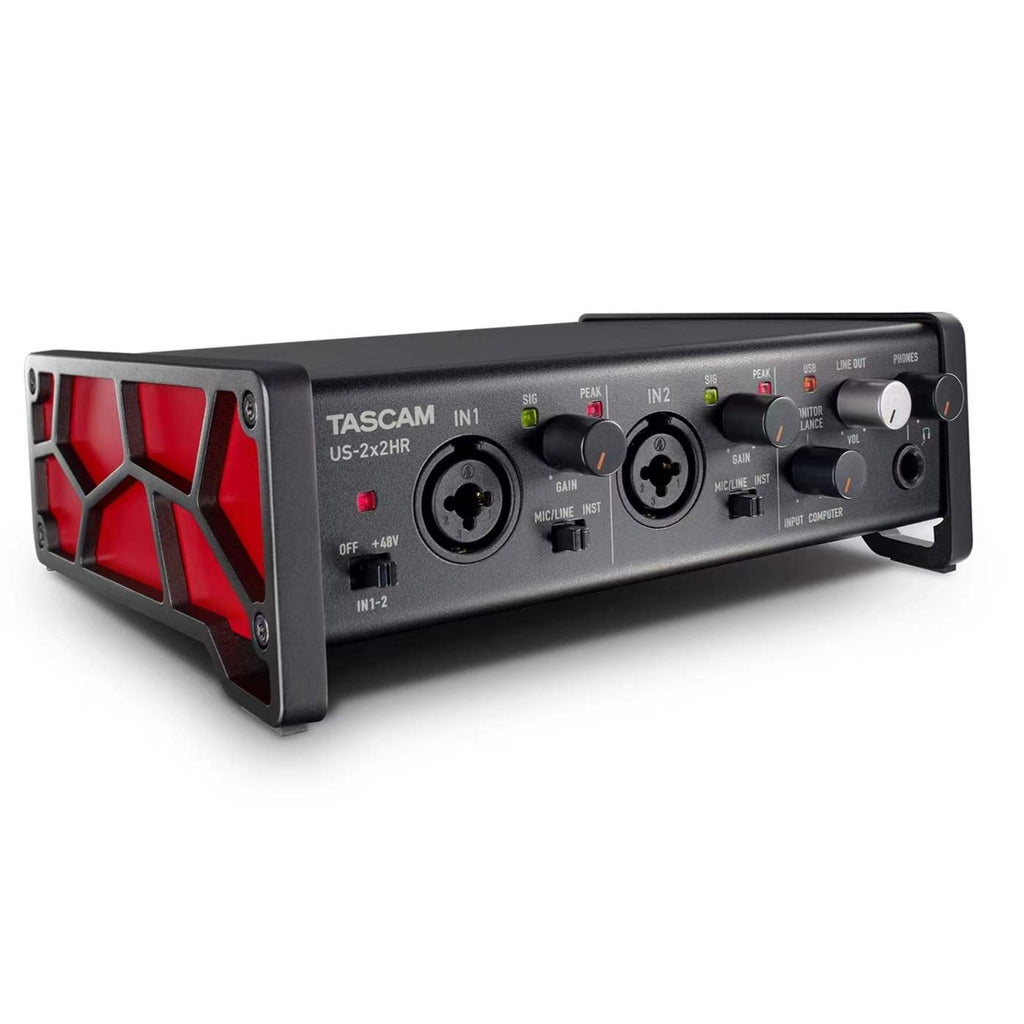

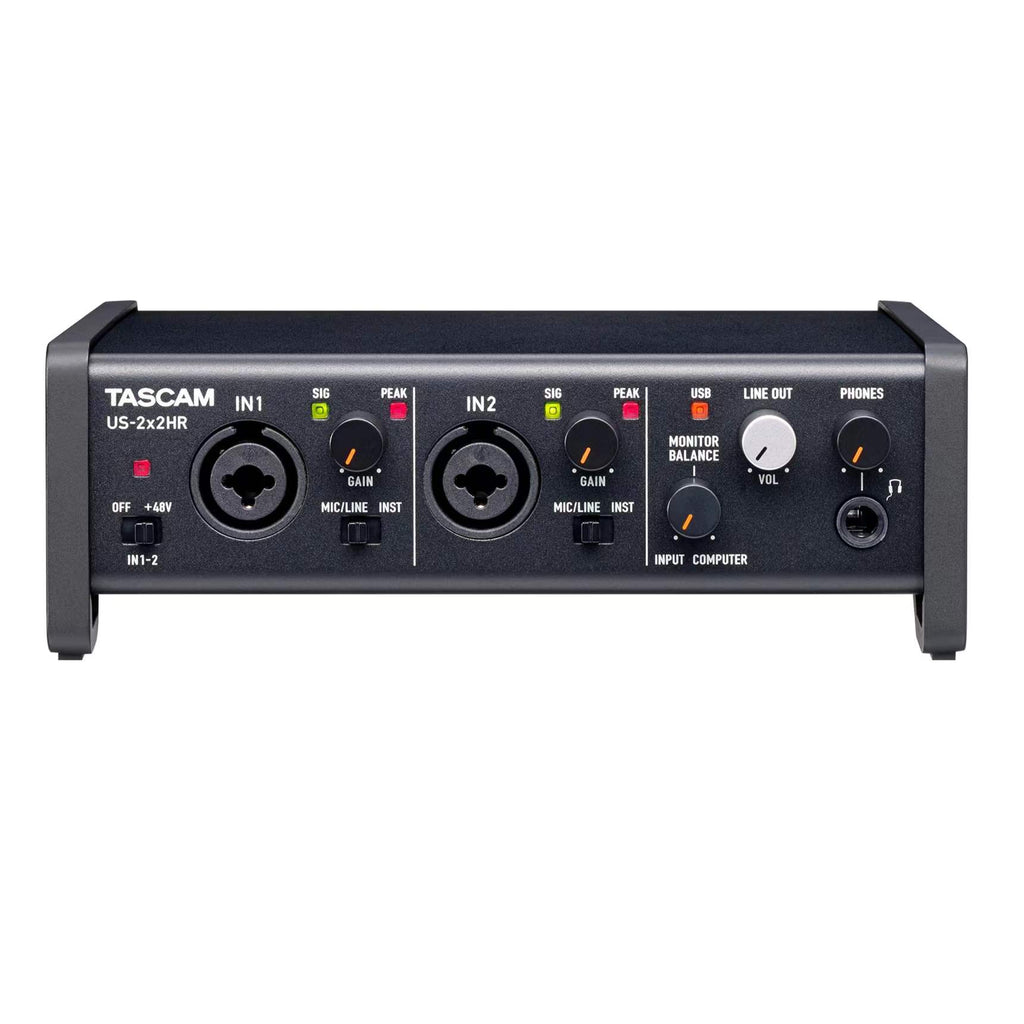

The US-2x2HR is equipped with 2 mic/line inputs with guitar inputs, supporting various music/multimedia production environments, such as simultaneous vocal/guitar recording, and high-quality recording for video production. This machine is also equipped with a USB-C port, which can be easily powered by USB bus power.

Built-in Ultra HDDA microphone preamplifier that supports 192kHz, bringing natural and clear sound quality.

According to the TASCAM policy, the US-HR series reproduces high resolution to be as close to the original sound as possible. The internally developed UItra HDDA microphone preamplifier combines a newly improved audio loop to enhance audio performance and provide the purest, low-noise sound.

Direct monitoring function with zero time delay

Direct monitoring diverges the signal before sending it to the computer, and realizes smooth and real-time monitoring during recording and performance without sound delay.

Create high-quality content using bundled software

he US-HR model is bundled with world-renowned software to improve the user’s production process. The core part of music production includes Steinberg's Cubase LE/Cubasis LE 3 DAW, which provides a free mass 30GB sound library containing more than 2,000 different instruments, and IK Multimedia's Sample Tank SE.

The US-HR model can also be subscribed for free for 3 months of Auto-Tune Unlimited with a complete set of industry standard pitch correction and vocal effects.

Podcast and live broadcast interface

US-2x2HR can be connected to a computer or smart phone to easily create podcasts or live broadcasts. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live broadcast. US-2x2HR supports OBS which is popular and widely used in the world.

Equipped with MIDI IN/OUT

The MIDI IN/OUT terminal allows other external devices (such as keyboards, drum machines, controllers, etc.) to be synchronized and controlled.

Compatible with iPad and other iOS devices

US-2x2HR can be used as an interface between iPad and other iOS devices.

New audio interface engine

Using our experience as one of the pioneers in the manufacture of USB audio interfaces, the stability of the local driver has been further realized. The size of the audio buffer can be set from 4 samples (only for windows) to provide the best performance for each different environment. While creating a low-latency environment, maximize the use of computer functions.

Sturdy metal housing

The US-HR model metal shell is not only sturdy and practical, but also durable, and the appearance design is also fashionable and eye-catching. In addition, all models are of adequate weight and will not move when wiring or disconnecting.

function list

2 in/2 out USB audio interface

Improved the TASCAM driver, the buffer size can be selected from 4 samples, thereby providing low latency and stability (Windows: TASCAM native driver)

Support up to 24bit/192kHz audio format

2 combined (XLR) inputs, equipped with Ultra-HDDA microphone preamplifier and +48V phantom power.

2 combo (TRS) line inputs with support for guitar input

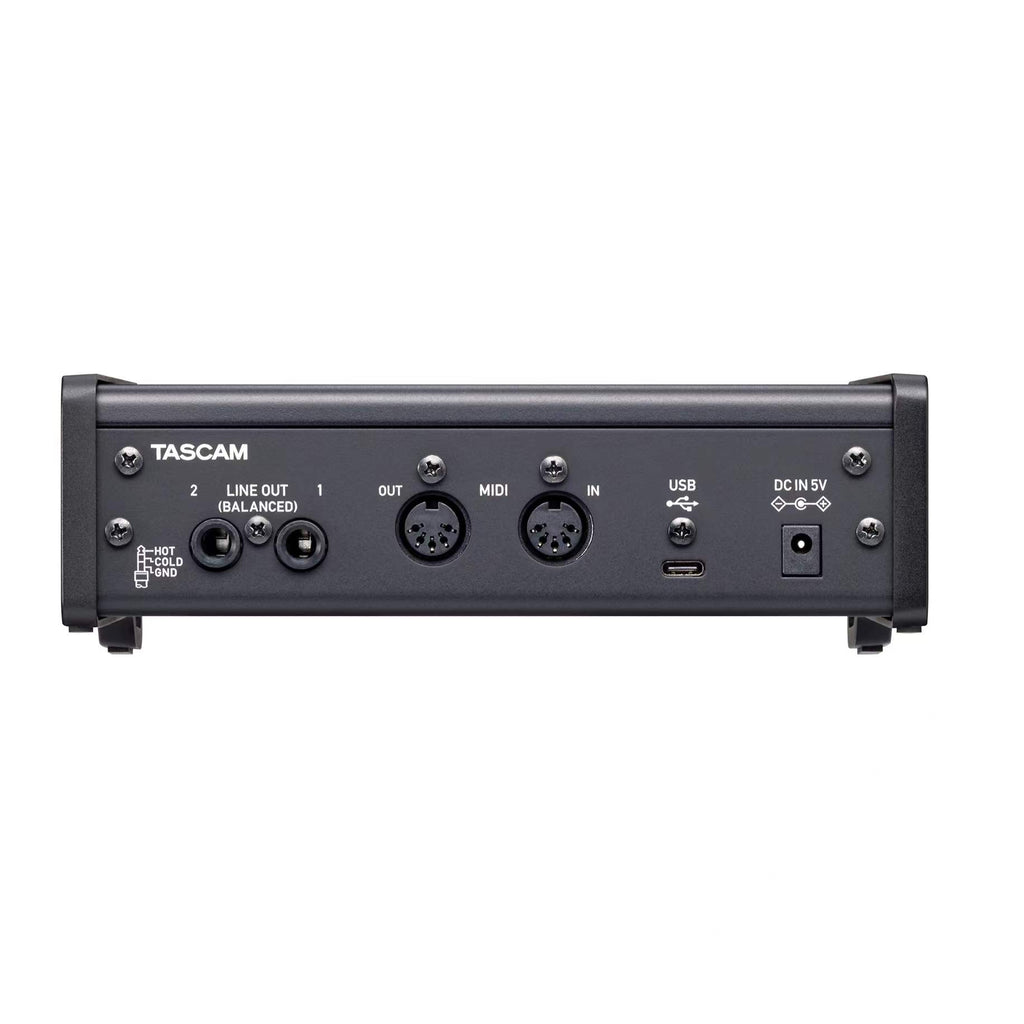

TRS line outputs 1-2.

Headphone output

Equipped with MIDI IN/OUT terminals.

USB Type-C connection (including USB Type-A-Type-C cable)

USB bus power supply

Direct monitoring with zero delay

Compatible with iPad and other iOS devices

Extensive bundled software

Steinberg Cubase LE, Cubasis LE 3

IK Multimedia Sample Tank 4 SE

Antares AUTO-TUNE UNLIMITED (free use for 3 months)

Verified operation on major DAWs (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)

Stereo/mono optional loopback function (Windows, Mac, iOS, iPadOS)

Support OBS

Contained items

US-2x2HR

USB cable (Type-A-Type-C)

DAW software installation guide

DAW plug-in software installation guide

User manual (including warranty card)
